Power Window Motor

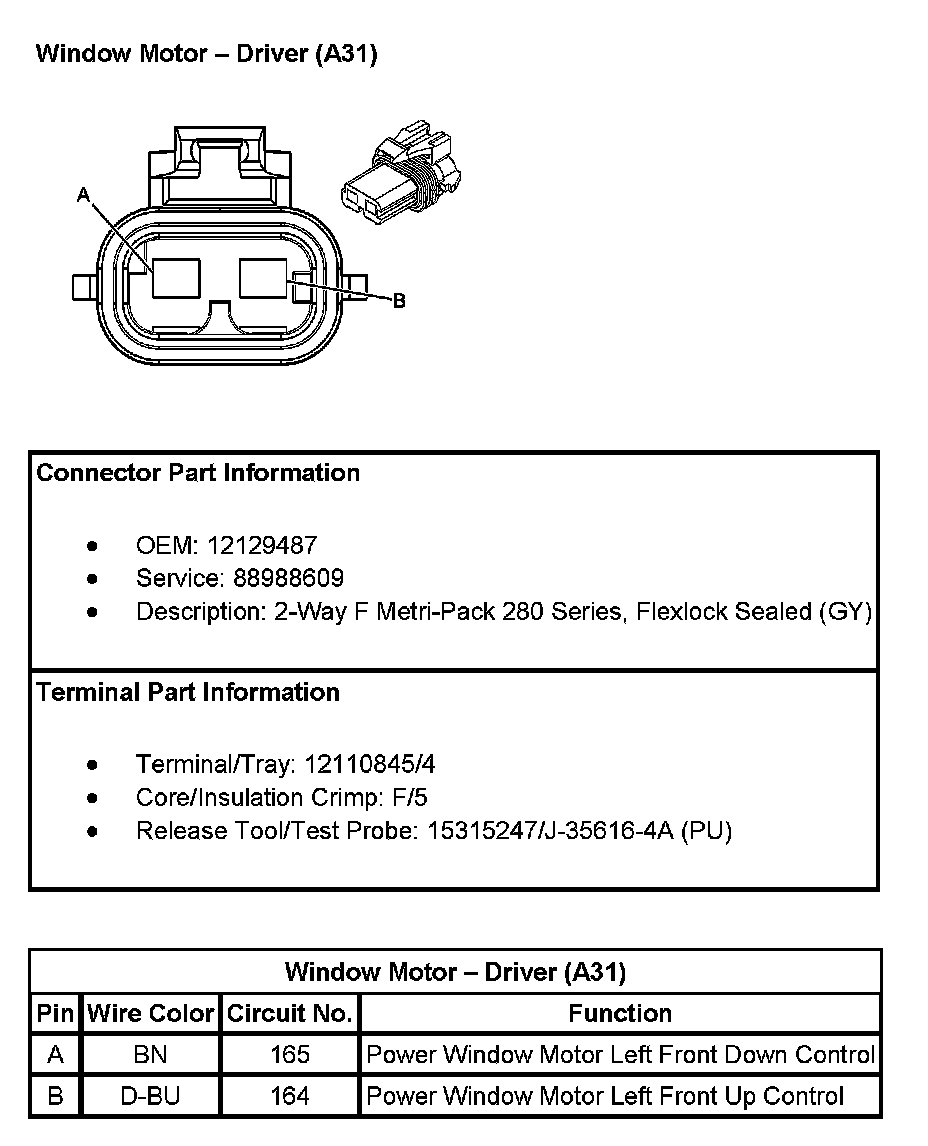

Window Motor - Driver (With RPO Code A31):

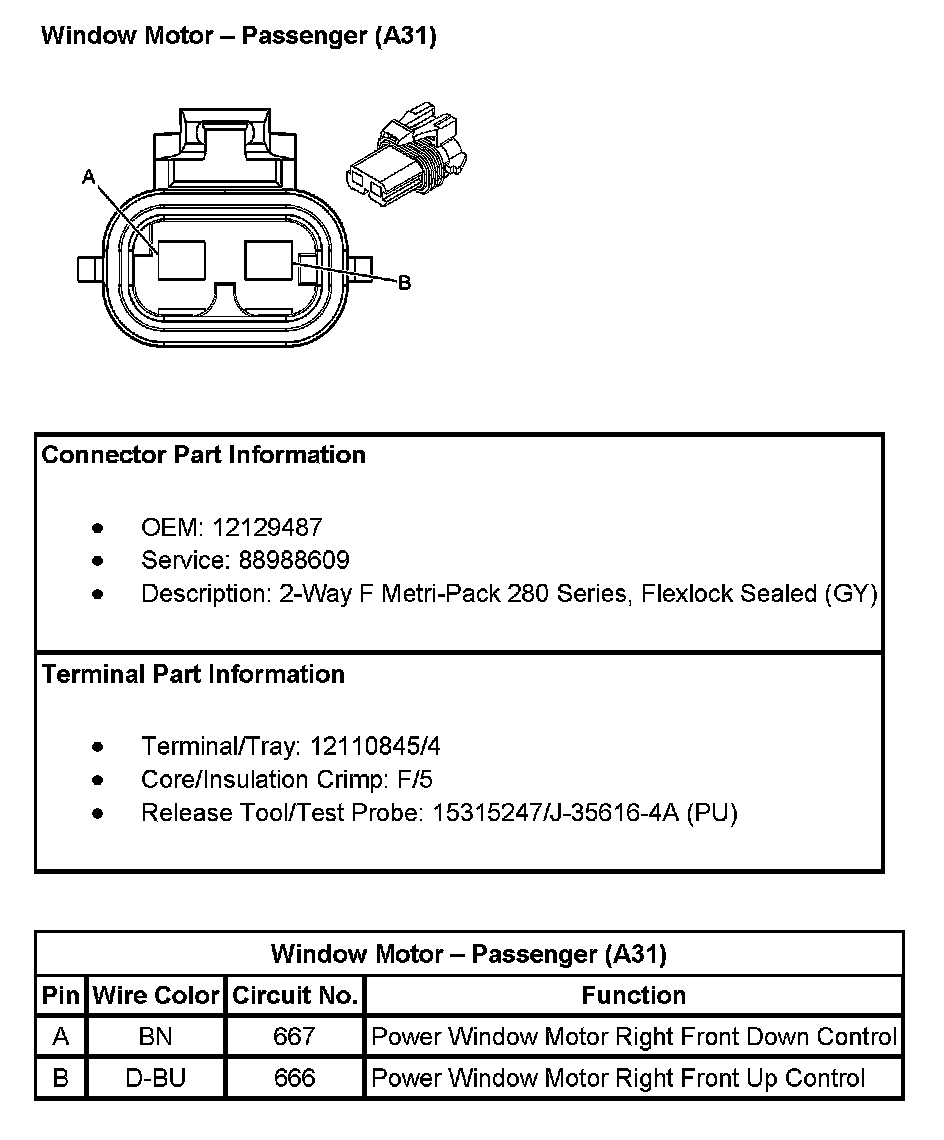

Window Motor - Passenger (With RPO Code A31):



Driver Door:



Front Passenger Door:
