Fluid Pressure Sensor/Switch, A/T

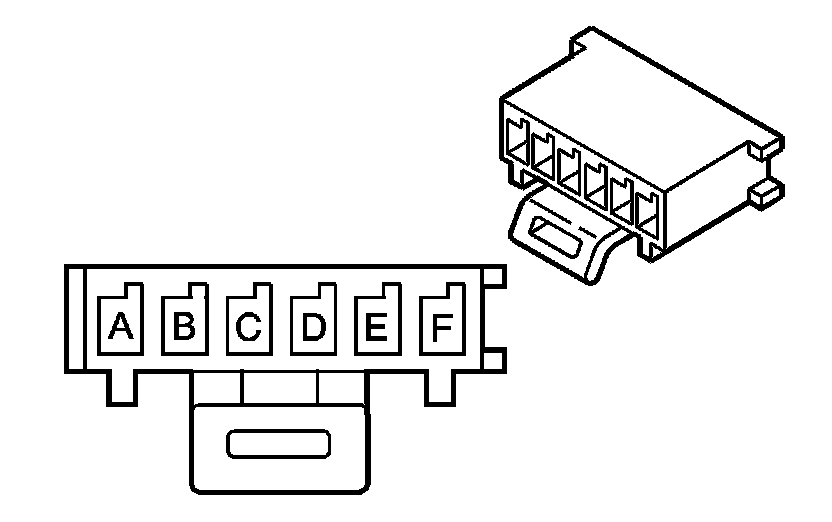

Automatic Transmission Internal Connector End Views

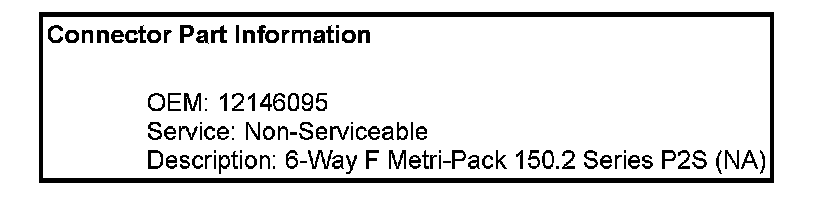

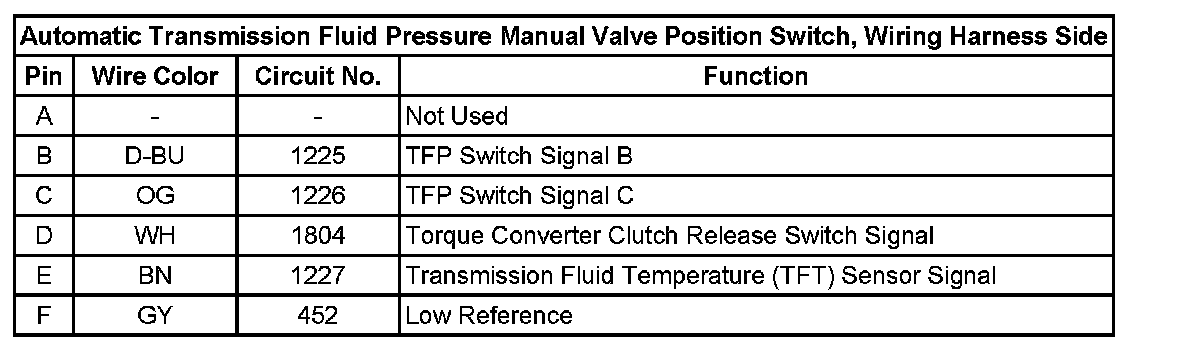

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side:
