Control Assembly, HVAC



HVAC Connector End Views

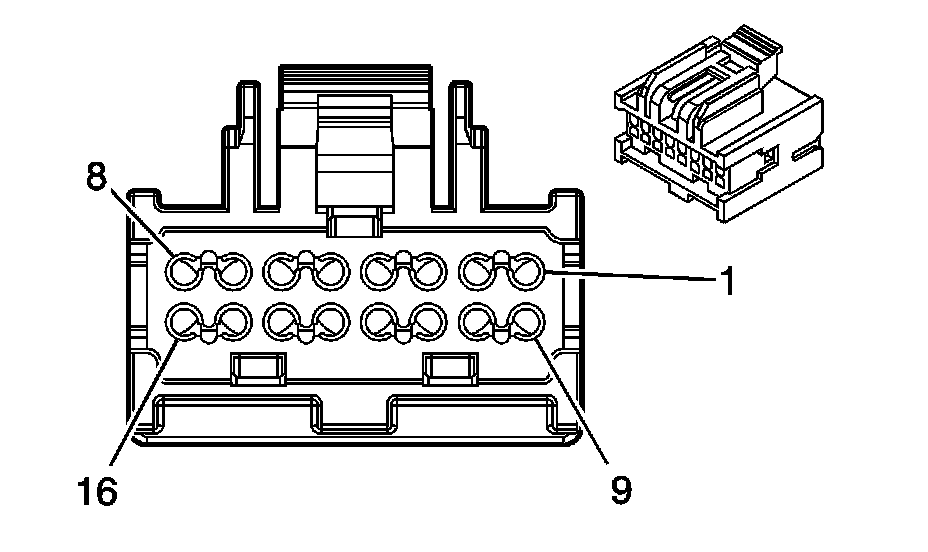

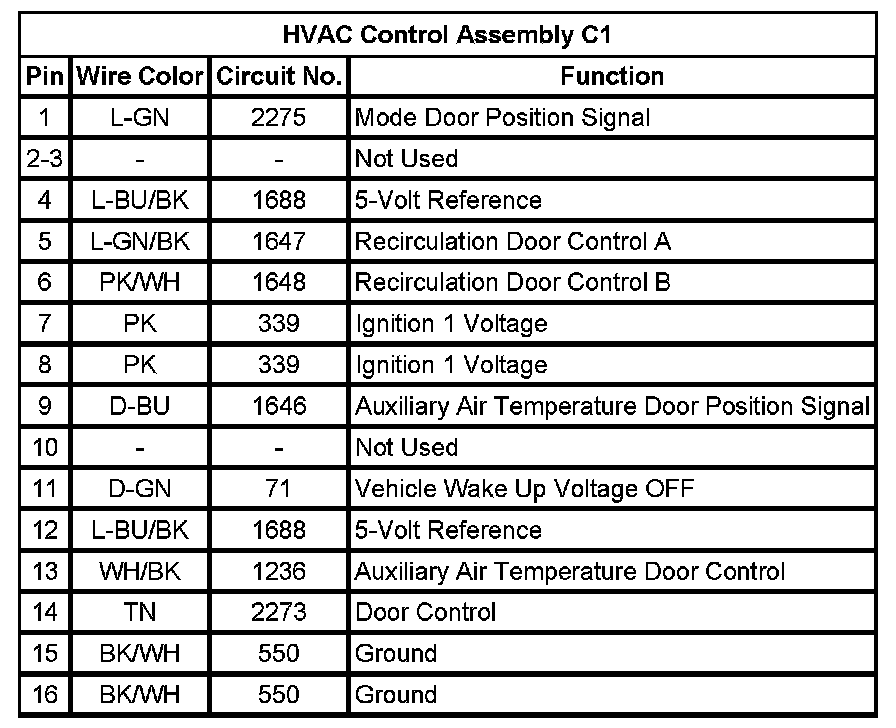

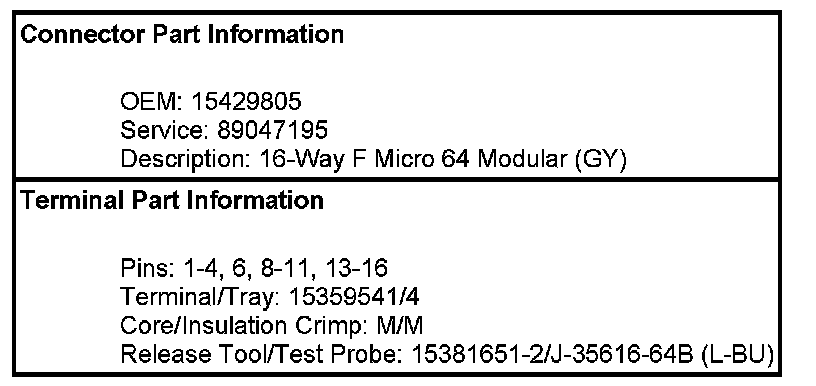

HVAC Control Assembly C1

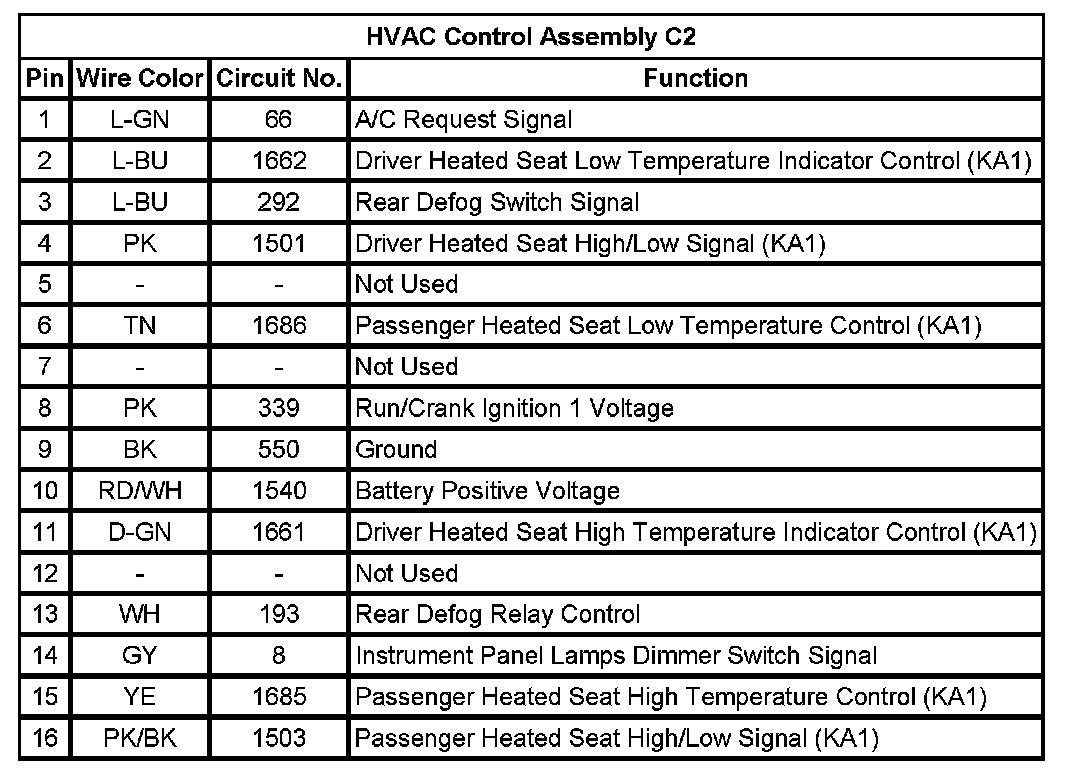

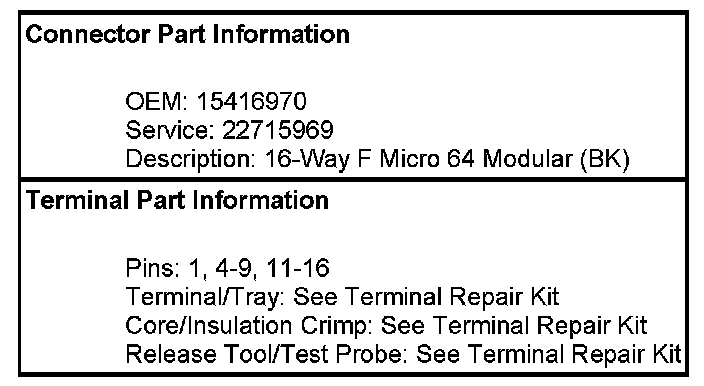

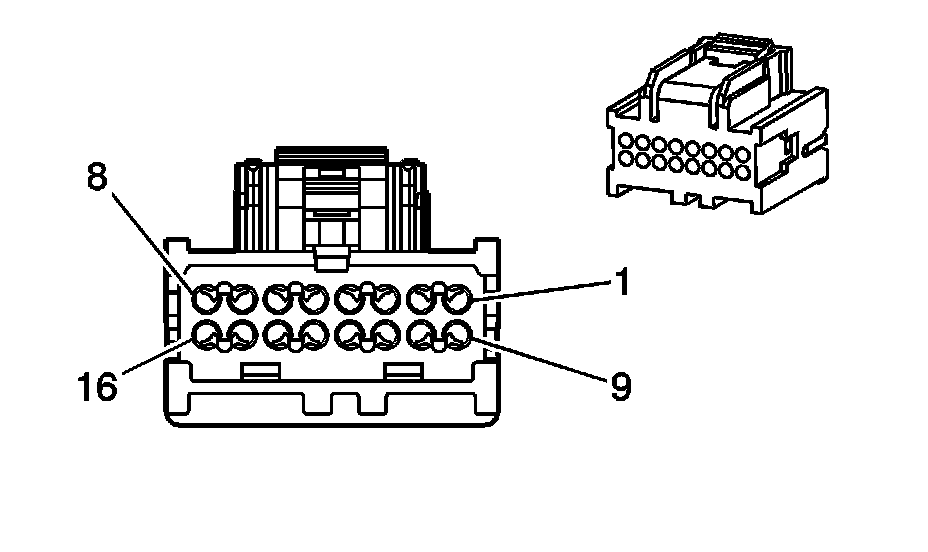

HVAC Control Assembly C2

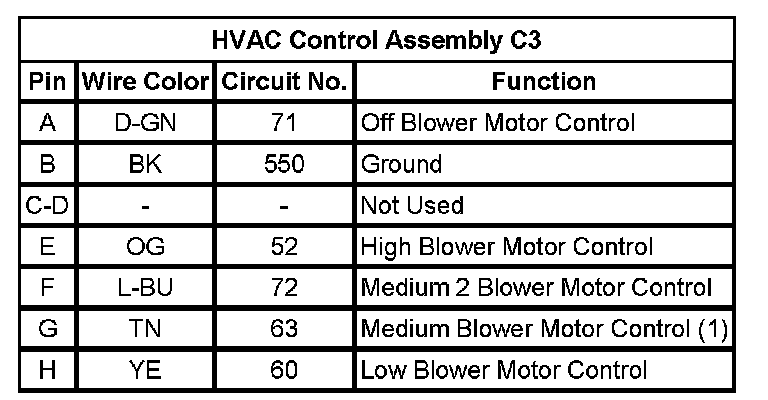

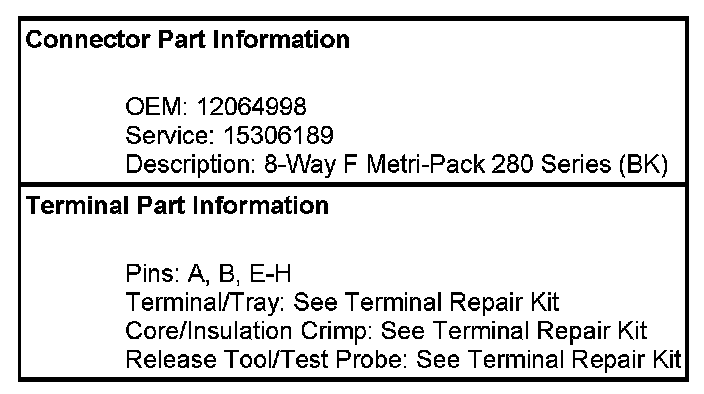

HVAC Control Assembly C3
