System Diagram

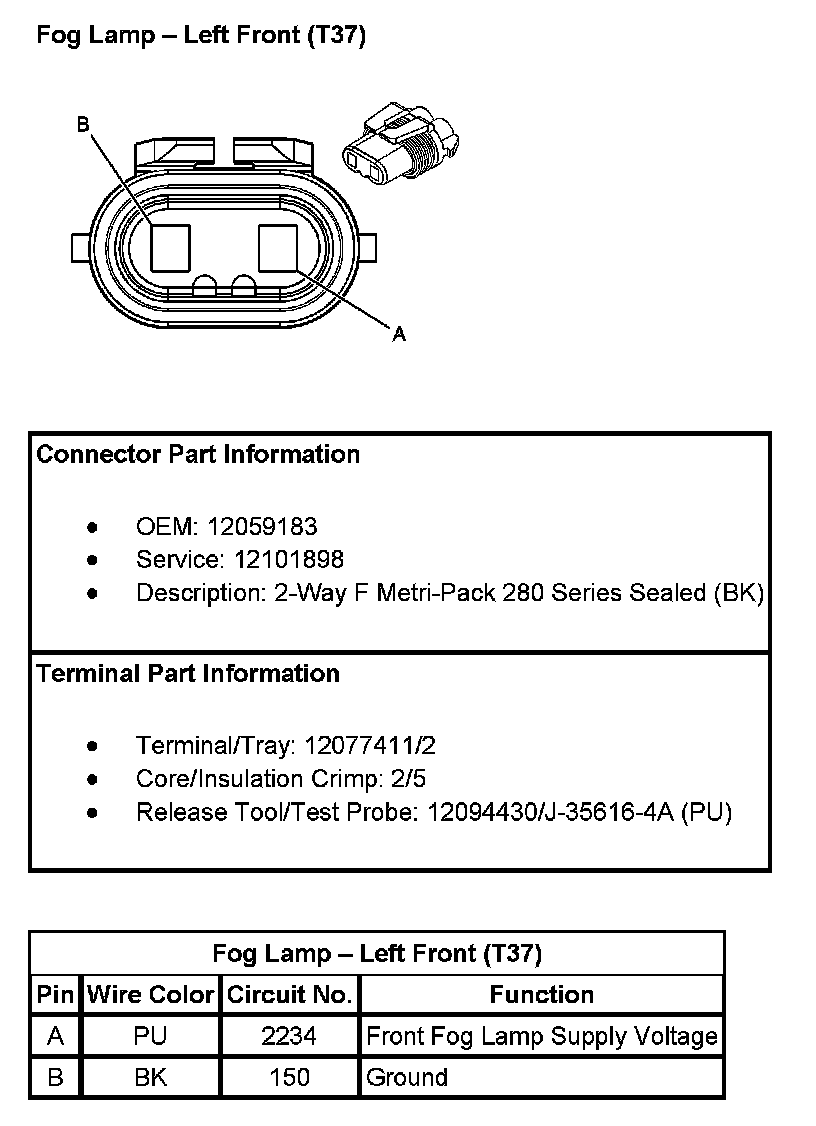

Fog Lamp - Left Front (With RPO Code T37):

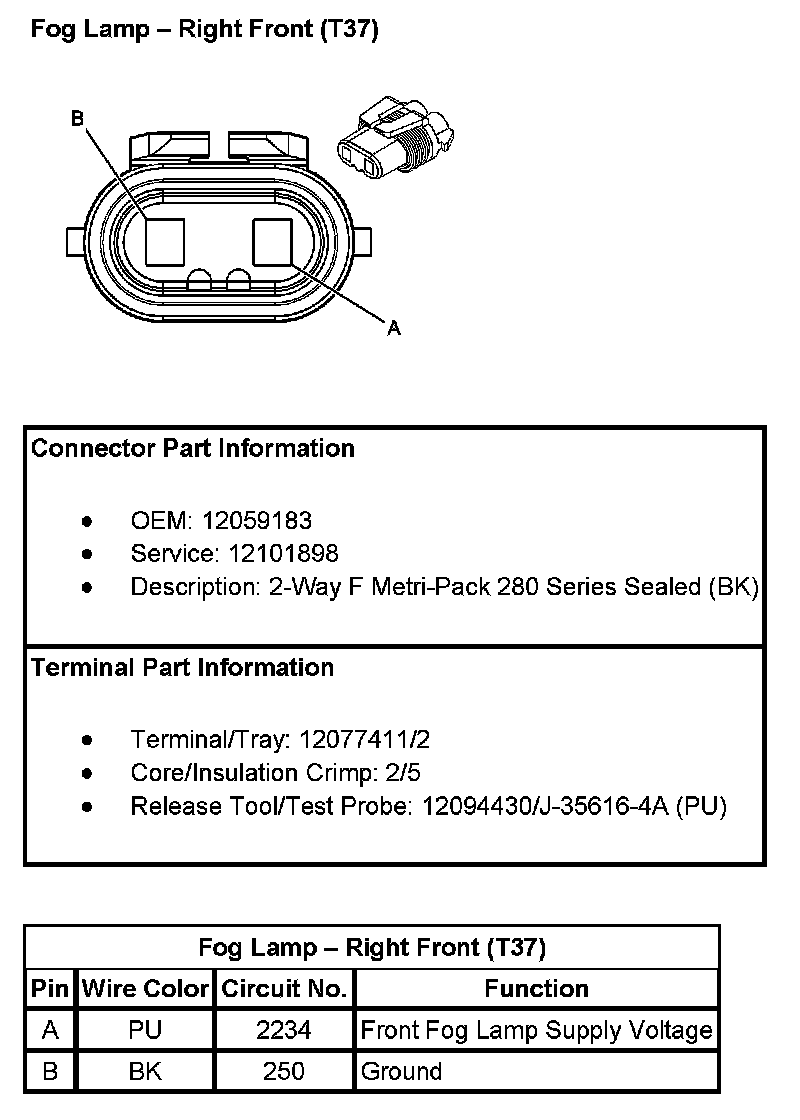

Fog Lamp - Right Front (With RPO Code T37):
