Fuel Injector



Engine Controls Connector End Views

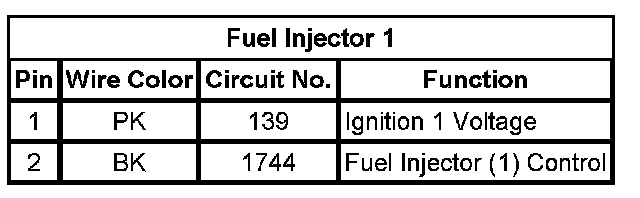

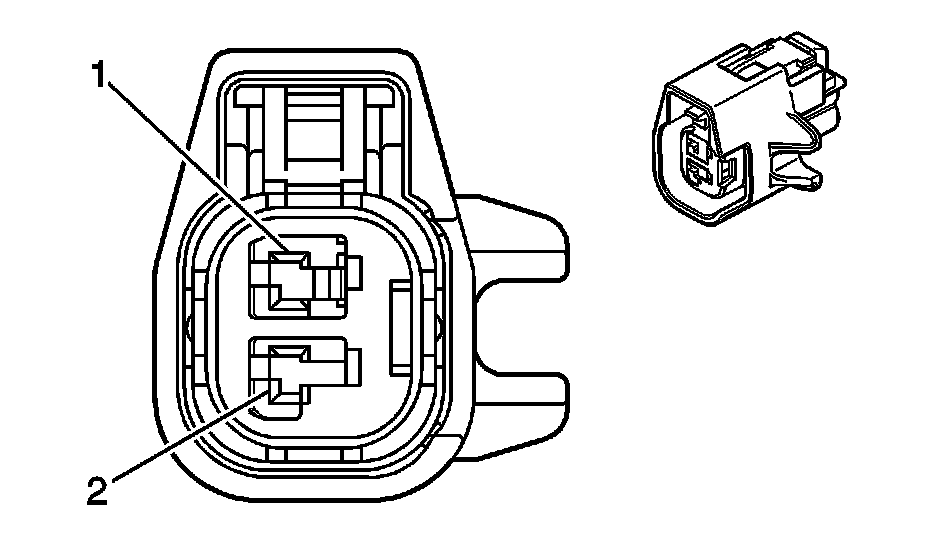

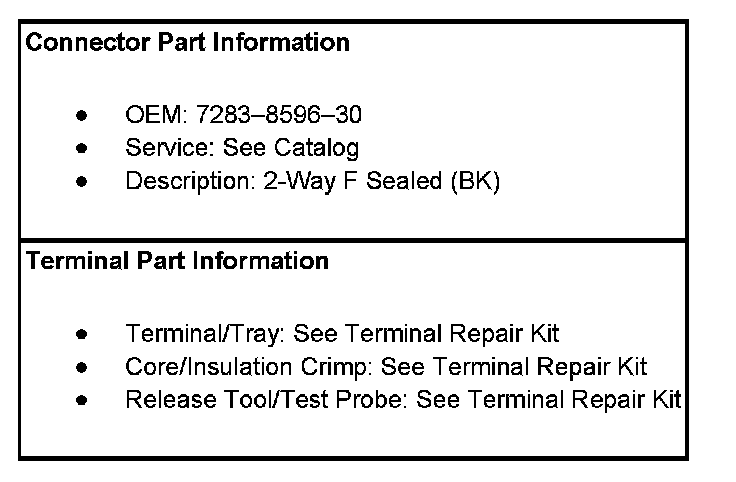

Fuel Injector 1

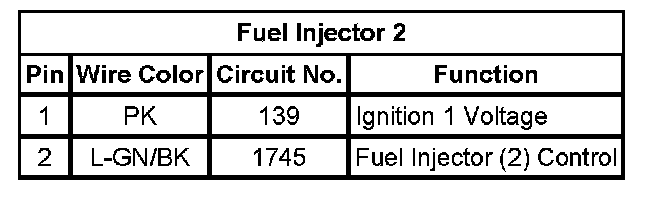

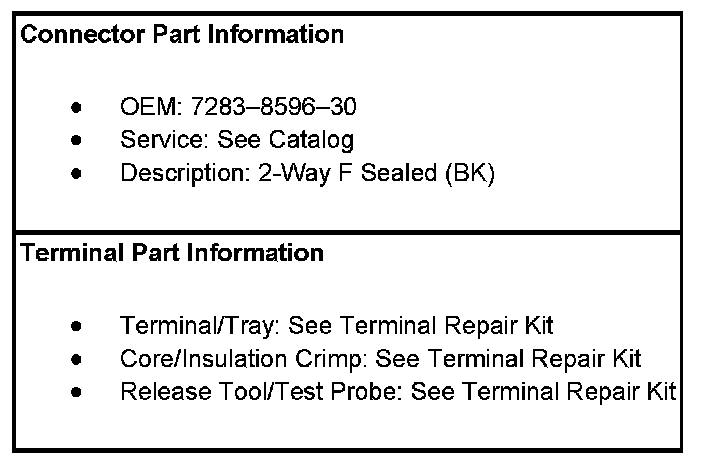

Fuel Injector 2

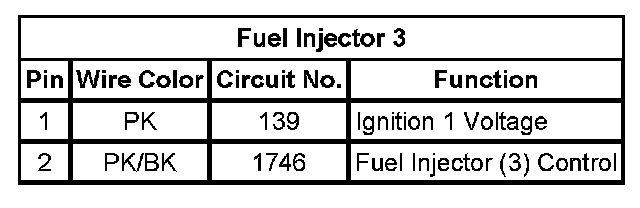

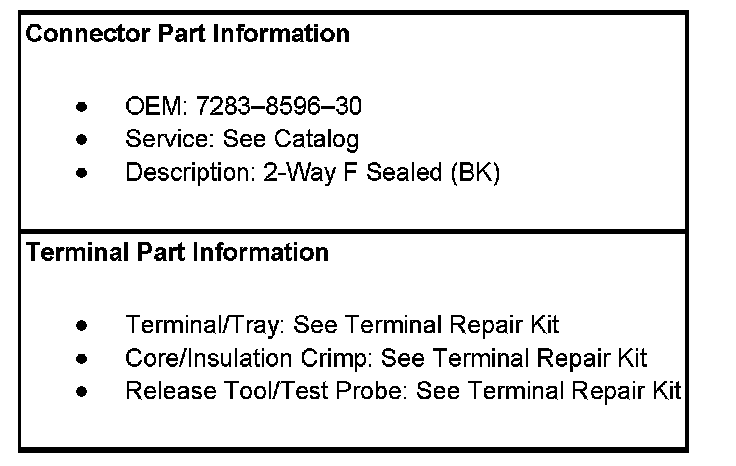

Fuel Injector 3

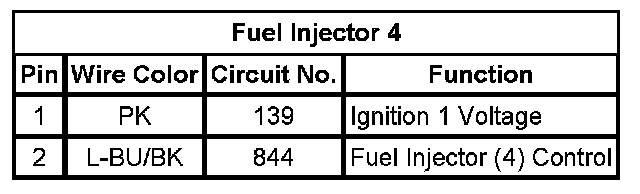

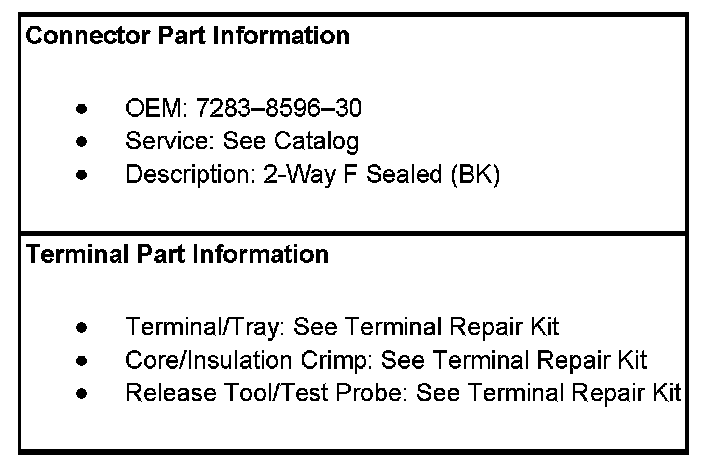

Fuel Injector 4
