Ignition Coil



Engine Controls Connector End Views

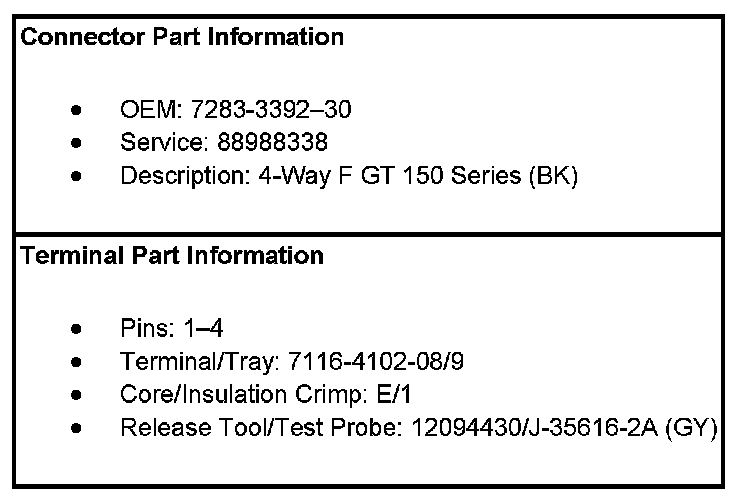

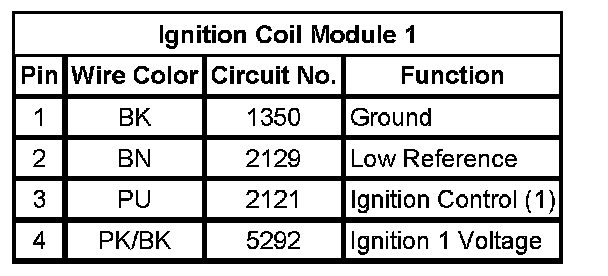

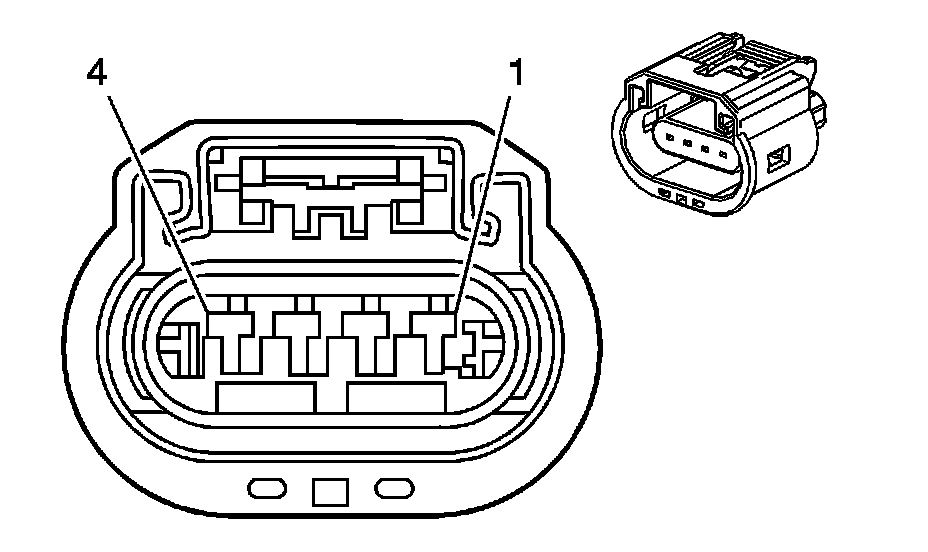

Ignition Coil Module 1

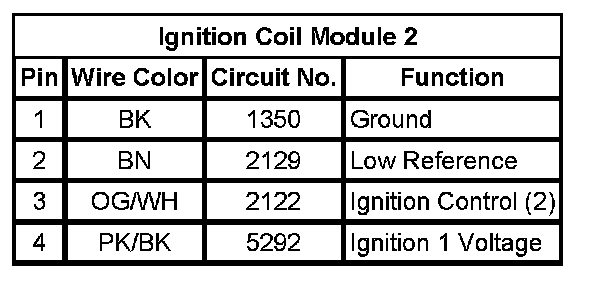

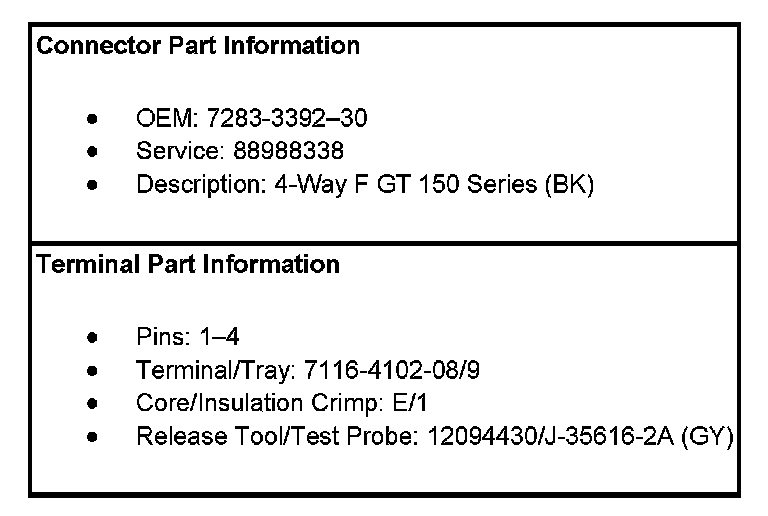

Ignition Coil Module 2

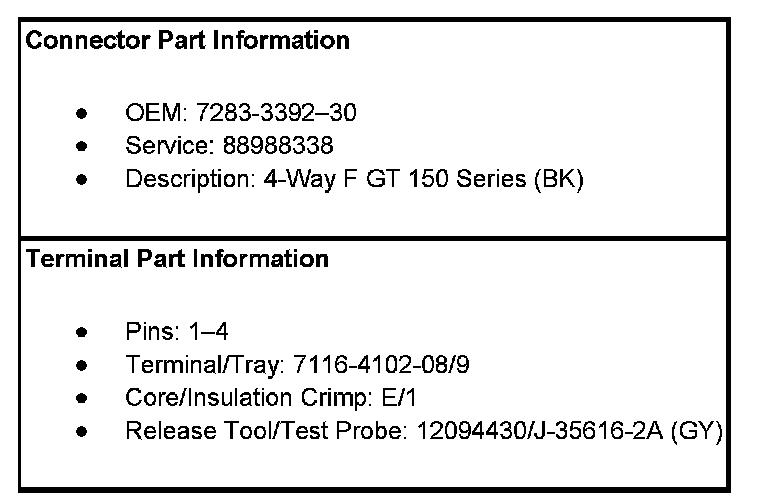

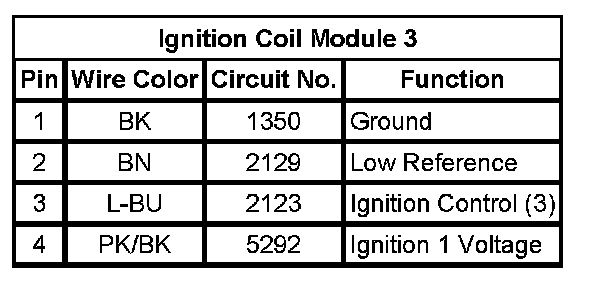

Ignition Coil Module 3

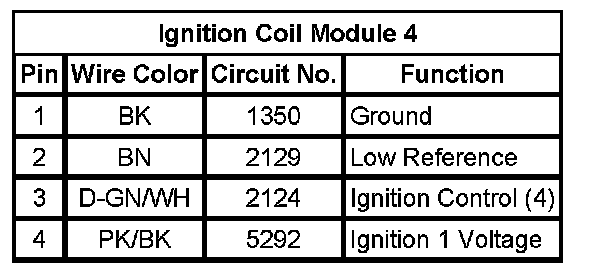

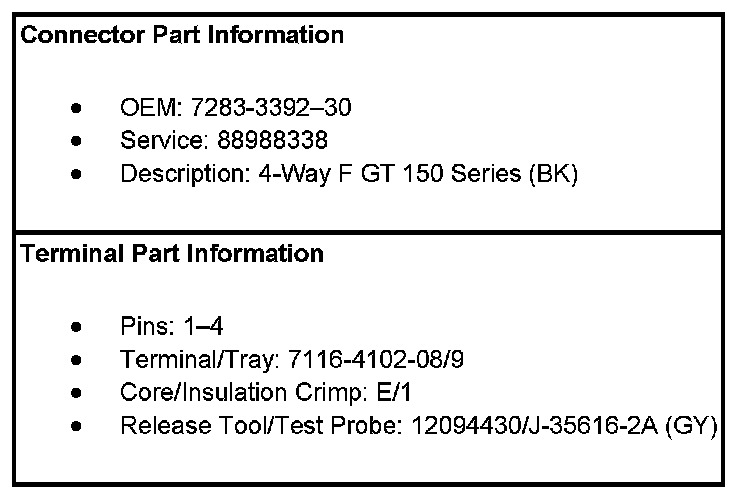

Ignition Coil Module 4
