System Diagram

Inside Rearview Mirror (With RPO Codes UE1 & DD8):

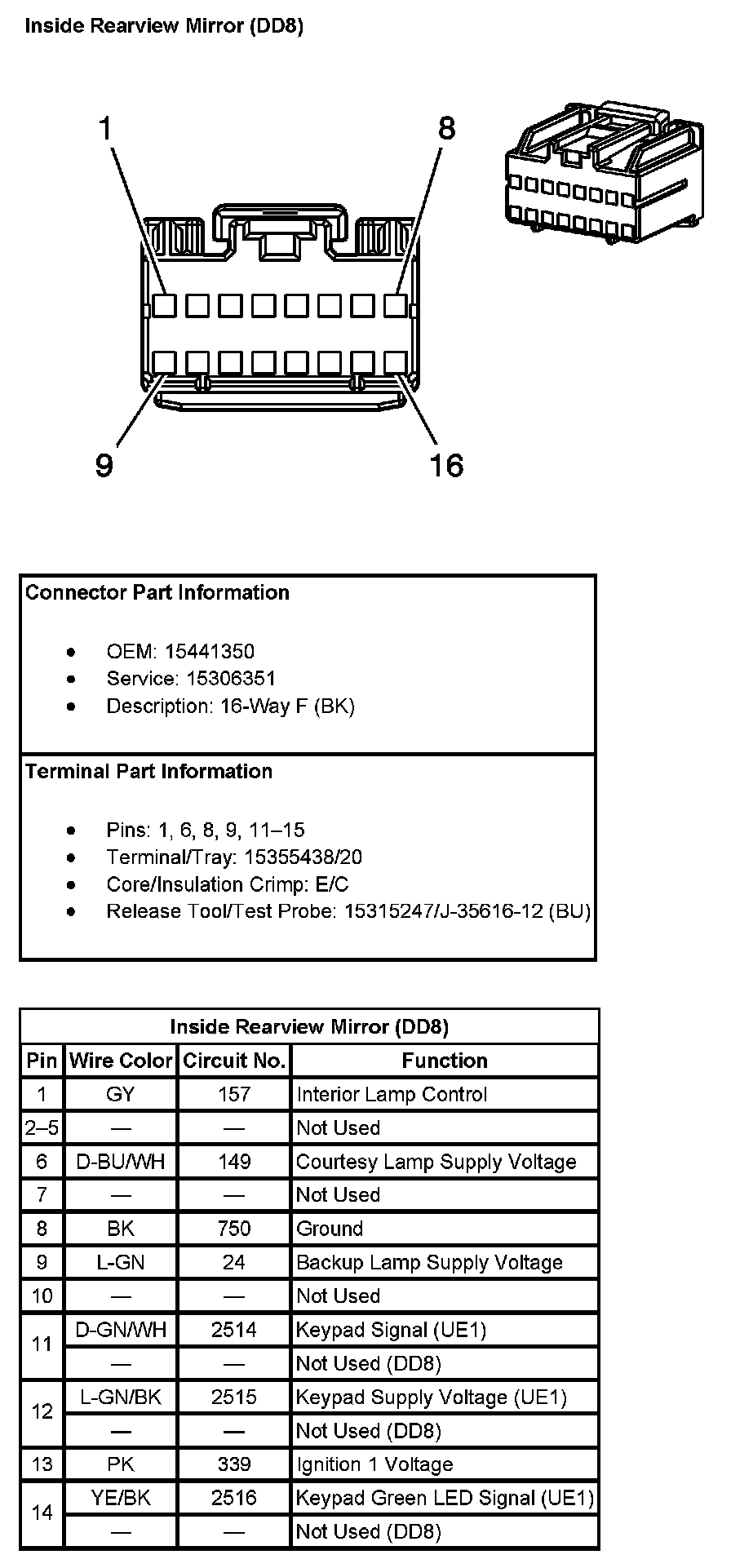

Inside Rearview Mirror (With RPO Code DD8) (Pin 1 To 14):

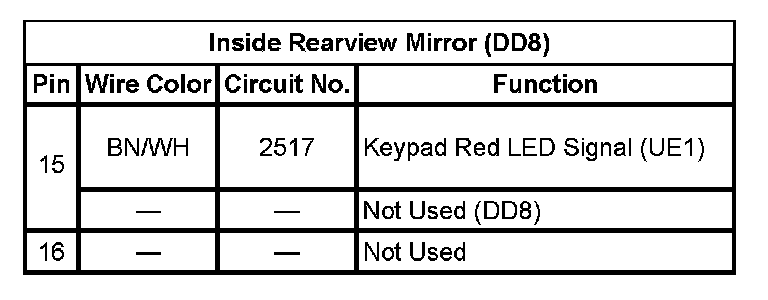

Inside Rearview Mirror (With RPO Code DD8) (Pin 15 To 16):
