Seat Temperature Control Module

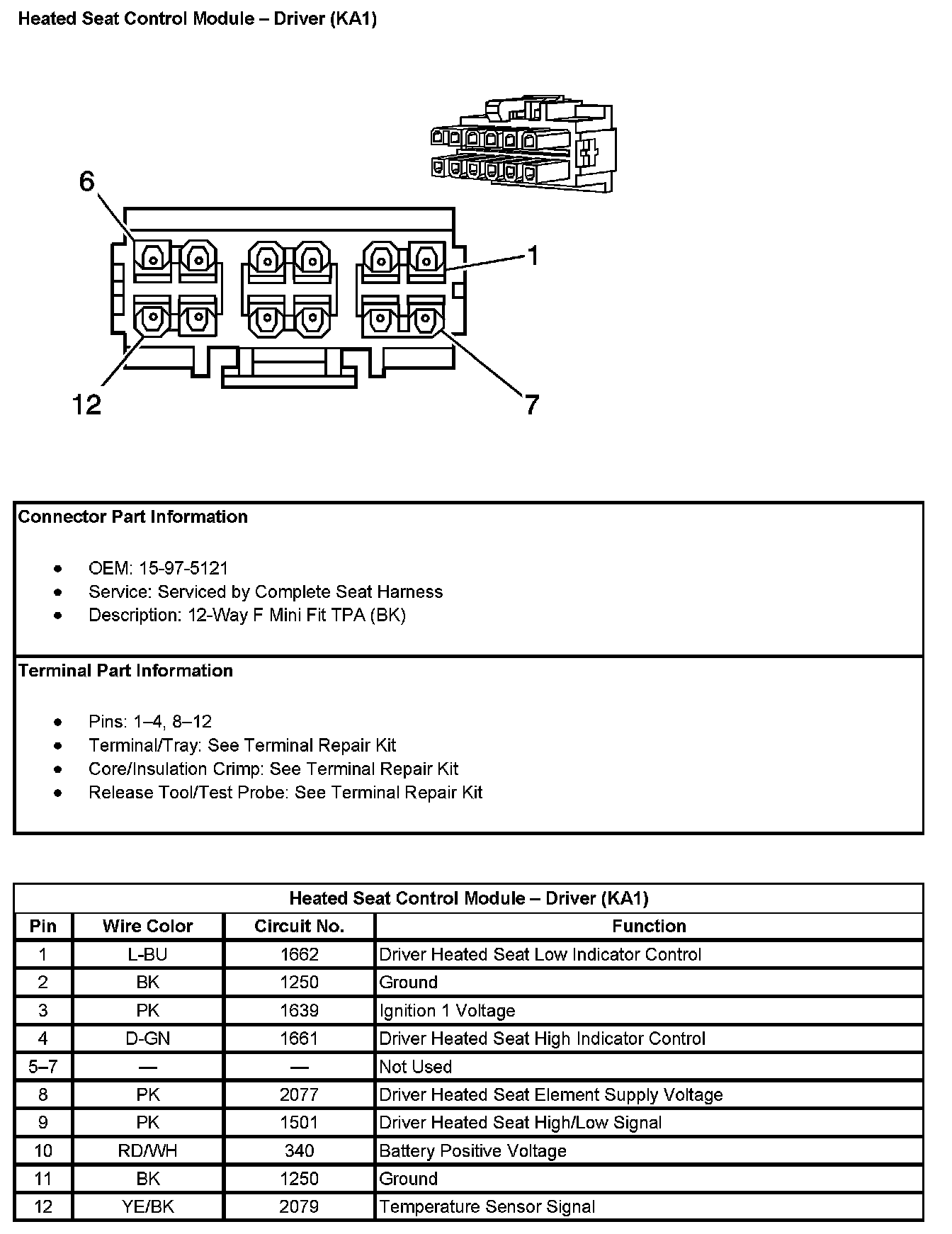

Heated Seat Control Module - Driver (With RPO Code KA1):

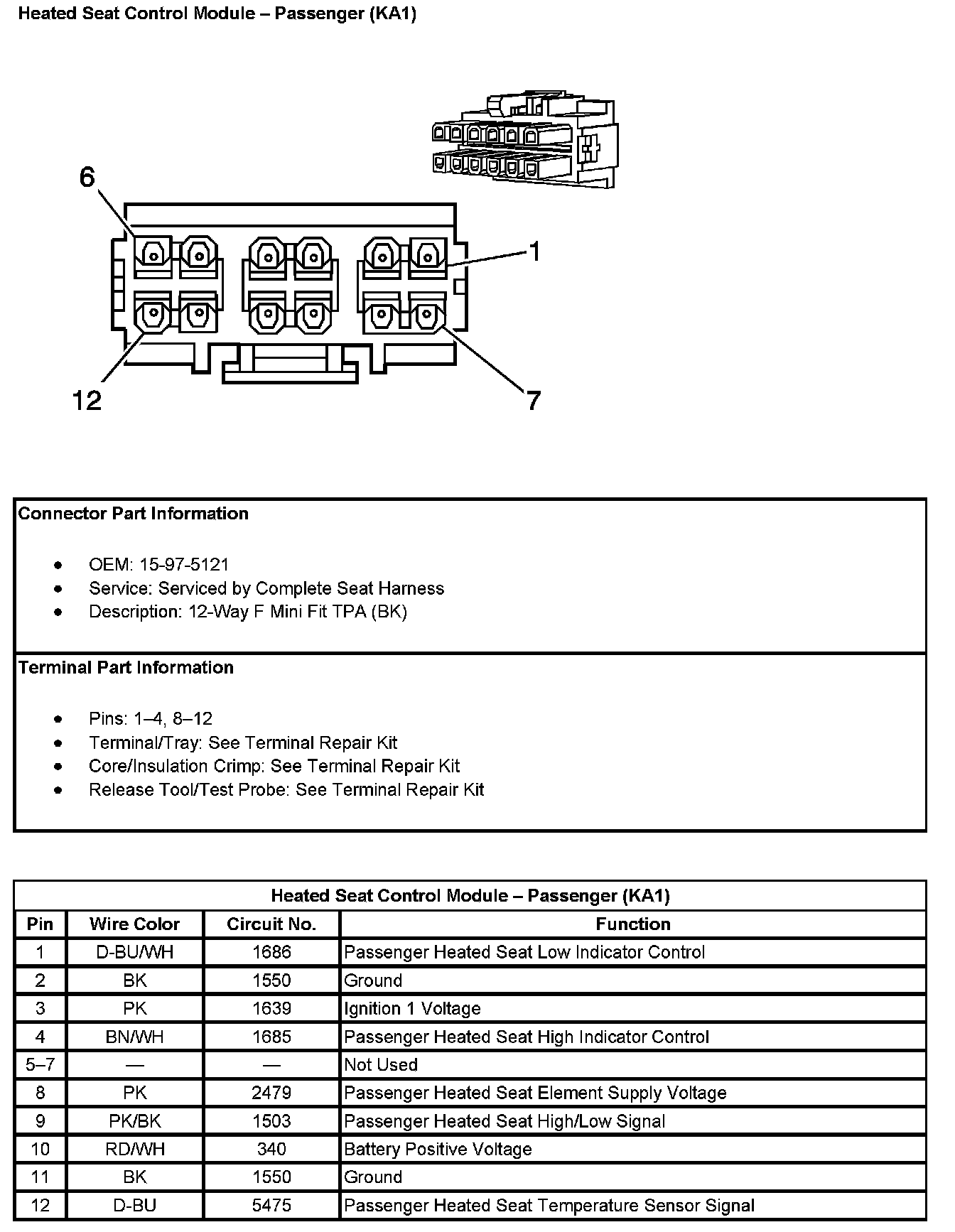

Heated Seat Control Module - Passenger (With RPO Code KA1):
