Underhood Fuse Block

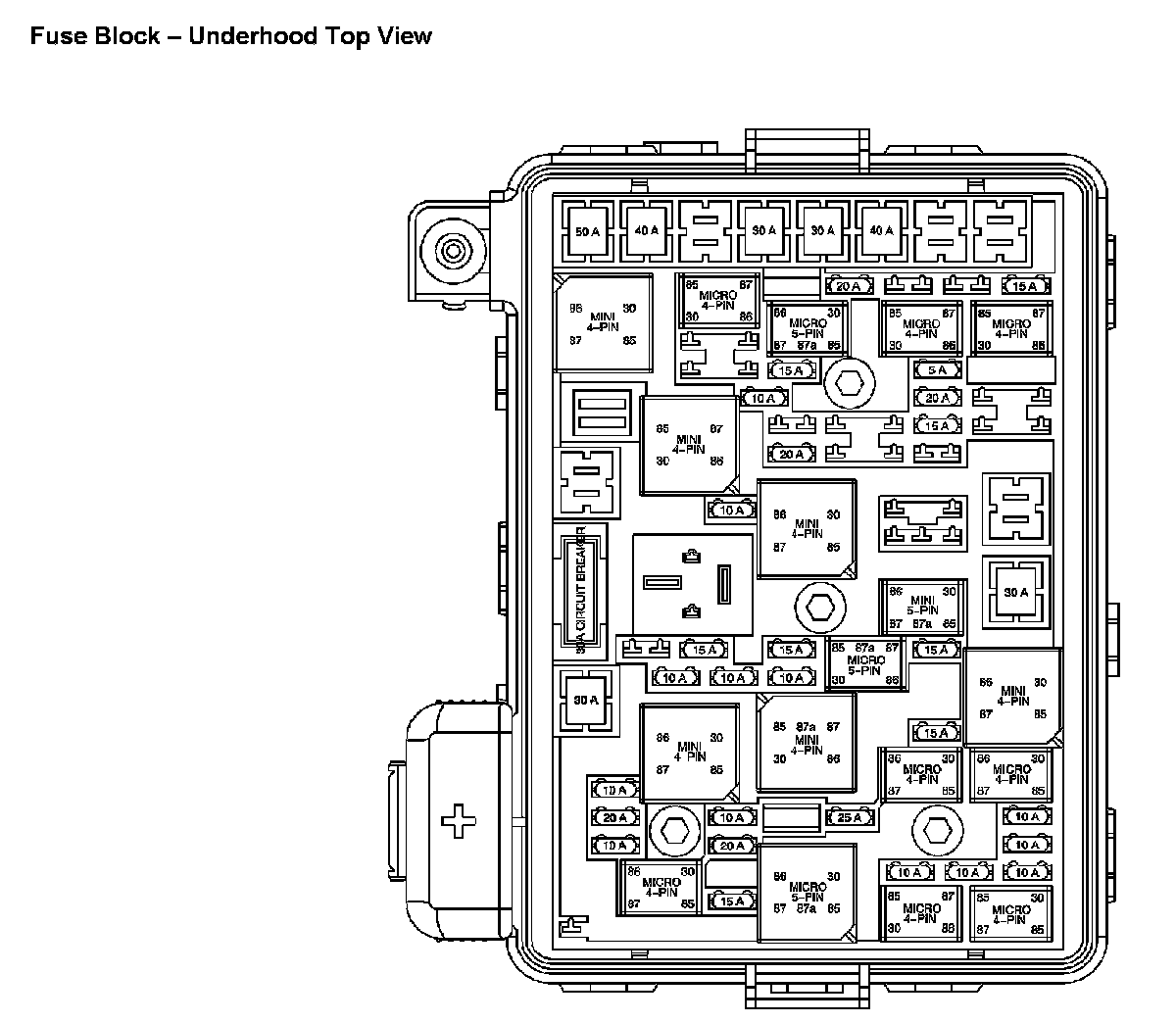

Fuse Block - Underhood Top View:

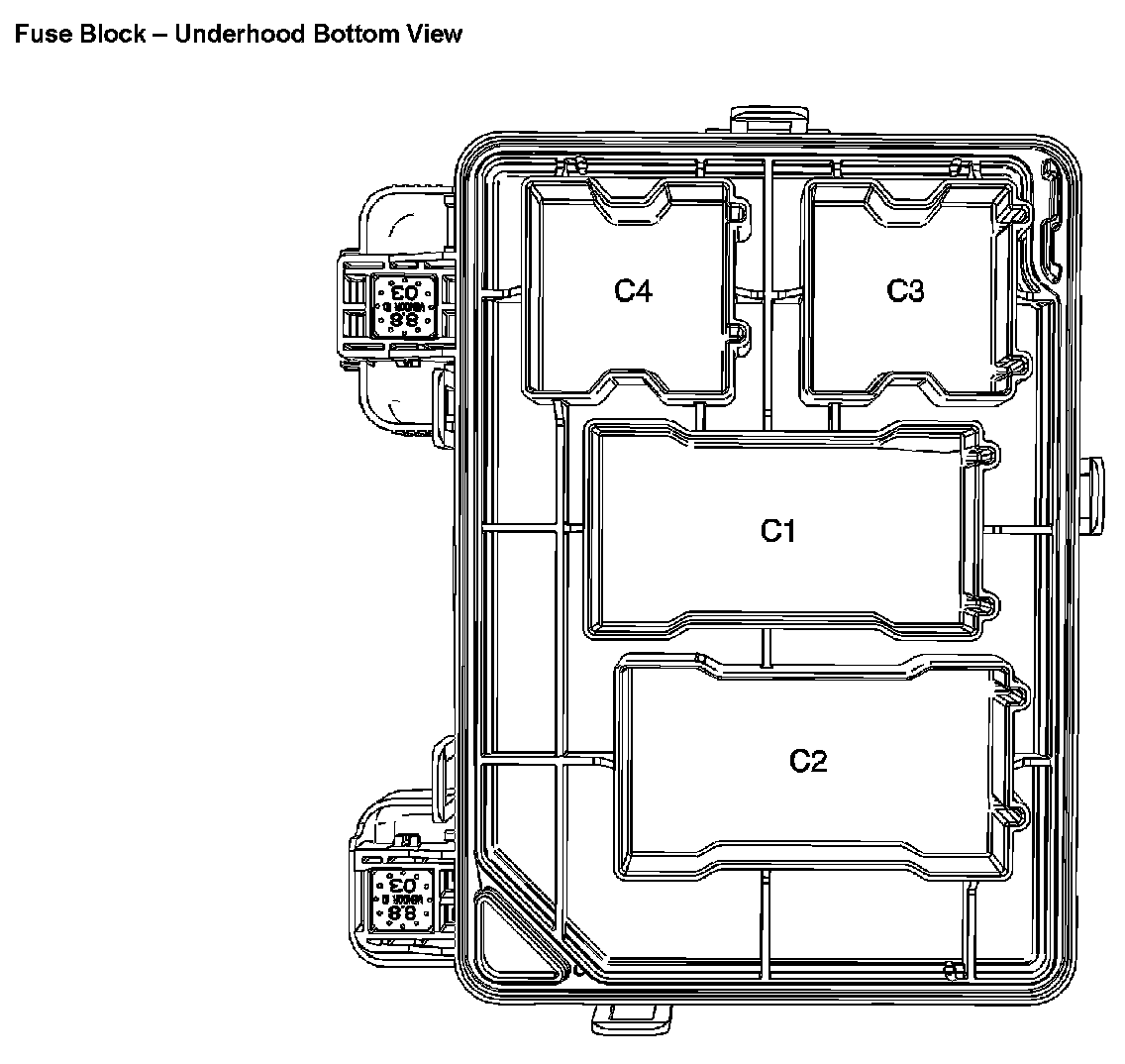

Fuse Block - Underhood Bottom View:

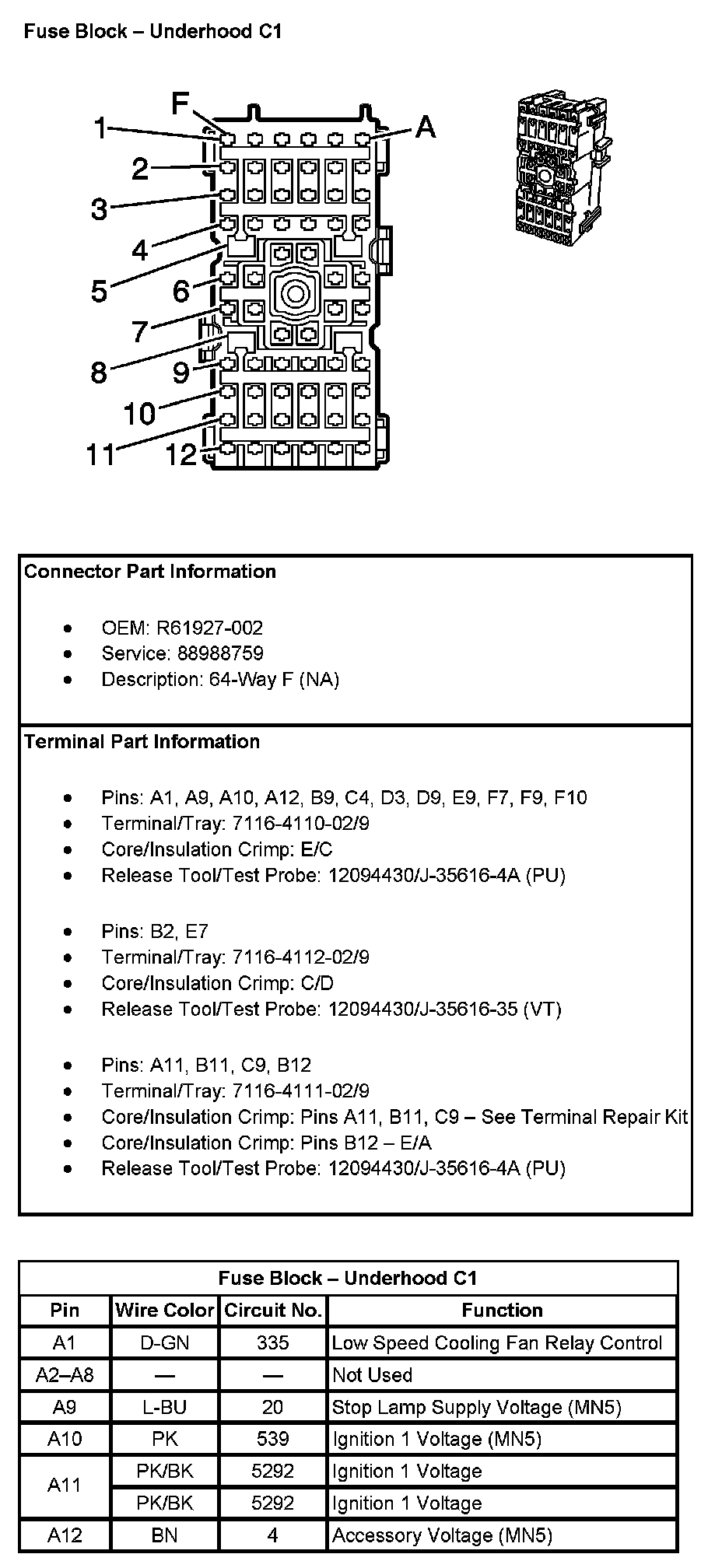

Fuse Block - Underhood C1 (Pin A1 To A12):

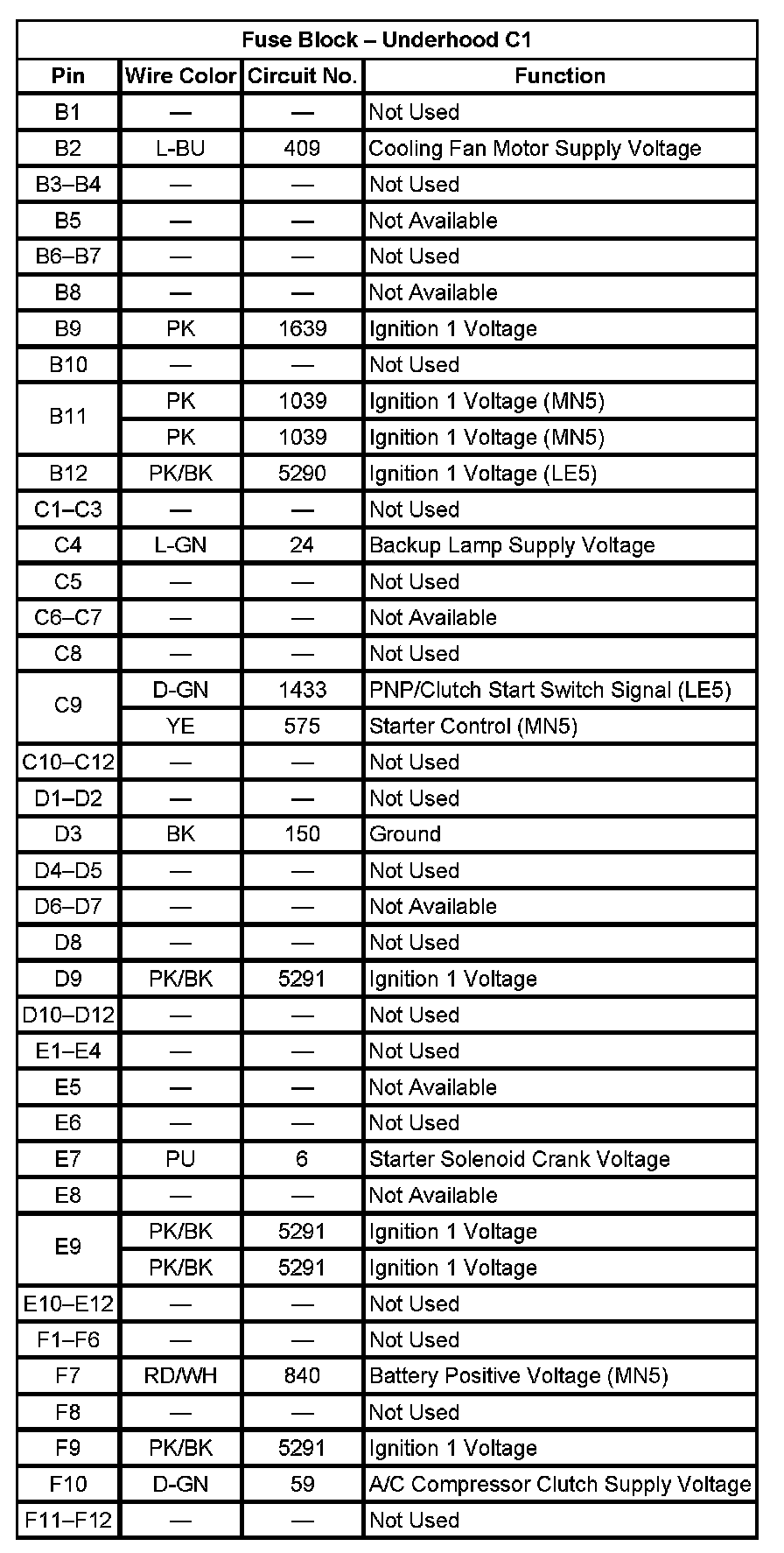

Fuse Block - Underhood C1 (Pin B1 To F12):

Fuse Block - Underhood C2:

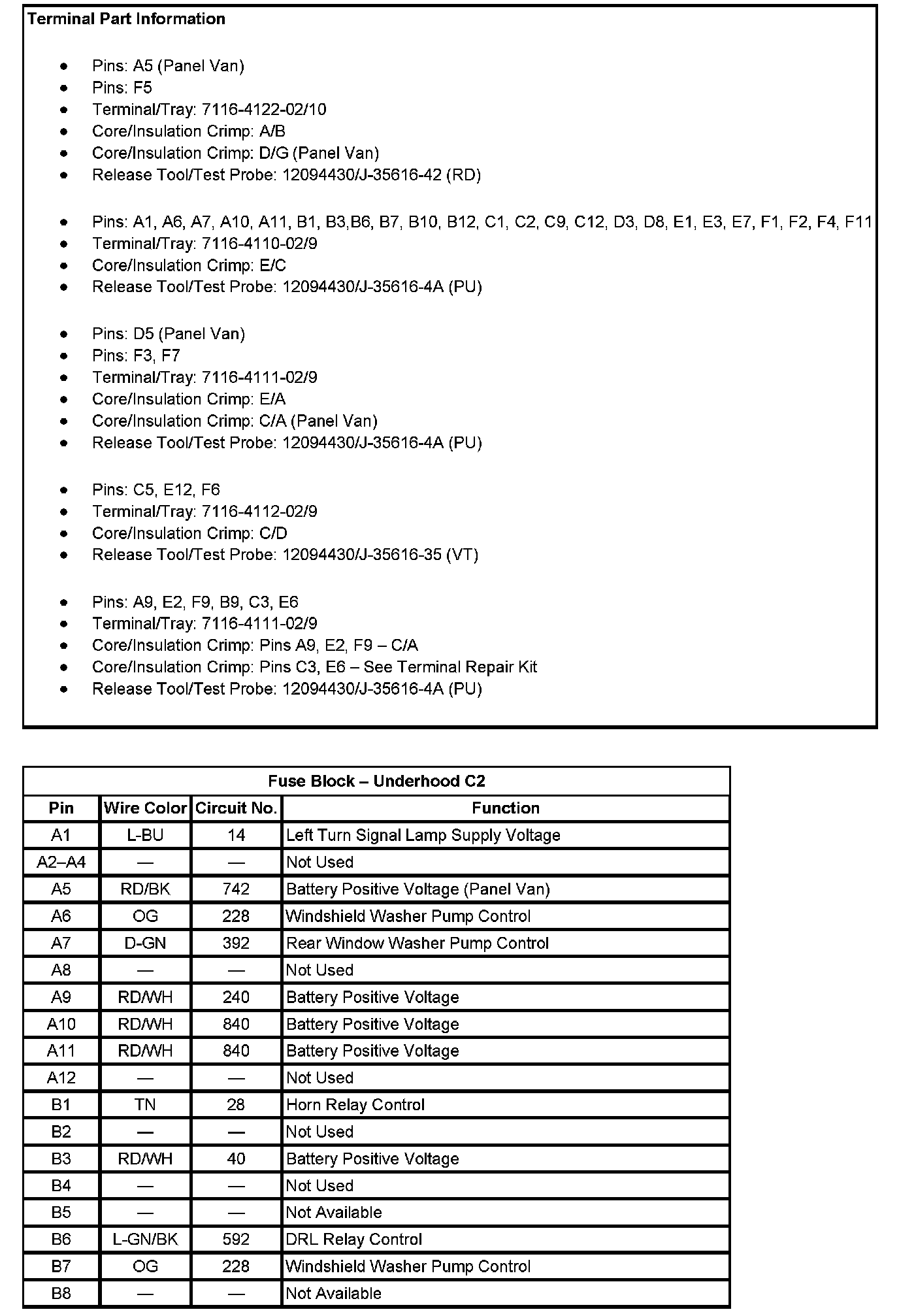

Fuse Block - Underhood C2 (Pin A1 To B8):

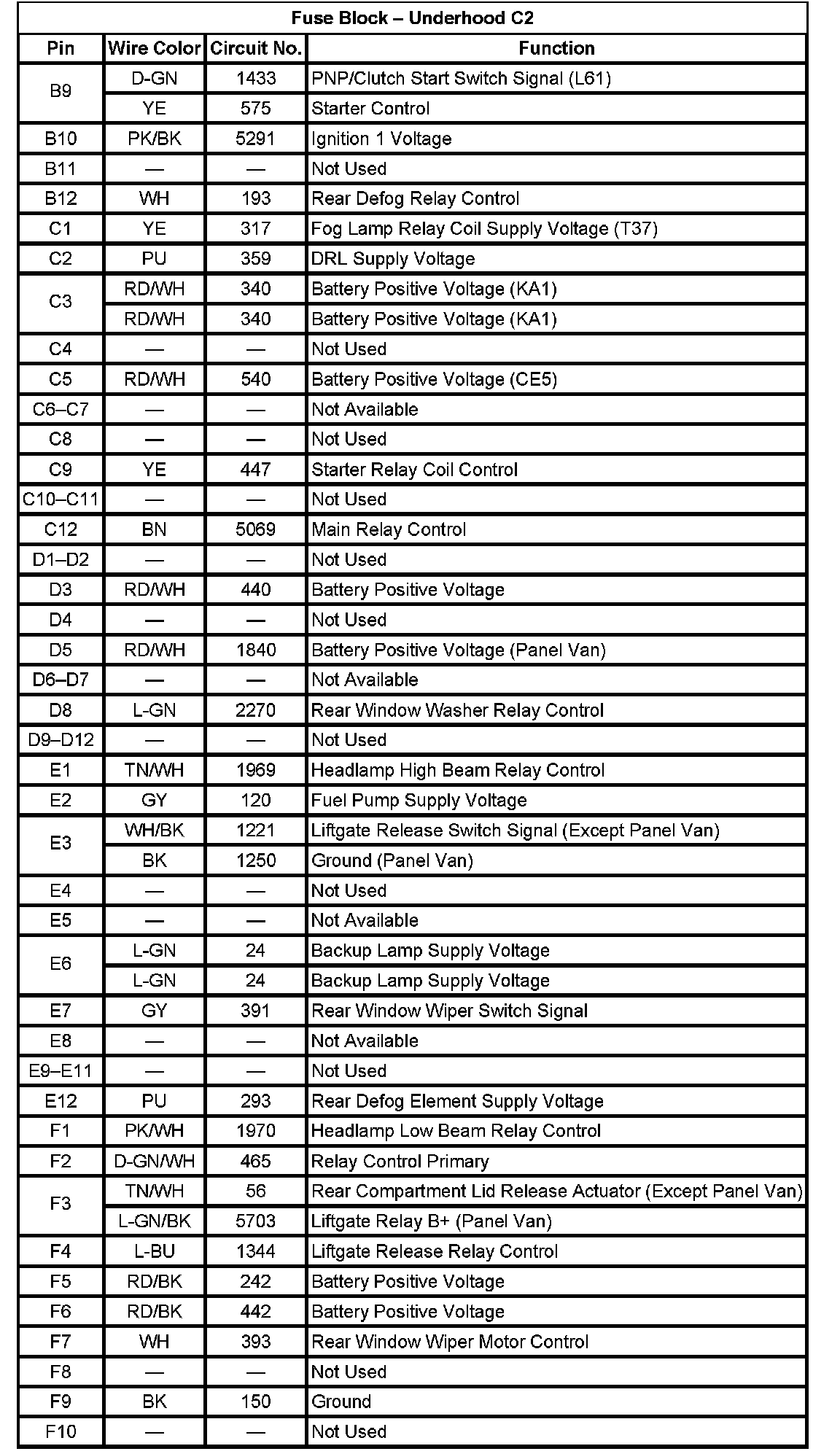

Fuse Block - Underhood C2 (Pin B8 To F10):

Fuse Block - Underhood C2 (Pin F11 To F12):

Fuse Block - Underhood C3:

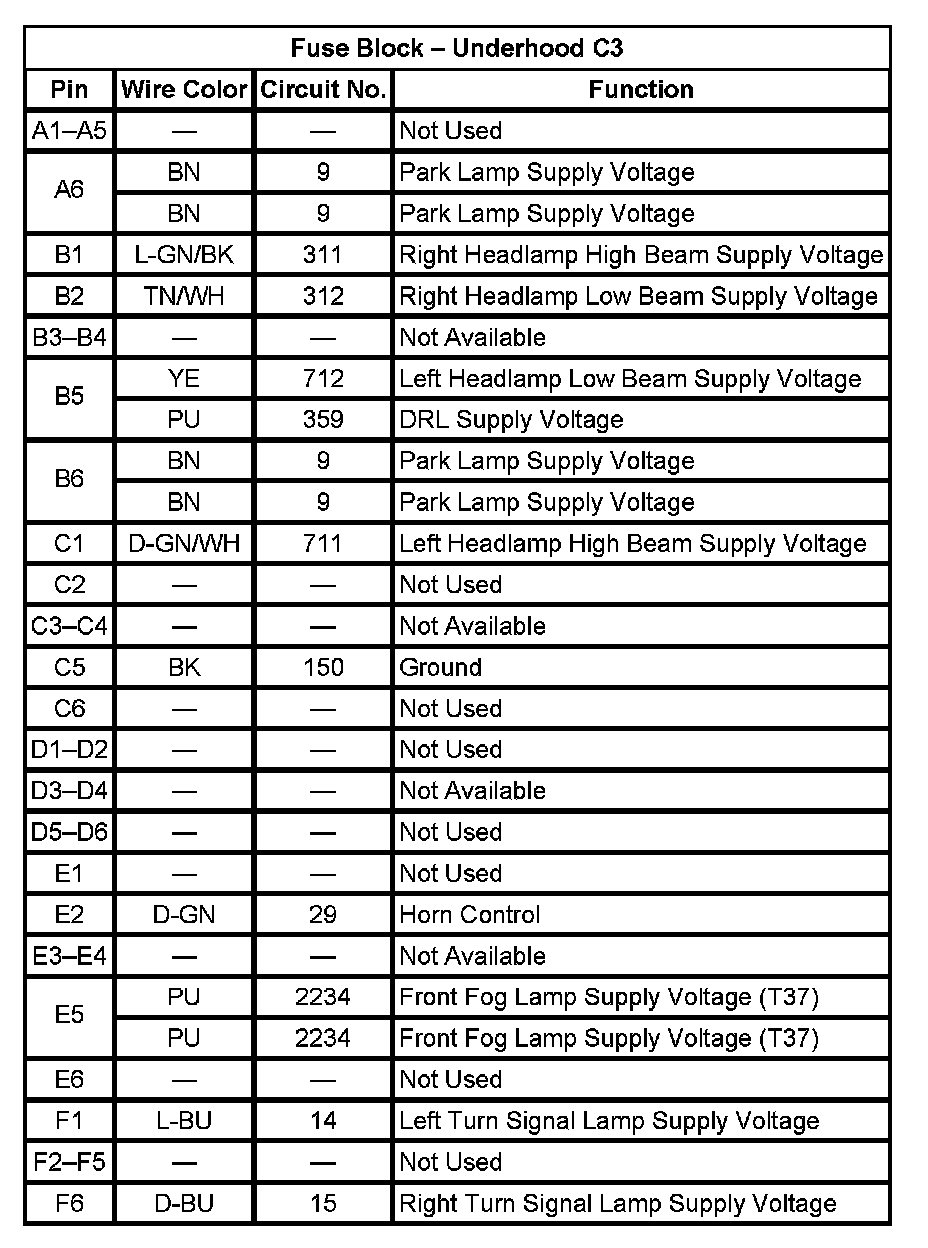

Fuse Block - Underhood C3 (Pin A1 To F6):

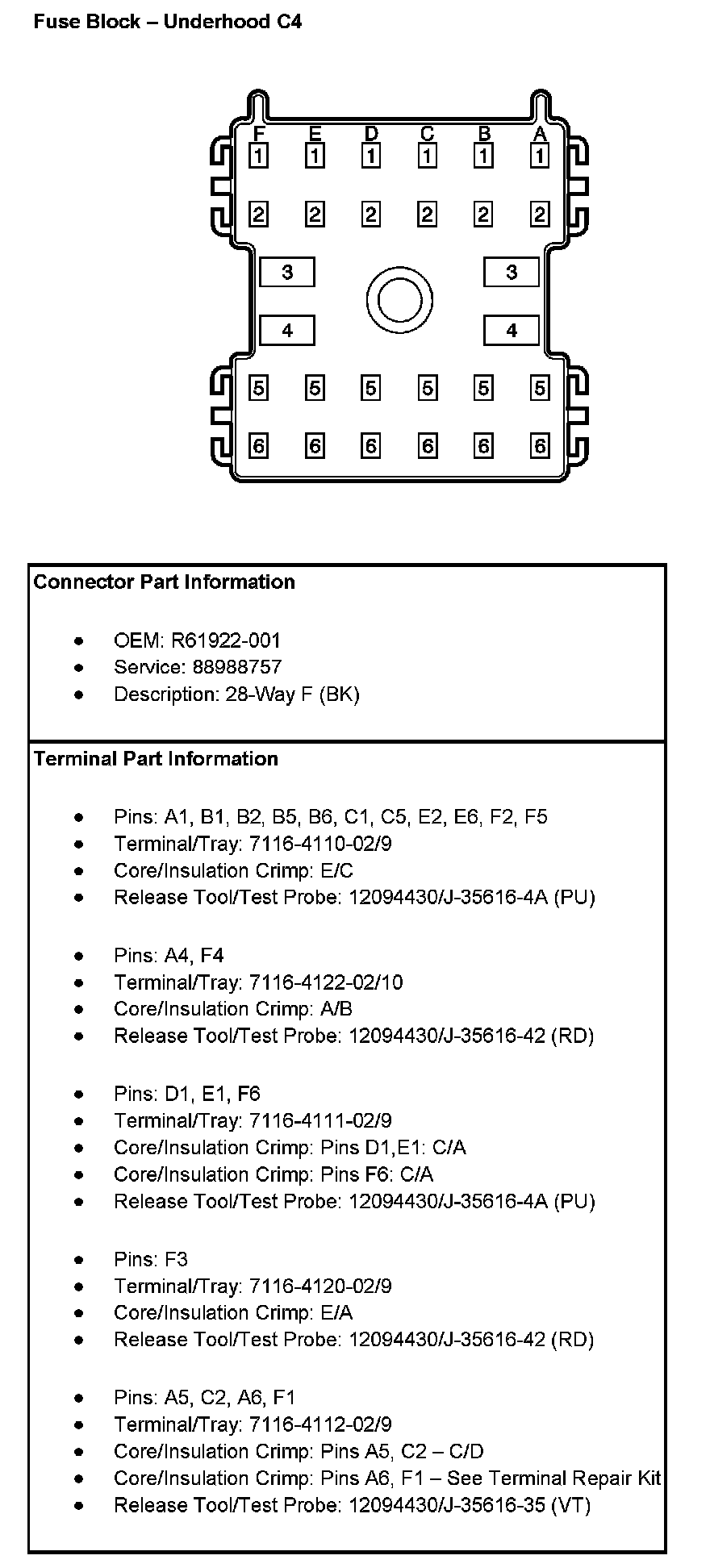

Fuse Block - Underhood C4:

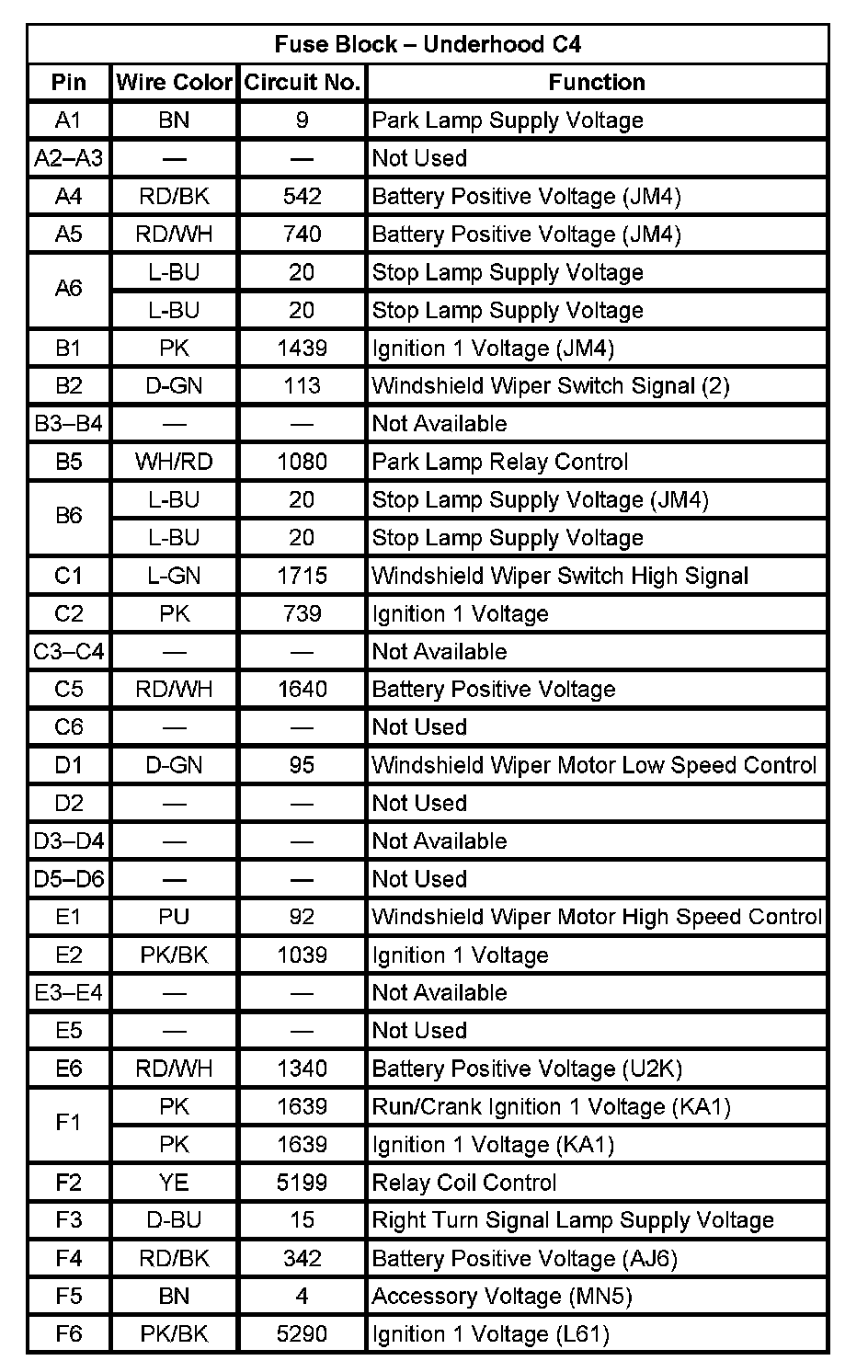

Fuse Block - Underhood C4 (Pin A1 To F6):
