Steering Mounted Controls Assembly



Secondary/Configurable Control Connector End Views

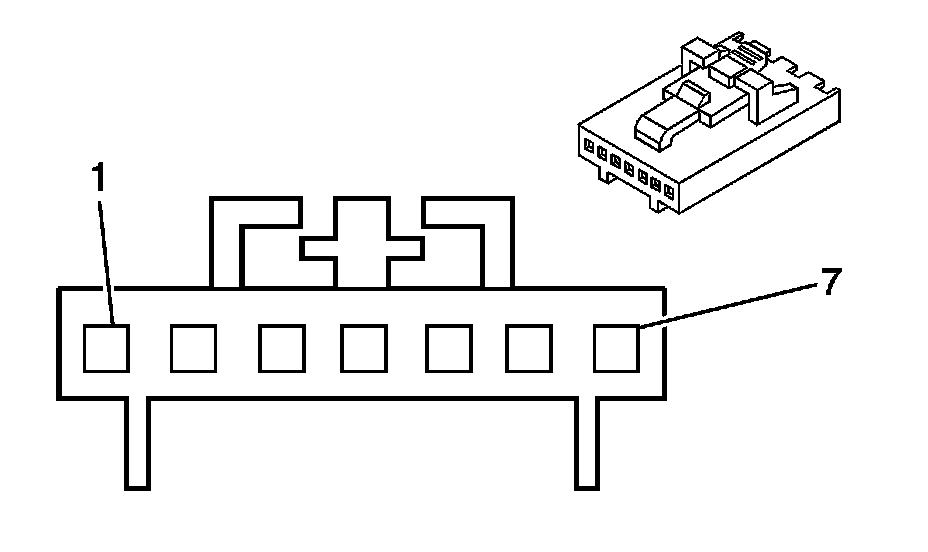

Steering Wheel Controls - Left

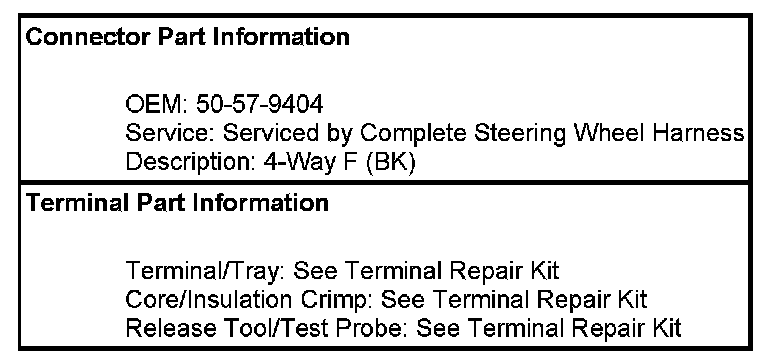

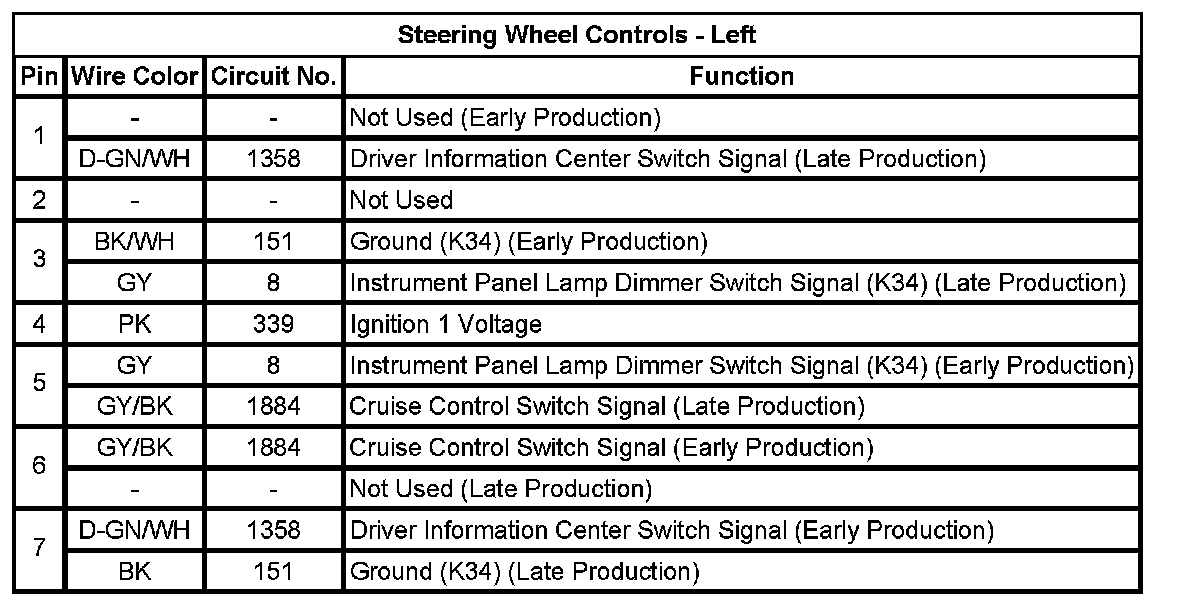

Steering Wheel Controls - Left:

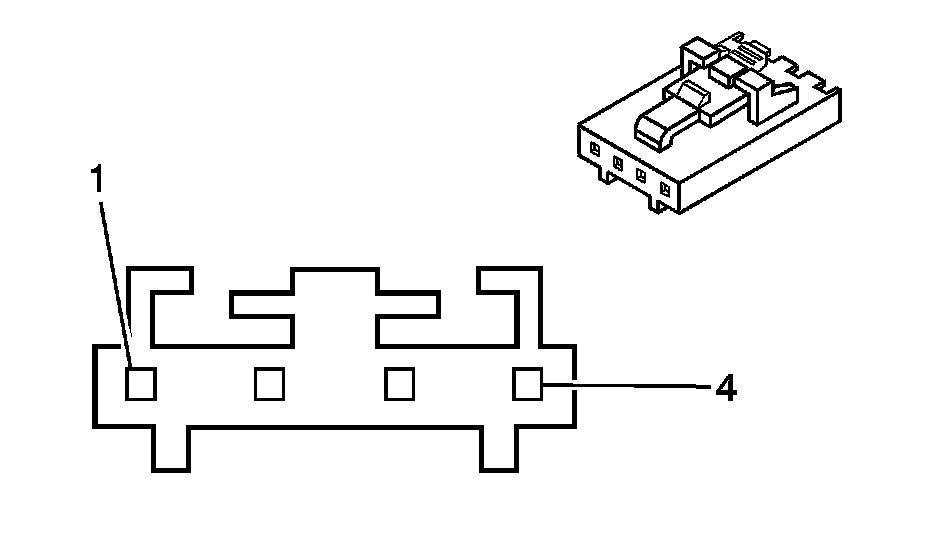

Steering Wheel Controls - Right (UK3)

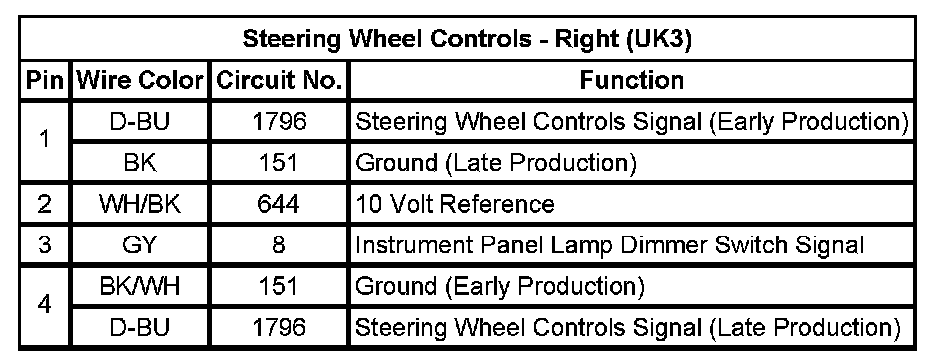

Steering Wheel Controls - Right (UK3):
