Turn Signal Lamp

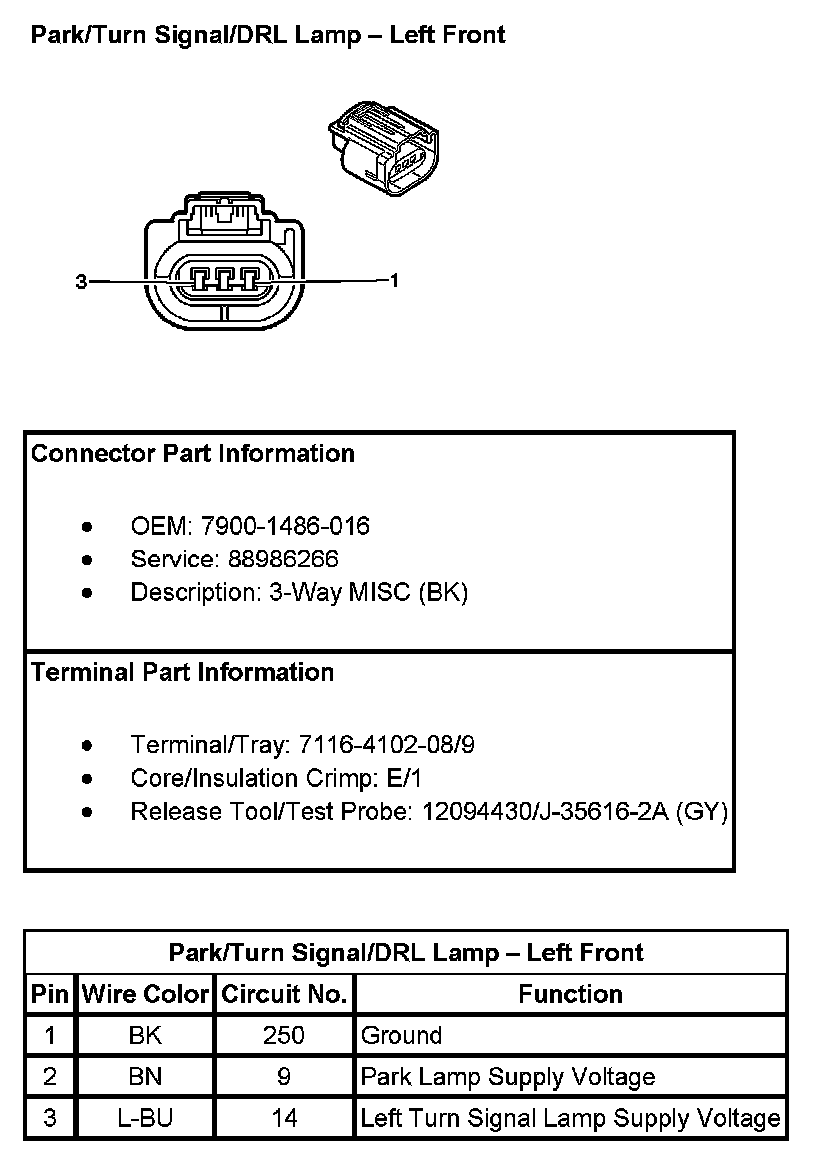

Park/Turn Signal/DRL Lamp - Left Front:

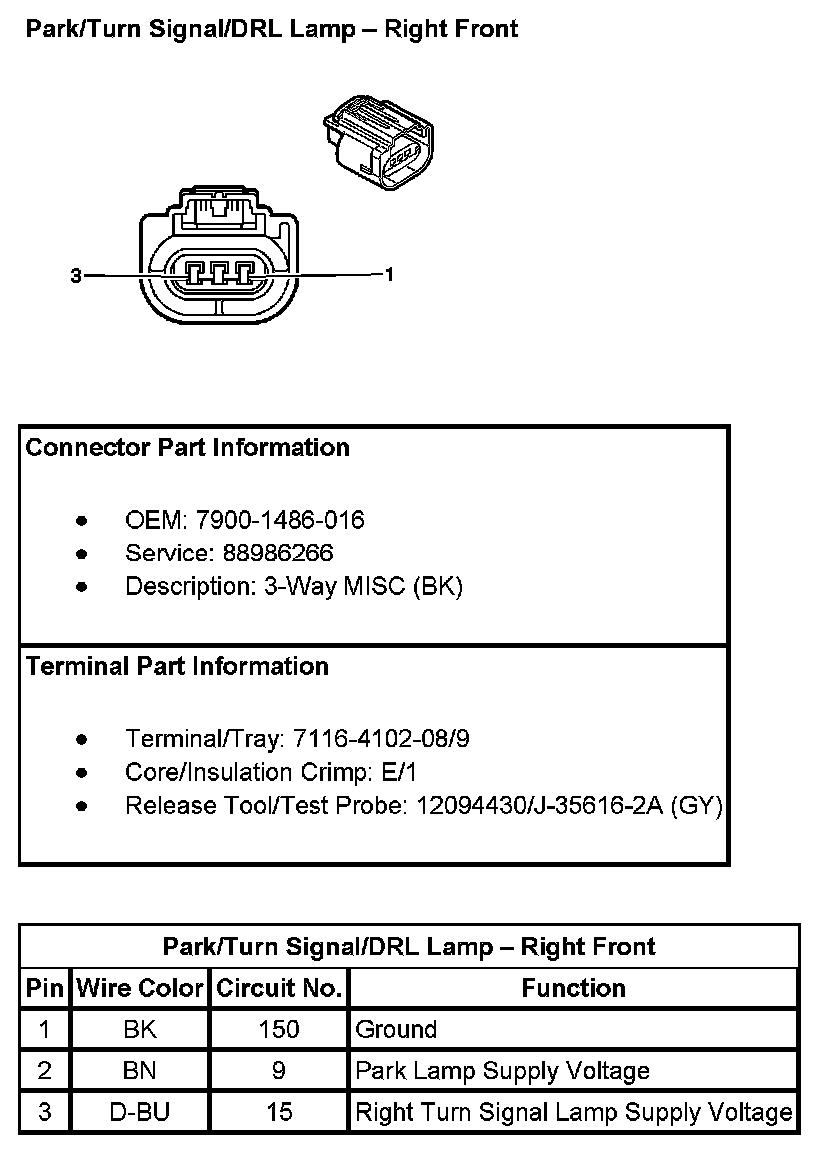

Park/Turn Signal/DRL Lamp - Right Front:



Tail/Stop And Turn Signal Lamp - Left:



Tail/Stop And Turn Signal Lamp - Right:
