Cruise Control

Cruise Control Schematics

Power, Ground, and Switches

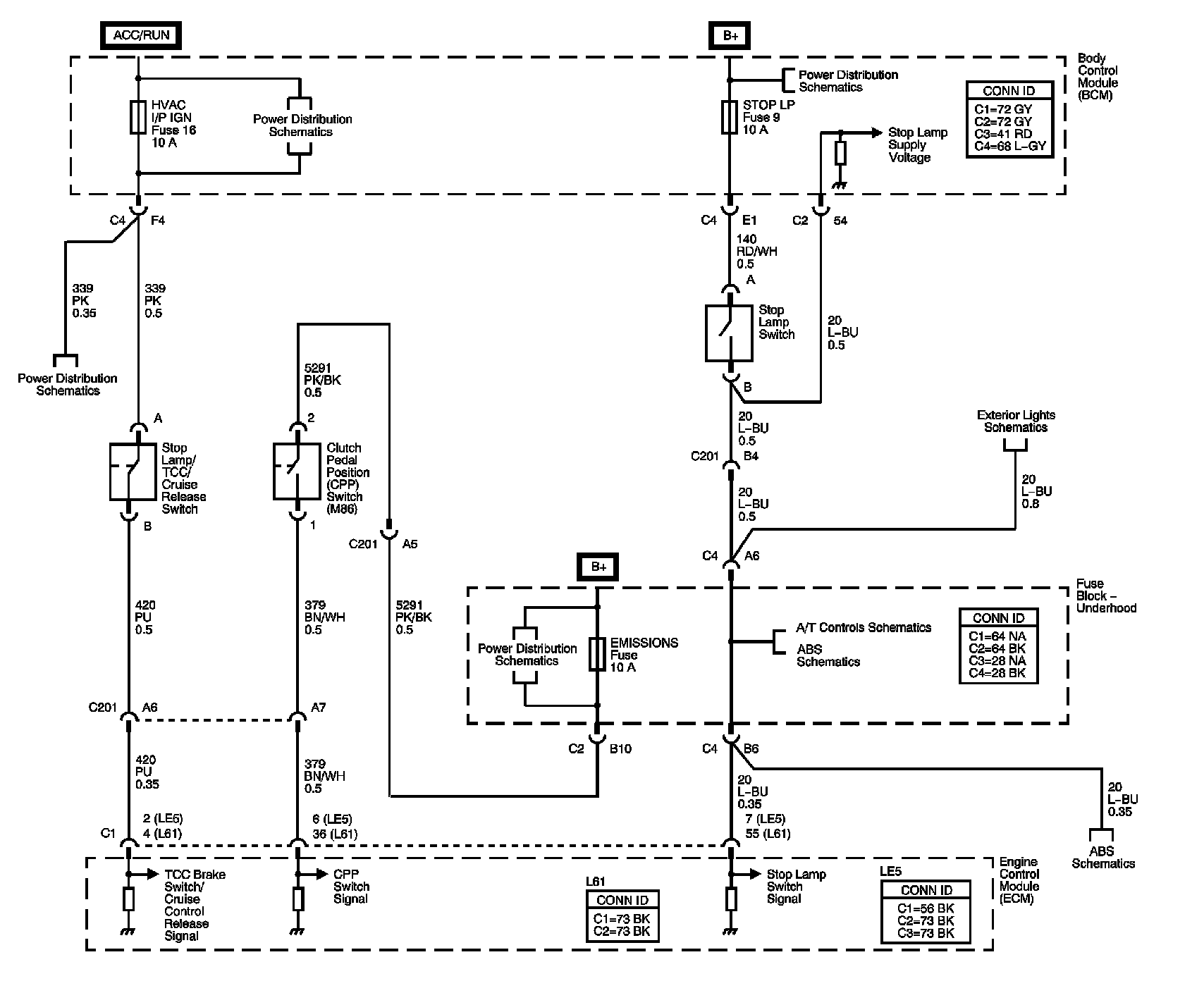

Clutch Pedal Position Switch and Stop Lamp Switch






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
