Engine Harness Views

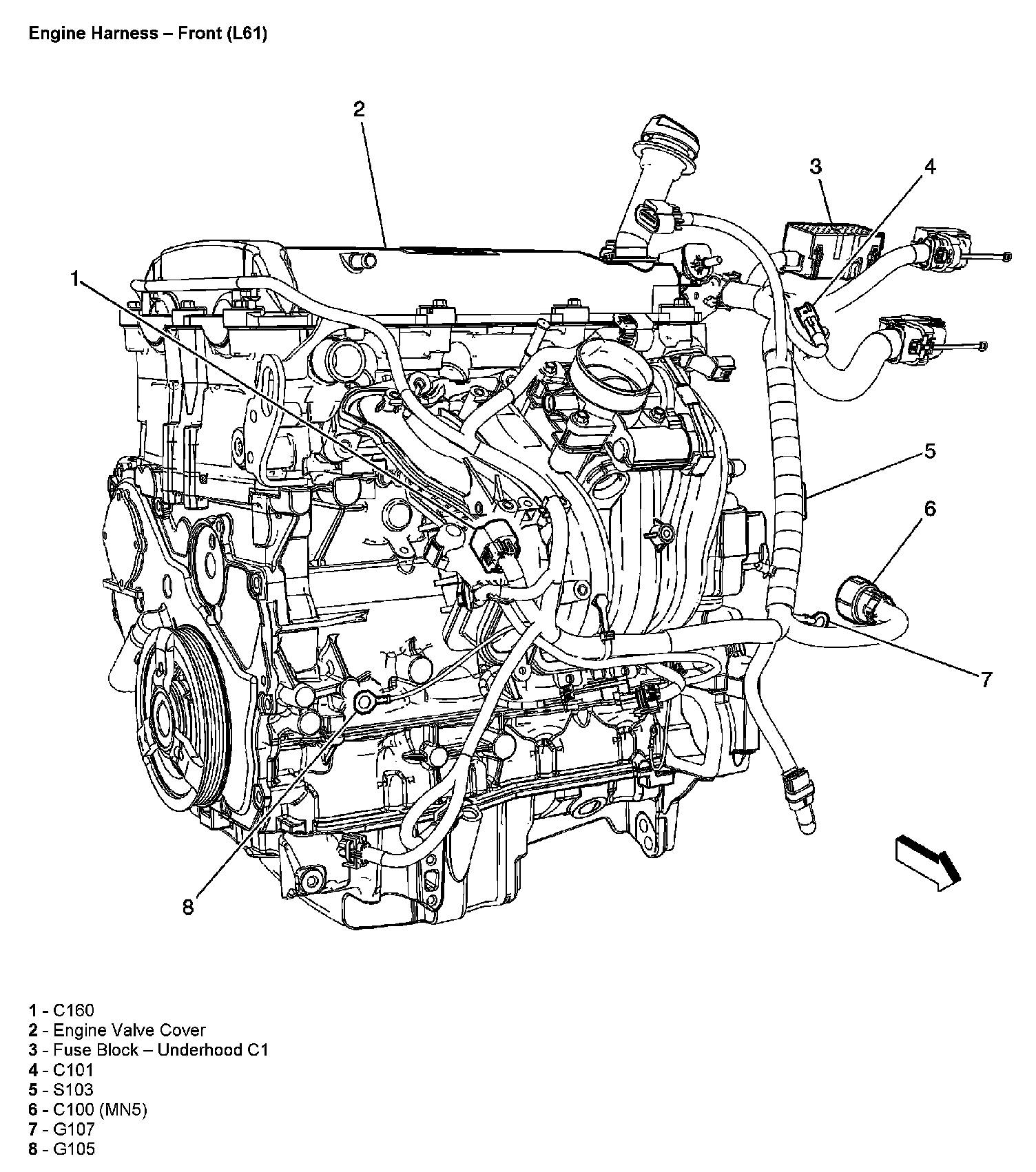

Engine Harness - Front (With RPO Code L61):

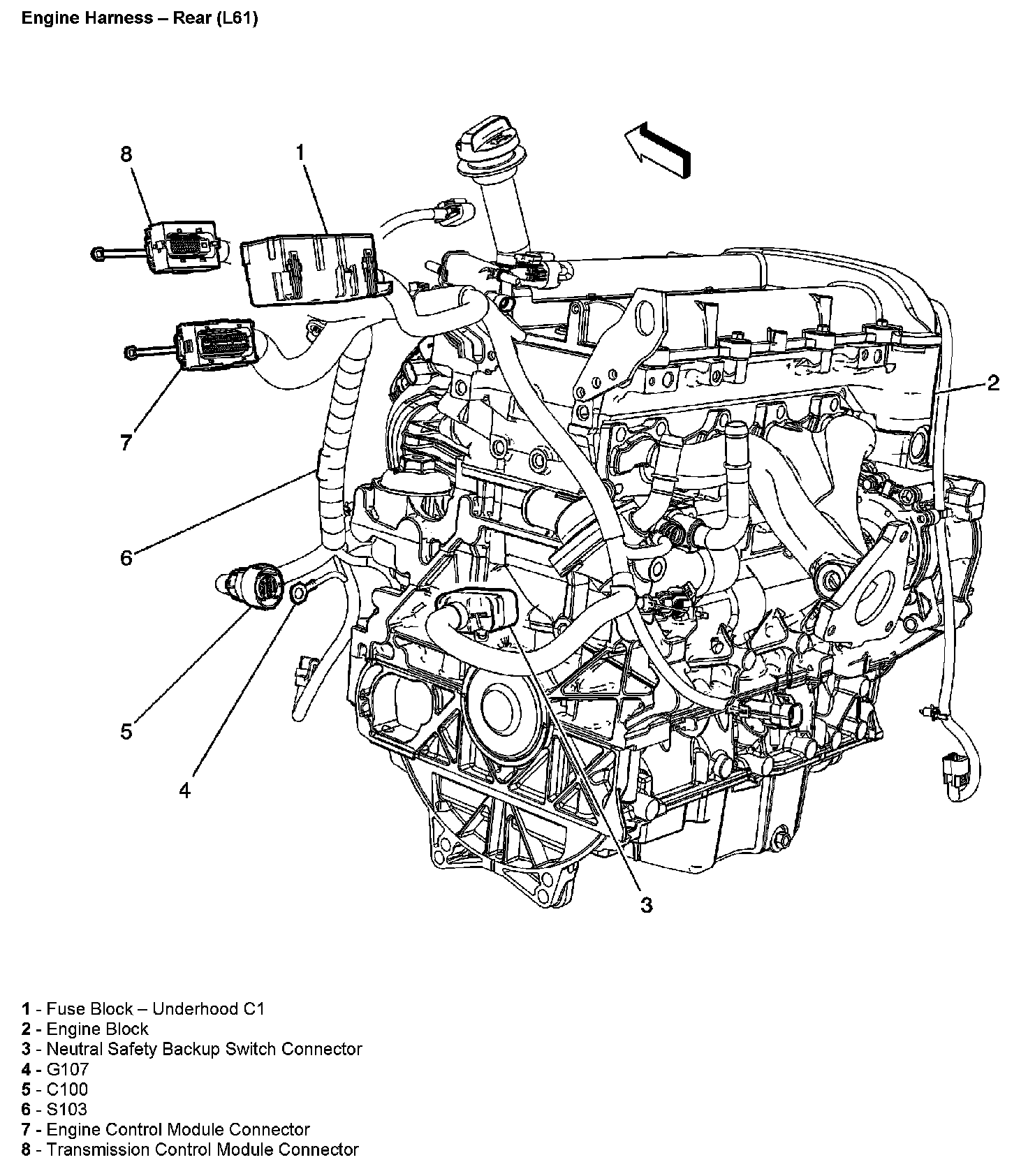

Engine Harness - Rear (With RPO Code L61):
