Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure




1. Remove the insulator panel. Instrument Panel Insulator Replacement.

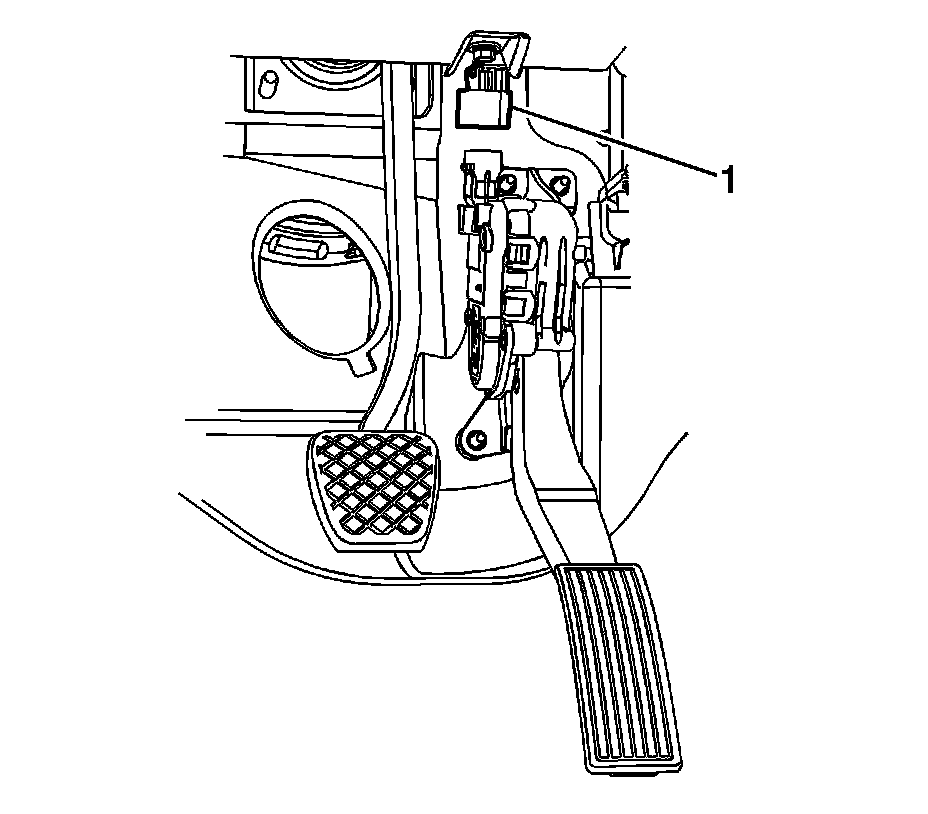

2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).

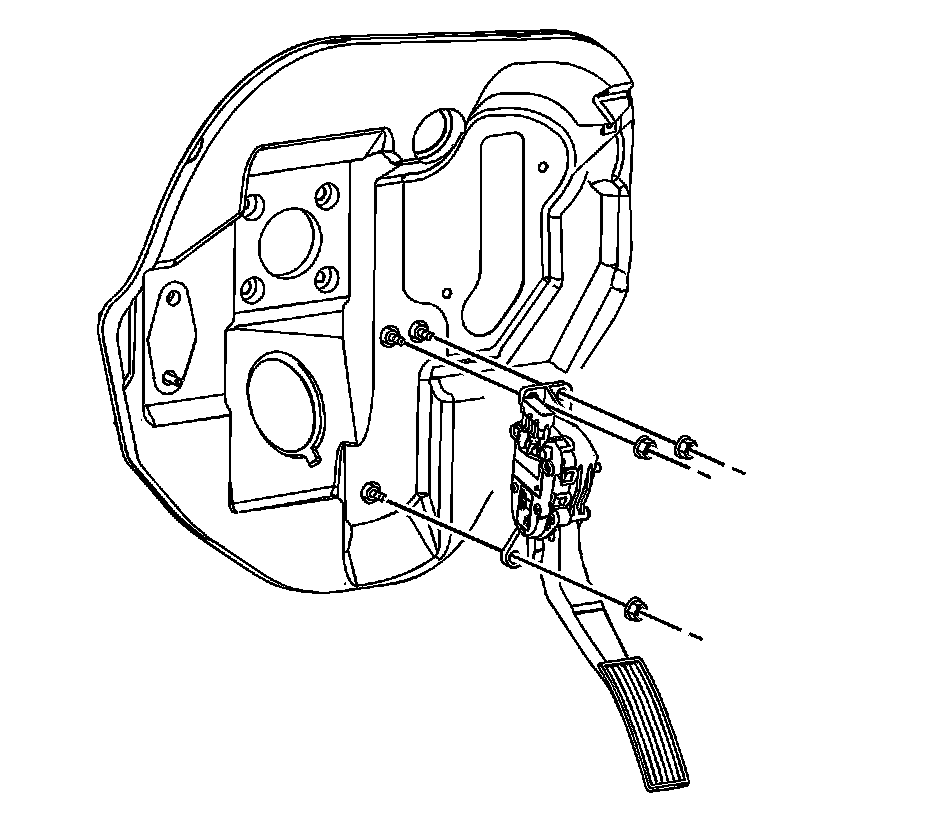

3. Remove the APP sensor nuts.
4. Remove the APP sensor.

Installation Procedure




1. Install the APP sensor.

Notice: Refer to Fastener Notice.

2. Install the APP sensor nuts.

Tighten the nuts to 10 N.m (89 lb in).




3. Connect the APP sensor electrical connector (1).
4. Install the insulator panel. Instrument Panel Insulator Replacement.
