Air Flow Meter/Sensor: Locations



Engine Controls Component Views

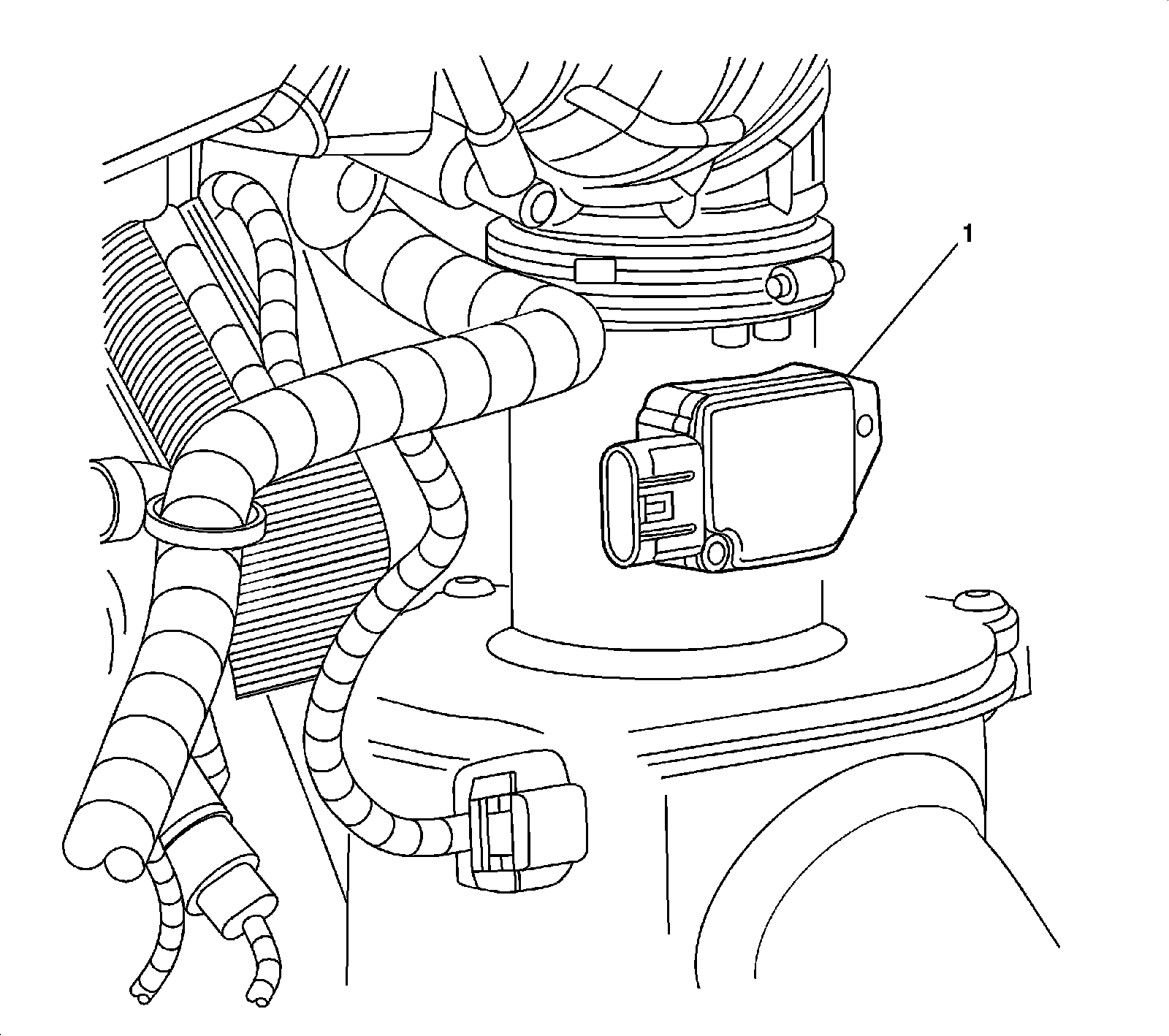

Mass Air Flow (MAF)/Inlet Air Temperature (IAT)
Sensor




1 - Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
