Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure




1. Remove the air cleaner assembly.

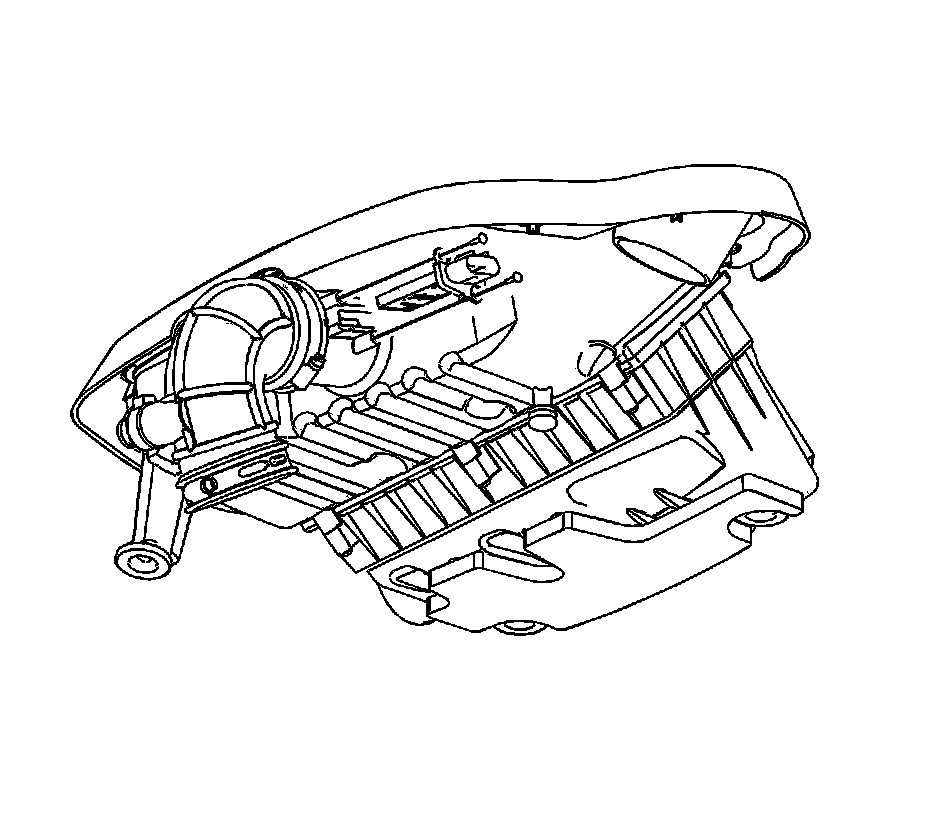

2. Remove the MAF sensor screws.
3. Remove the MAF sensor.

Installation Procedure




1. Install the MAF sensor.

Notice: Refer to Fastener Notice.

2. Install the MAF sensor screws.

Tighten the screws to 10 N.m (89 lb in).

3. Install the air cleaner assembly.
