Transmission Position Sensor/Switch: Diagrams

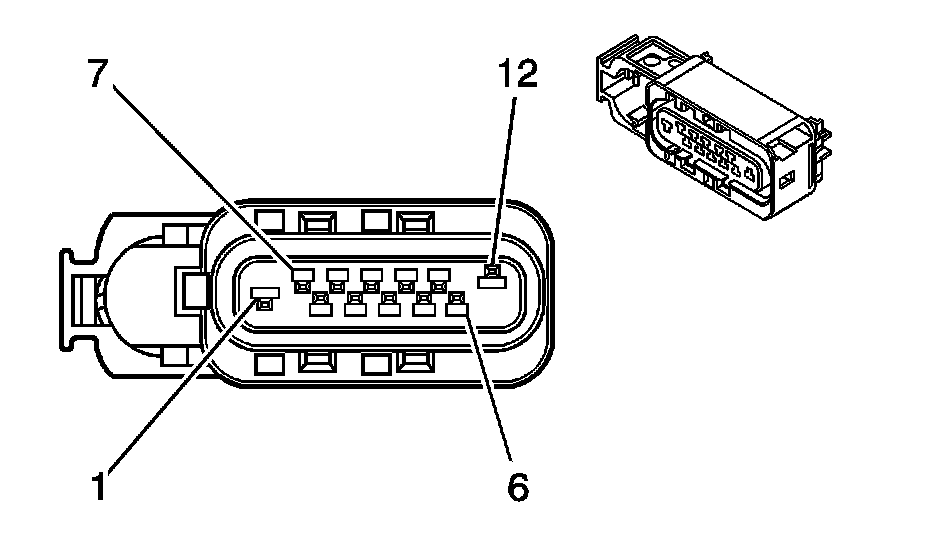

Automatic Transmission Related Connector End Views

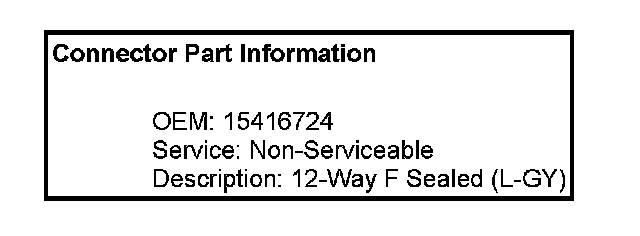

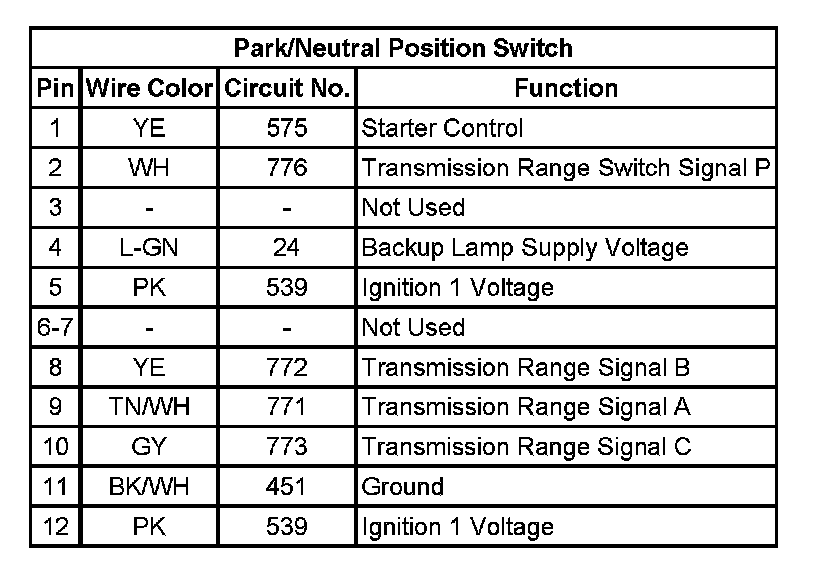

Park/Neutral Position Switch:
