Vehicle Speed Sensor: Diagrams

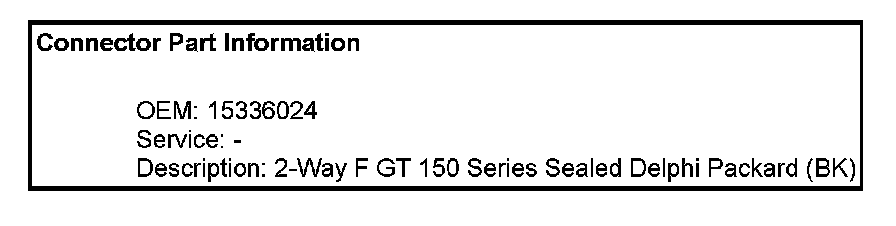

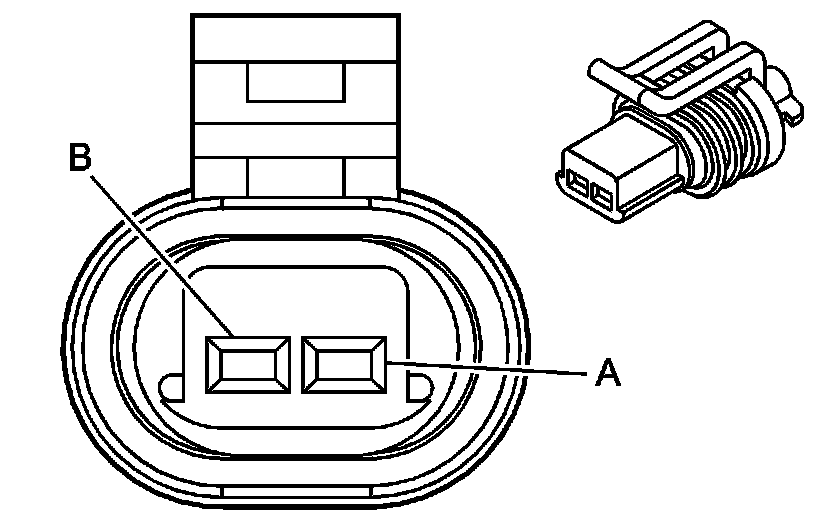

Manual Transmission Connector End Views

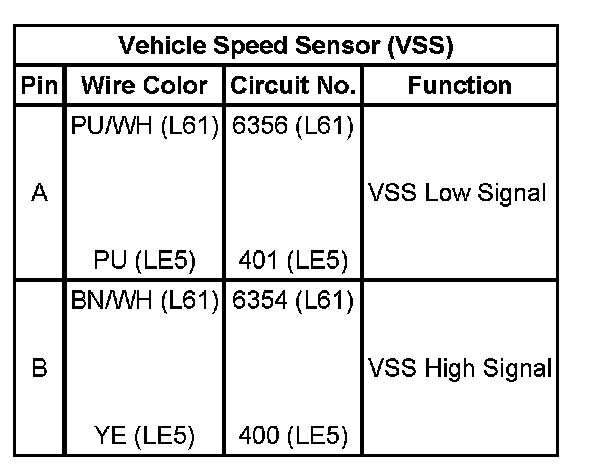

Vehicle Speed Sensor (VSS)







Vehicle Speed Sensor (VSS):
