Antilock Brake System Component Views



Antilock Brake System Component Views

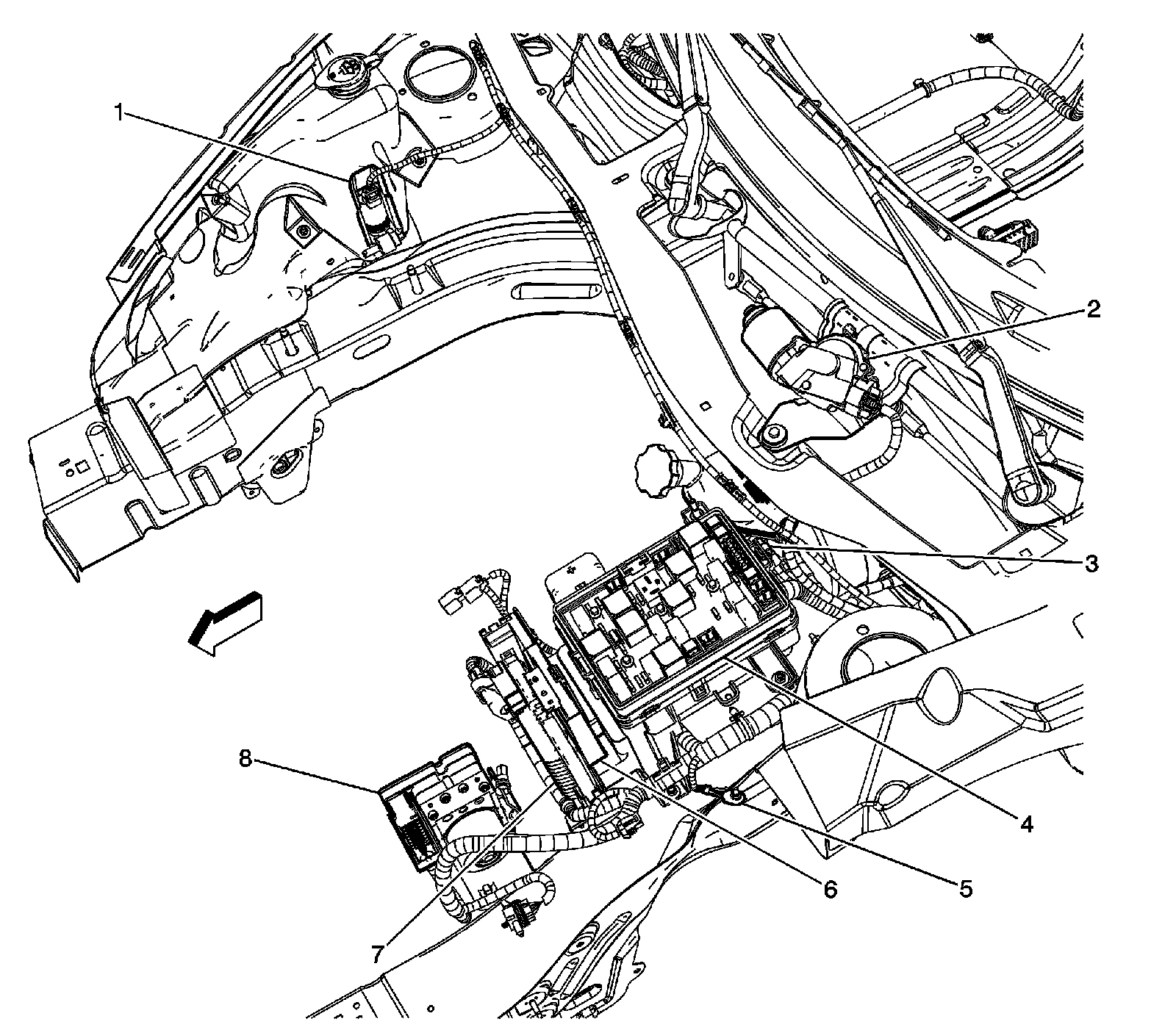

Left Front of the Engine Compartment




1 - Windshield Washer Fluid Pump
2 - Windshield Wiper Motor Assembly
3 - Brake Fluid Level Switch
4 - Fuse Block - Underhood
5 - G111
6 - Transmission Control Module (TCM) (MN5)
7 - Engine Control Module (ECM)
8 - Electronic Brake Control Module (EBCM)
