System Specifications

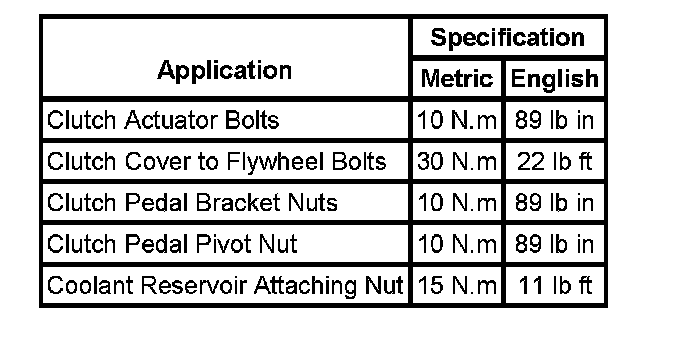

Fastener Tightening Specifications

Fastener Tightening Specifications:

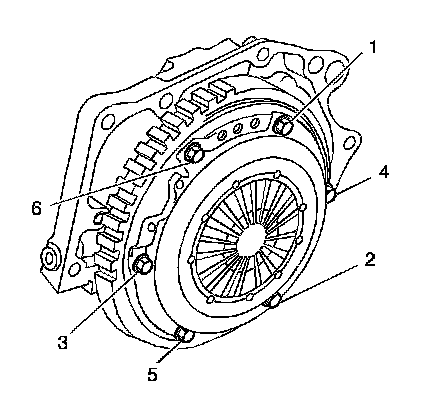

Clutch Torque and Sequence




Follow the tightening sequence.
Tighten the bolts to 24 N.m (18 lb ft)
