Connector Views



Engine Electrical Connector End Views

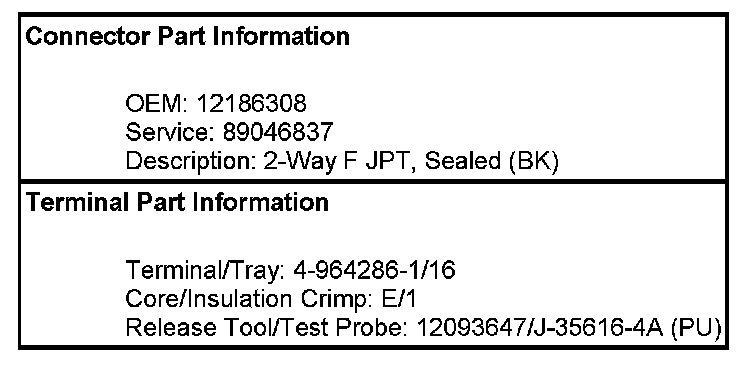

Battery Current Sensor

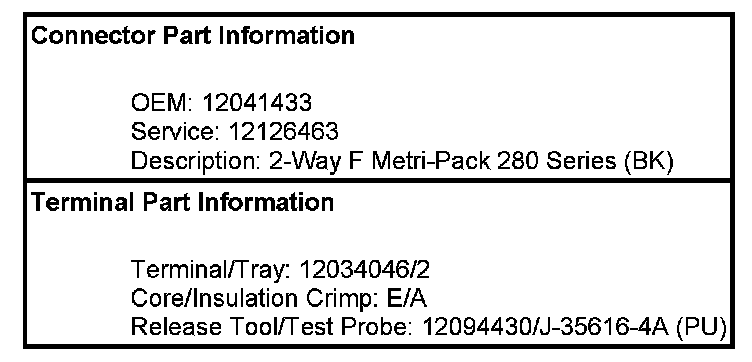

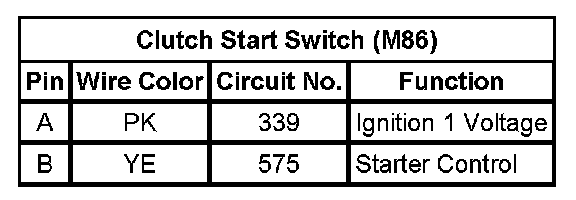

Clutch Start Switch (M86)

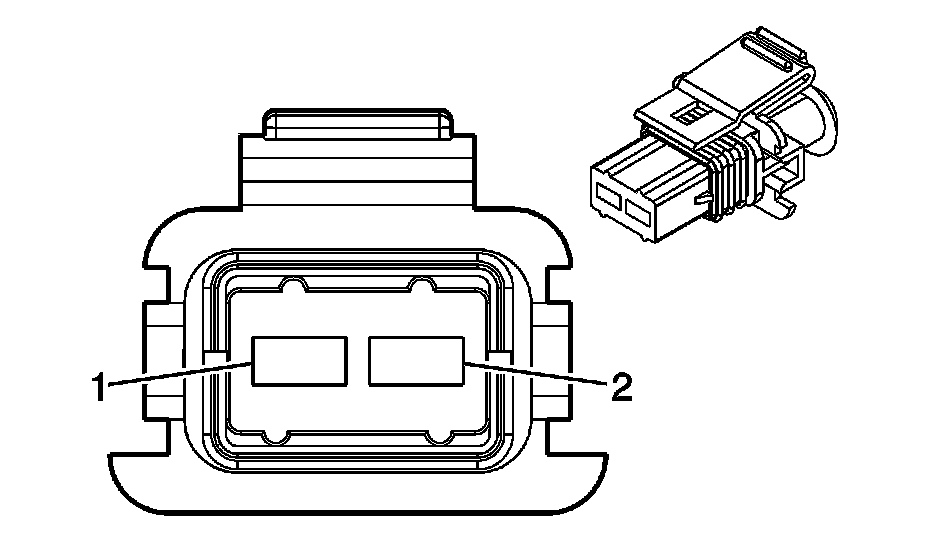

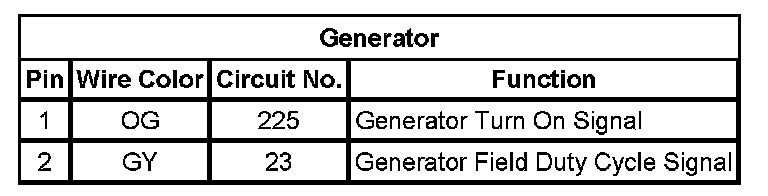

Generator
