Automatic Transmission/Transaxle: Locations

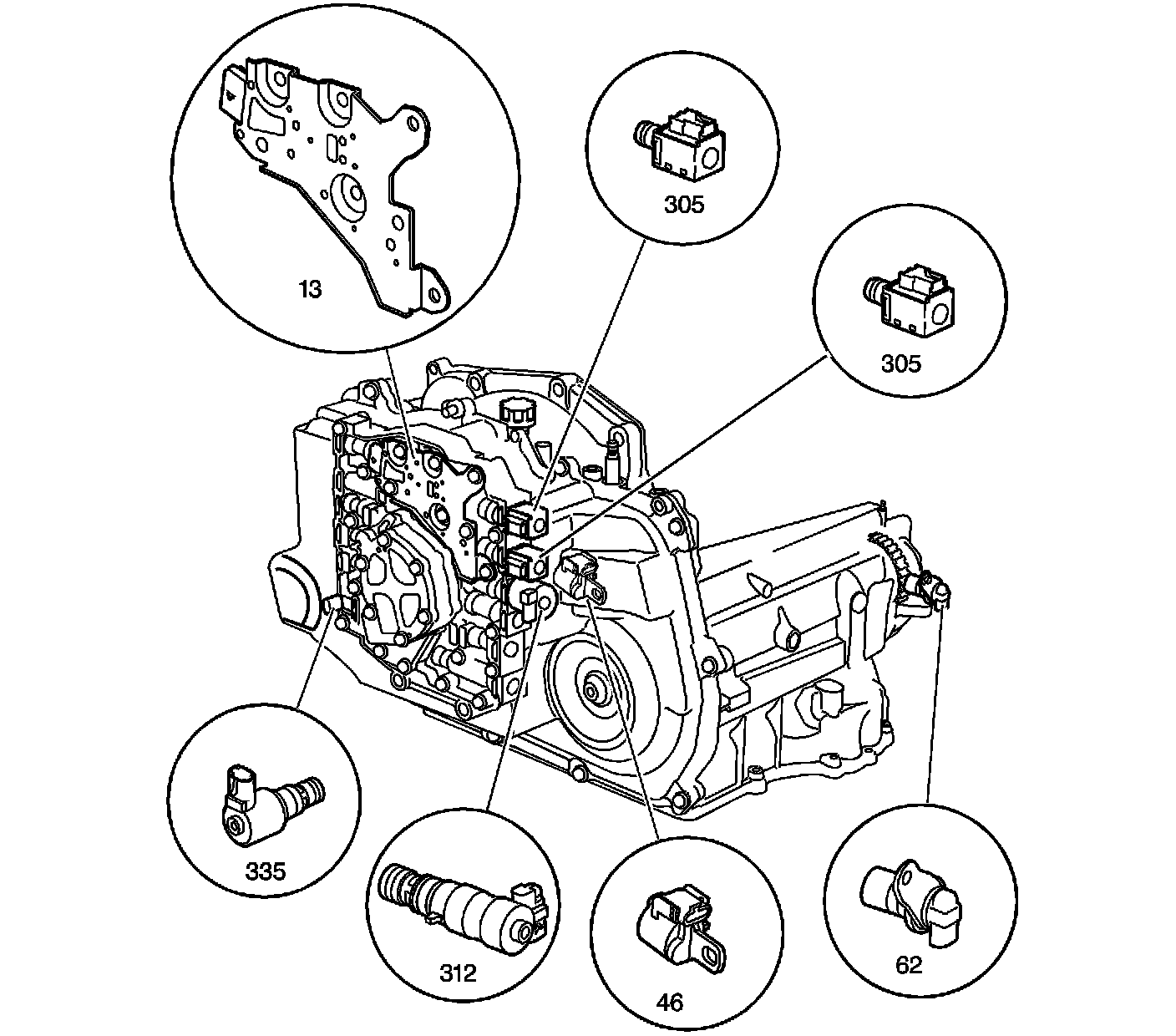

Automatic Transmission Electronic Component Views

Electronic Components

Electronic Components:

13 - TFP Manual Valve Position Switch Assembly
46 - Input Speed Sensor
62 - Output Speed Sensor
305 - 1-2 and 2-3 Shift Solenoid Valves
305 - 1-2 and 2-3 Shift Solenoid Valves
312 - Pressure Control Solenoid
335 - TCC Control PWM Solenoid

Transmission Control Module (TCM)

Transmission Control Module (TCM):

1 - Transmission Control Module (TCM)
