Fluid Pump, A/T
Oil Pump

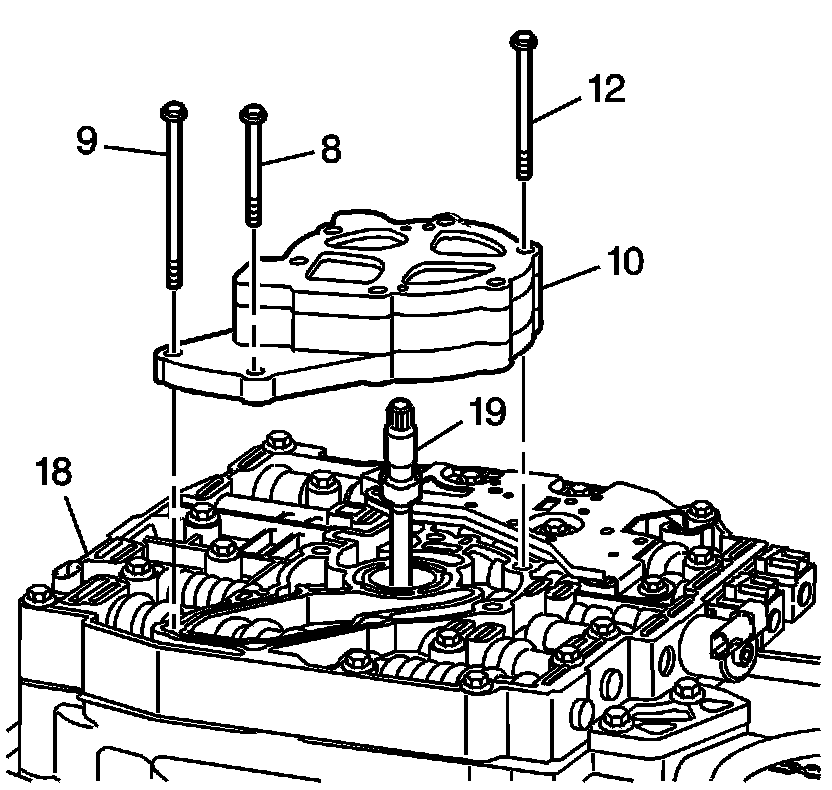

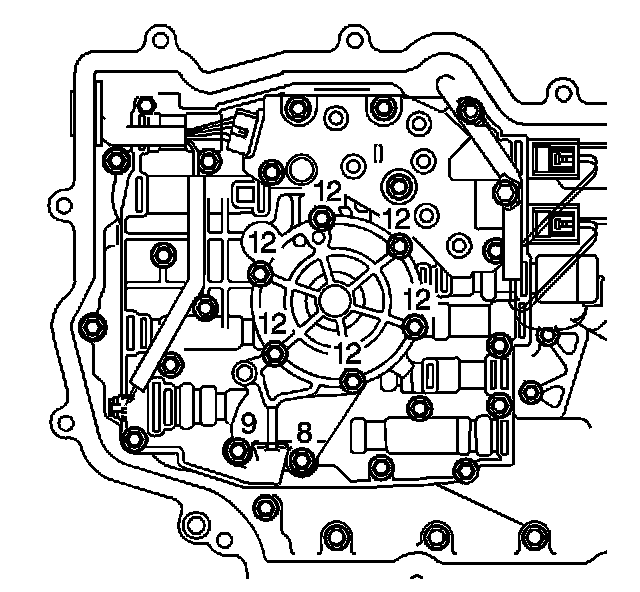

Install the eight oil pump bolts (8, 9, 12). Hand start the bolts.
Tighten the bolts to
12 N.m (9 lb ft).
