Remote Function Component Views

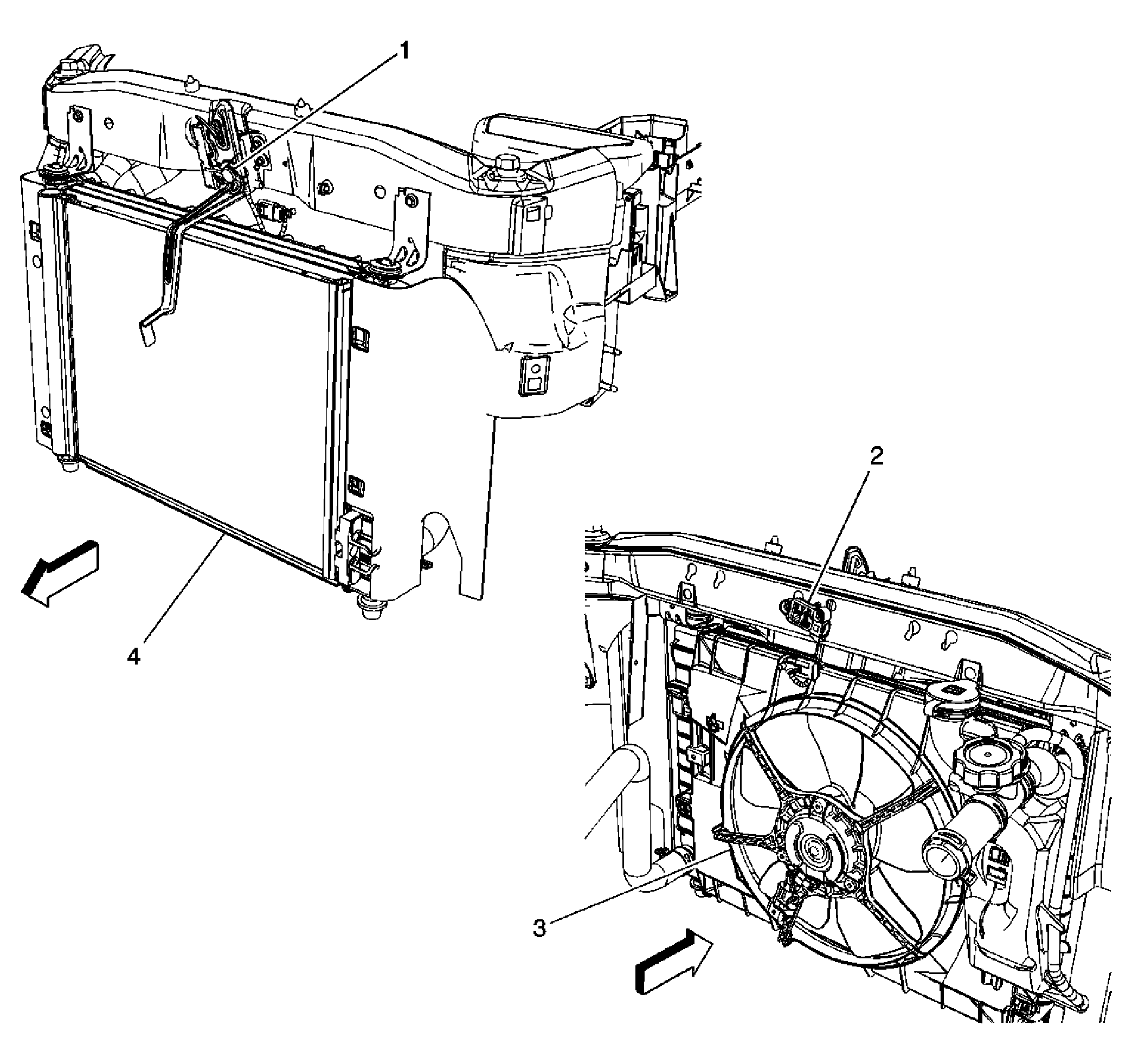

Fig 1: Front of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)
2	Inflatable Restraint Front End Sensor
3	Engine Cooling Fan
4	Radiator

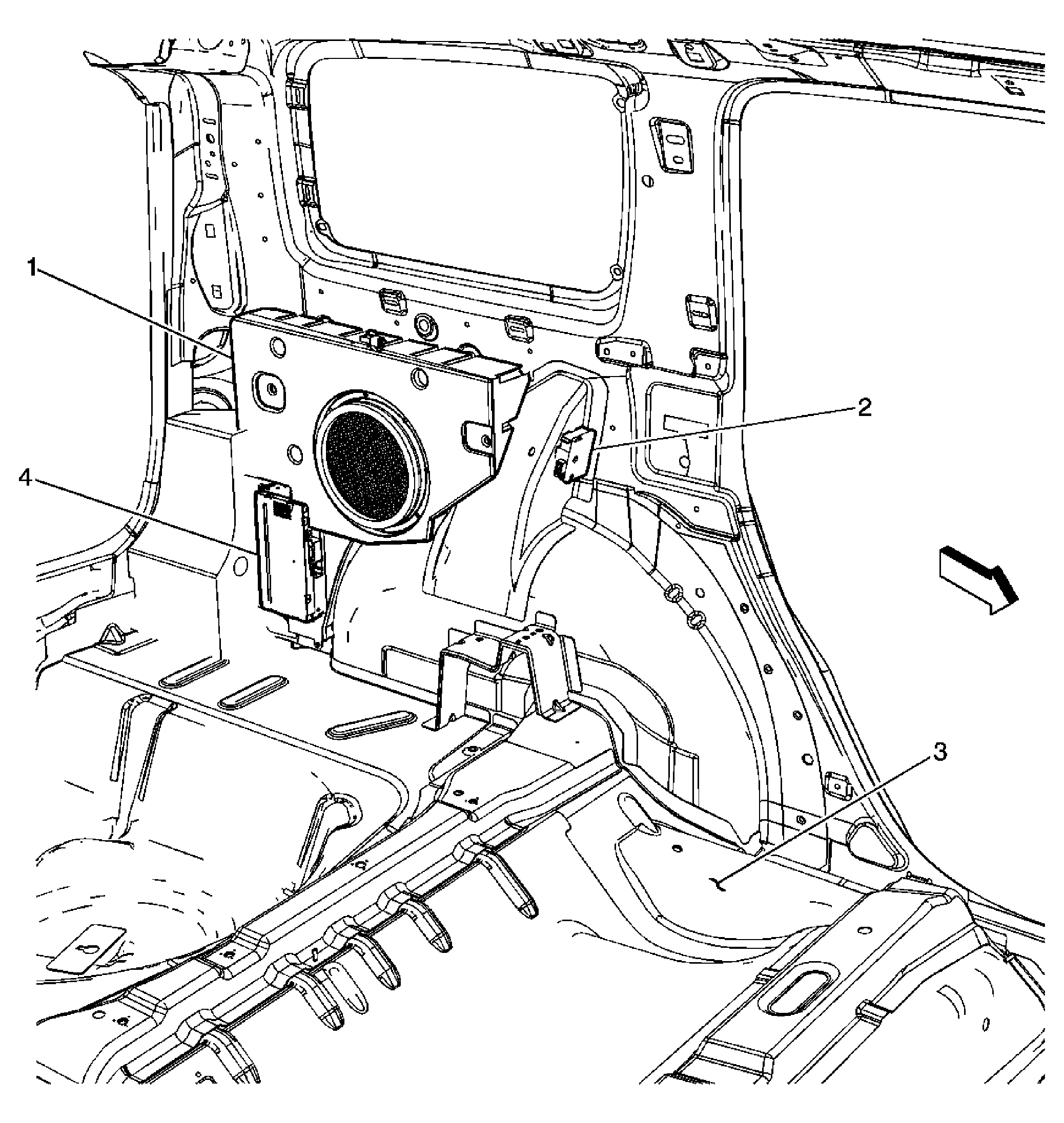

Fig 2: LR of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Subwoofer (UQ3)
2	Remote Control Door Lock Receiver (RCDLR)
3	Floor Pan
4	Audio Amplifier (UQ3)
