Remote Control Door Lock Receiver Replacement
Courtesy of GENERAL MOTORS CORP. Remote Control Door Lock Receiver Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the rear seat. Refer to Rear Seat Replacement
.
- Remove the left rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement
.
|

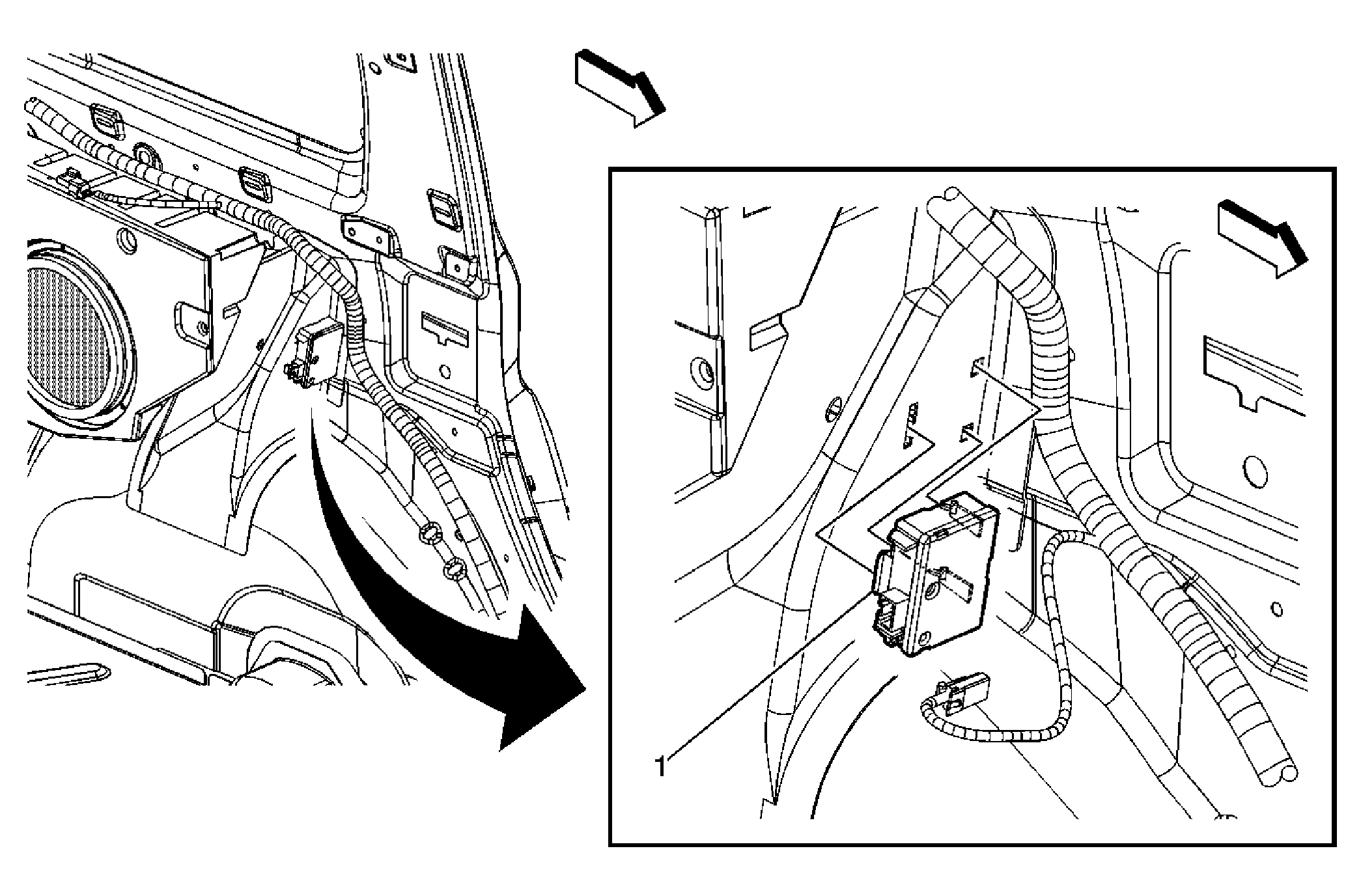

| 1 |
Module, Remote Control Door Lock
Tip:
- The module is secured to the seat back cushion latch bracket with three integral tabs, pull away from the bracket to remove.
- Disconnect the electrical connector.
- Reprogram the remote control door lock module after installation. Refer to Control Module References
.
|
