Chevrolet
>>
2007
>>
HHR LS, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic and Routing Diagrams
>>
Remote Function Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Remote Function Schematics

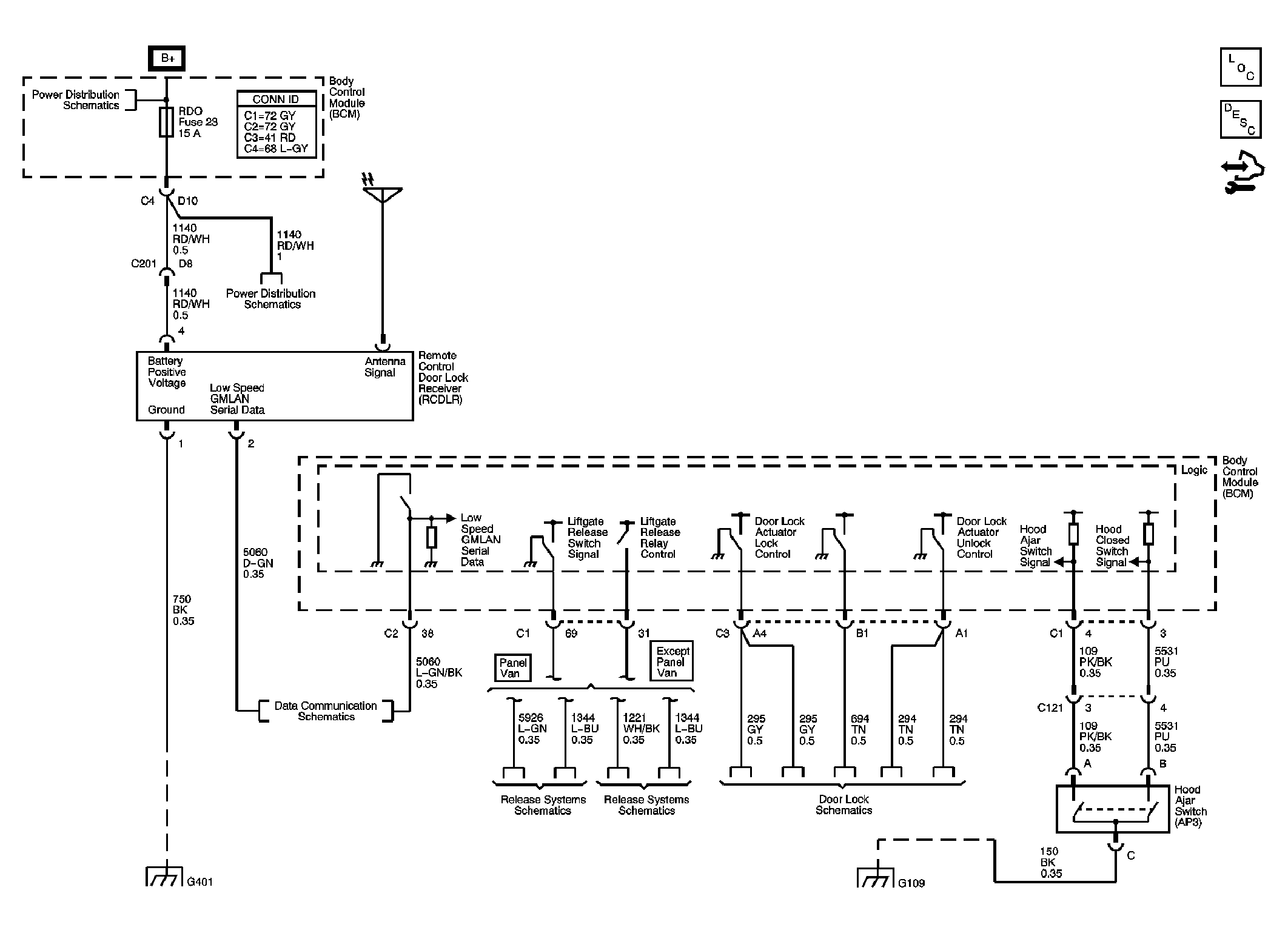

Fig 1: Keyless Entry Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
