Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
BCM Fuseholder In rear of vehicle compartment, near battery. See Figure.

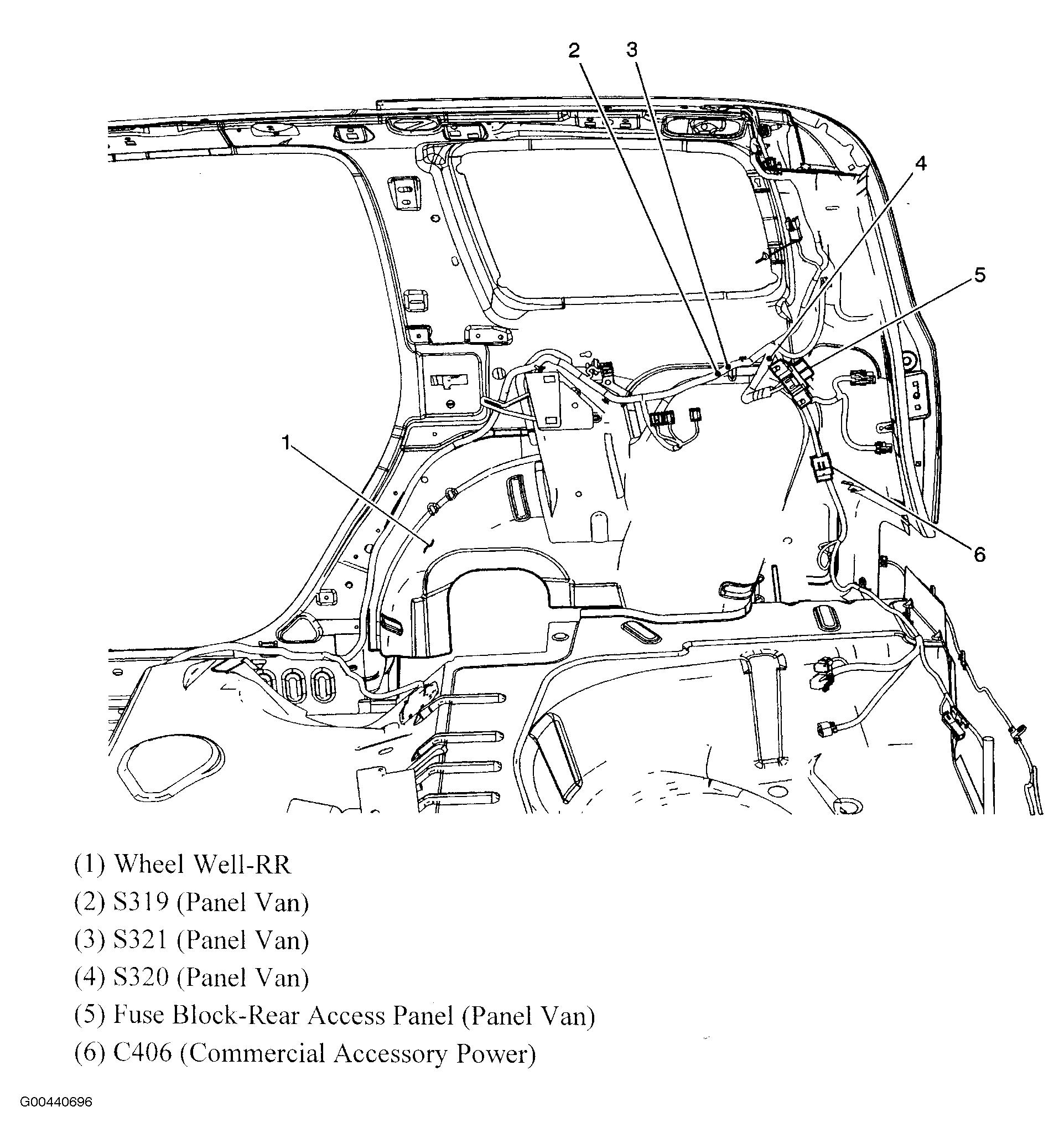

Fuse Block - Rear Access Panel (Panel Van) Right rear of cargo area. See Figure.

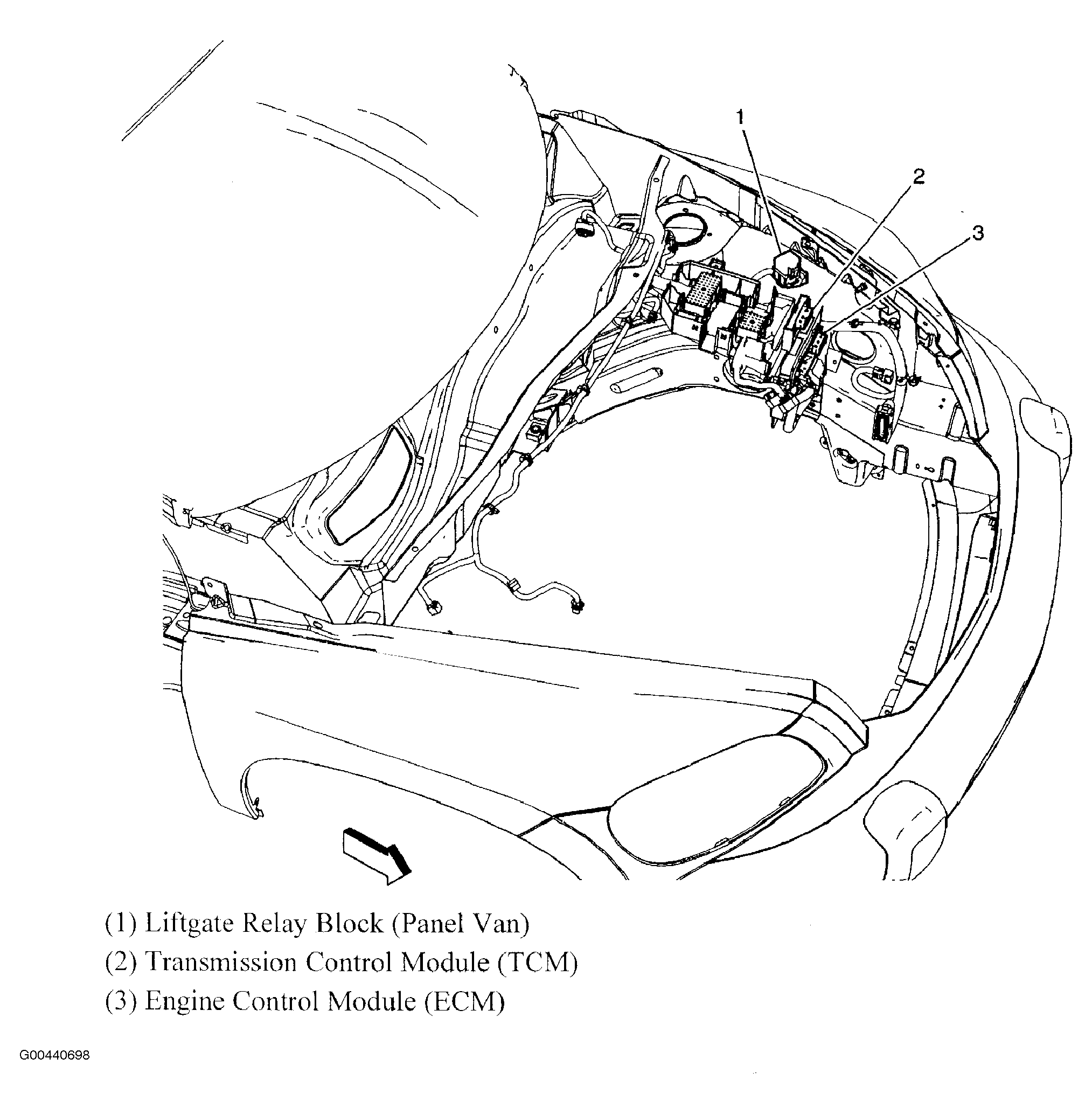

Fuse Block - Underhood In engine compartment, next to left strut tower. See Figure.
Liftgate Relay Block (Panel Van) In engine compartment, attached to left wheel well. See Figure.
VCIM Fuseholder In rear compartment of vehicle, near battery. See Figure.
