Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

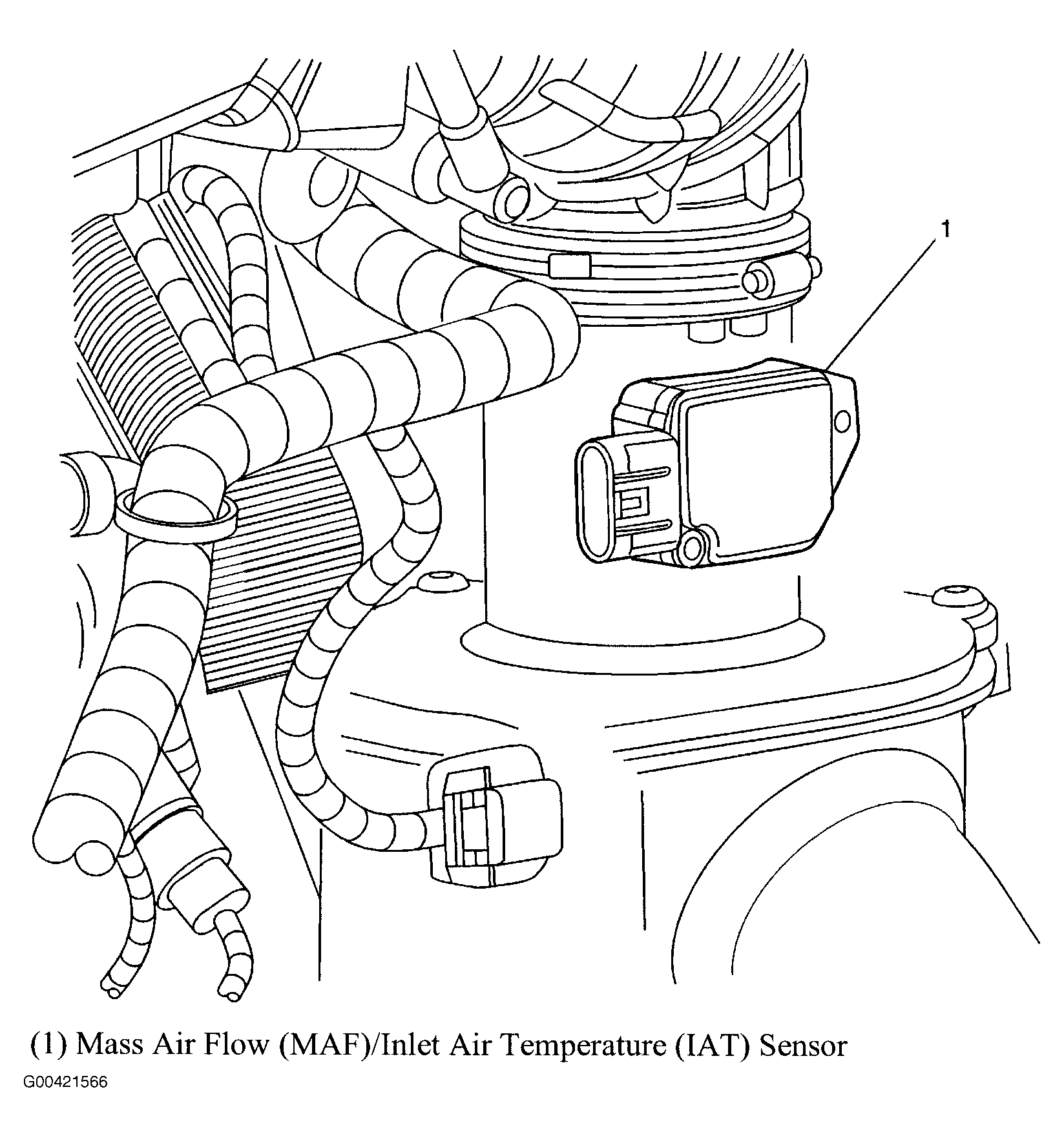

Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

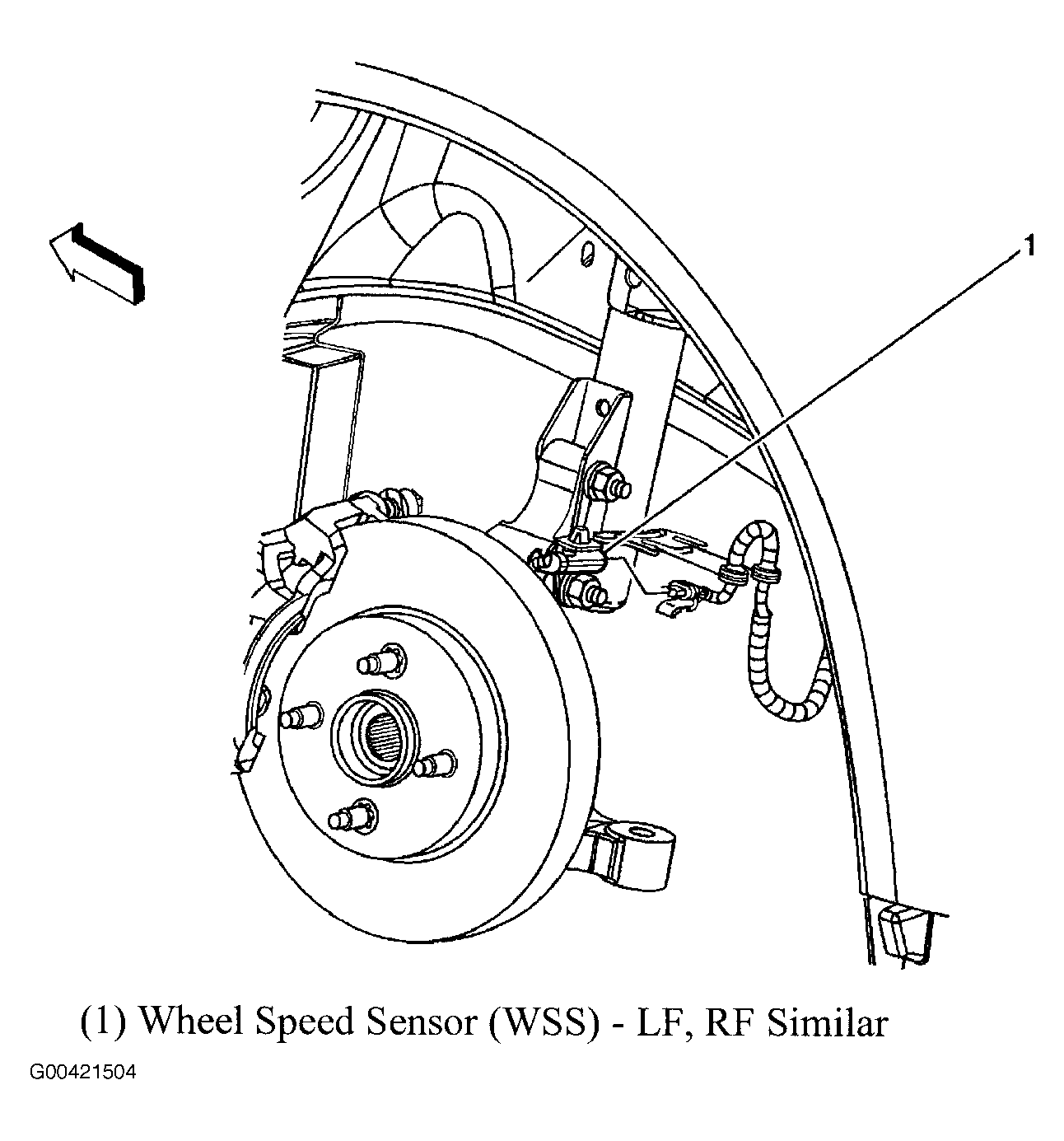

Fig 2: Left Front Wheelwell (Right Front Similar)
Courtesy of GENERAL MOTORS CORP.

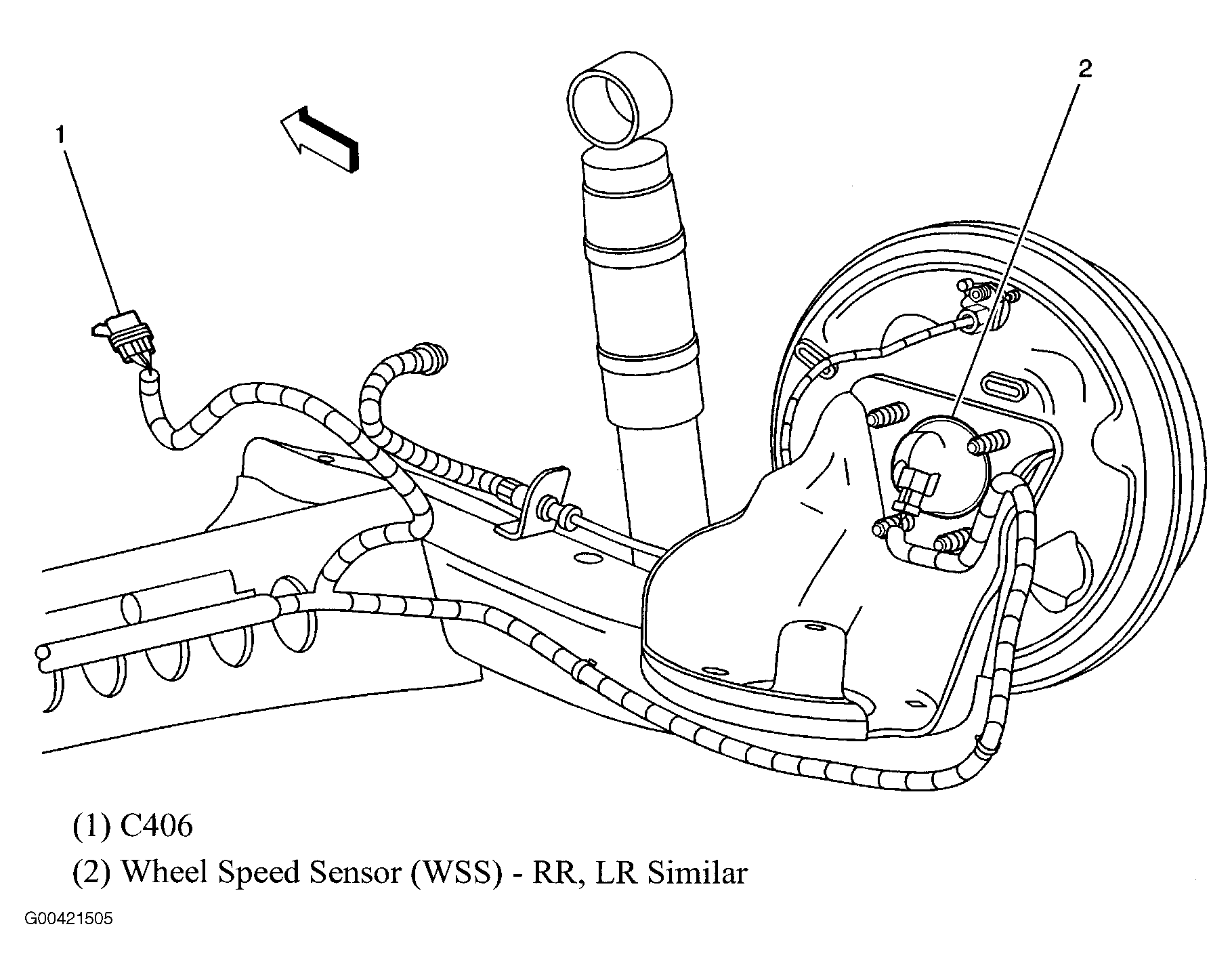

Fig 3: Right Rear Wheelwell (Left Rear Similar)
Courtesy of GENERAL MOTORS CORP.

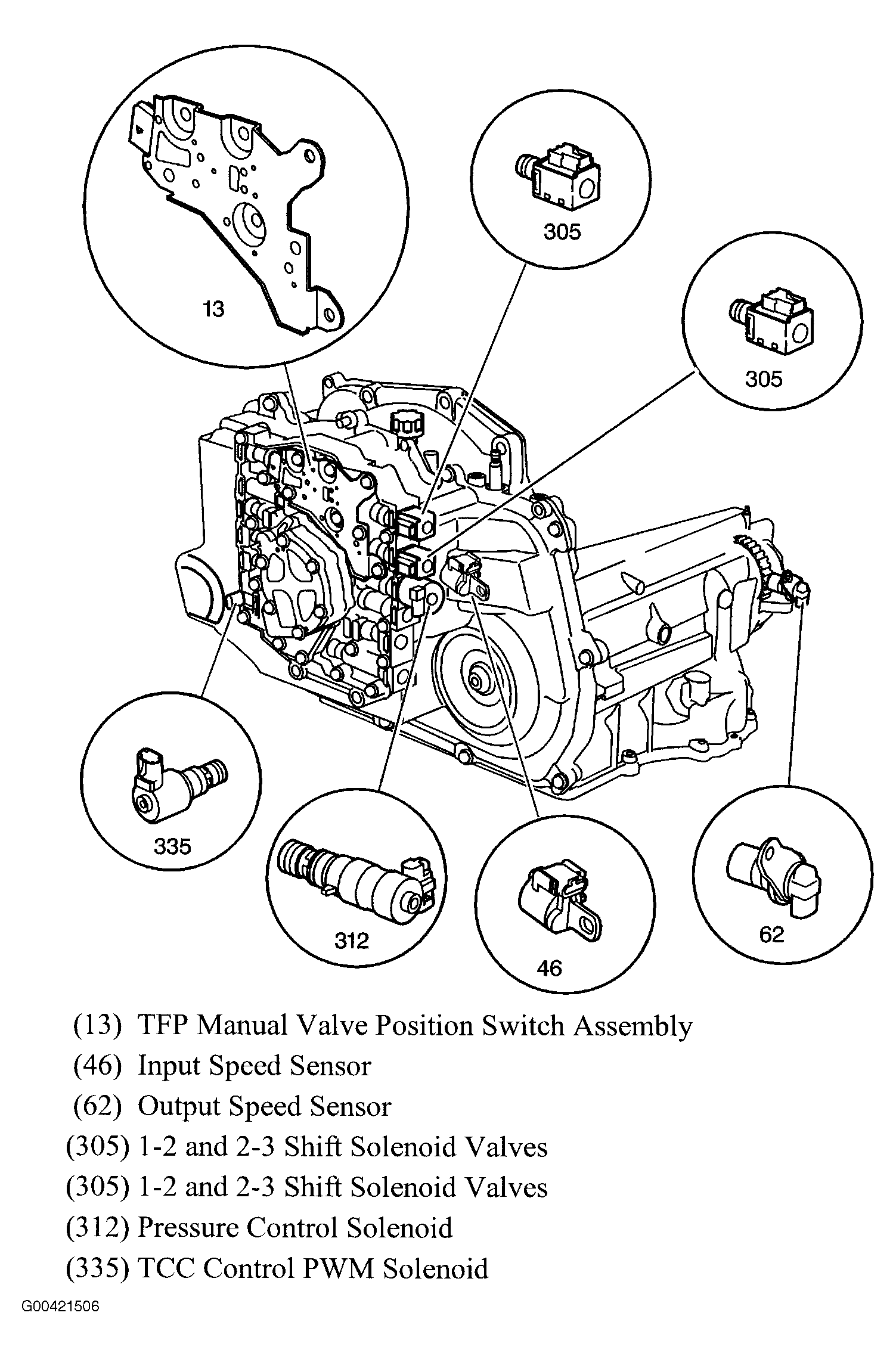

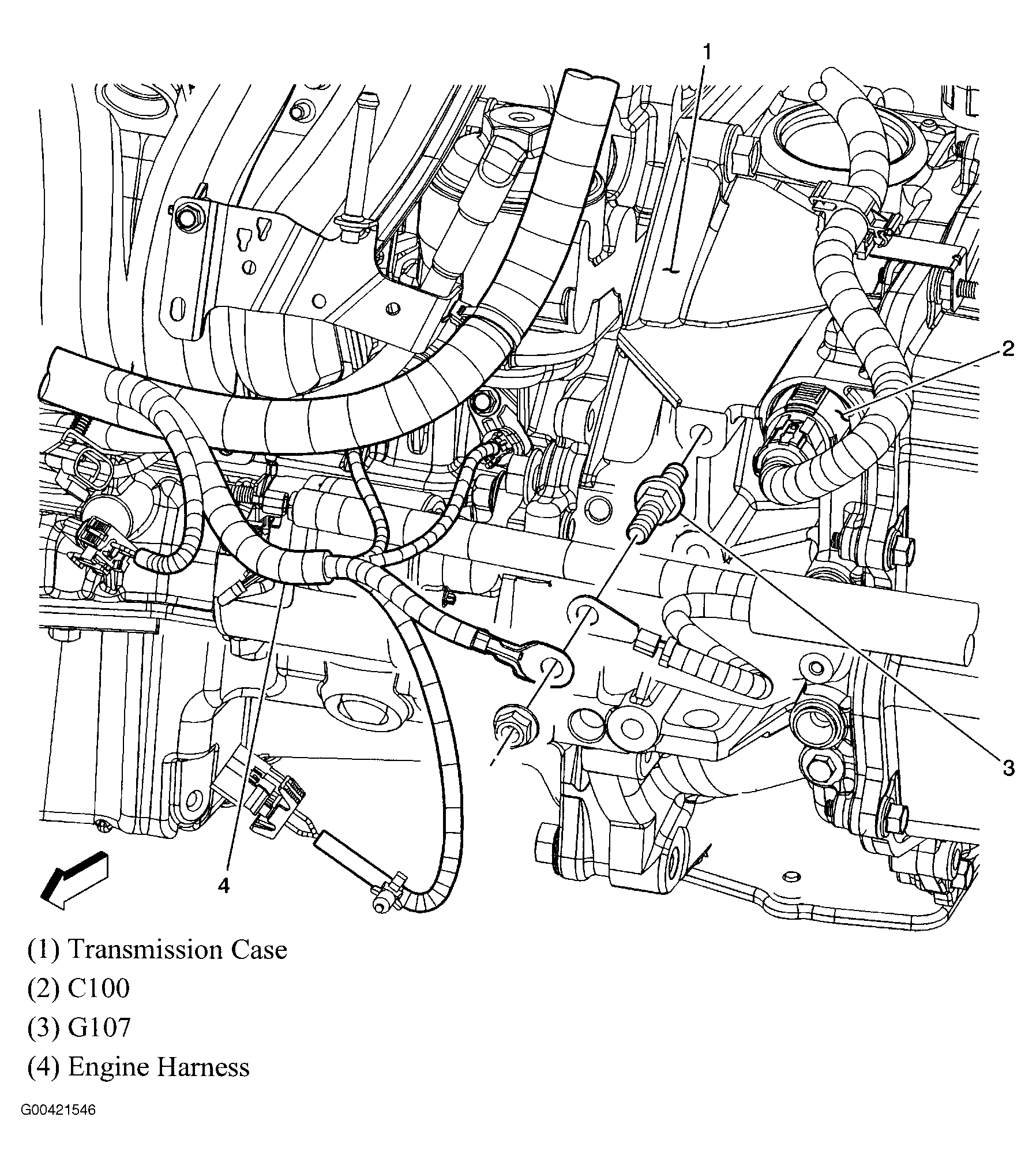

Fig 4: Automatic Transmission (4T45-E)
Courtesy of GENERAL MOTORS CORP.

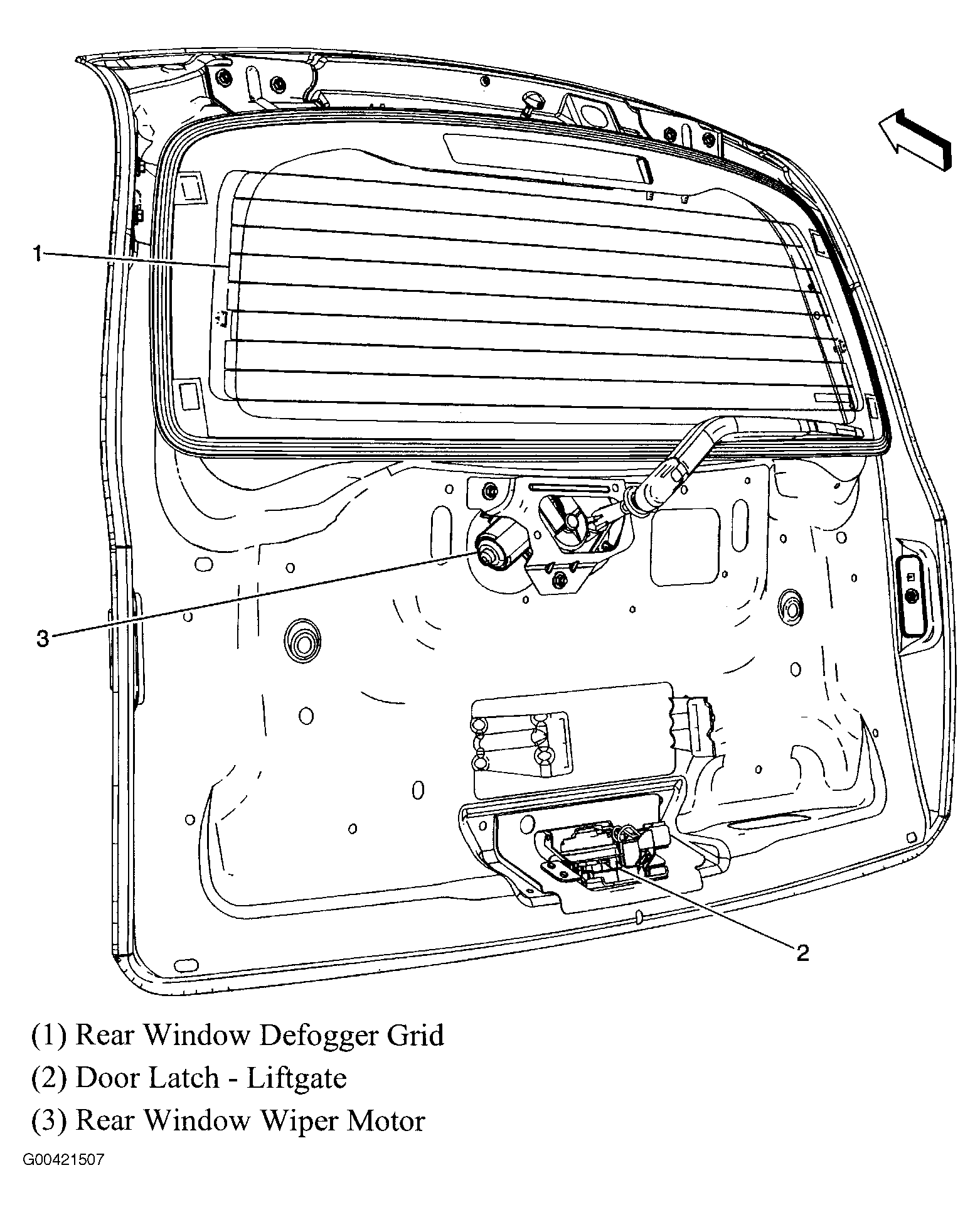

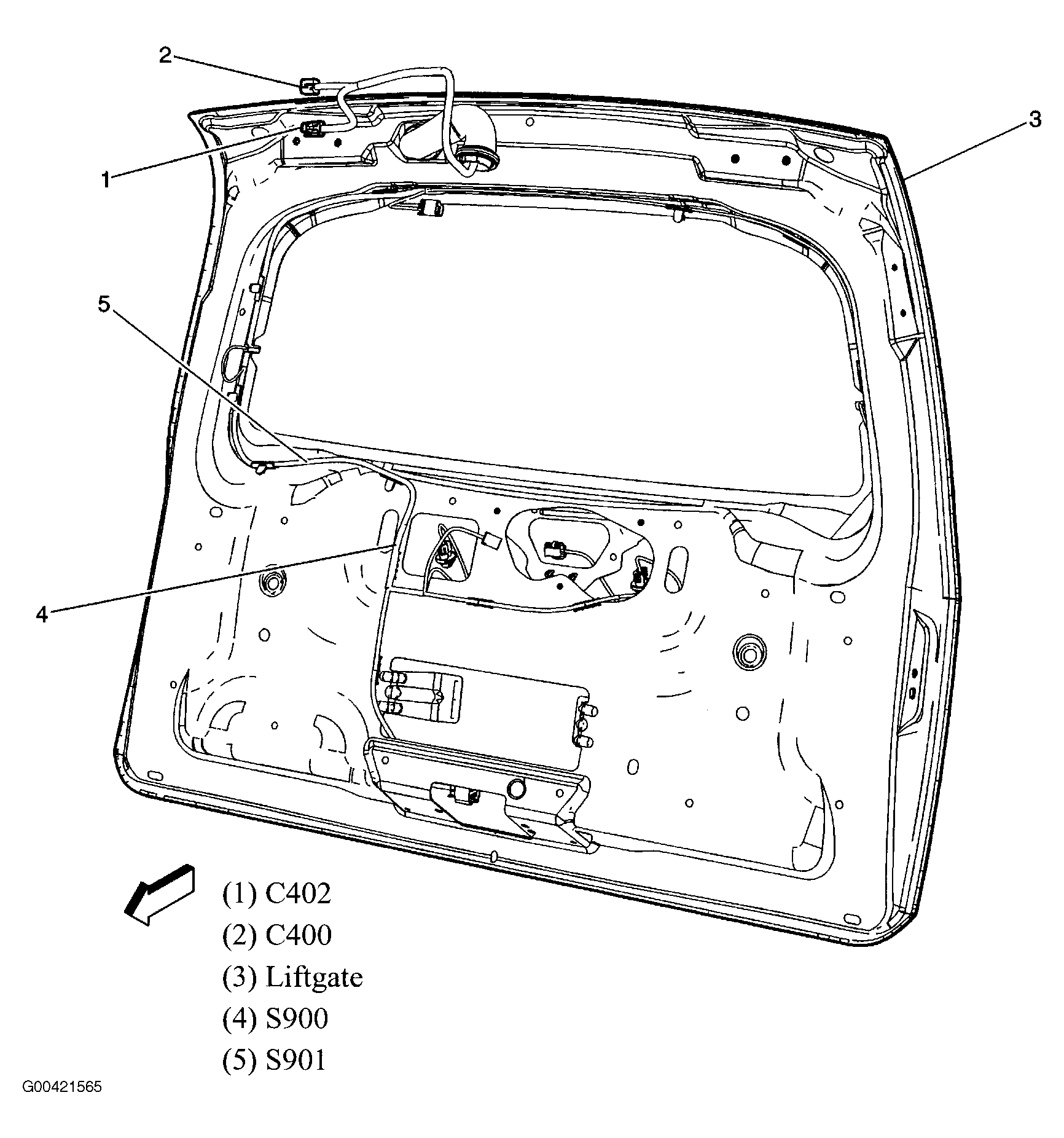

Fig 5: Liftgate
Courtesy of GENERAL MOTORS CORP.

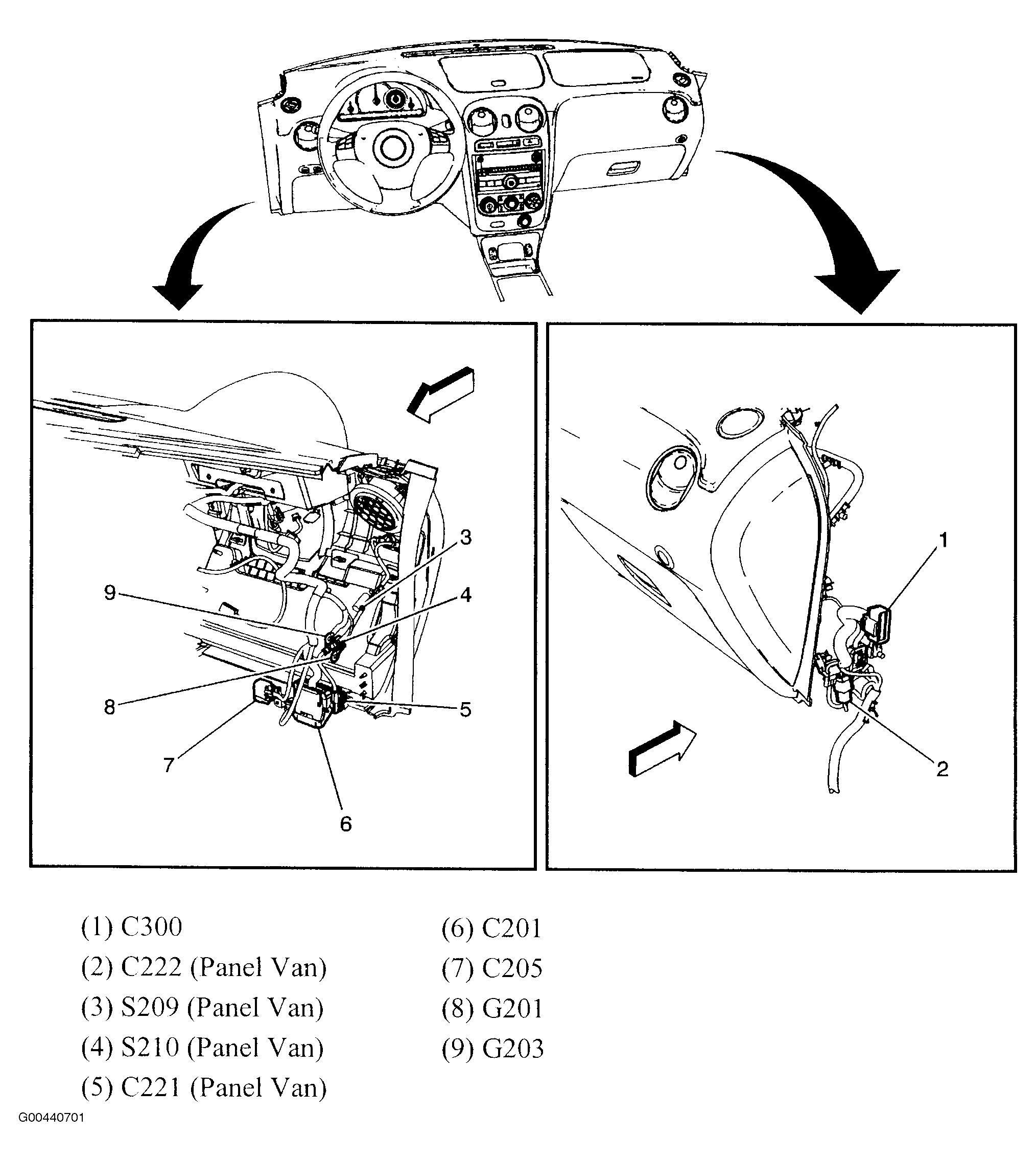

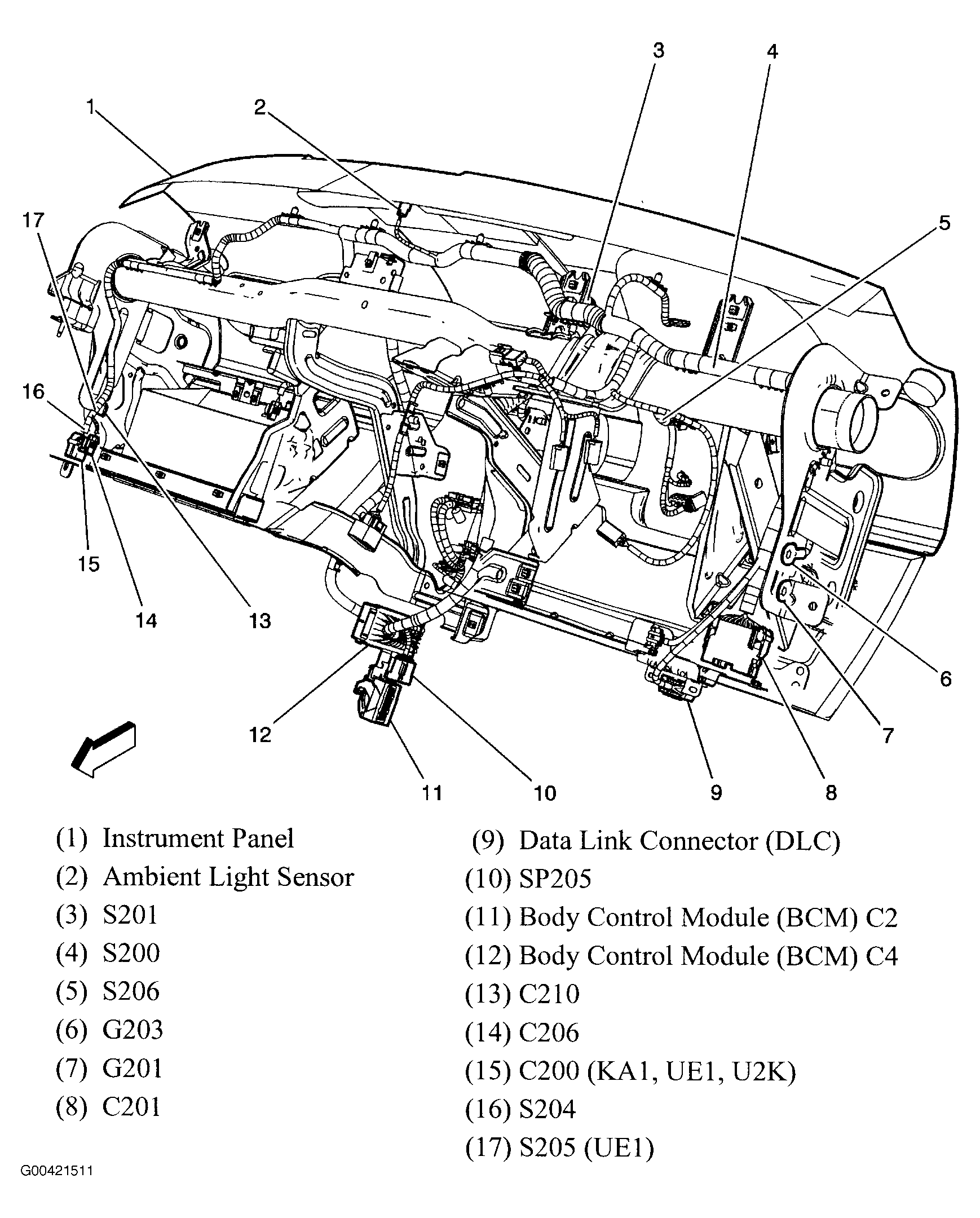

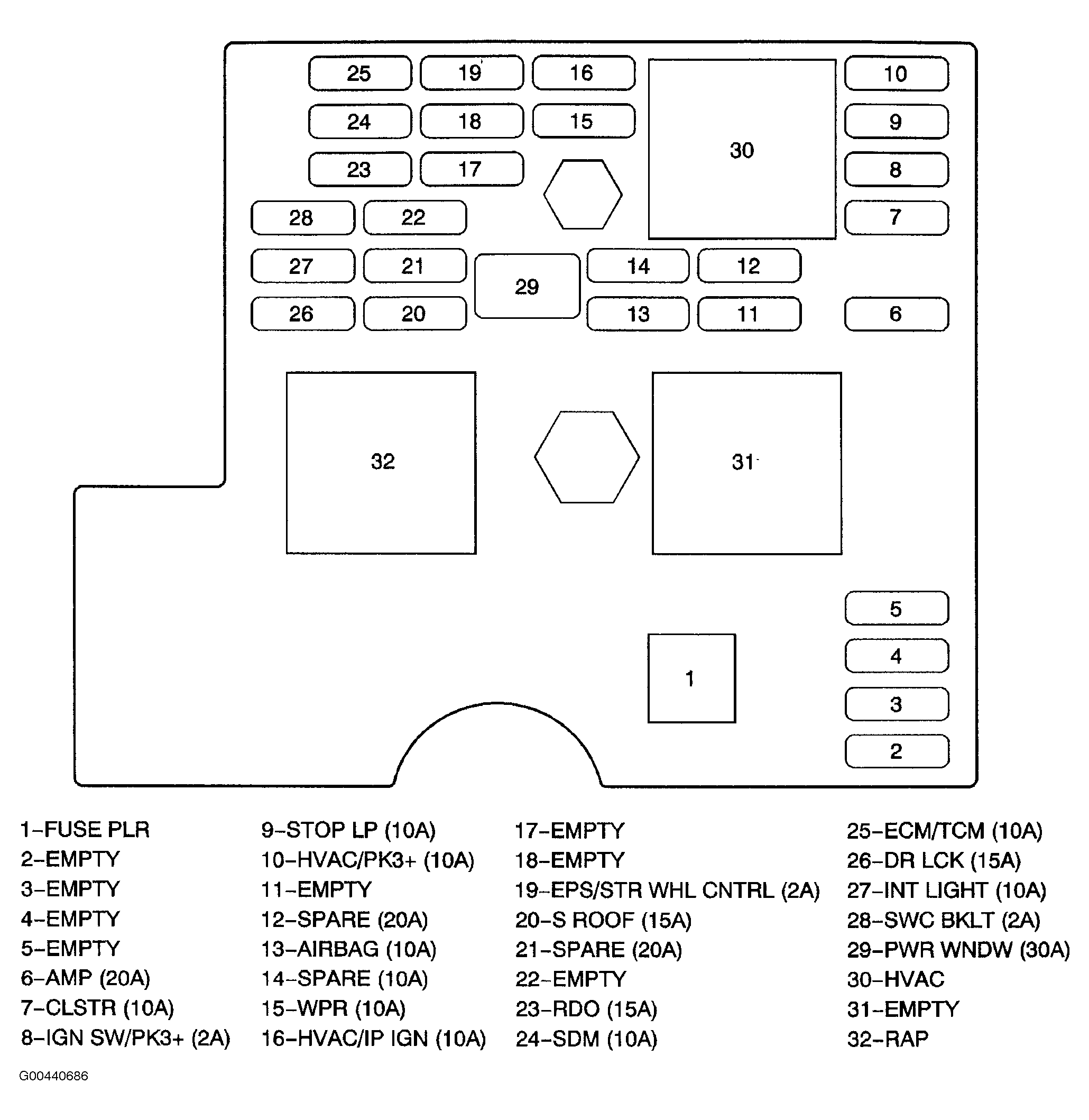

Fig 6: Behind Instrument Panel
Courtesy of GENERAL MOTORS CORP.

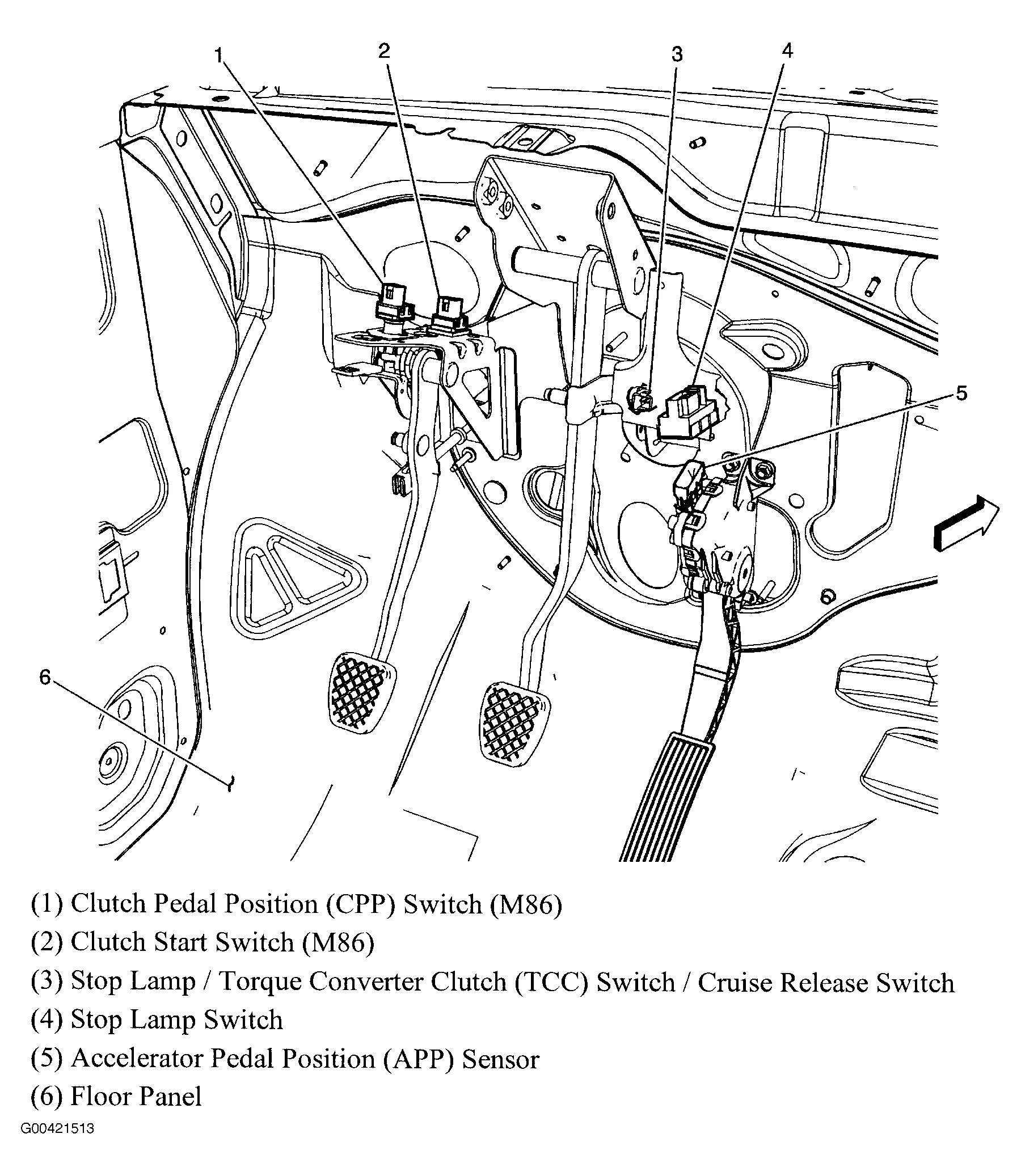

Fig 7: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

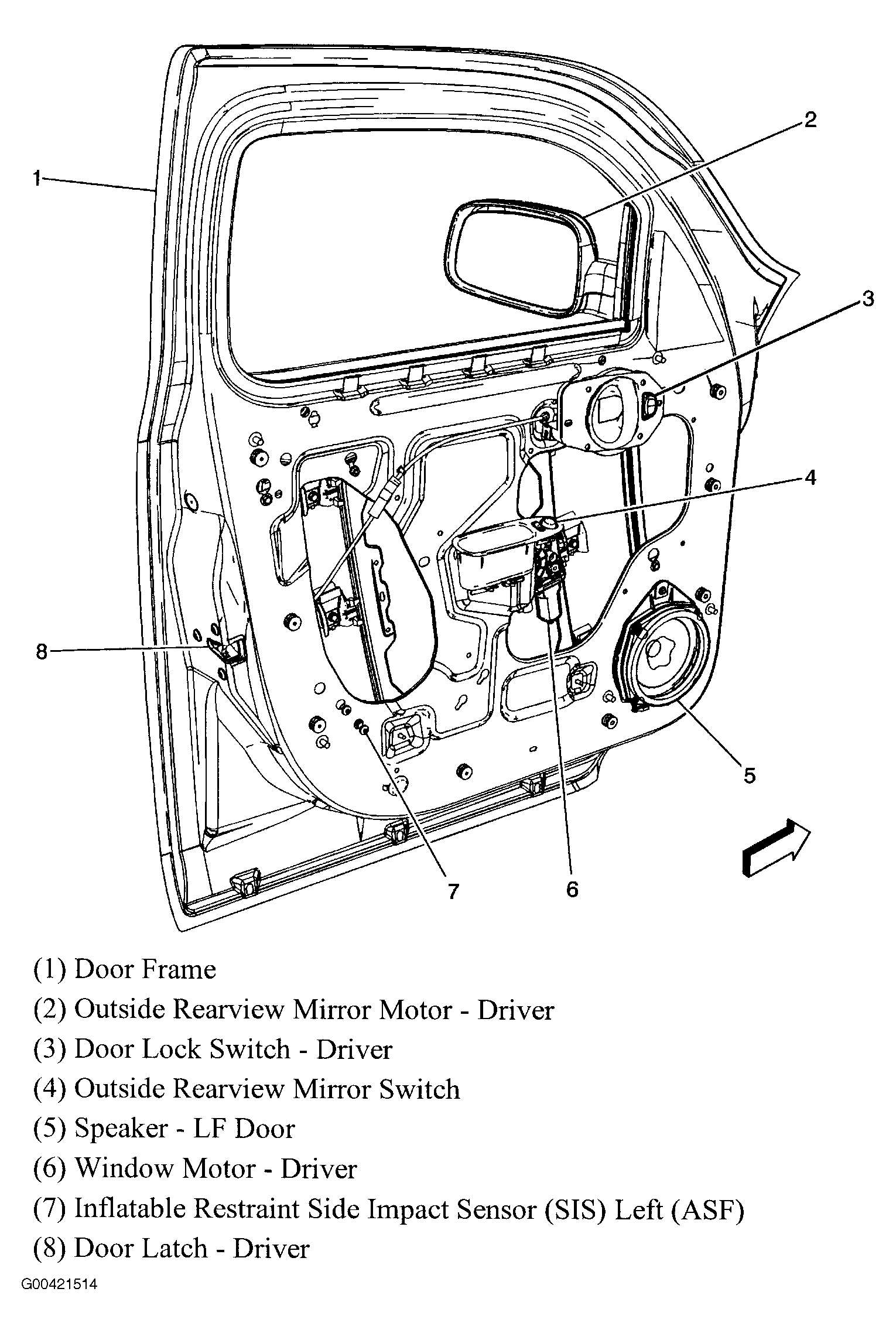

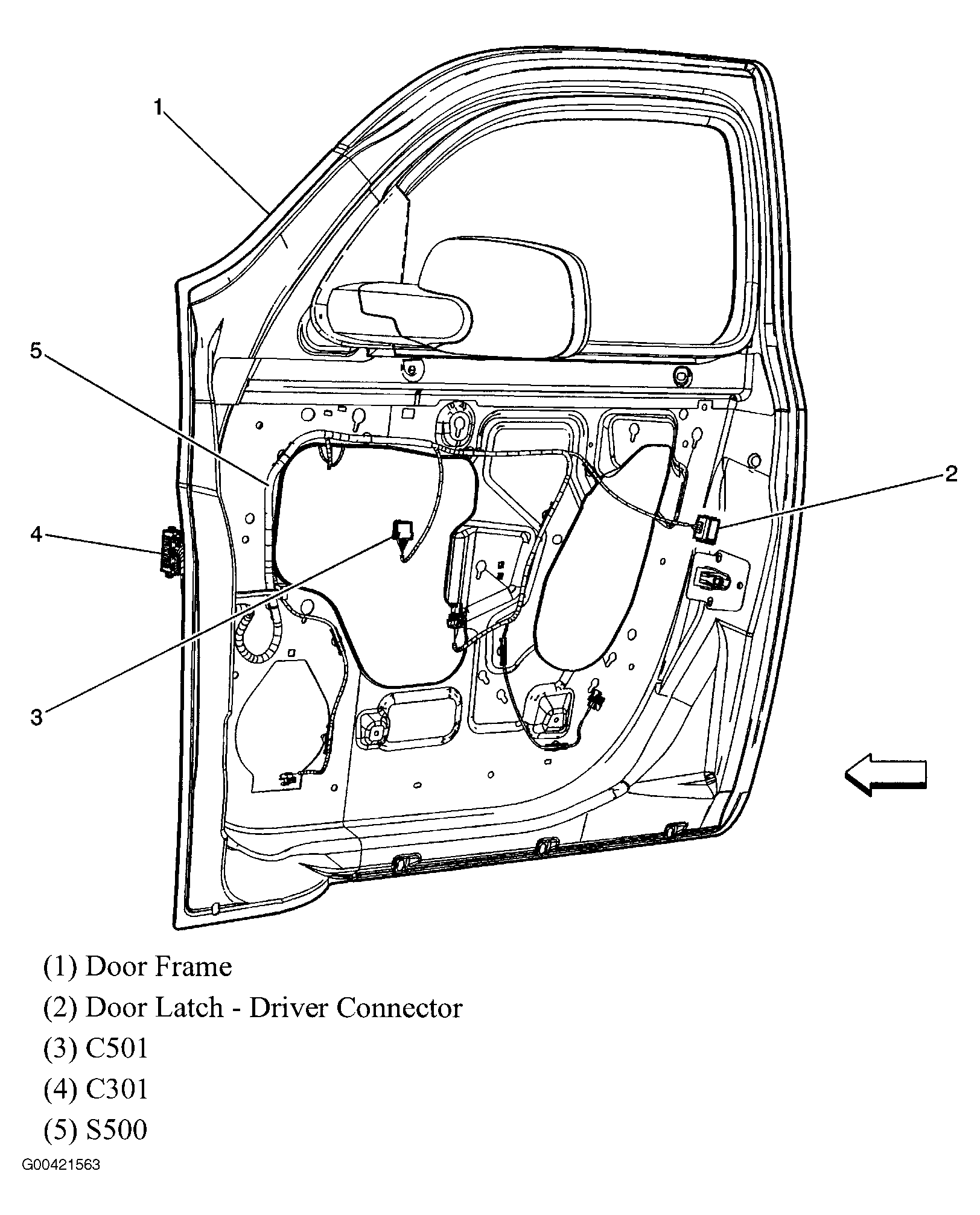

Fig 8: Driver's Door
Courtesy of GENERAL MOTORS CORP.

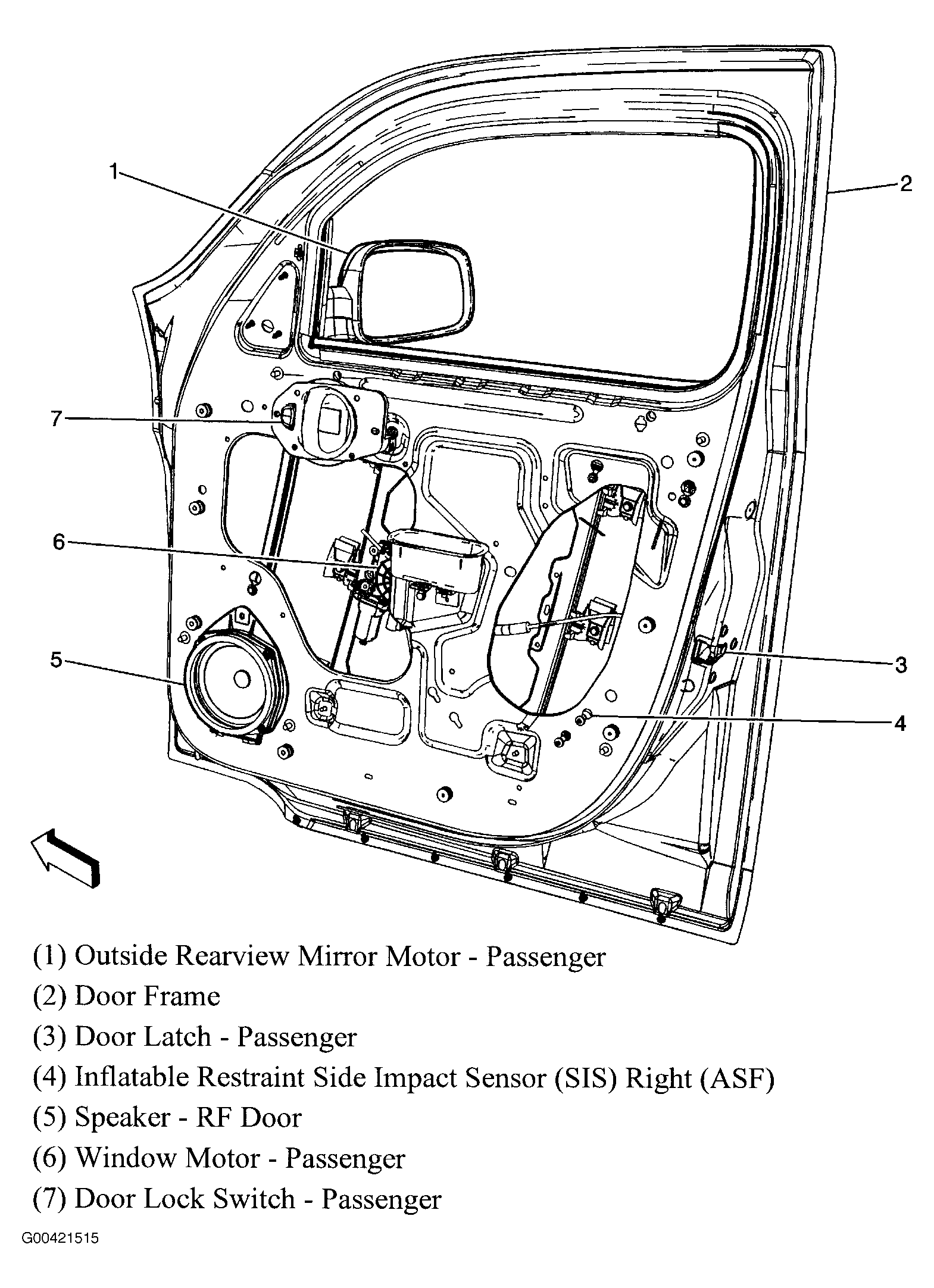

Fig 9: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

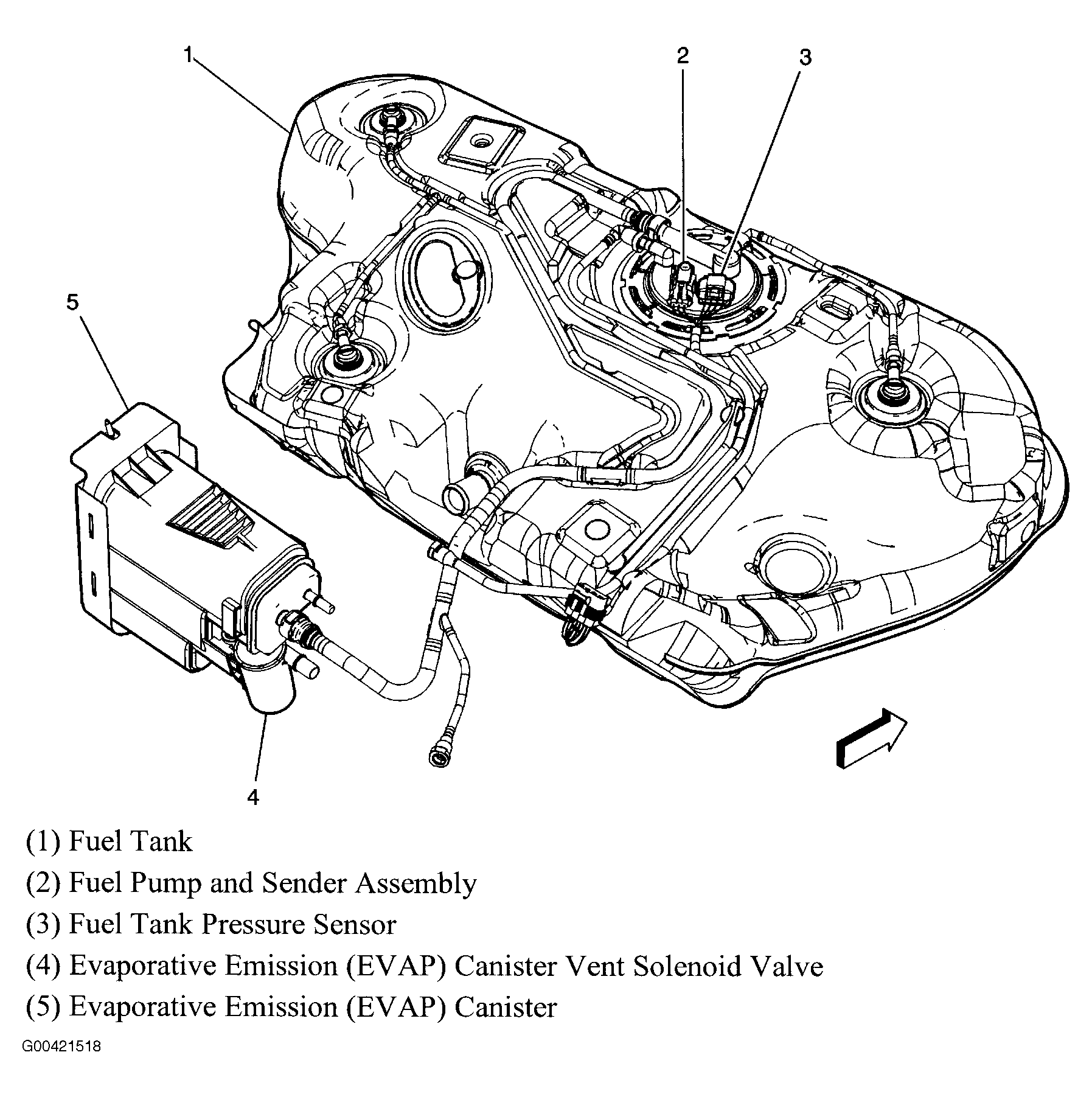

Fig 10: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.

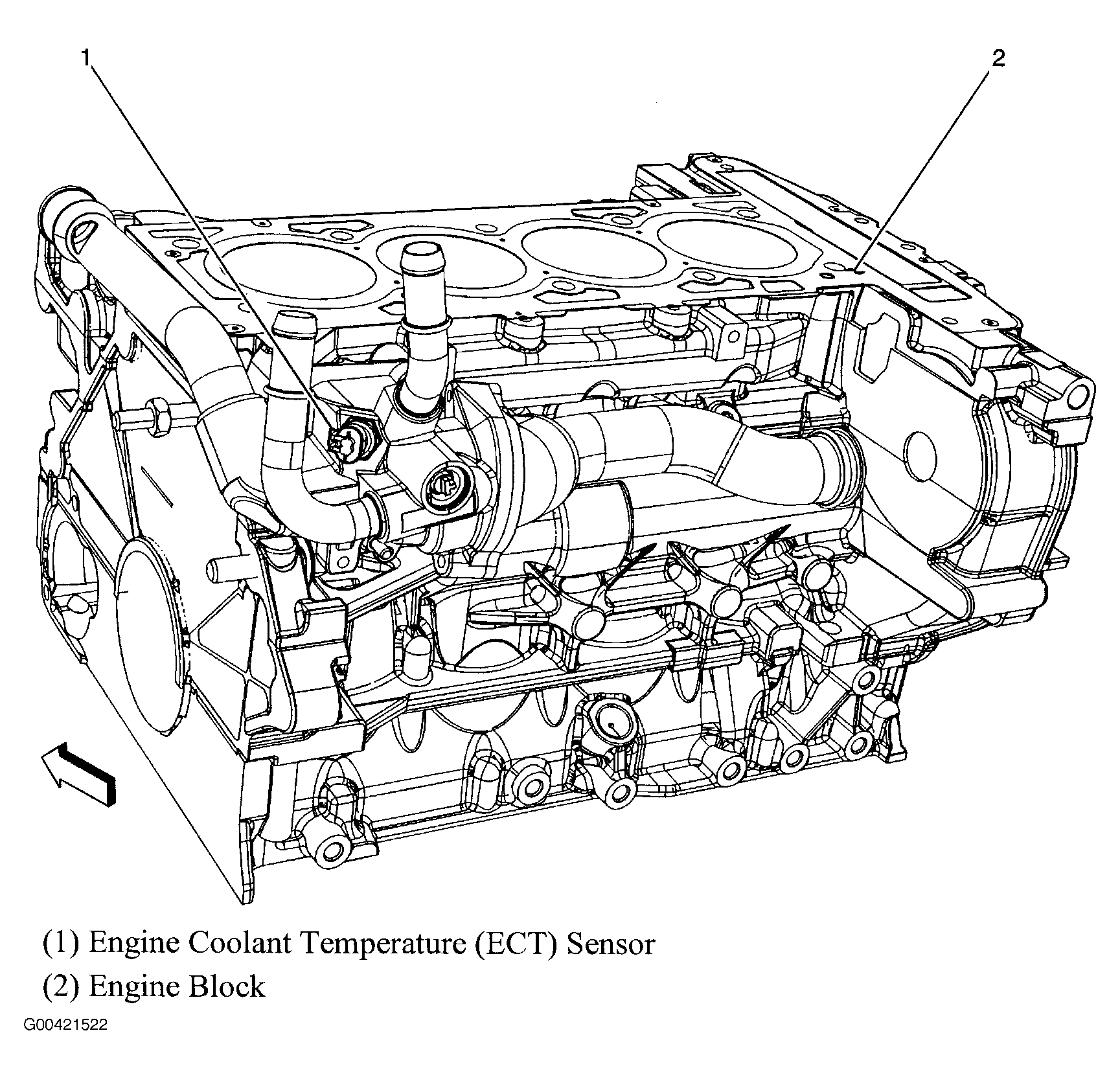

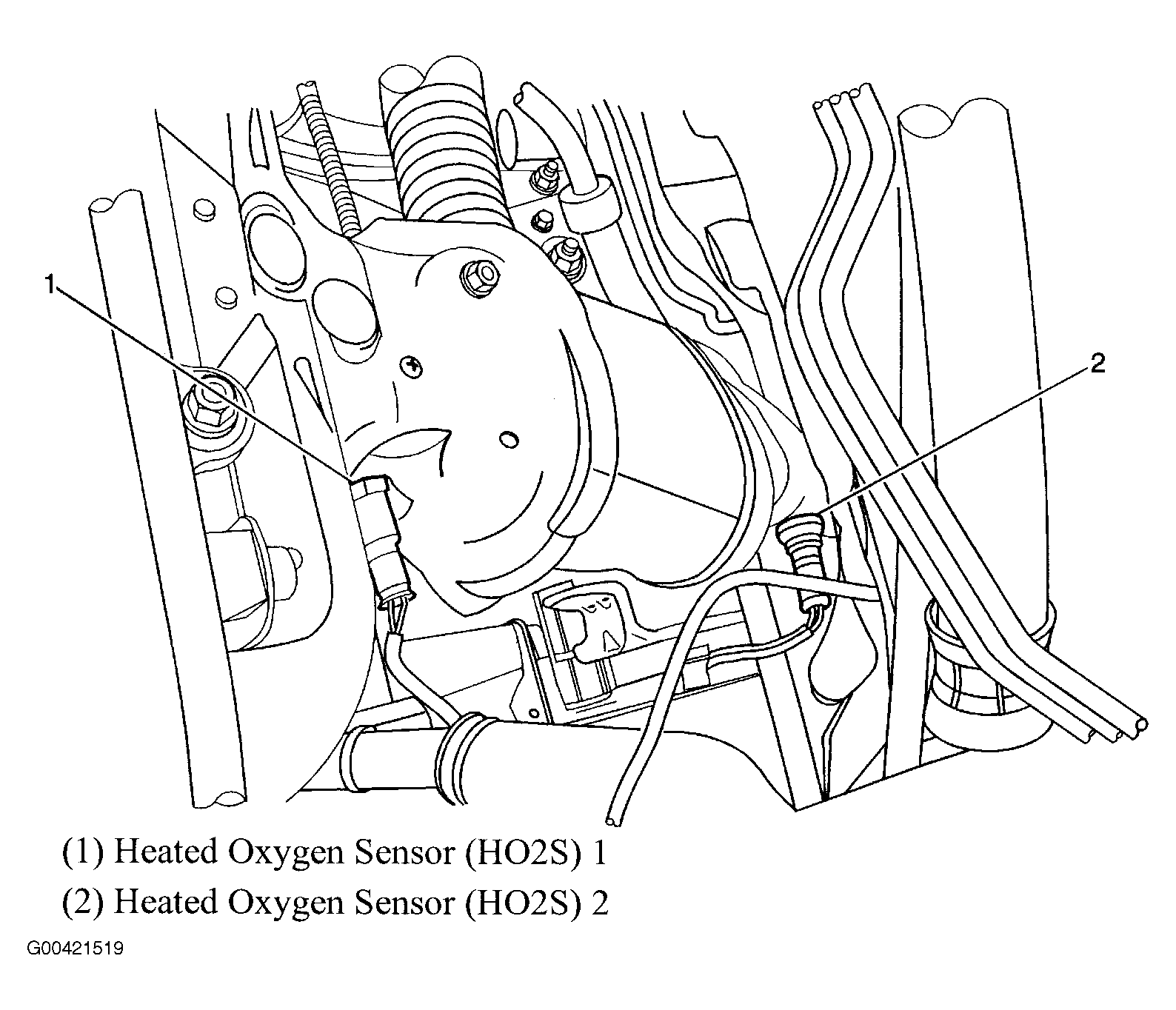

Fig 11: Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

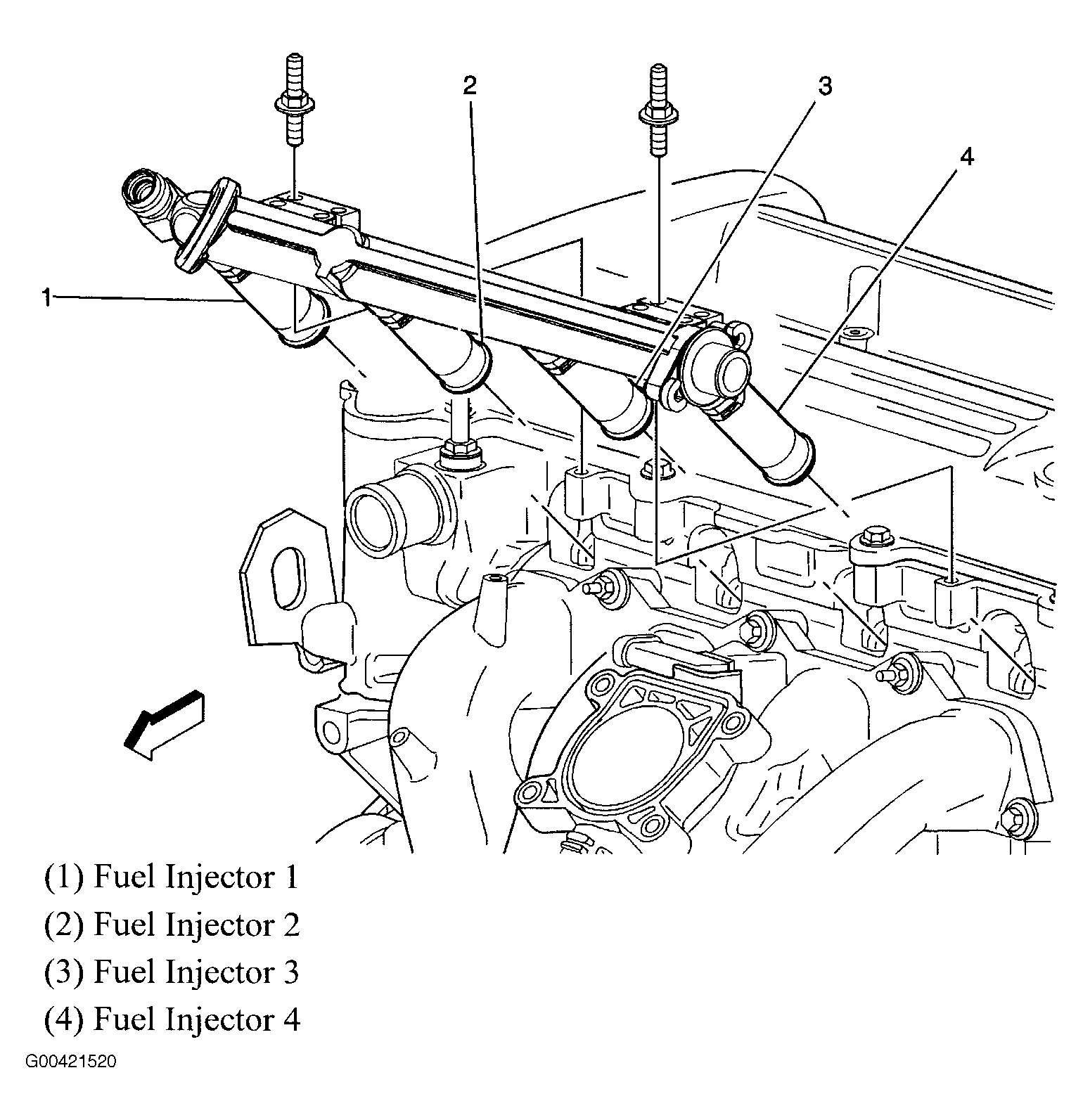

Fig 12: Top Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Top Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

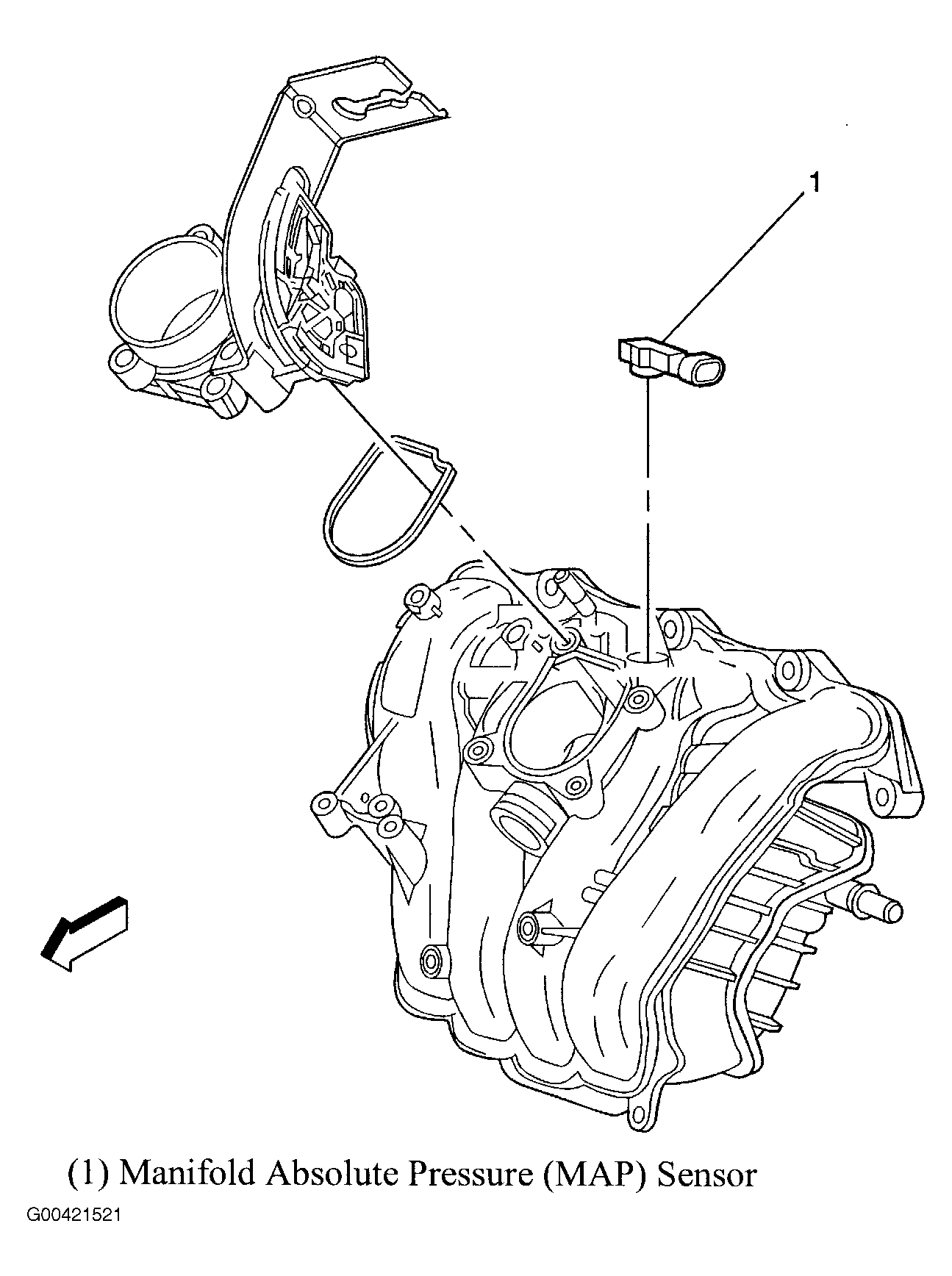

Fig 16: Top Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

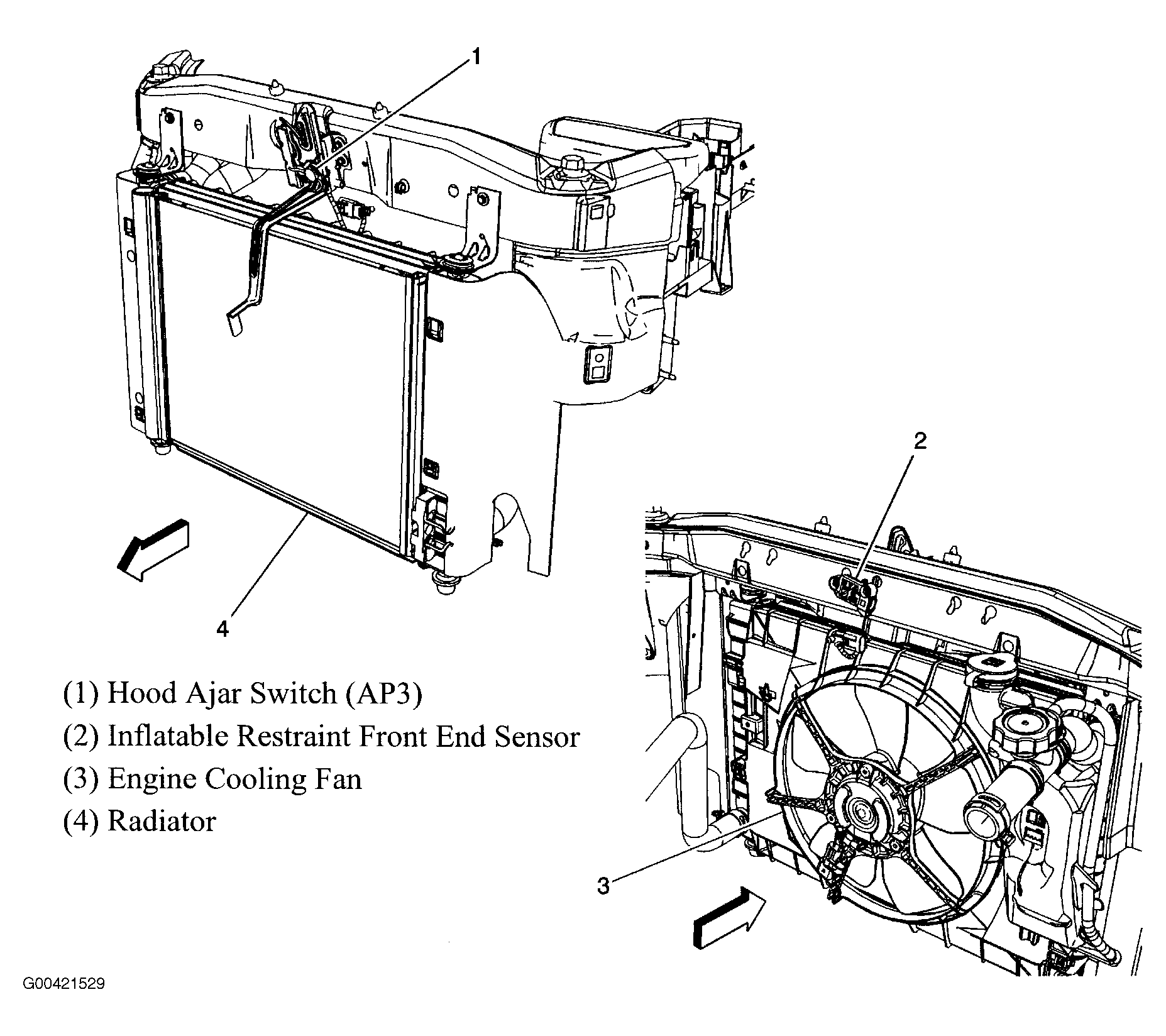

Fig 17: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

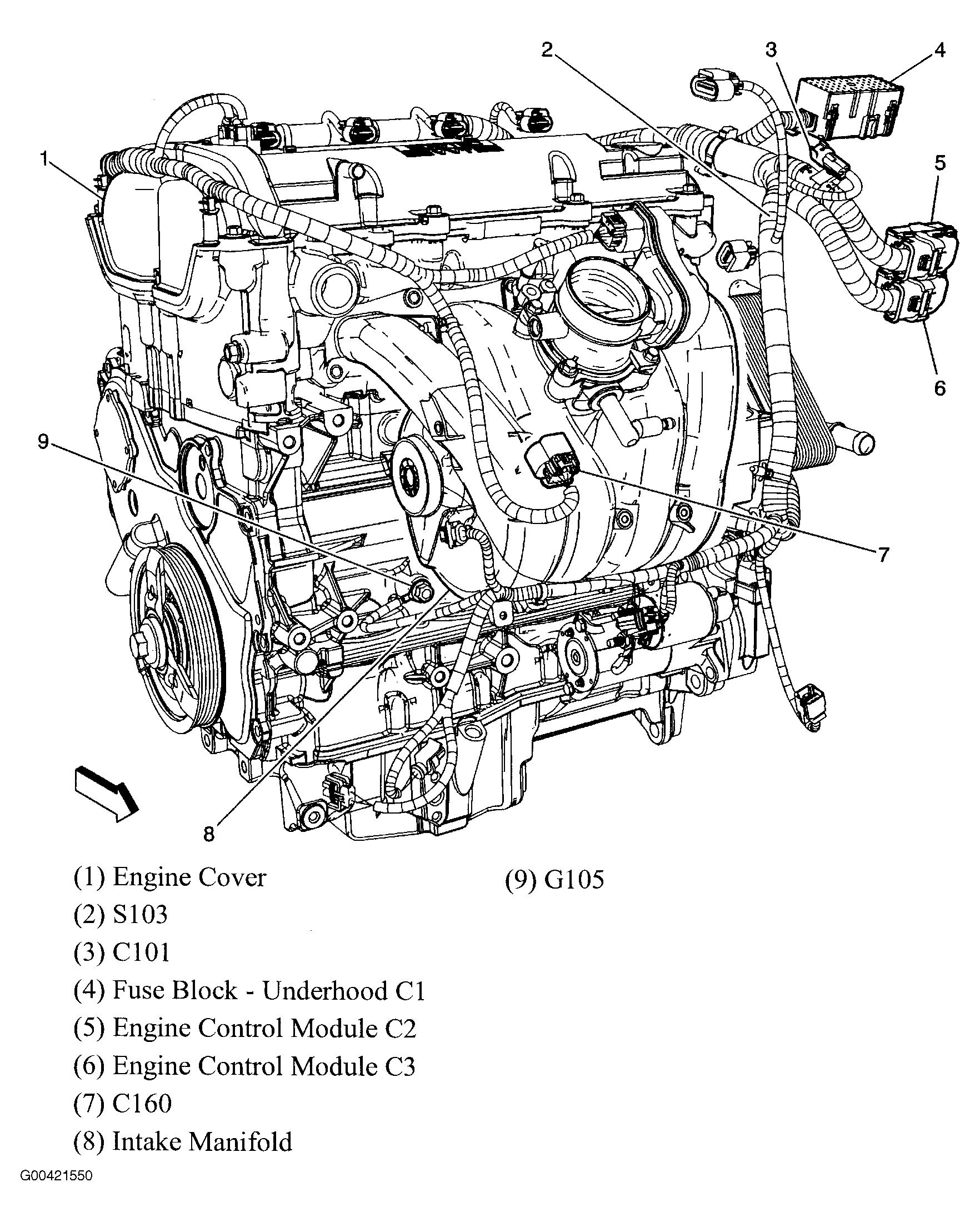

Fig 18: Left Side Of Engine (2.2L/2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of HVAC Unit
Courtesy of GENERAL MOTORS CORP.

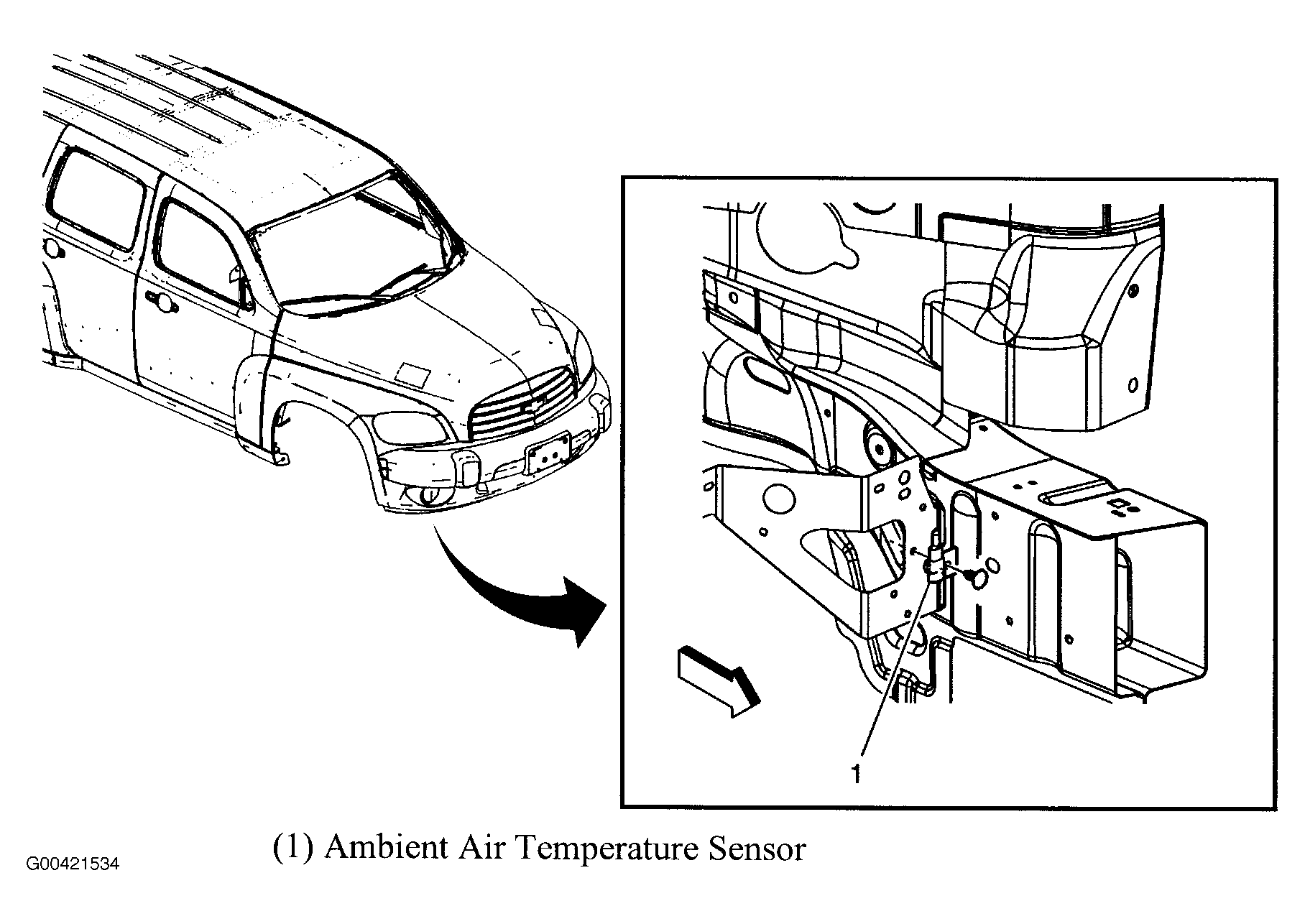

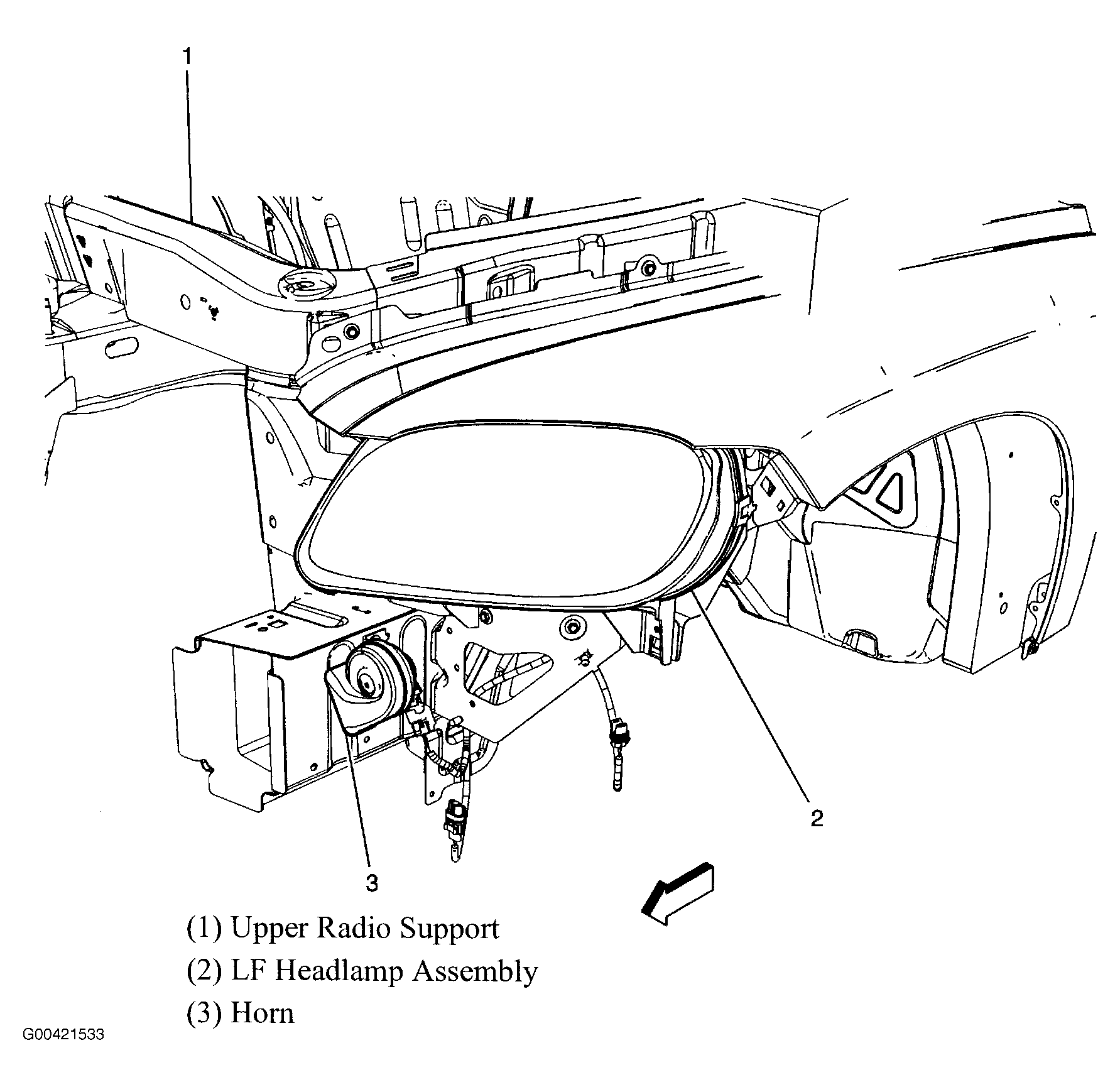

Fig 20: Left Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Rear Quarterpanel
Courtesy of GENERAL MOTORS CORP.

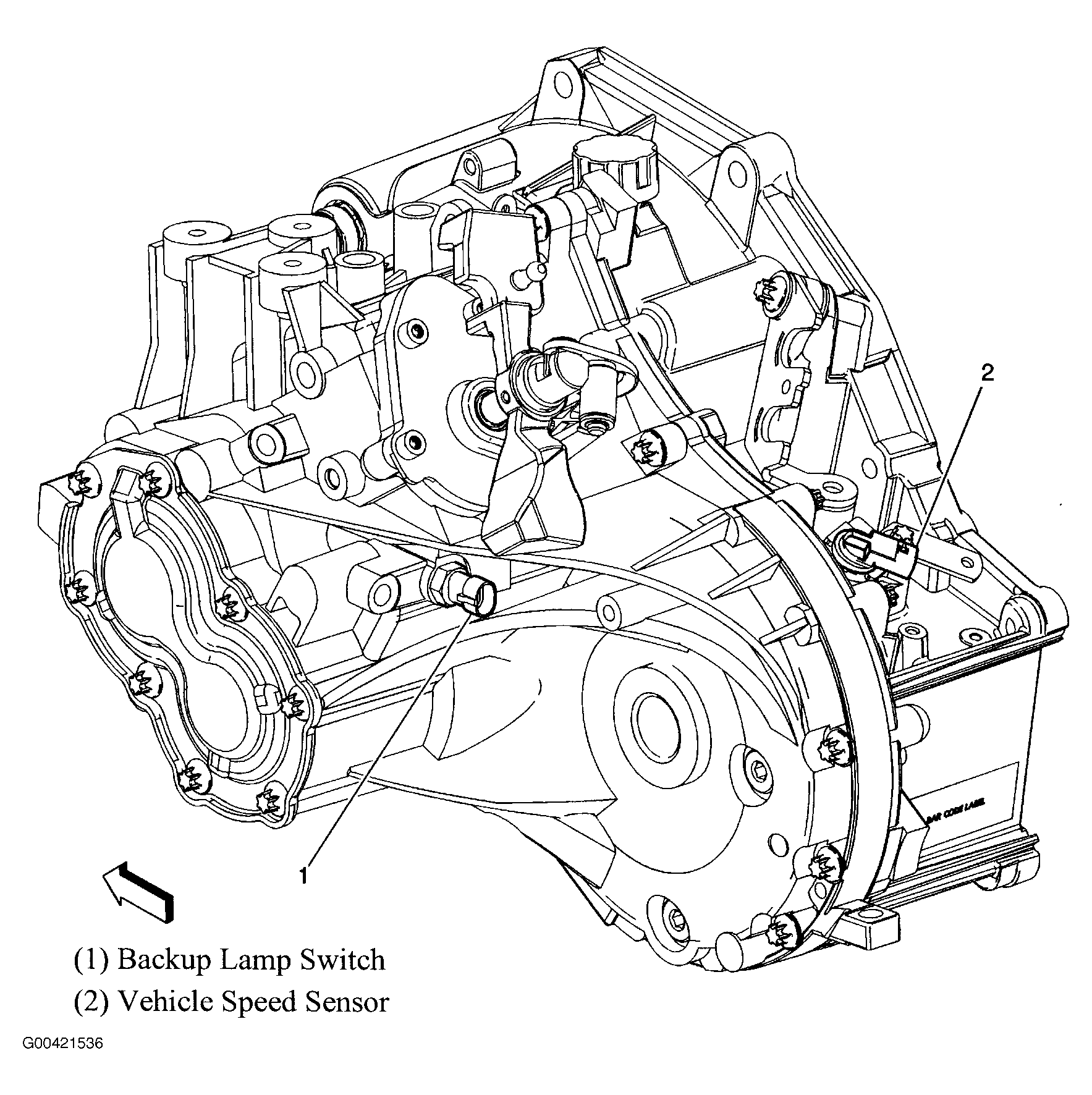

Fig 23: Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 24: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 25: Roof & Dash
Courtesy of GENERAL MOTORS CORP.

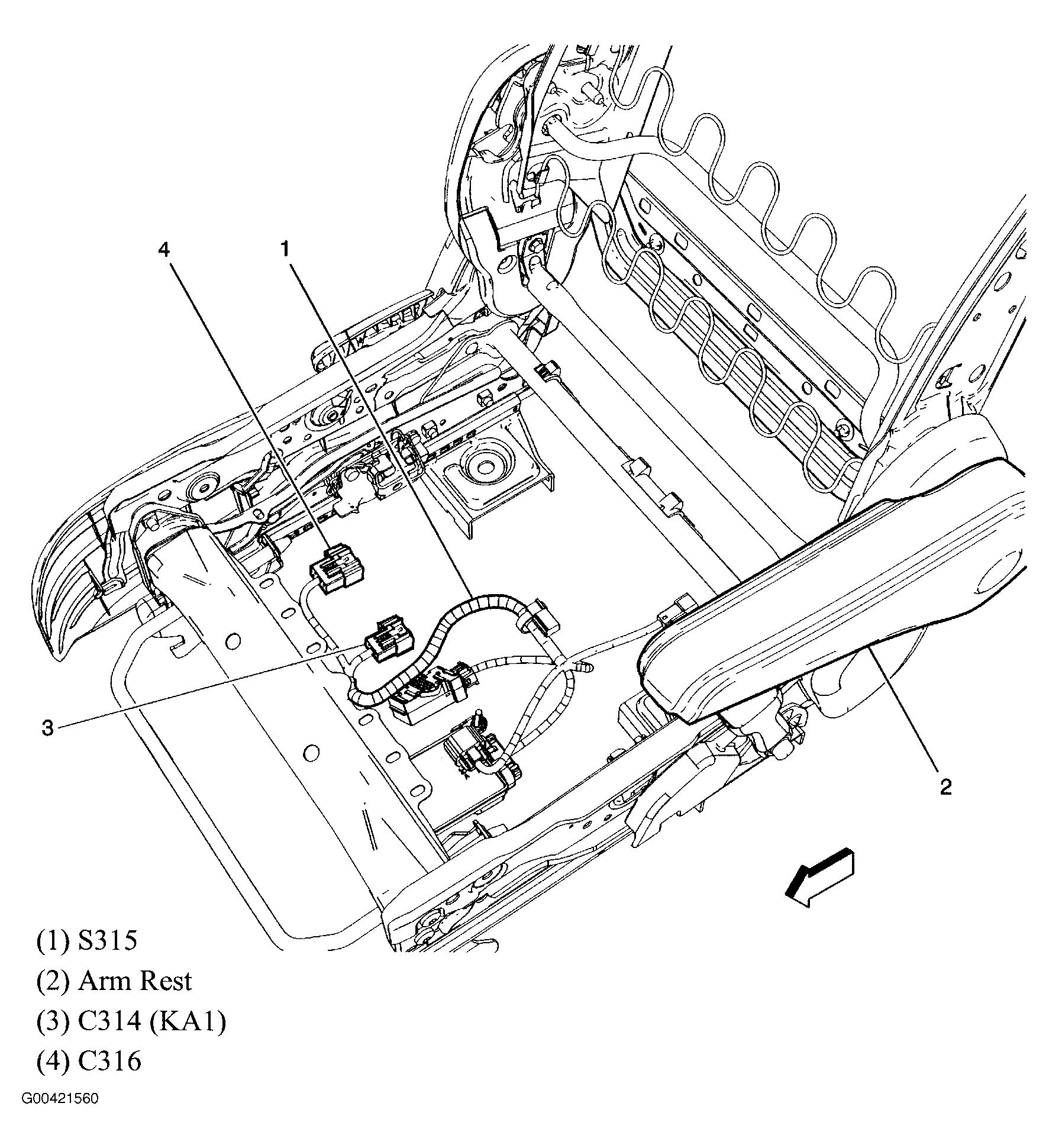

Fig 26: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

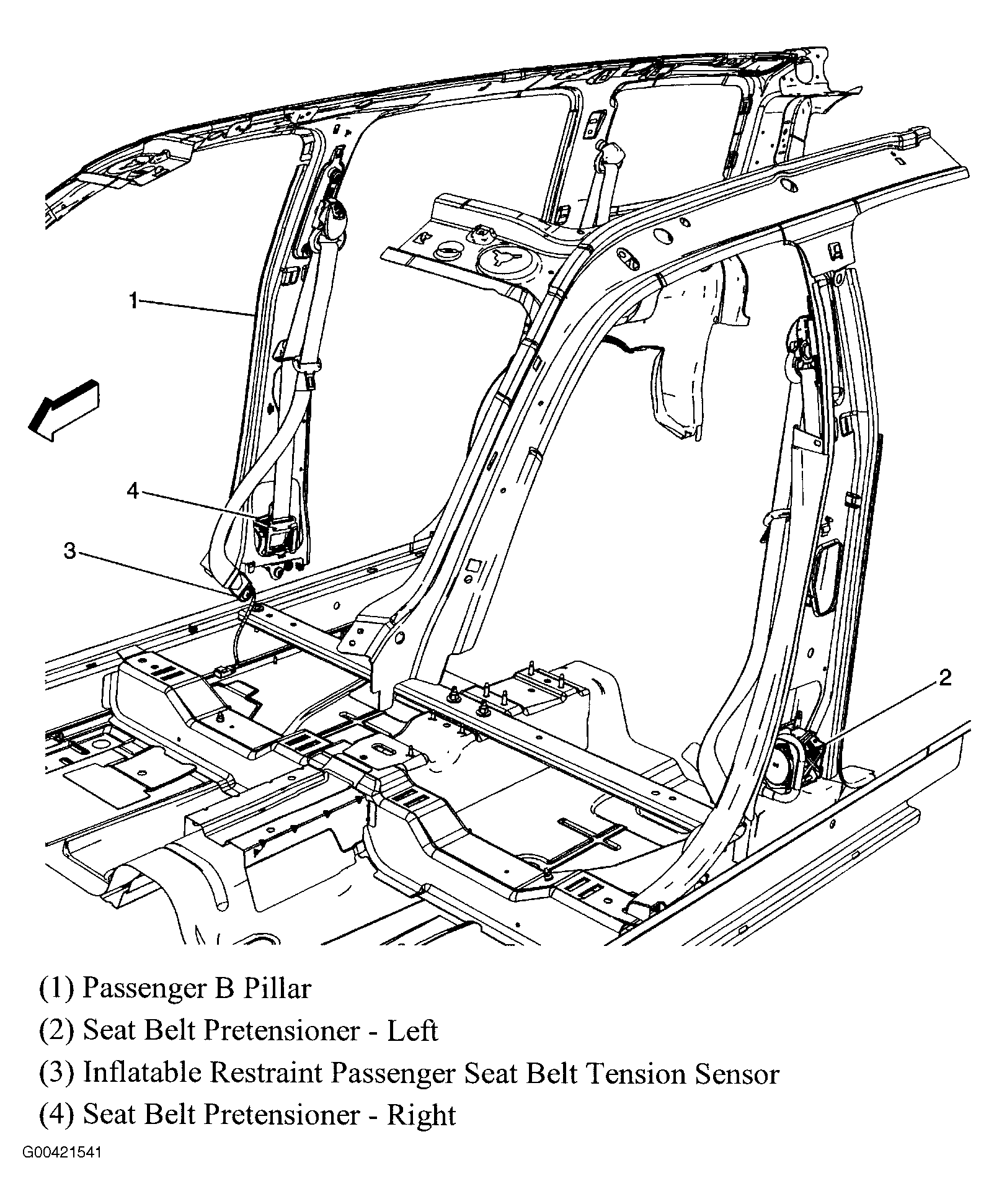

Fig 27: Left & Right "B" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 28: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.

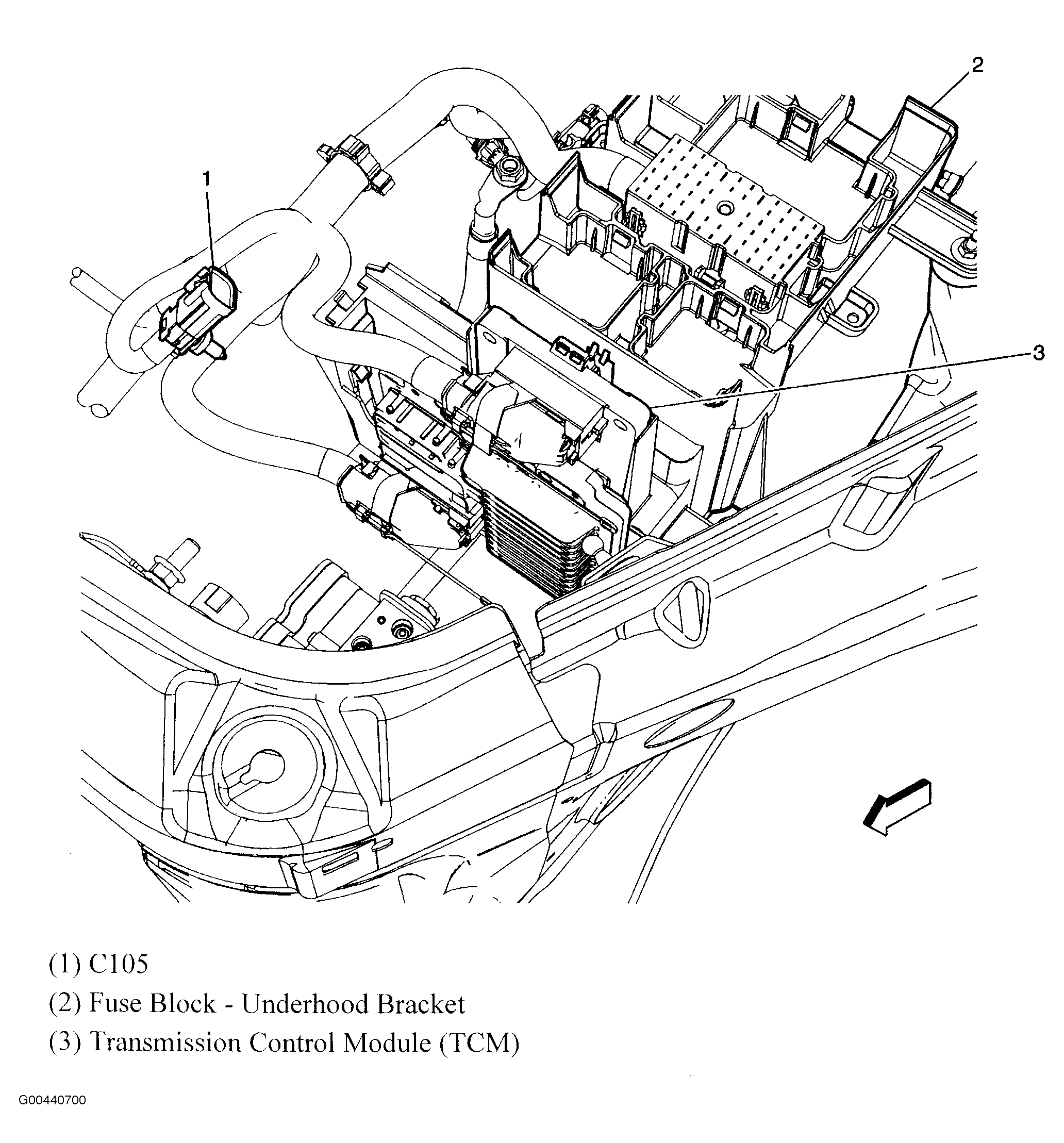

Fig 30: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

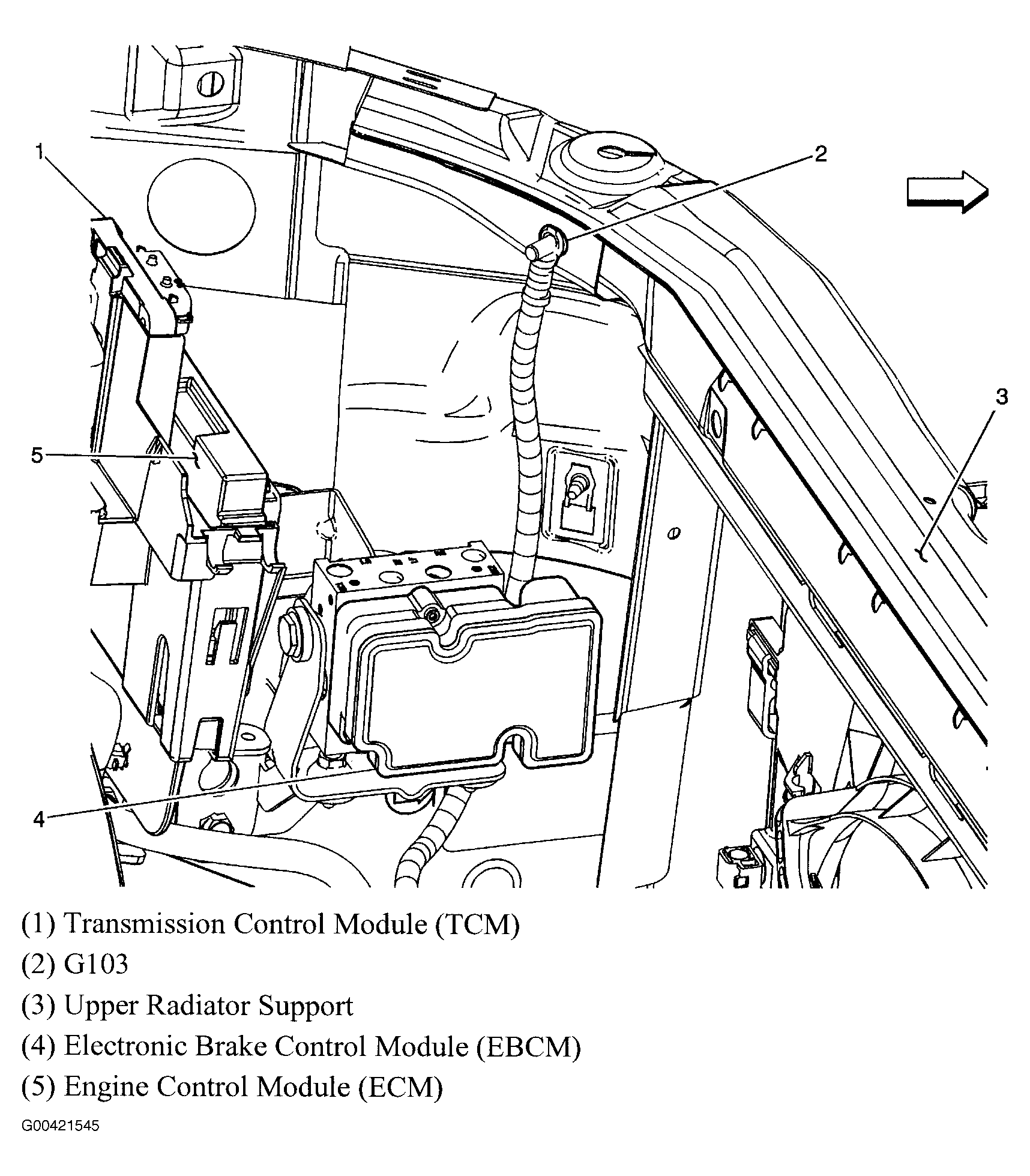

Fig 31: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

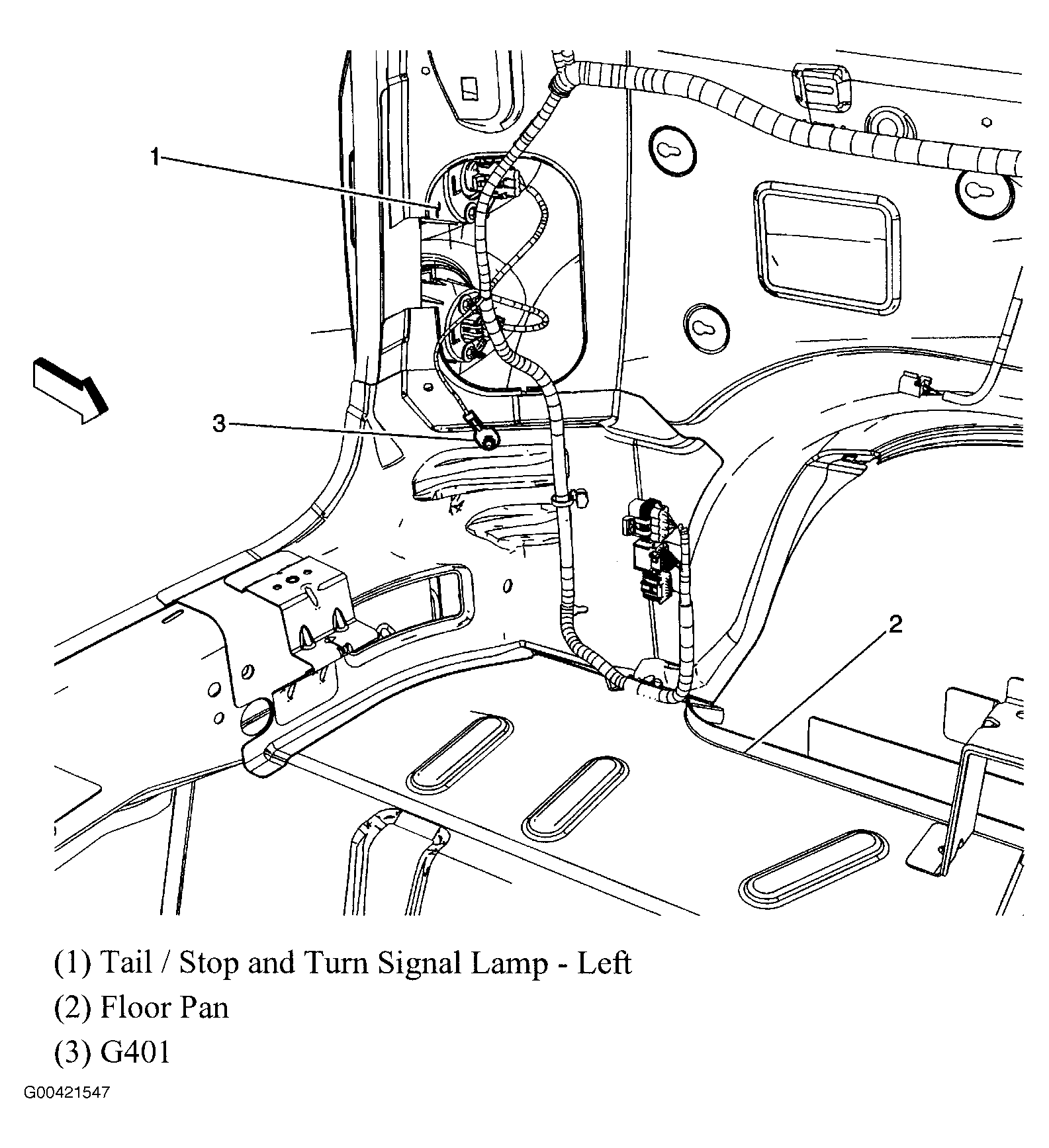

Fig 32: Left Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.

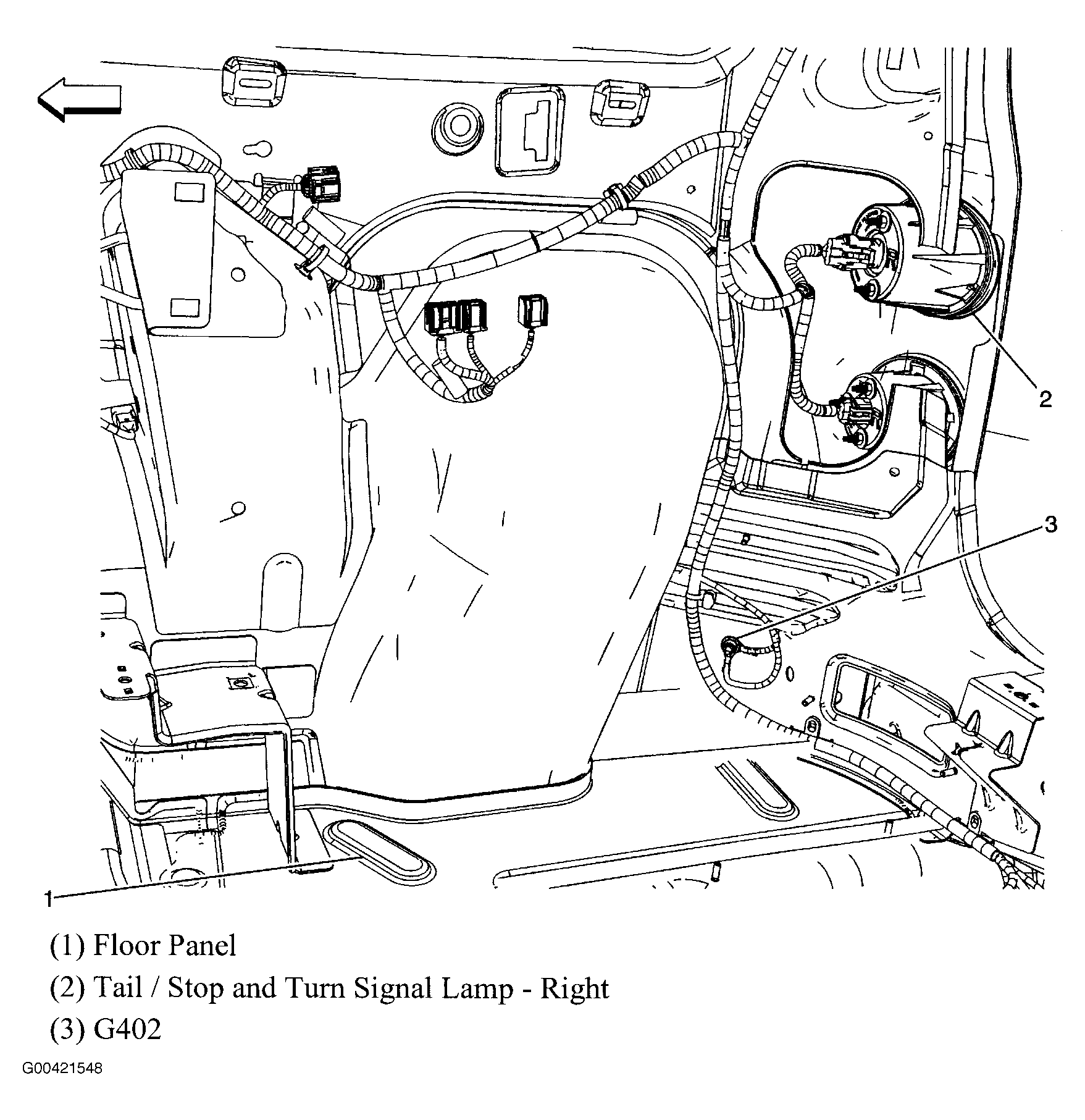

Fig 33: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.

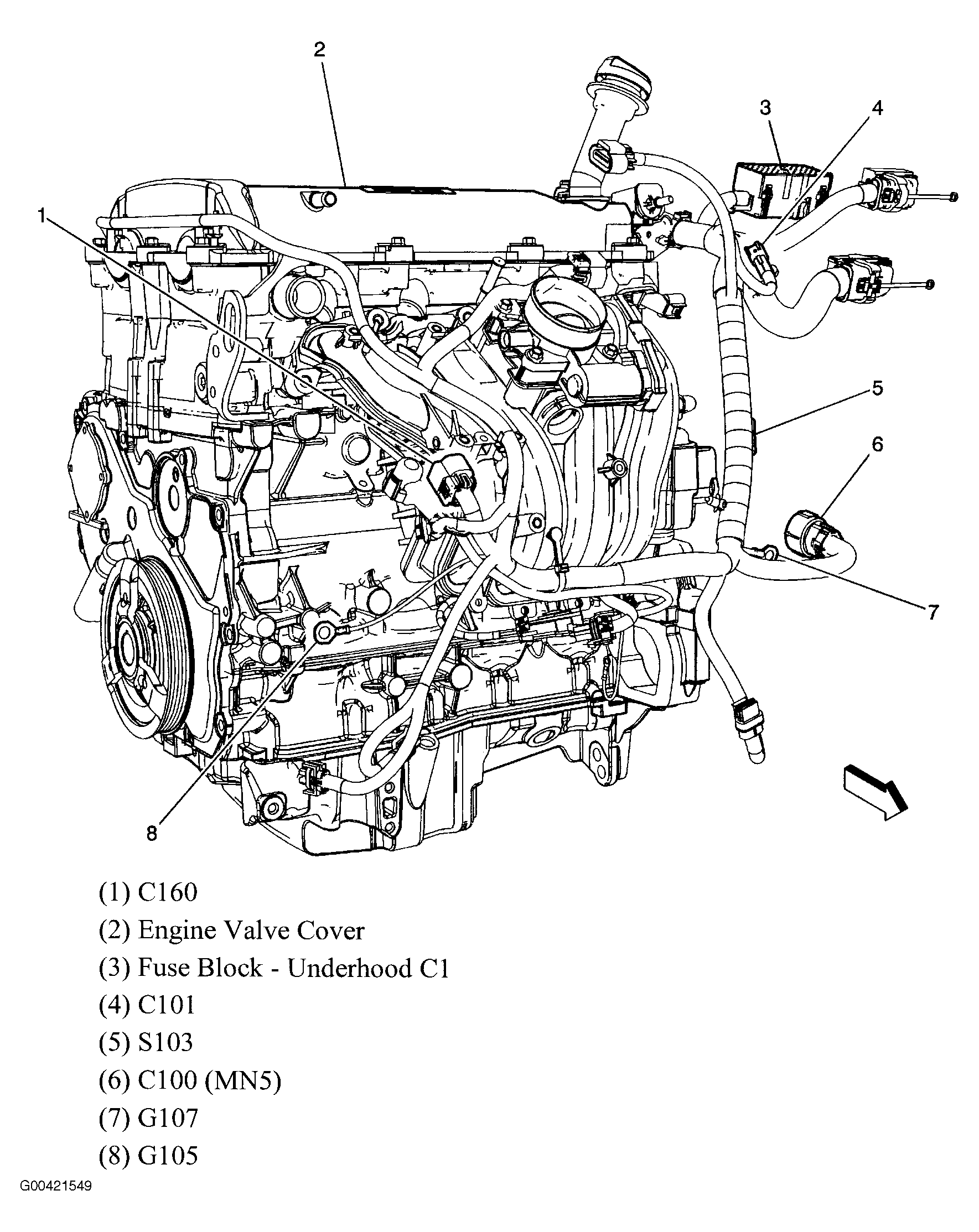

Fig 34: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Rear Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

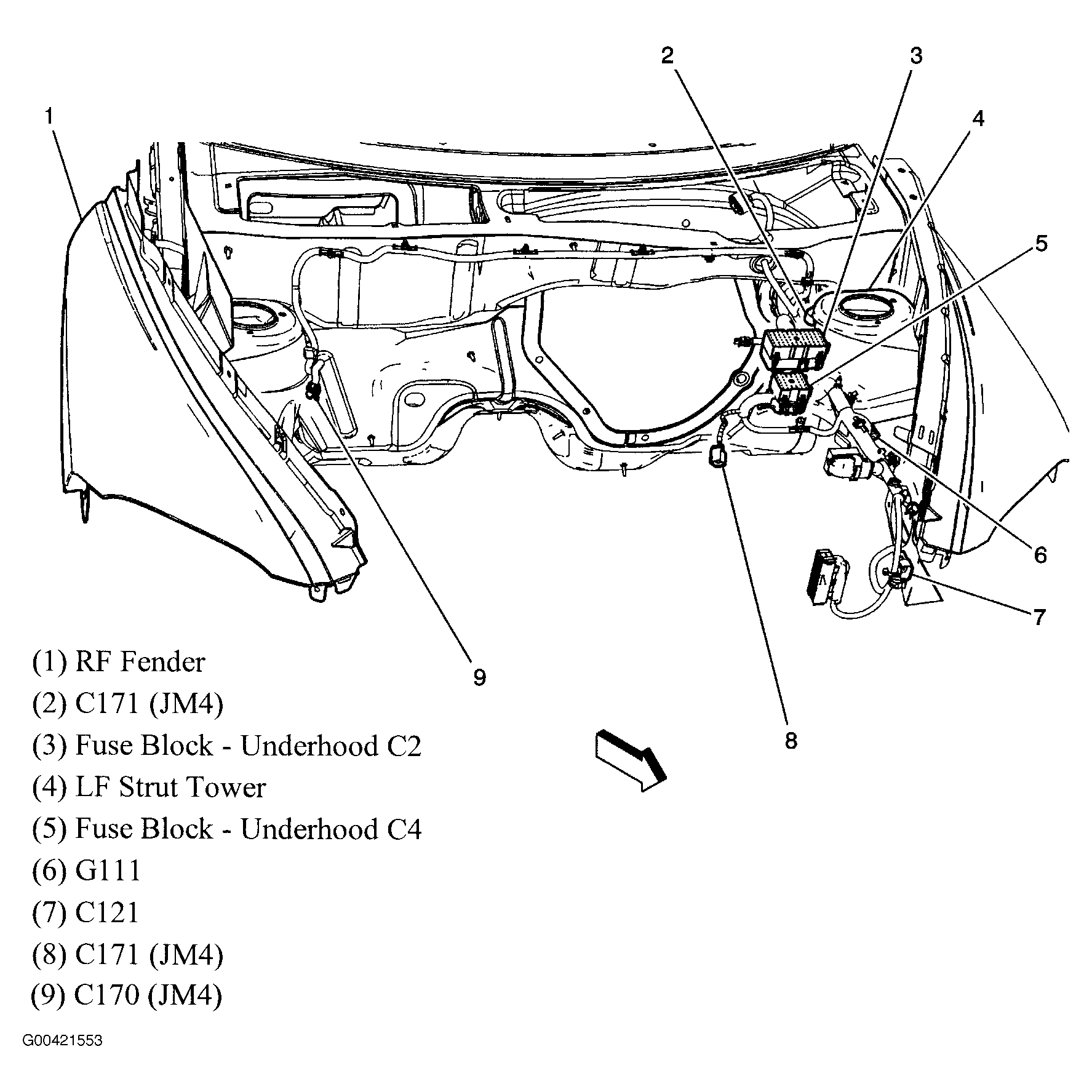

Fig 37: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

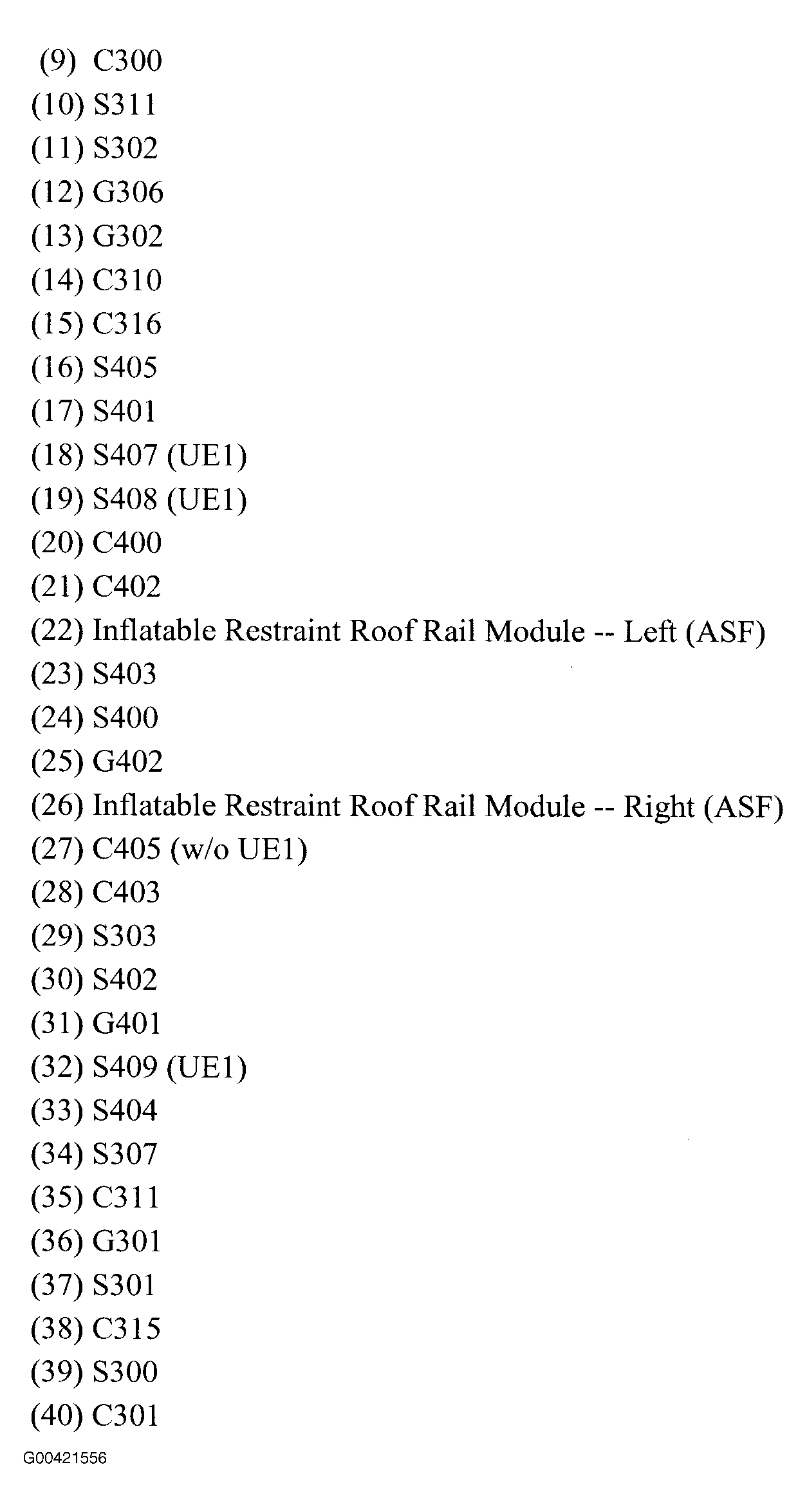

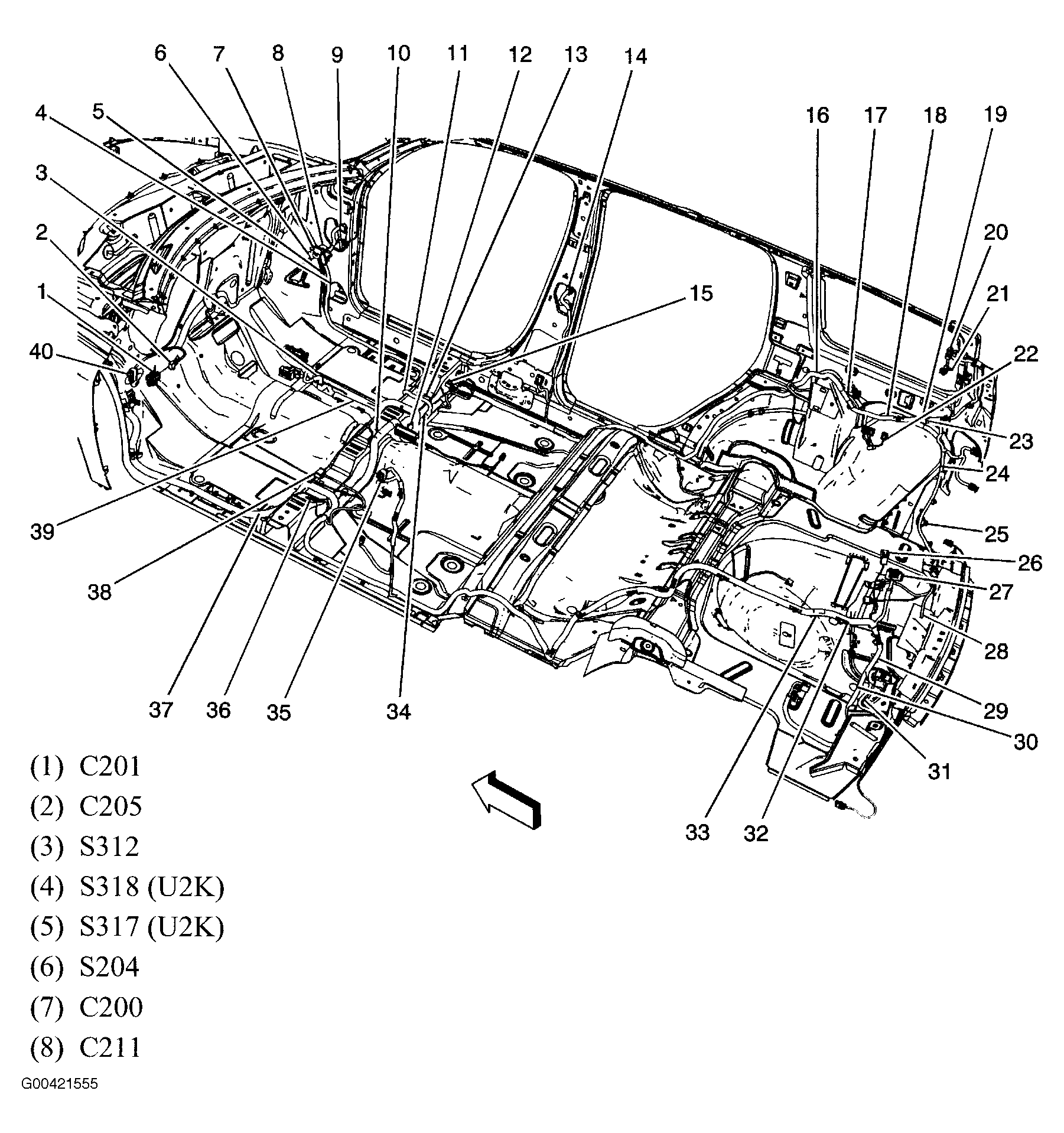

Fig 38: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

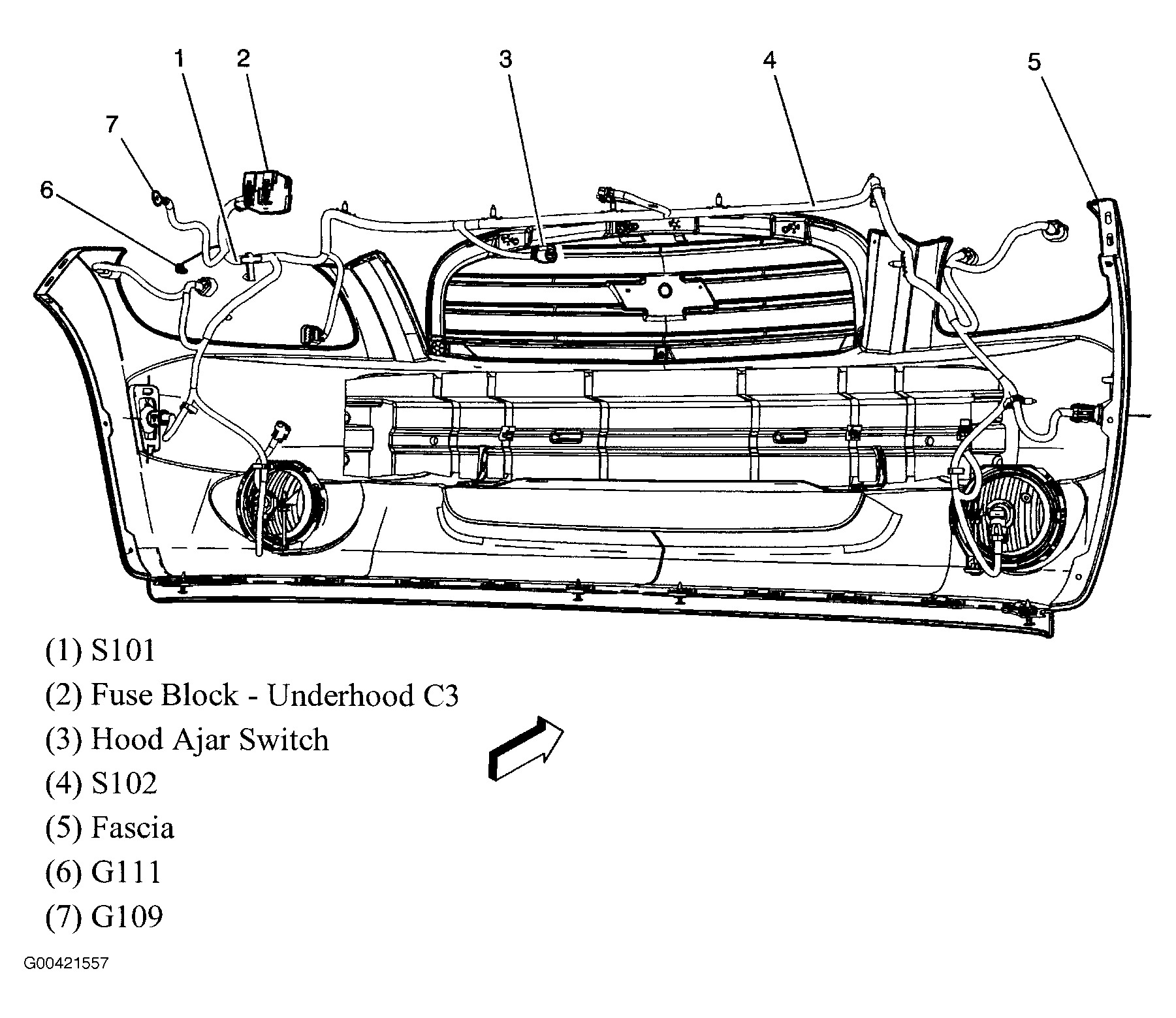

Fig 40: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.

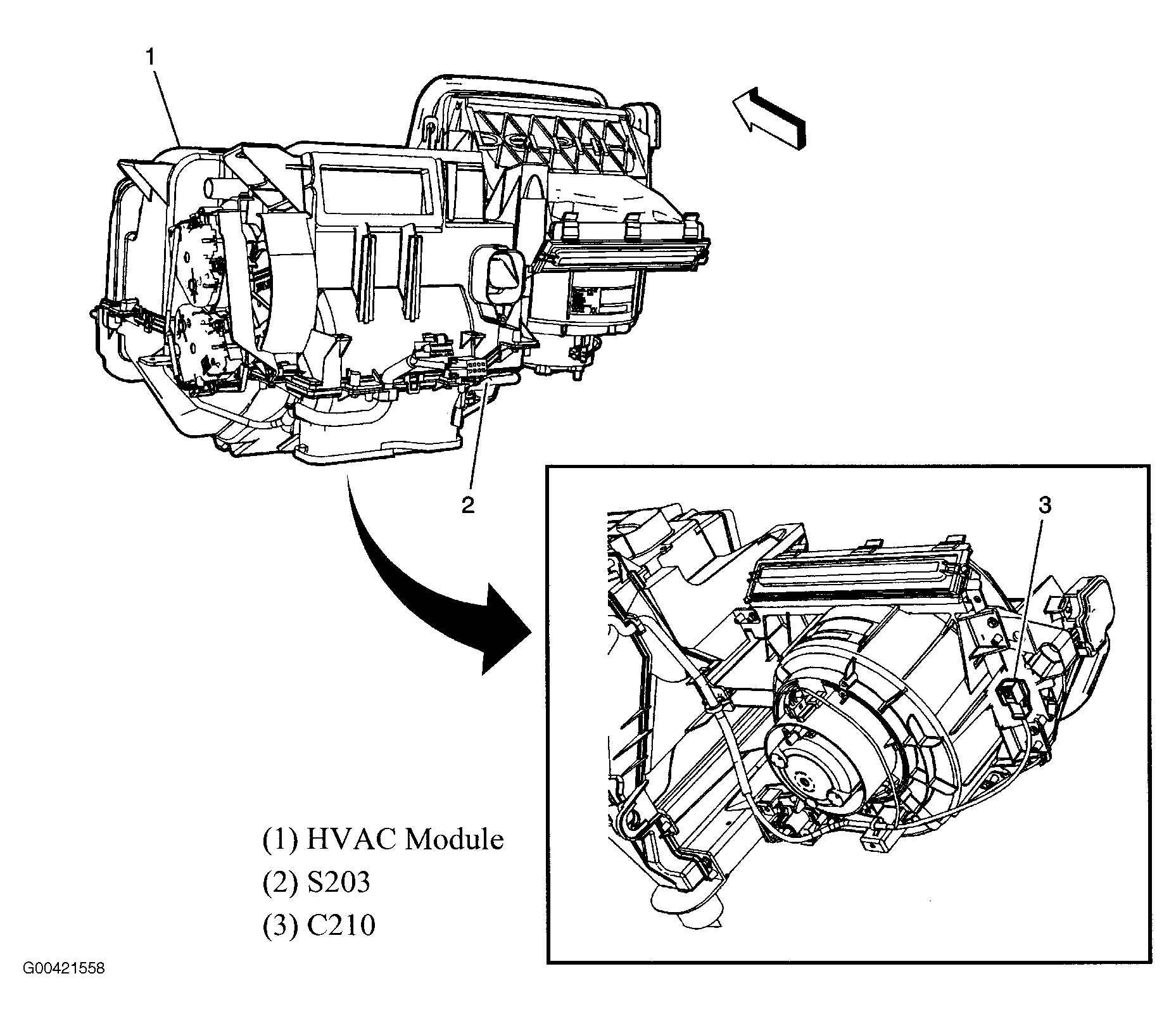

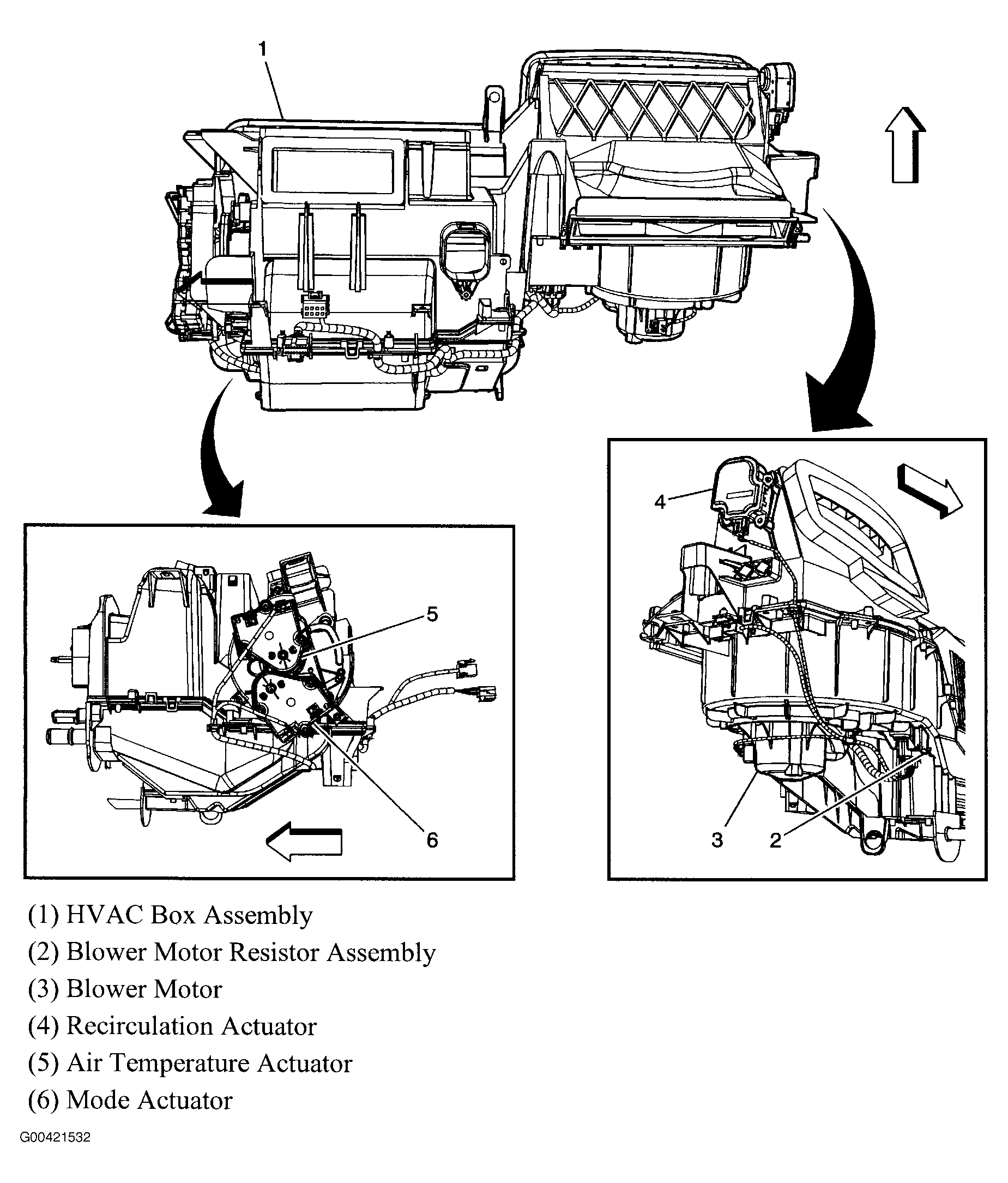

Fig 41: HVAC Module
Courtesy of GENERAL MOTORS CORP.

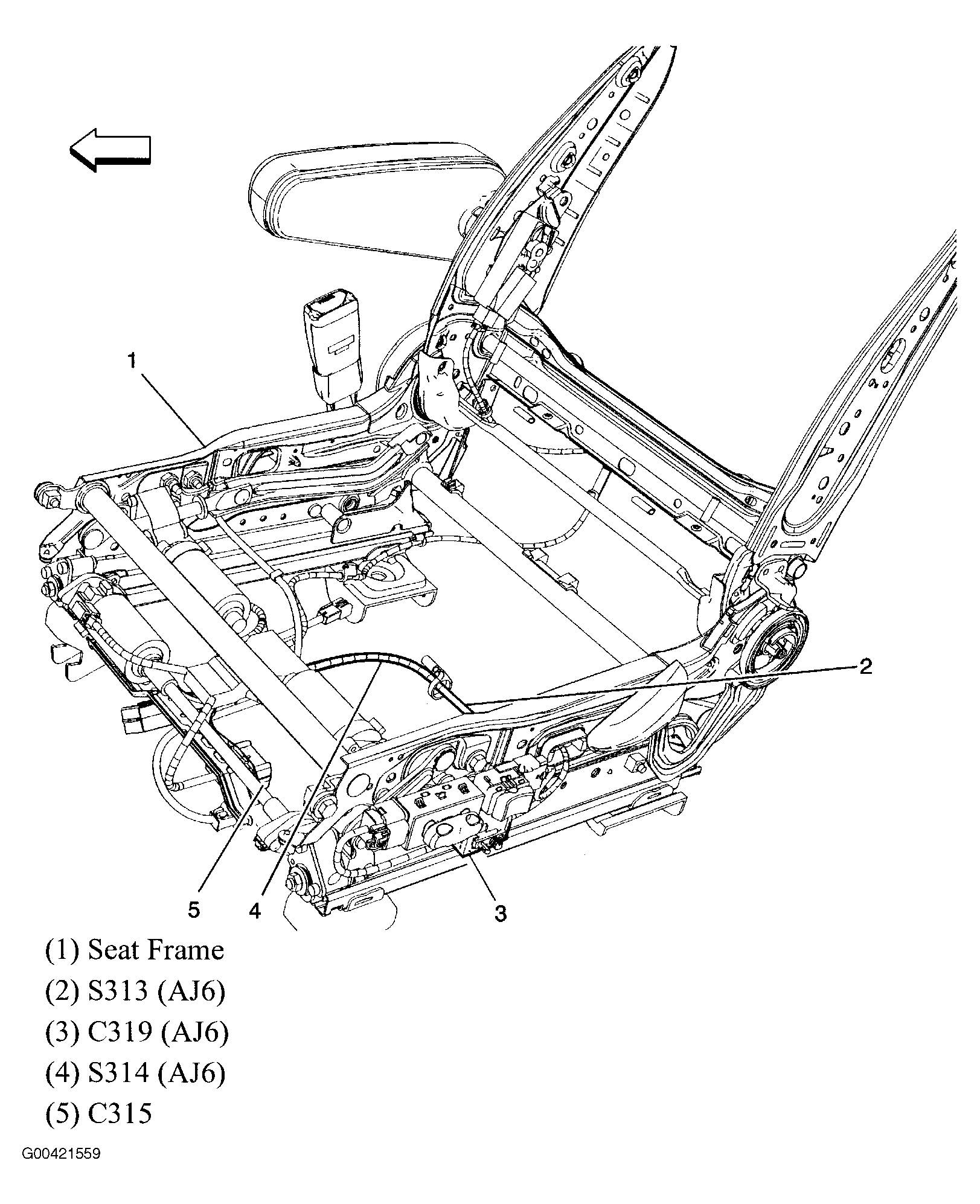

Fig 42: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

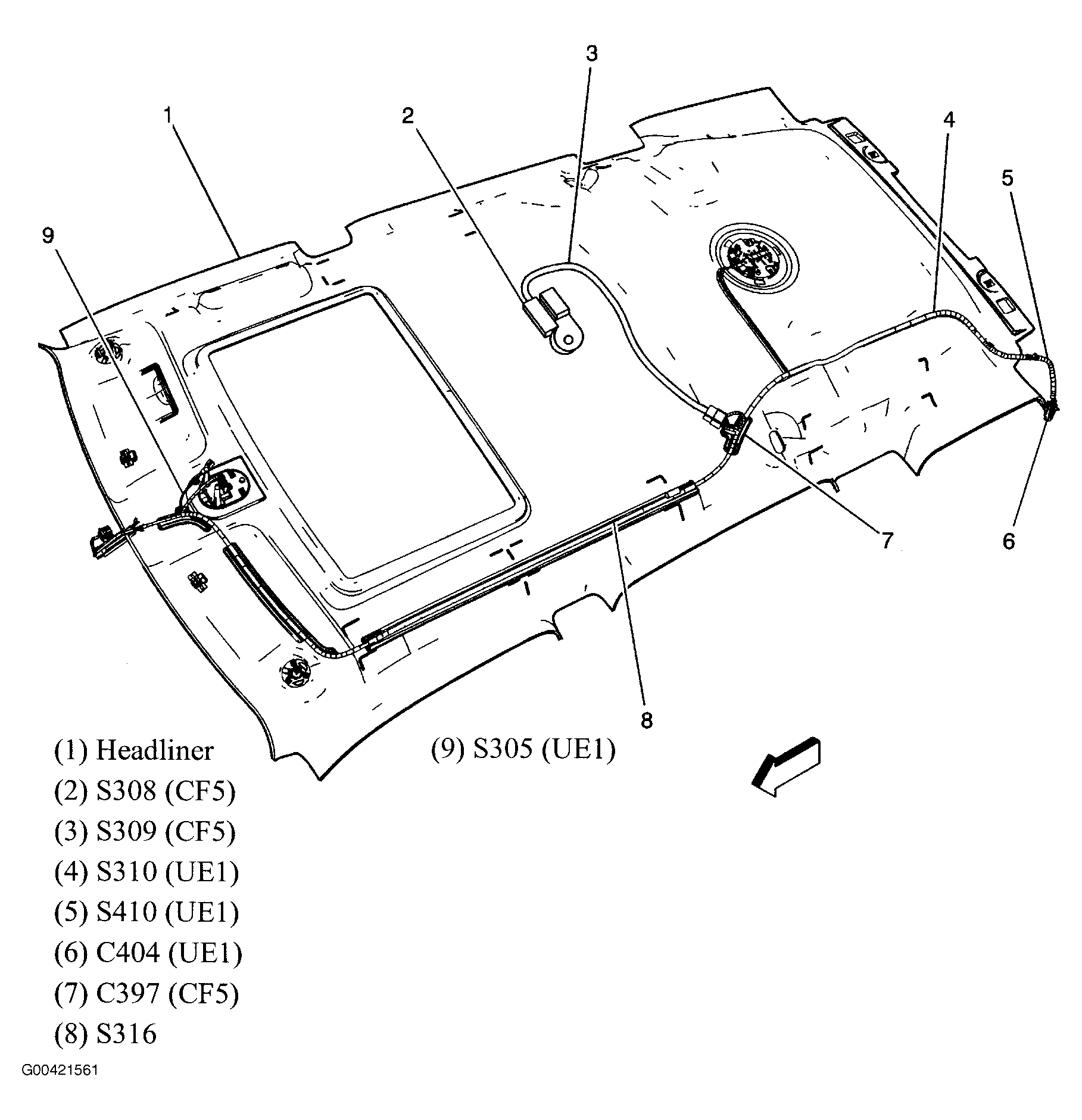

Fig 44: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 45: Driver's Door
Courtesy of GENERAL MOTORS CORP.

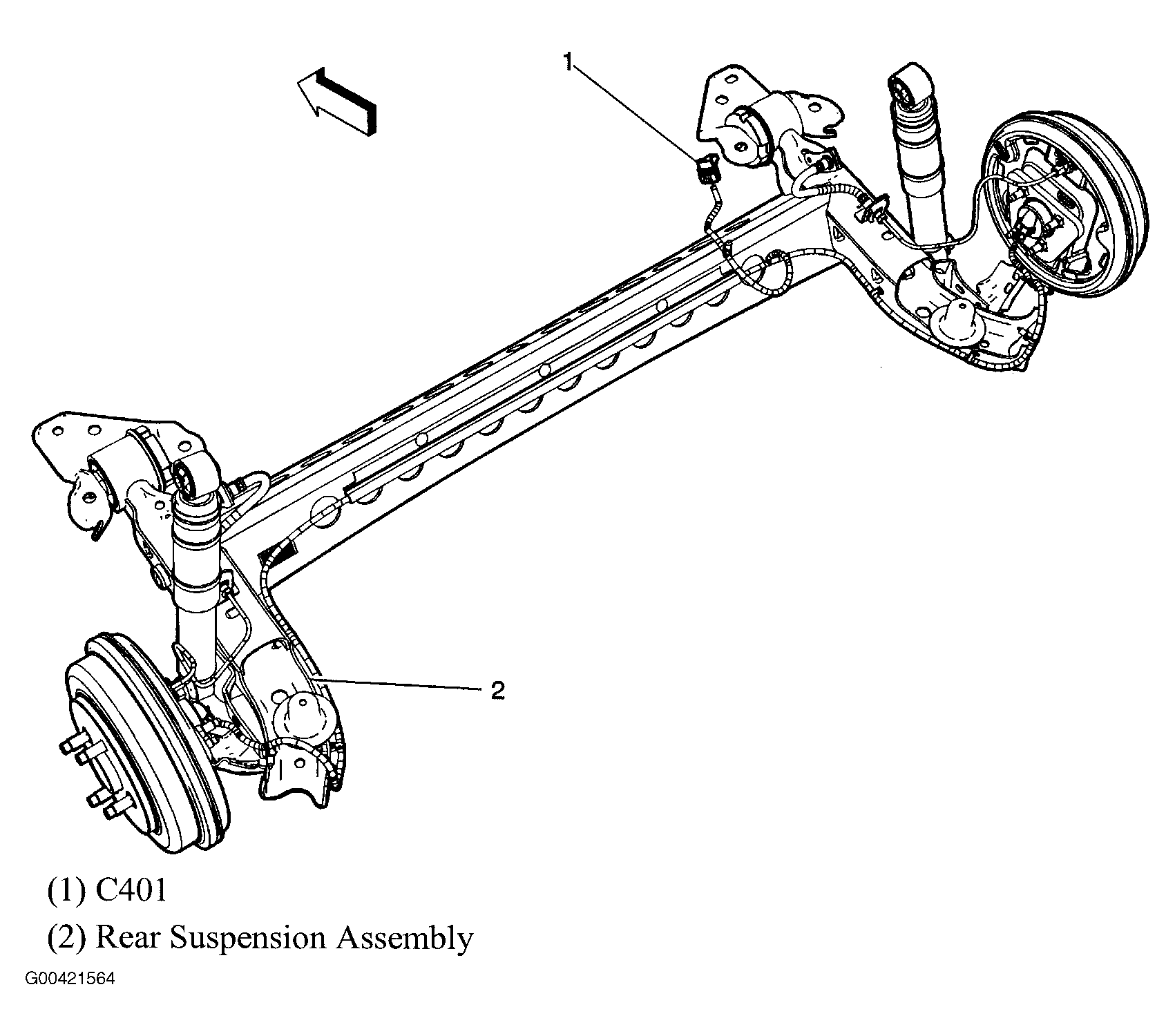

Fig 46: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 47: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

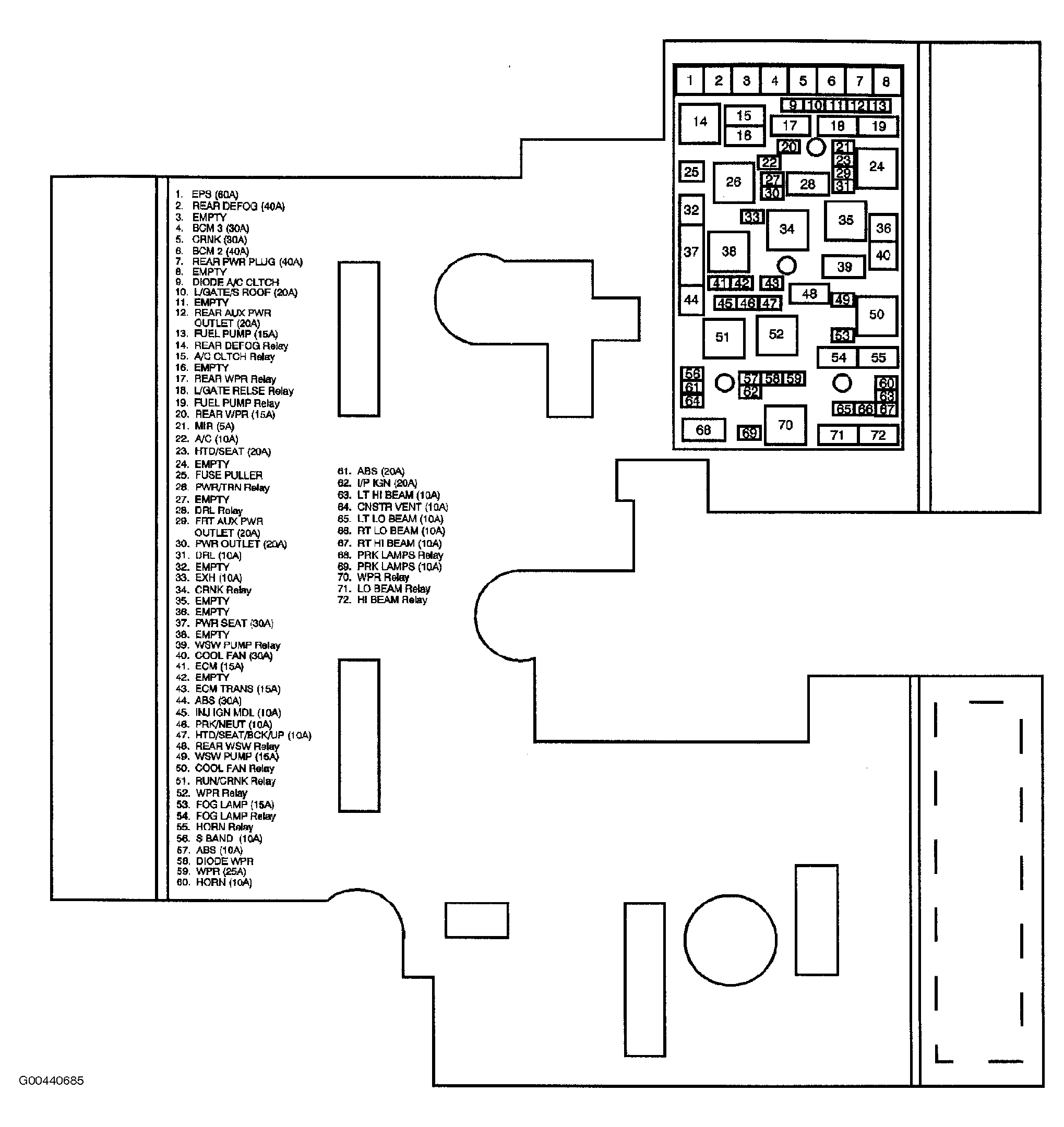

Fig 49: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 50: Body Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 51: Center Console Components
Courtesy of GENERAL MOTORS CORP.
Fig 52: Headliner Components (Top)
Courtesy of GENERAL MOTORS CORP.

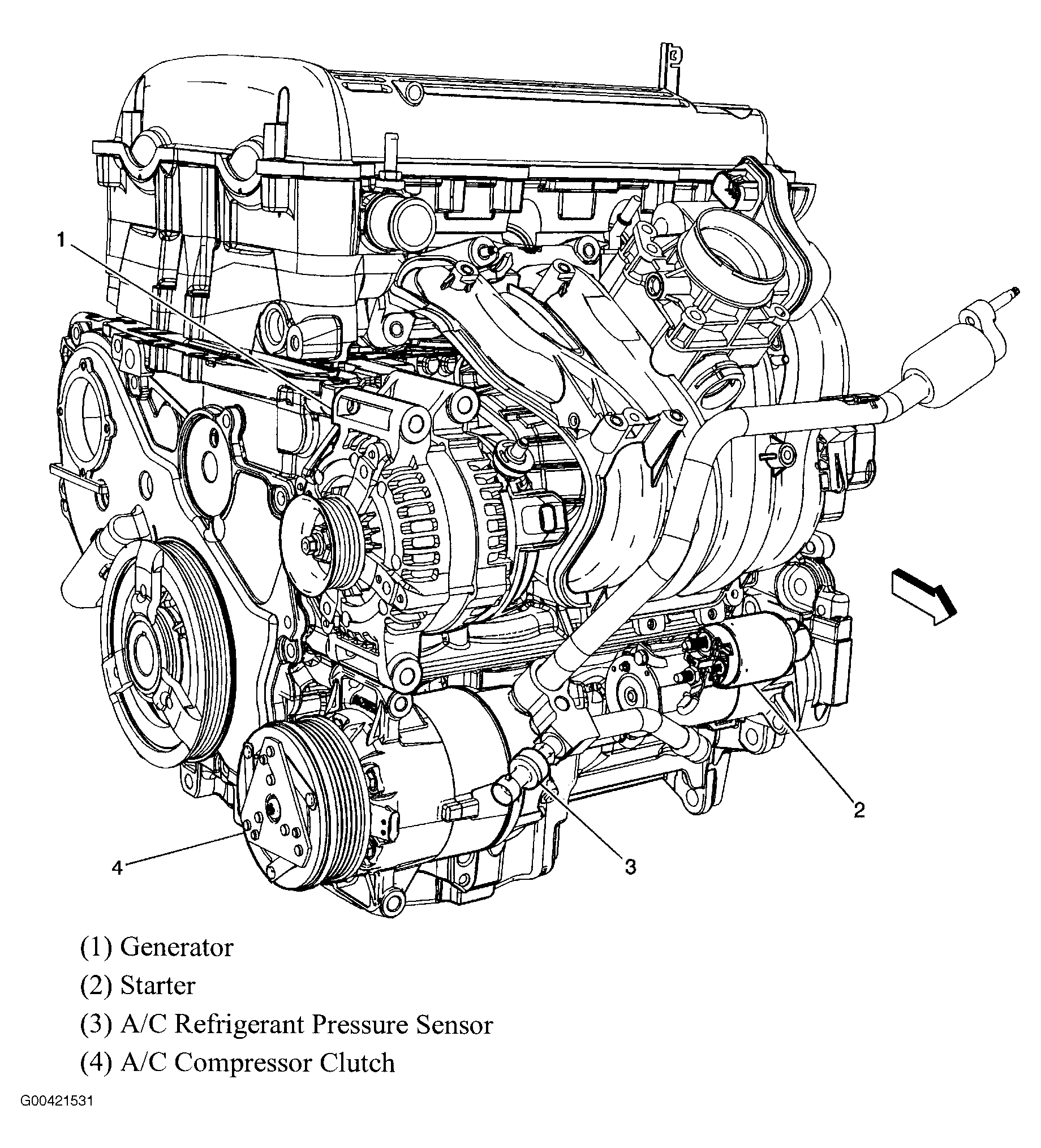

Fig 53: Front Of Engine (L61)
Courtesy of GENERAL MOTORS CORP.

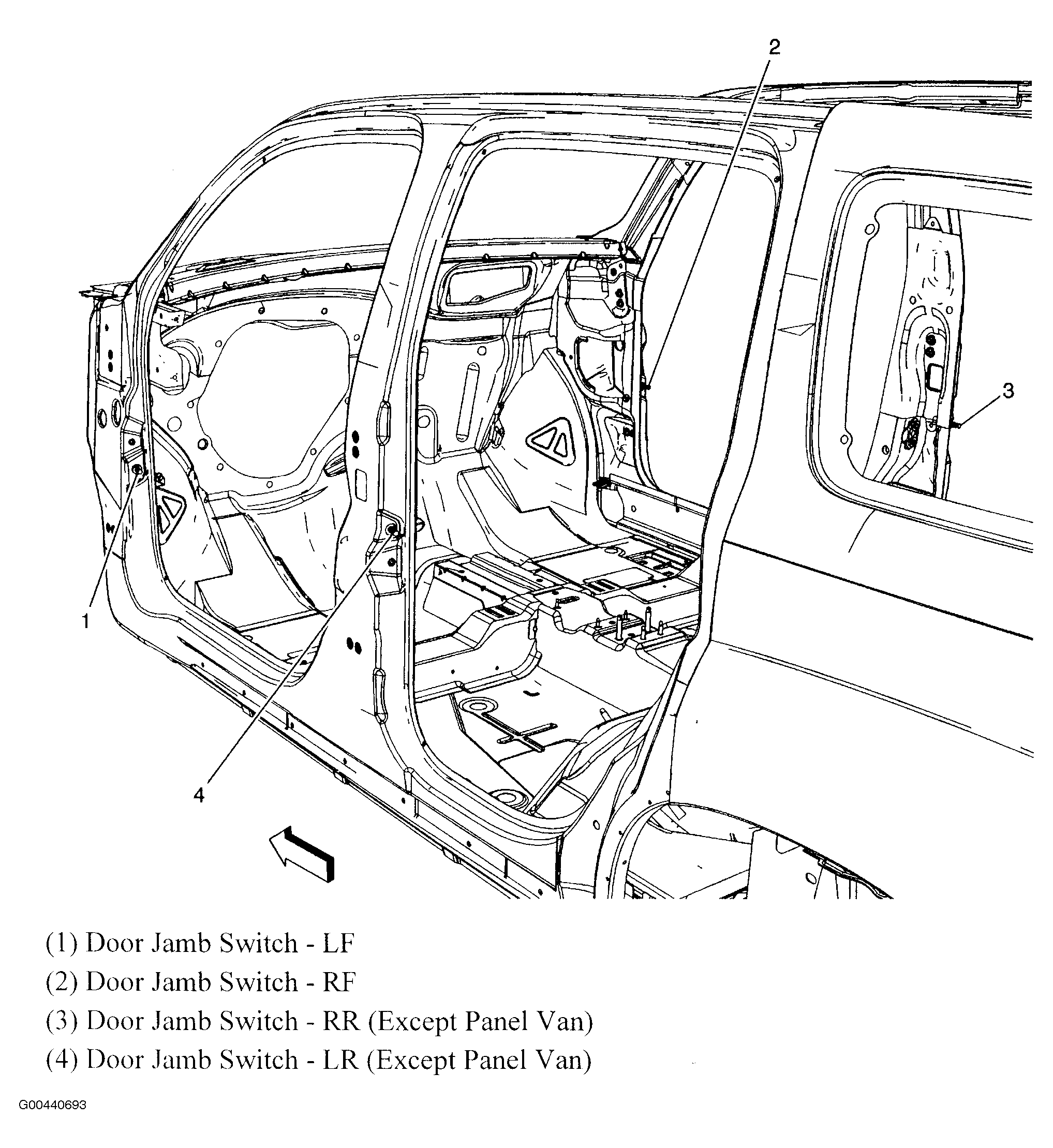

Fig 54: Door Jamb Switches
Courtesy of GENERAL MOTORS CORP.

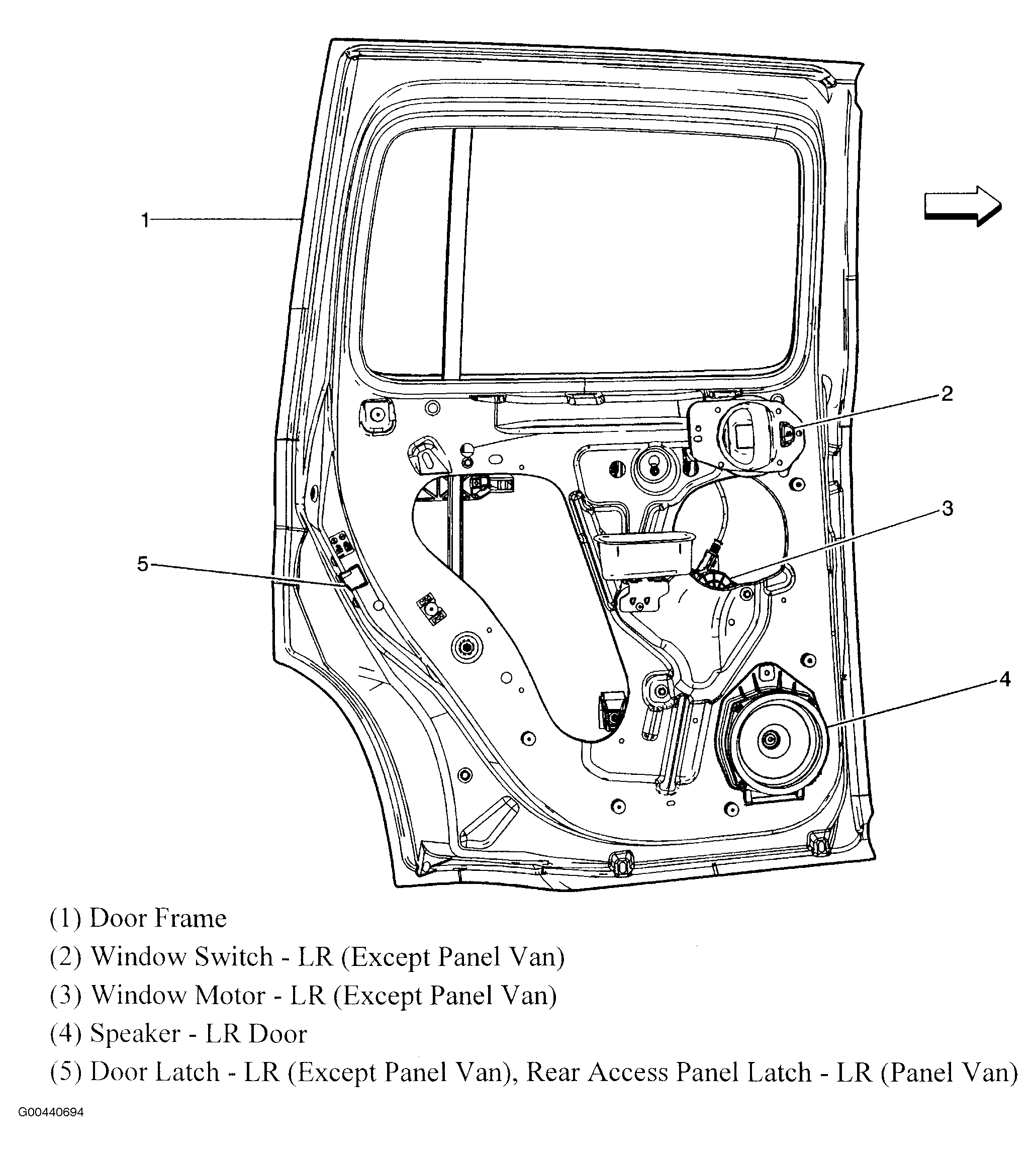

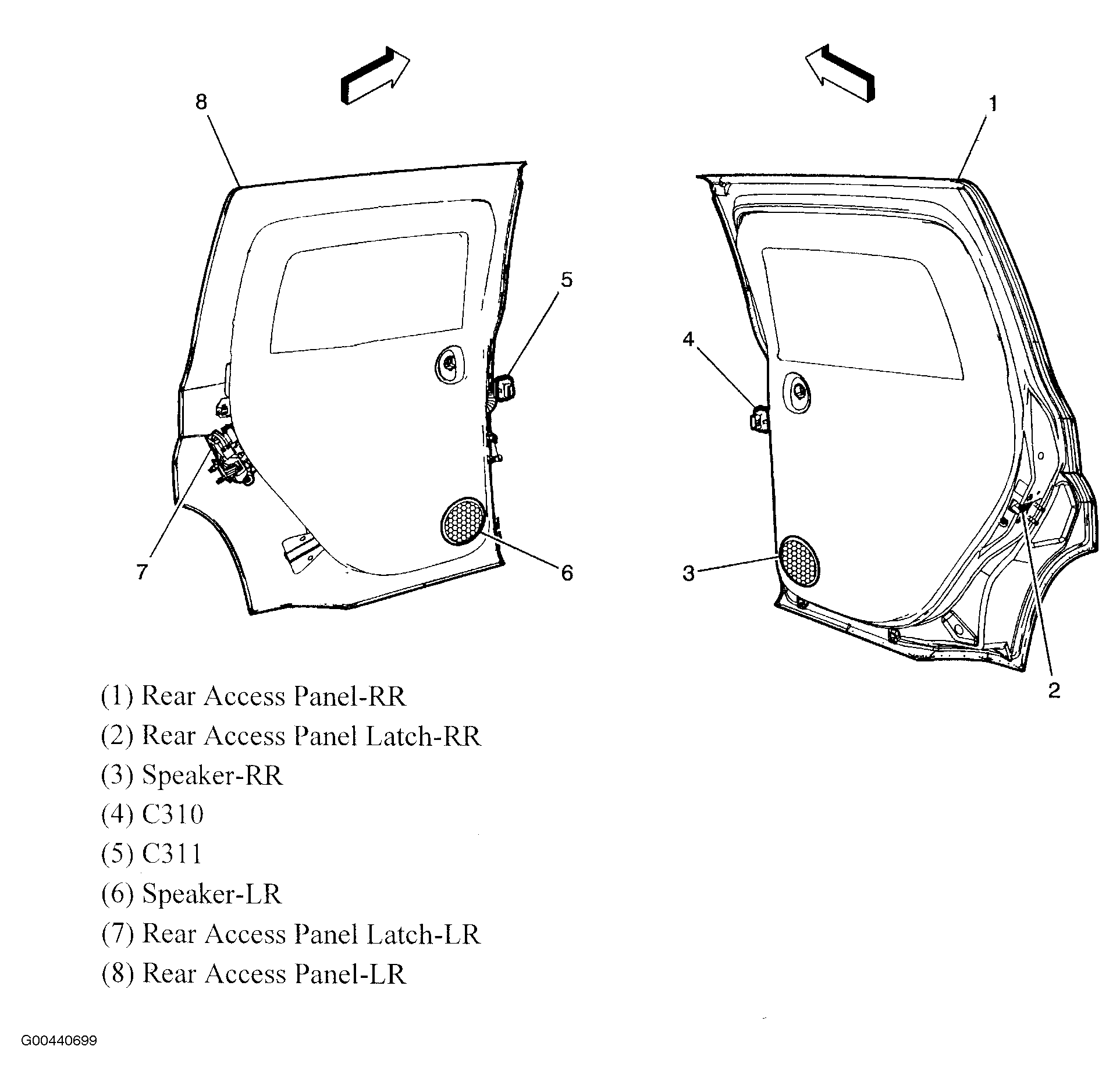

Fig 55: Left Rear Door/Rear Access Panel
Courtesy of GENERAL MOTORS CORP.

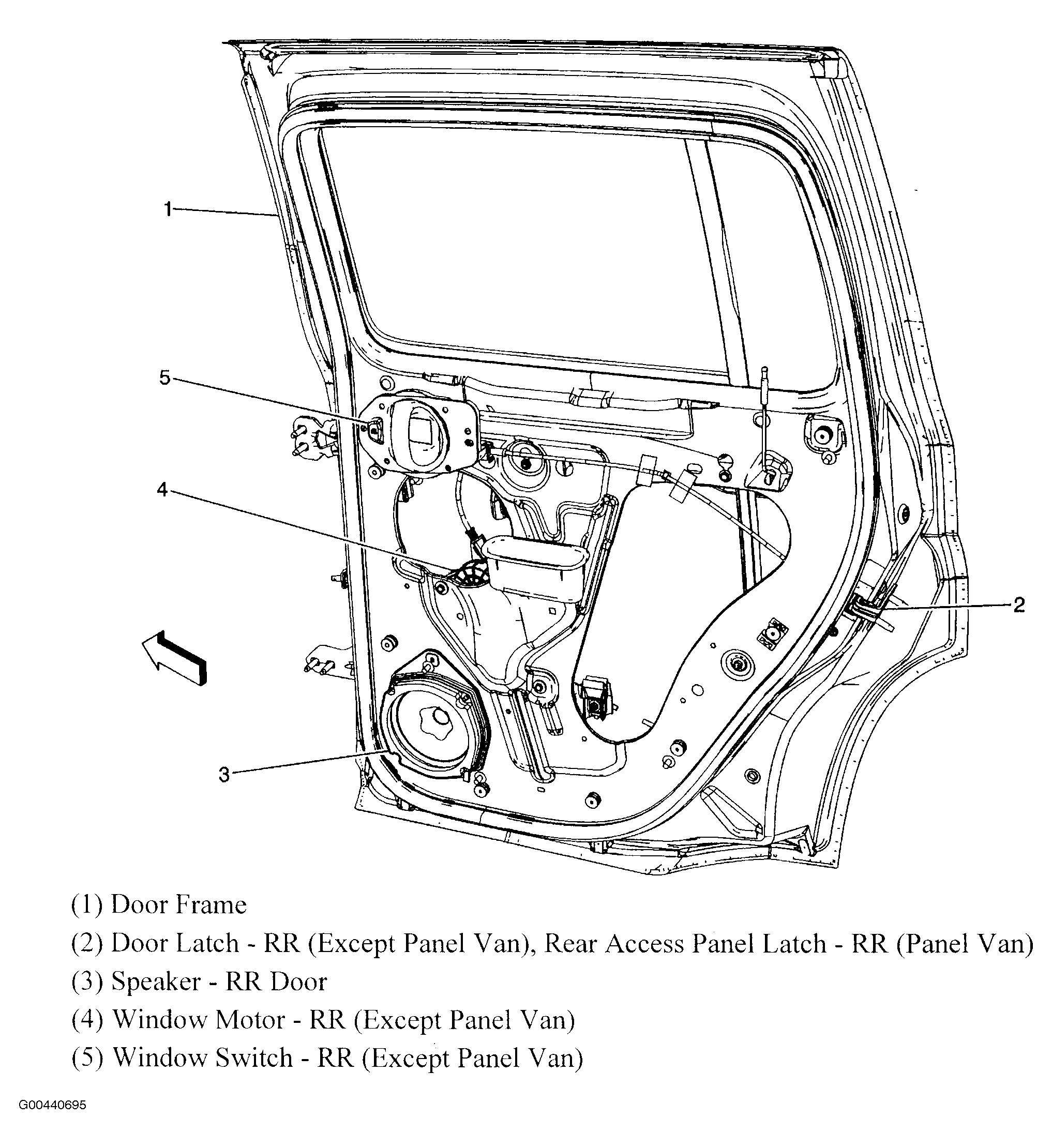

Fig 56: Right Rear Door/Rear Access Panel
Courtesy of GENERAL MOTORS CORP.

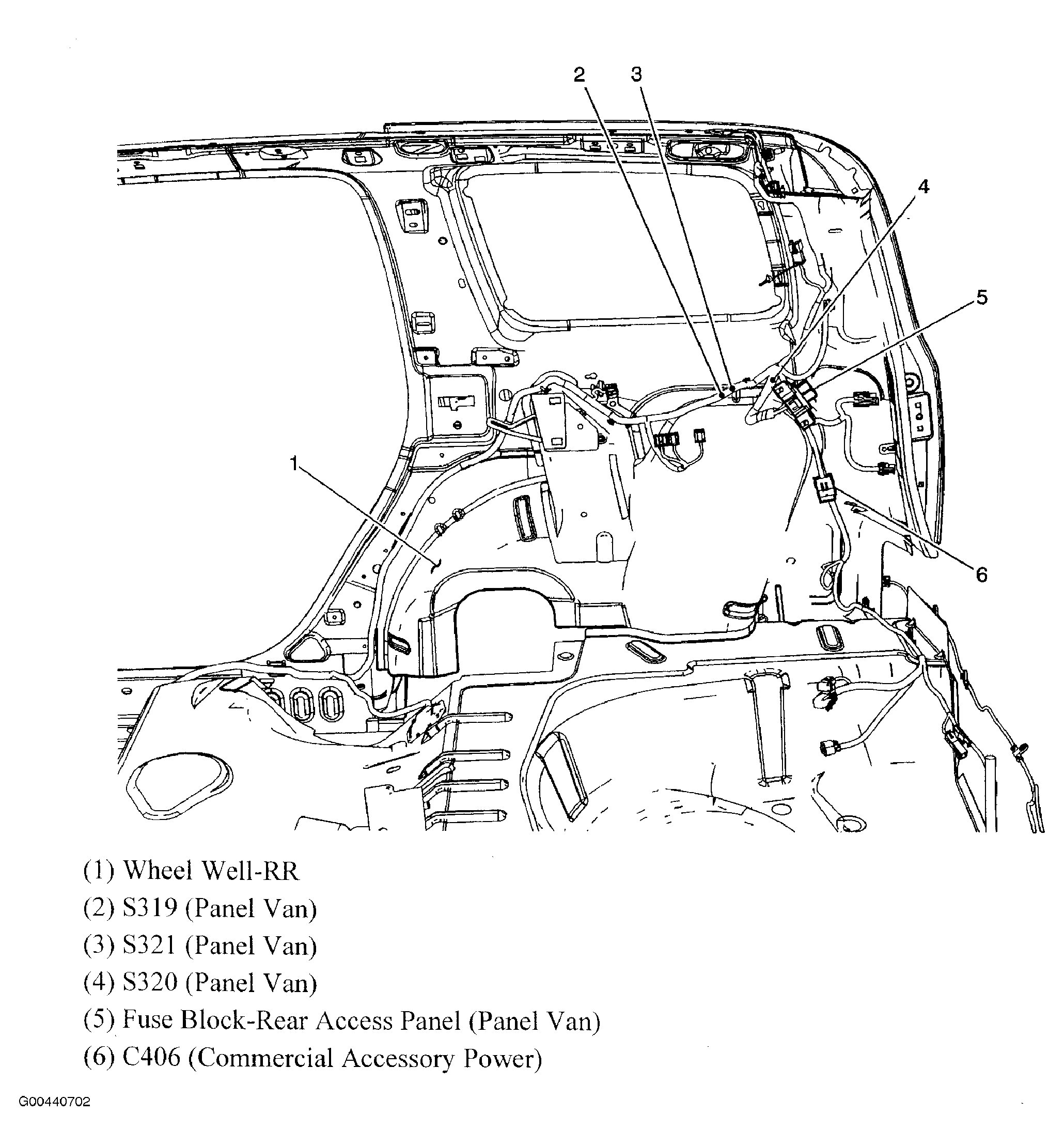

Fig 57: Right Rear Cargo Area (Panel Van)
Courtesy of GENERAL MOTORS CORP.

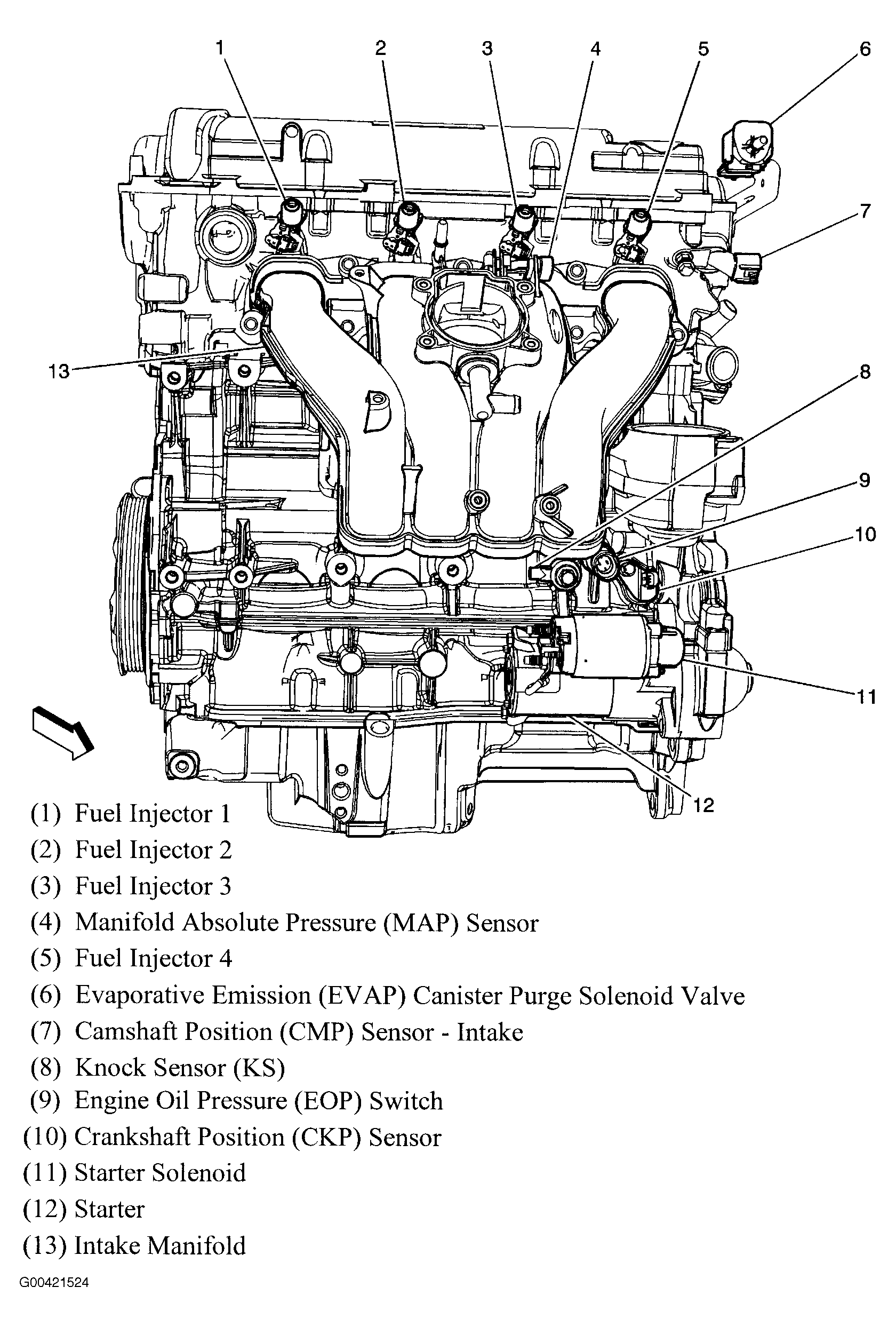

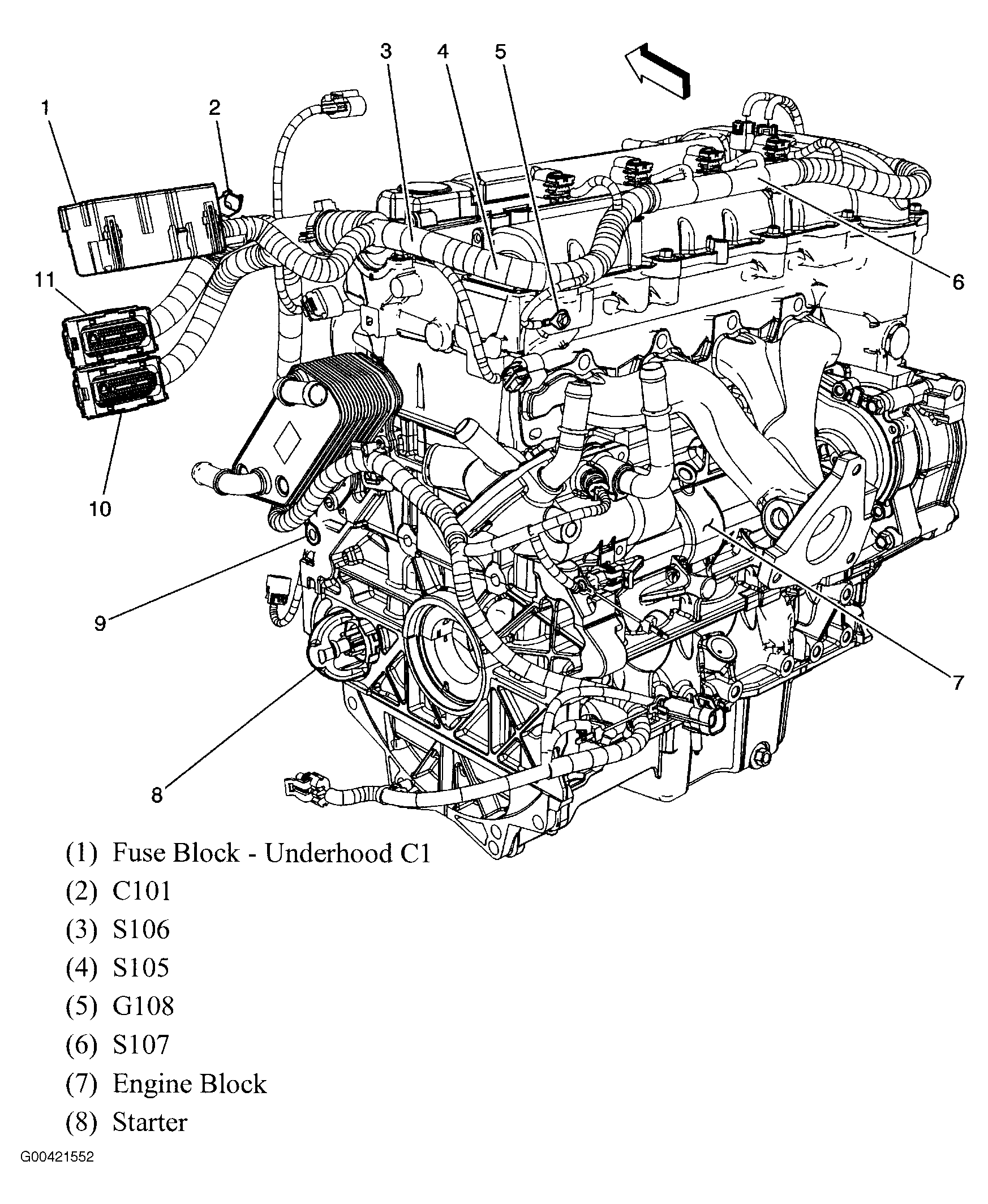

Fig 58: Left Side View Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 59: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Rear Access Panel Components (Panel Van)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 62: I/P Extension Harness Connectors
Courtesy of GENERAL MOTORS CORP.
Fig 63: Right Rear Cargo Area (Panel Van)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
