Brake Pedal Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the brake pedal position switch connector (A).

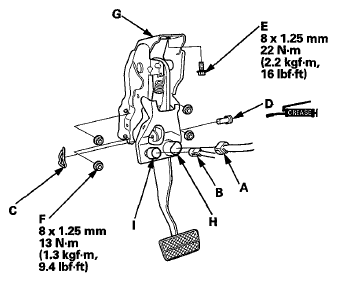

    Fig 1: Brake Pedal Position Switch Connector And Bolts With Torque Specifications
    G06430734Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the idle stop switch connector (B).
  4. Remove the lock pin (C) and clevis pin (D).
  5. Remove the brake pedal bracket mounting bolt (E) and the nuts (F).
  6. Remove the brake pedal with bracket (G).
  7. Remove the brake pedal position switch (H) by turning it counter clockwise and the idle stop switch (I) from brake pedal.
  8. Install in the reverse order of removal.
  9. Adjust the brake pedal and brake pedal position switch/idle stop switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH/IDLE STOP SWITCH ADJUSTMENT  ).
