Parking Brake Lever Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Release the parking brake lever fully.
  3. Disconnect the parking brake switch connector (A) from the parking brake switch (B).

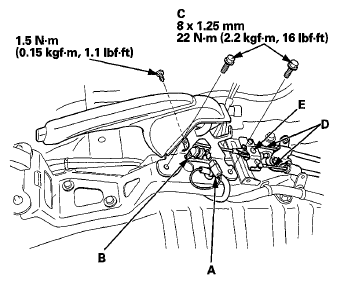

    Fig 1: Parking Brake Switch Connector From Parking Brake Switch And Bolts With Torque Specifications
    G06430744Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the parking brake lever mount bolts (C).
  5. Disconnect the parking brake cables (D) from the equalizer (E).
  6. Remove the parking brake switch.
  7. Install the parking brake lever in the reverse order of removal.
  8. Adjust the parking brake (see PARKING BRAKE INSPECTION AND ADJUSTMENT  ).
