Seat Belt Component Views

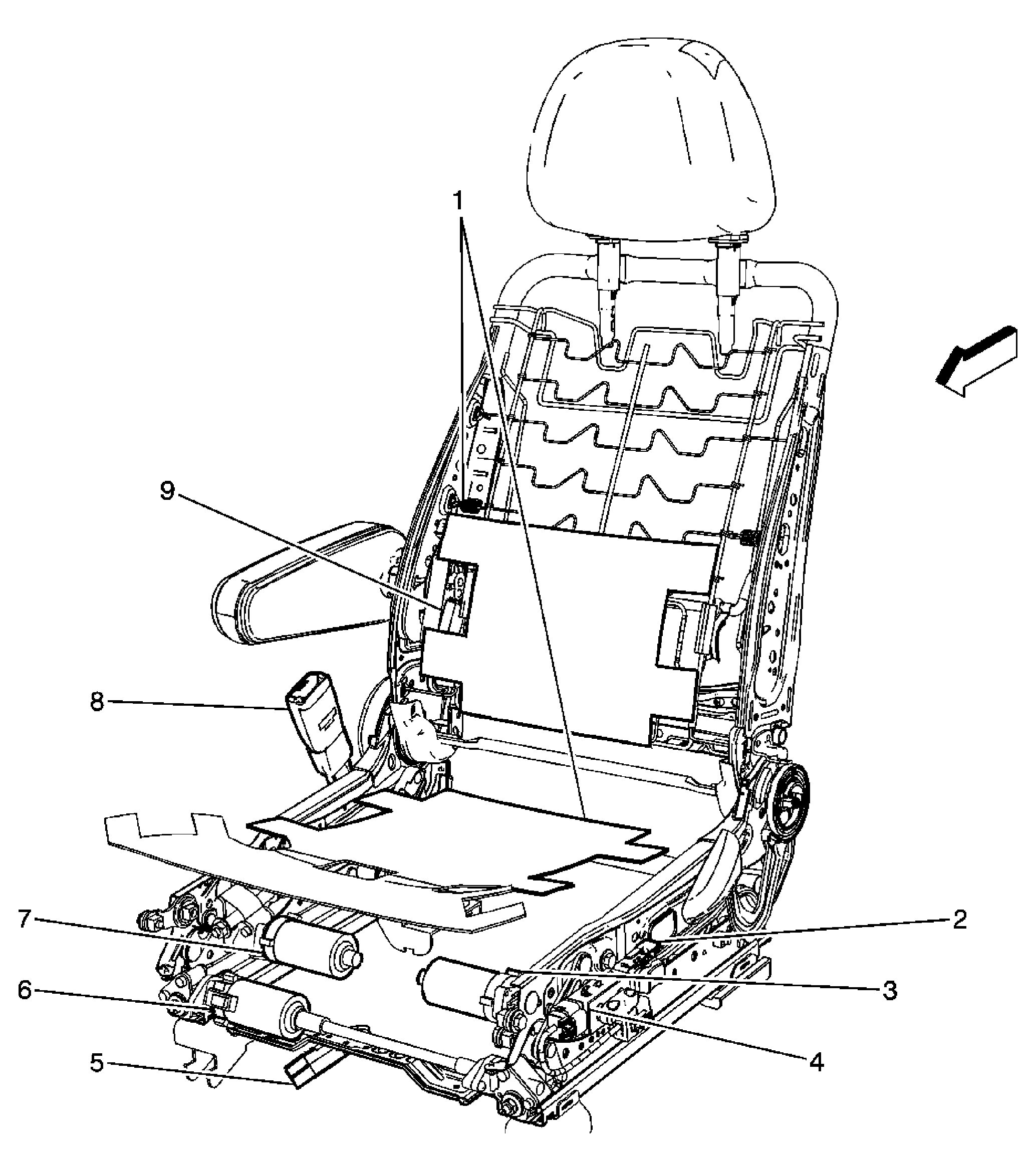

| Callout | Component Name |
|---|---|
| 1 | Heated Seat Element - Driver (KA1) |
| 2 | Lumbar Adjuster Switch - Driver (AJ6) |
| 3 | Seat Front Vertical Motor - Driver (AJ6) |
| 4 | Seat Adjuster Switch - Driver (AJ6) |
| 5 | Heated Seat Control Module Driver (KA1) |
| 6 | Seat Horizontal Motor - Driver (AJ6) (KA1) |
| 7 | Seat Rear Vertical Motor - Driver (AJ6) |
| 8 | Seat Belt Switch - Left |
| 9 | Seat Lumbar Motor - Driver (AJ6) |
| Callout | Component Name |
|---|---|
| 1 | Heated Seat Element - Passenger (KA1) |
| 2 | Seat Belt Switch - Right |
| 3 | Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad |
| 4 | Inflatable Restraint Front Passenger Presence System (PPS) Module |
| 5 | Heated Seat Control Module Passenger (KA1) |
| 6 | Inflatable Restraint Front Passenger Presence System (PPS) Sensor |
