Child Restraint Tether Anchor Replacement

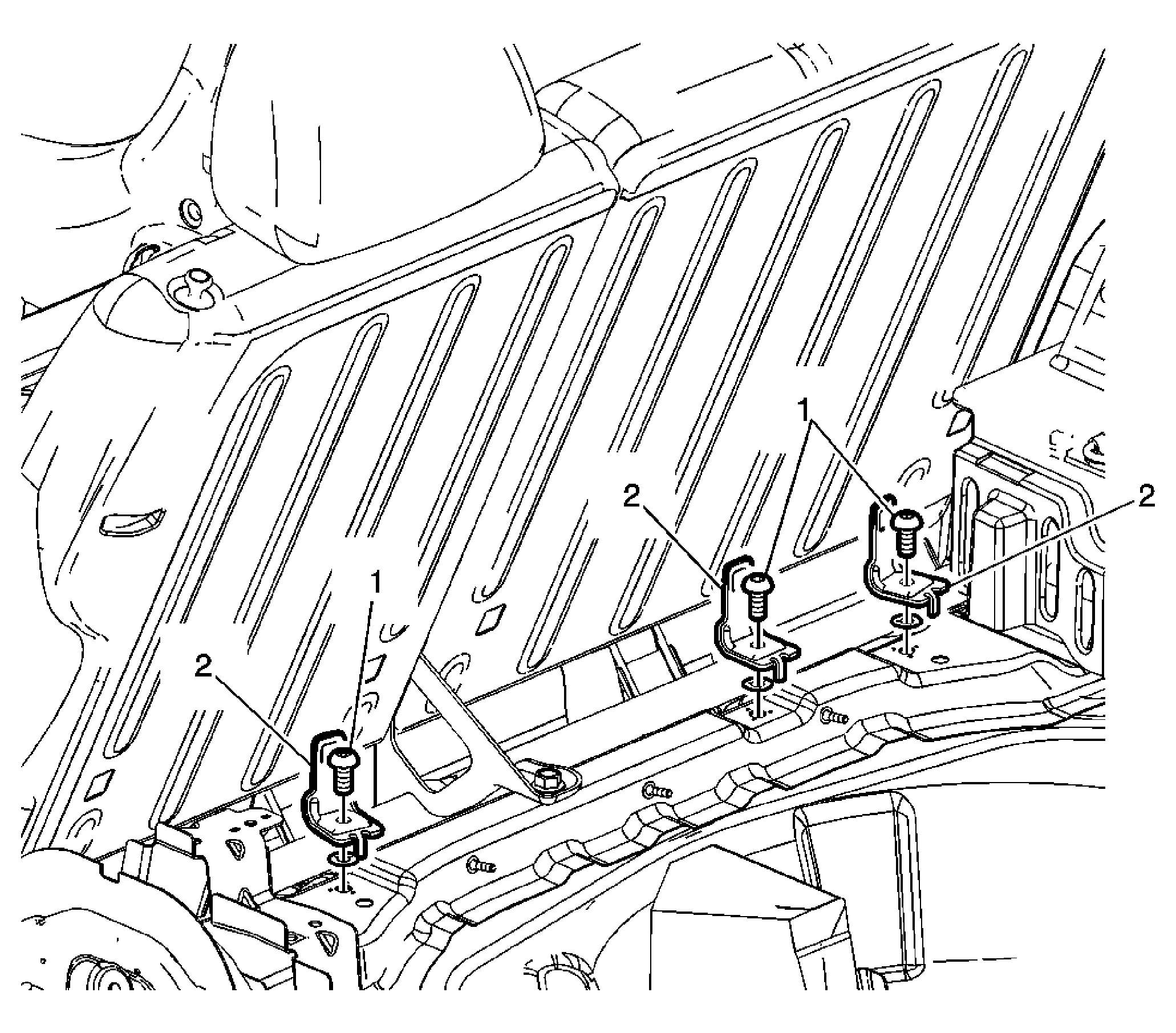

Fig 1: Child Restraint Tether Anchor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear floor trim plate. Refer to Rear Floor Trim Plate Replacement .
1	Child Seat Restraint System Bracket Bolt Tip: Lean seat backs forward to allow easier access to fasteners. Tighten: 40 N.m (30 lb ft)
2	Child Seat Restraint System Bracket
