Shift Lock Control Component Views

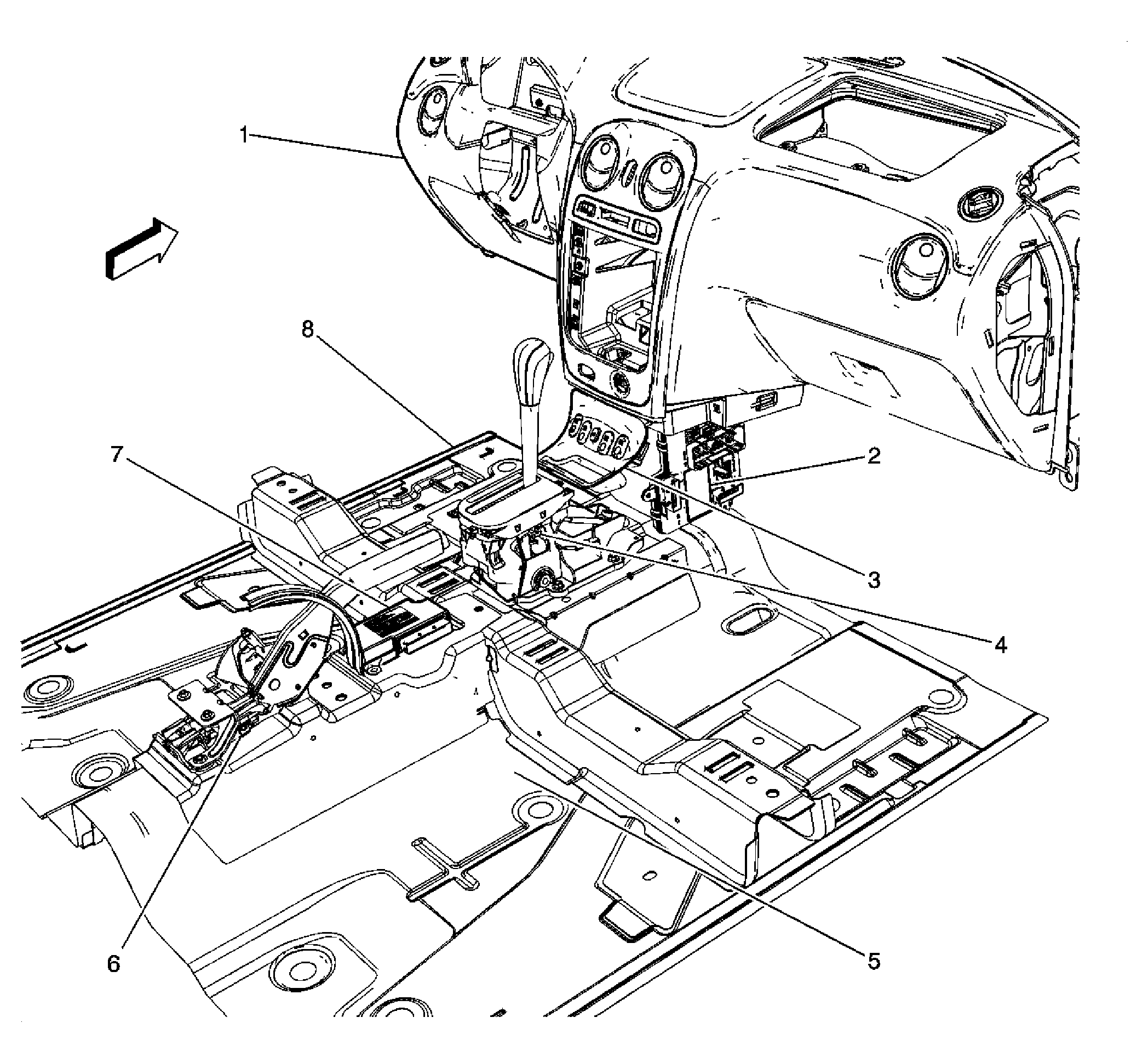

Fig 1: Center Console Components
GM1652150Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 Body Control Module (BCM)
3 Master Window Switch
4 A/T Shift Control (MN5)
5 Floor Panel
6 Park Brake Switch
7 Inflatable Restraint Sensing and Diagnostic Module (SDM)
8 Floor Panel
