Remote Function Component Views

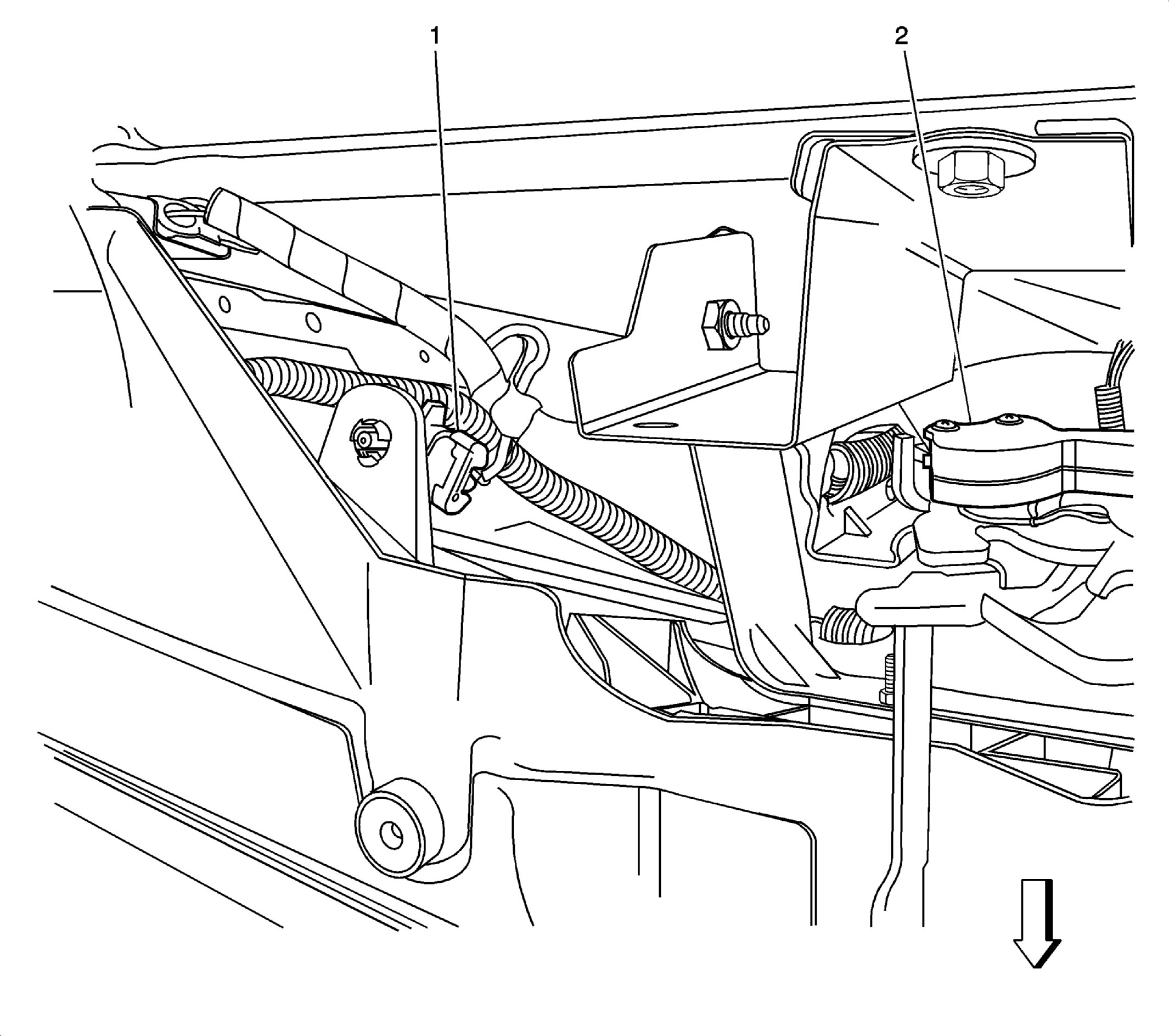

Fig 1: Identifying Under Hood Latch Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Hood Ajar Switch (AP3, AP8)

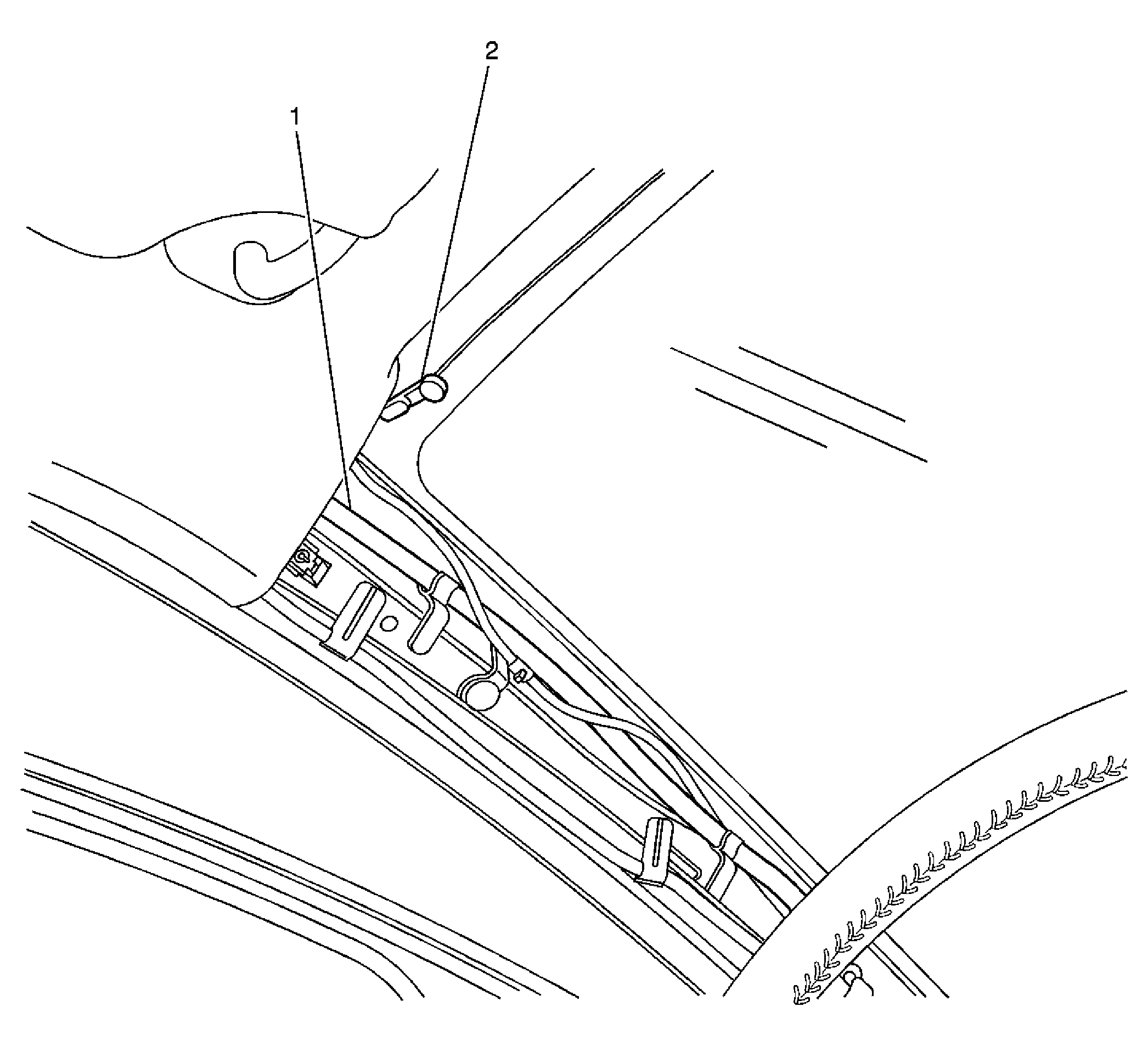

Fig 2: Identifying Left Side Windshield Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left A-Pillar
2	Remote Control Door Lock Receiver Windshield Antenna (AP3, AP8)

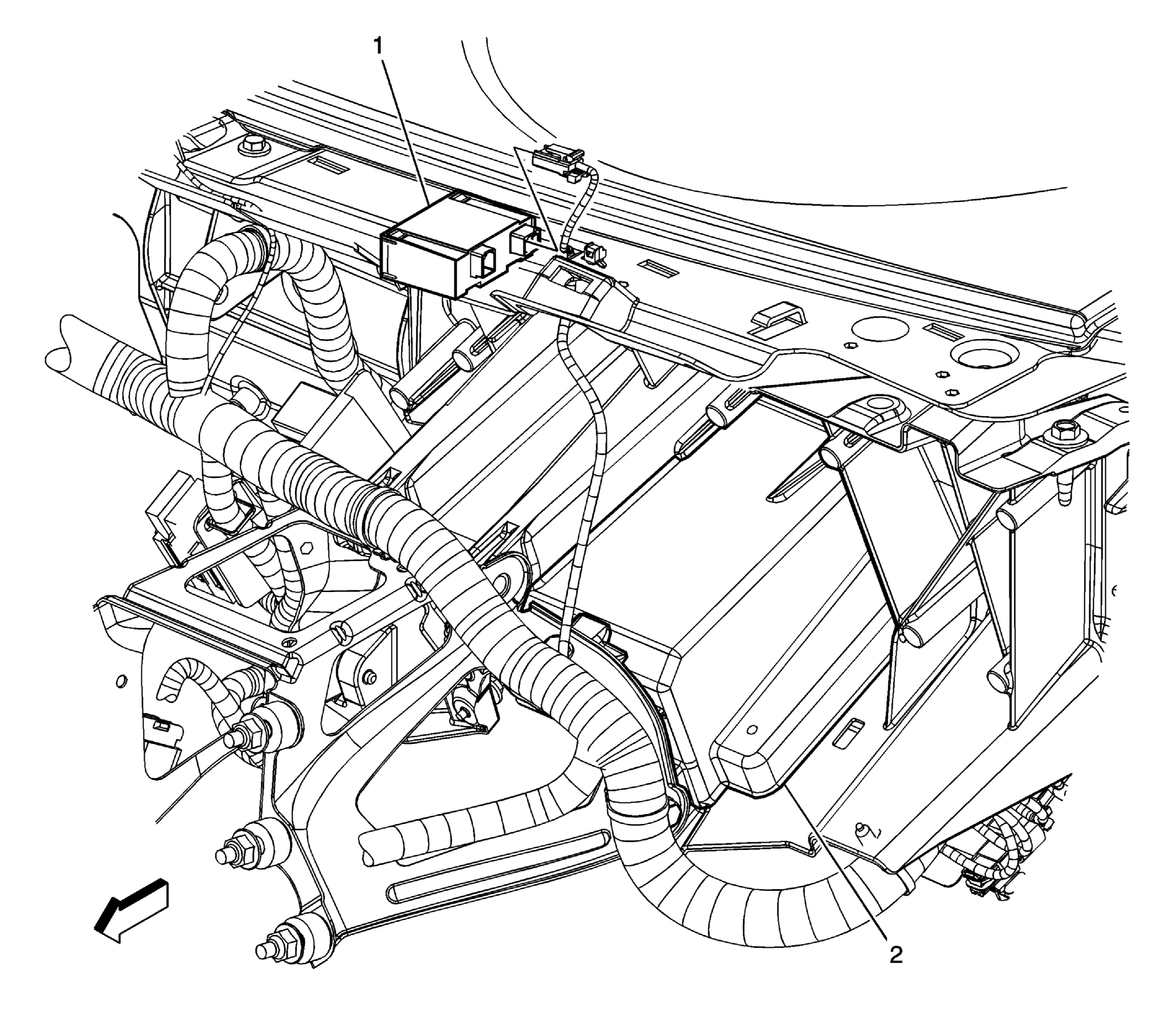

Fig 3: Identifying Upper Center I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	I/P Carrier

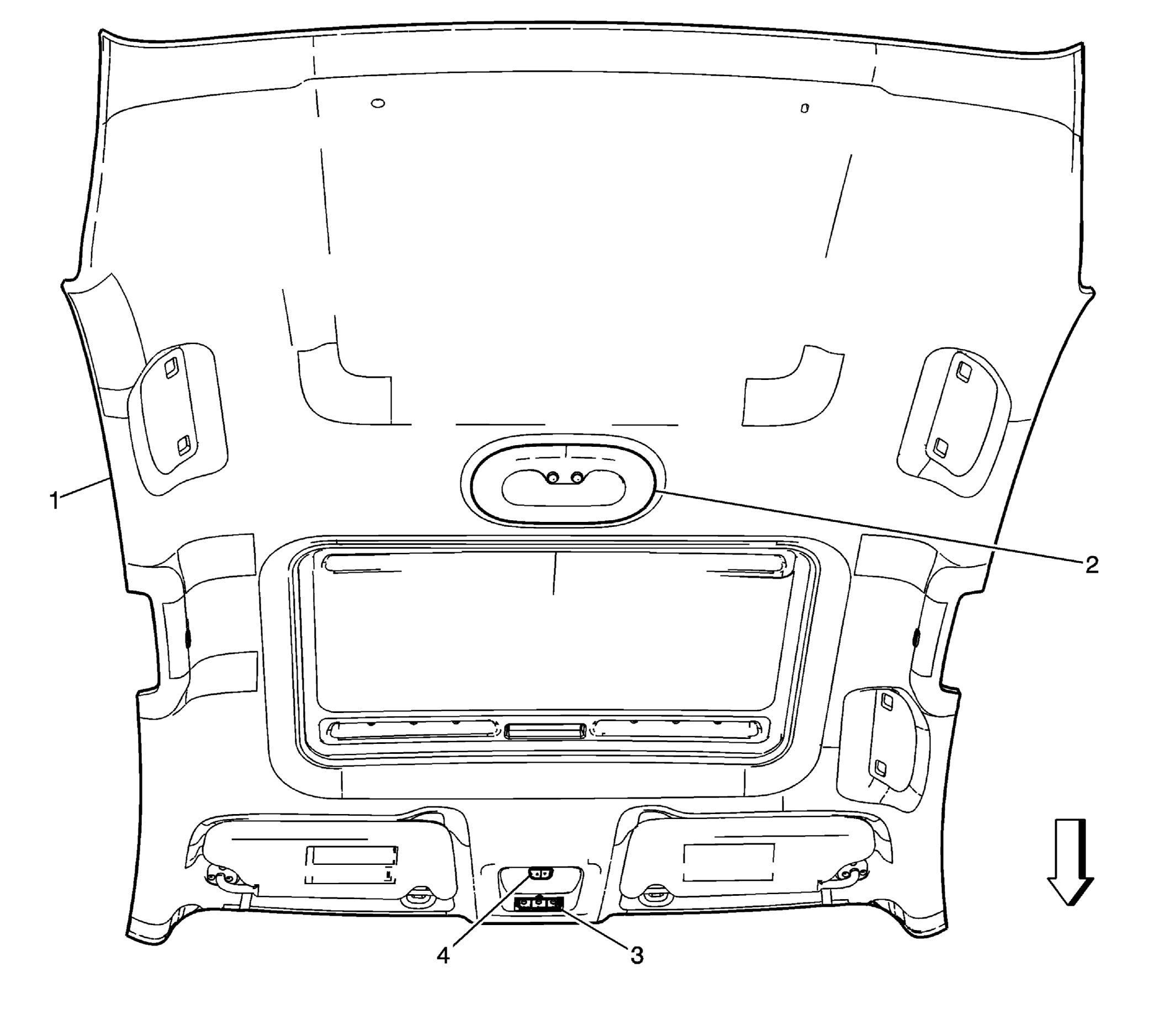

Fig 4: Identifying Headliner Components (Sedan)

Courtesy of GENERAL MOTORS CORP.

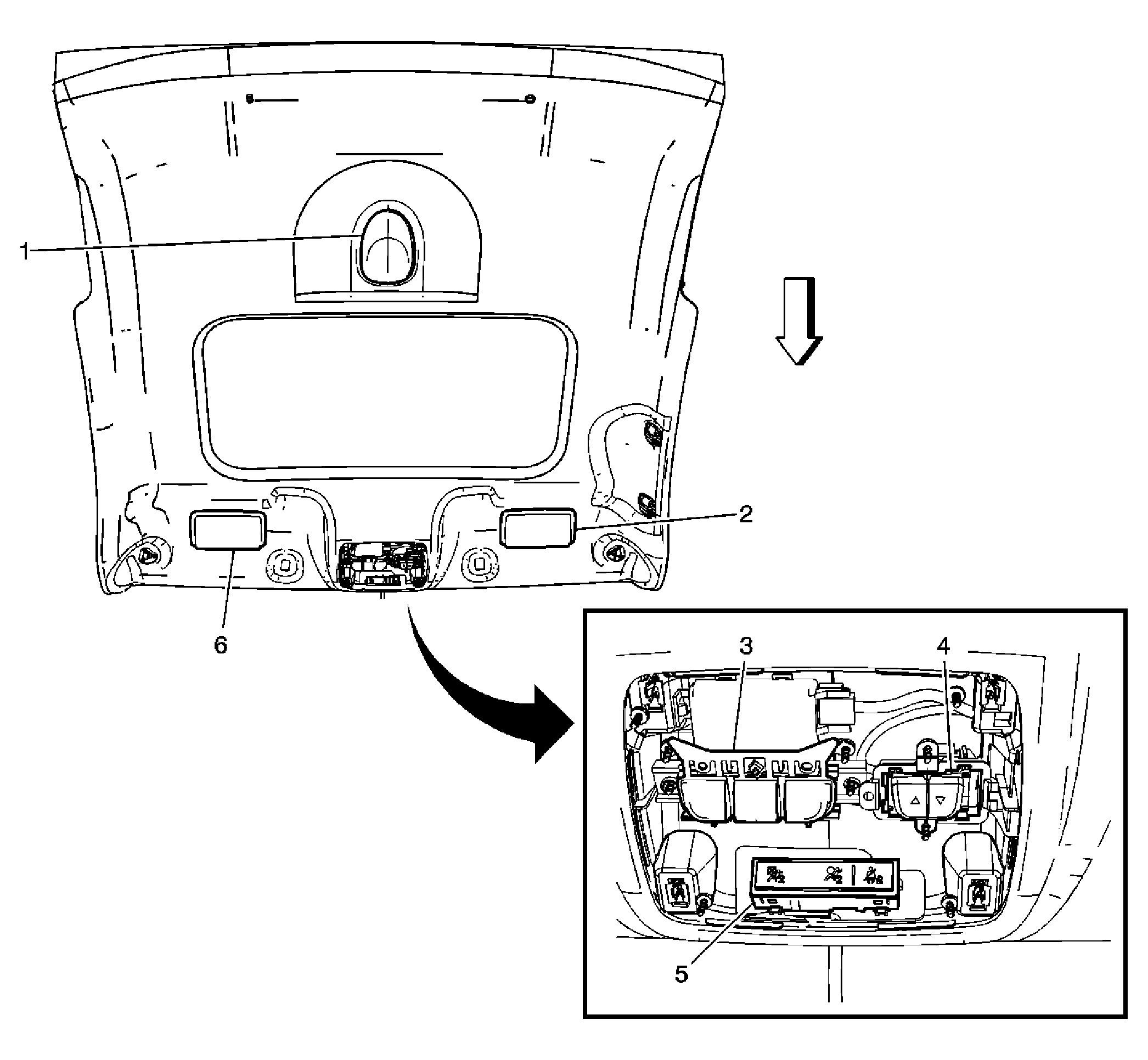

Fig 5: Identifying Headliner Components (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Vanity Mirror Lamp - Right (DH6)
3	Garage Door Opener (UG1)
4	Sunroof Switch (CF5)
5	Inflatable Restraint Passenger Air Bag On/Off Indicator
6	Vanity Mirror Lamp - Left (DH6)
