Keyless Entry Antenna Replacement

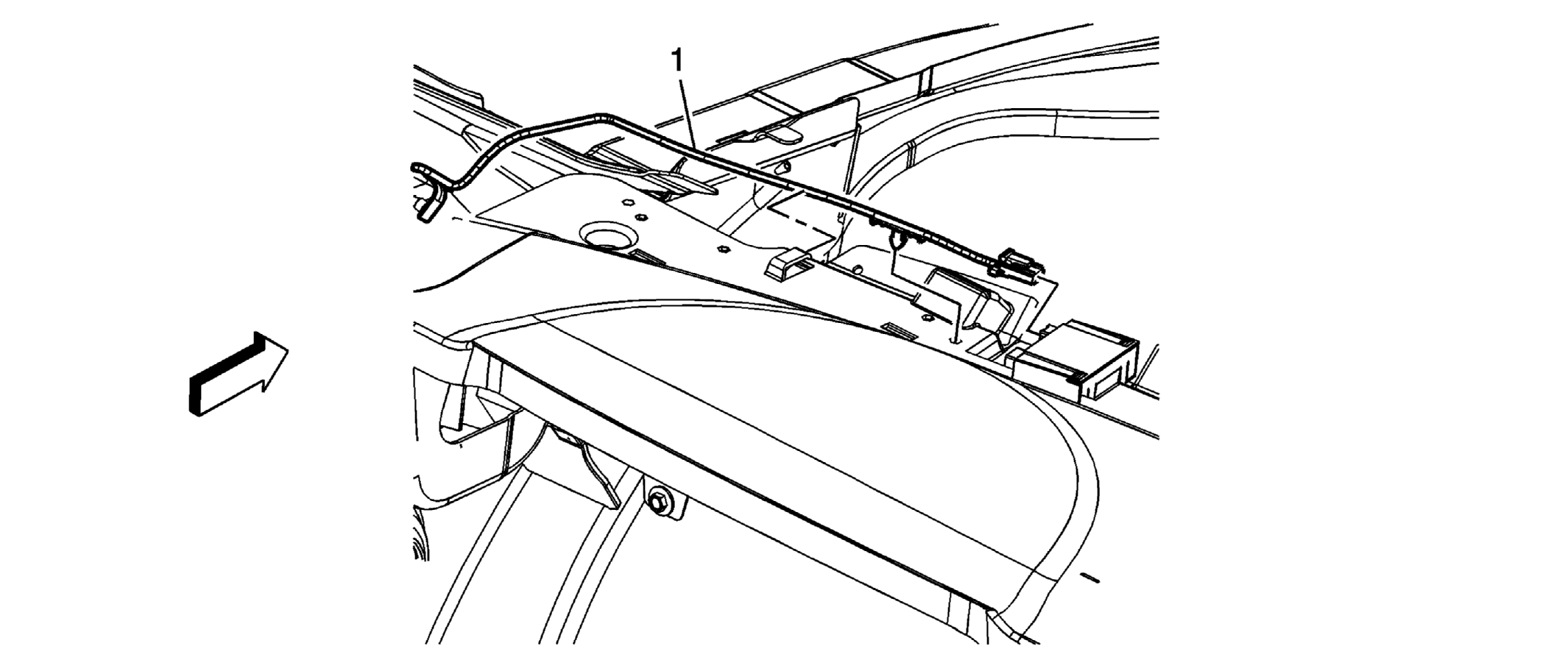

Fig 1: Identifying Keyless Entry Antenna
GM1614427Courtesy of GENERAL MOTORS CORP.
Keyless Entry Antenna Replacement

Callout Component Name
Preliminary Procedure:
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1 Remote Control Door Lock Receiver Antenna Assembly
Tip:  Disconnect the antenna from the door lock receiver.
