Installation Procedure

  1. Install the battery into the transmitter with the positive side of the battery down.

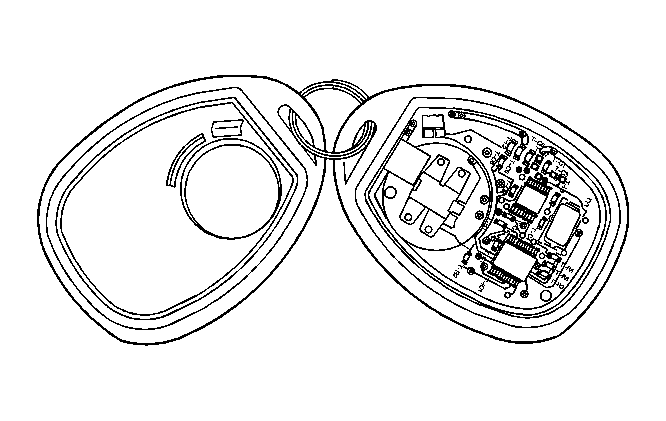

    Fig 1: View Of Transmitter Battery Components
    GM1617302Courtesy of GENERAL MOTORS CORP.
  2. Snap the front and back half of the transmitter together.
  3. Ensure the transmitter halves are tight to prevent moisture from intruding into the transmitter.
