Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

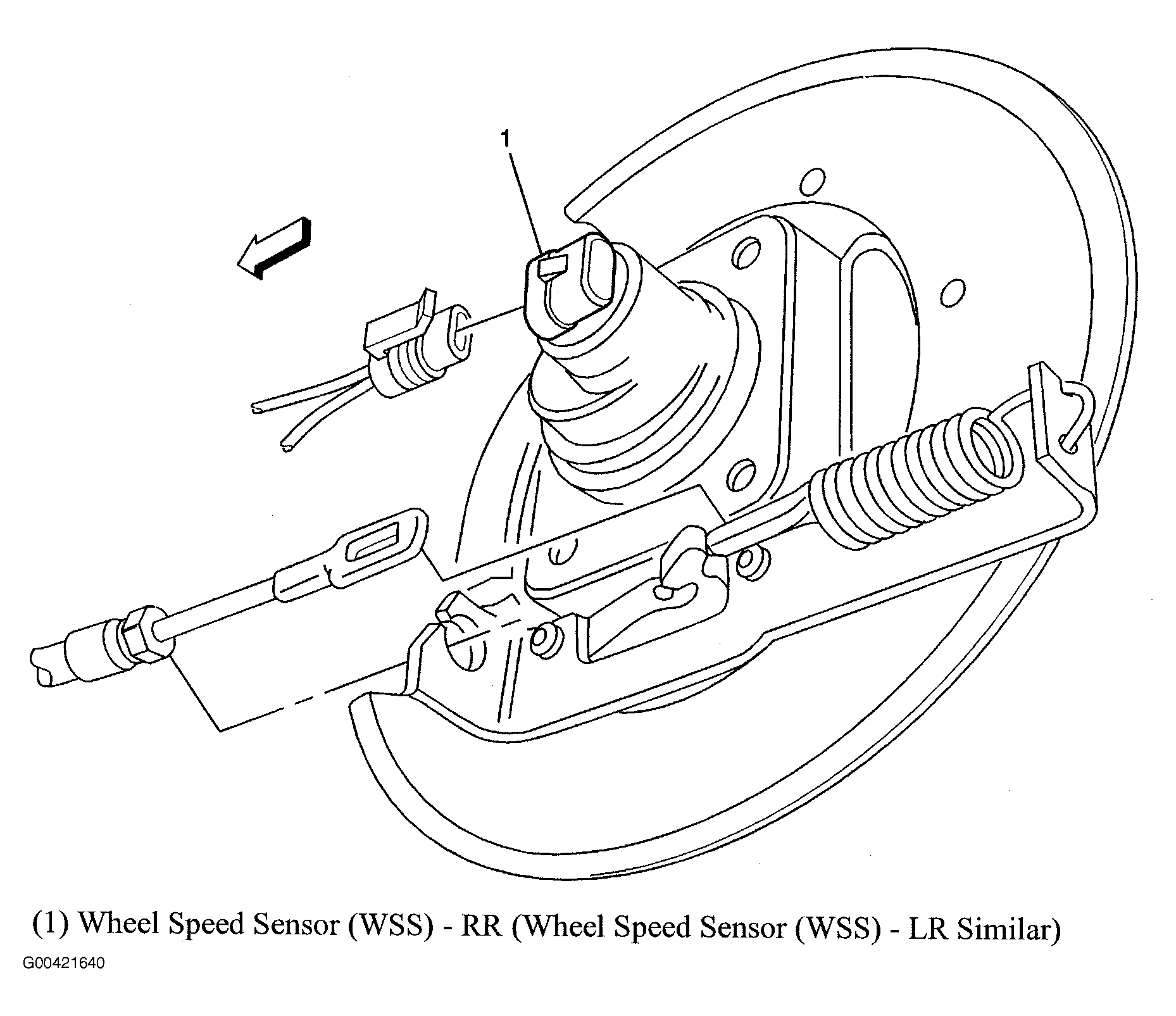

Fig 1: Right Rear Hub Assembly
Courtesy of GENERAL MOTORS CORP.

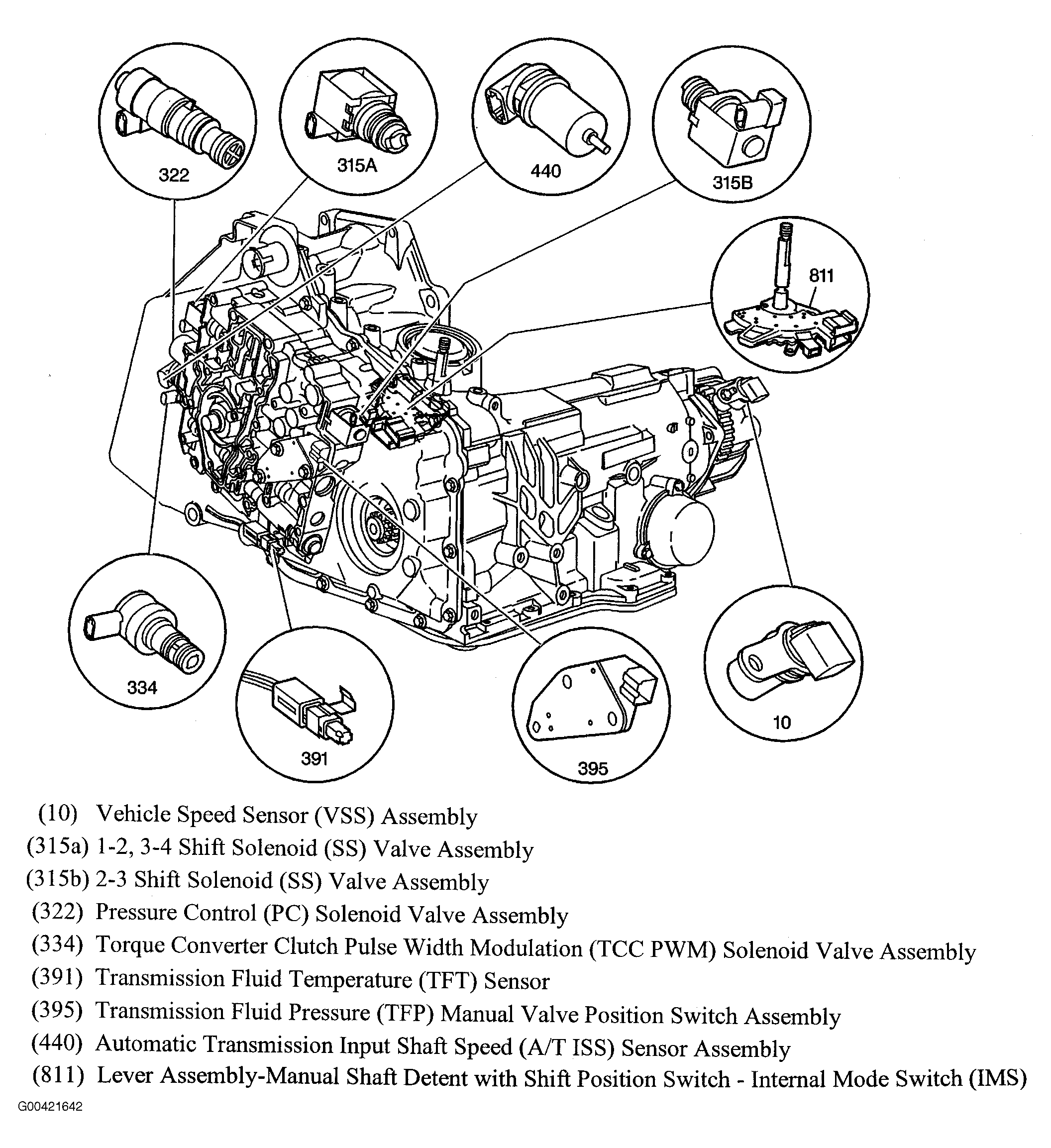

Fig 2: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 3: Body Rear End Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 4: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

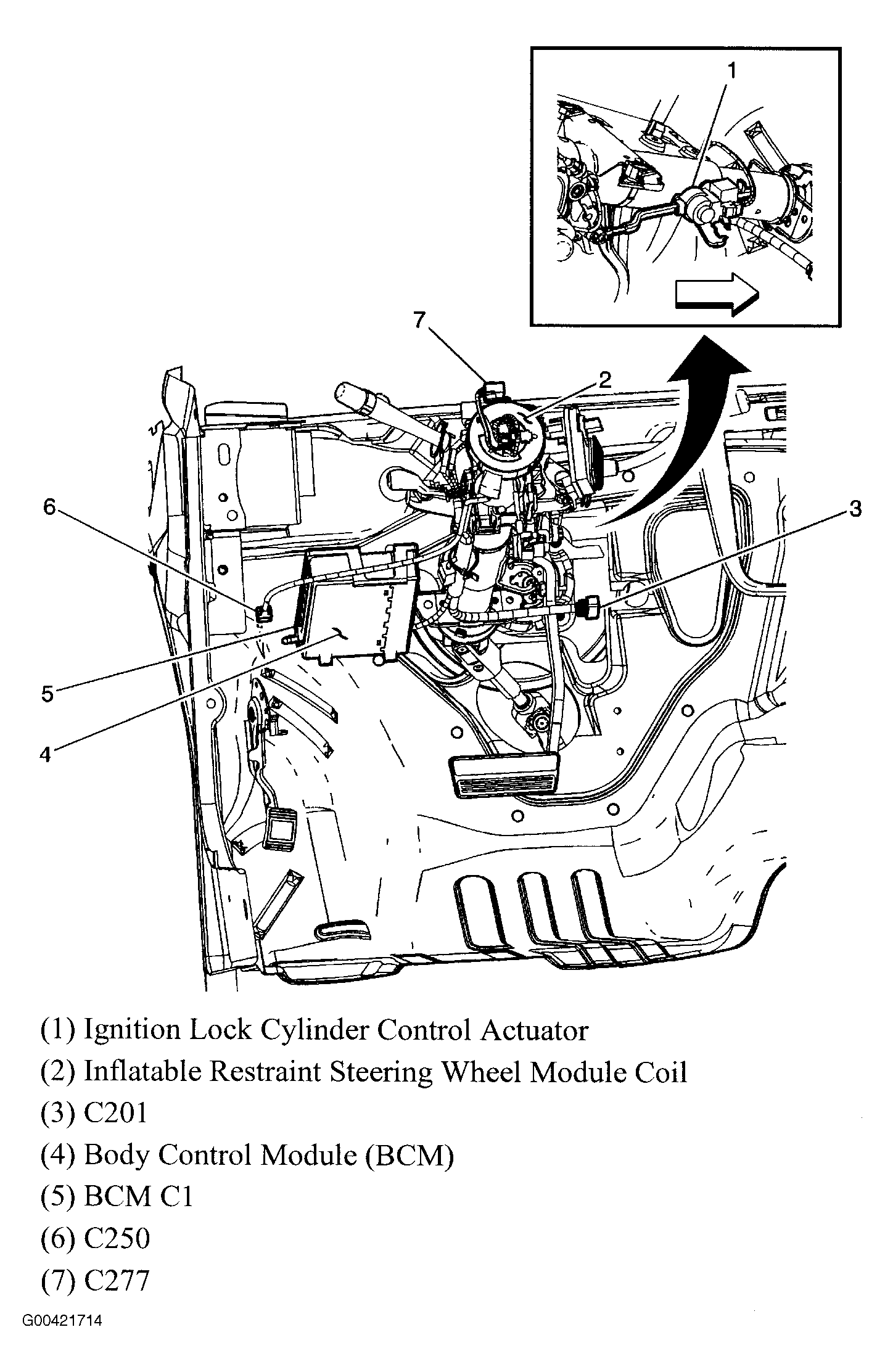

Fig 5: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

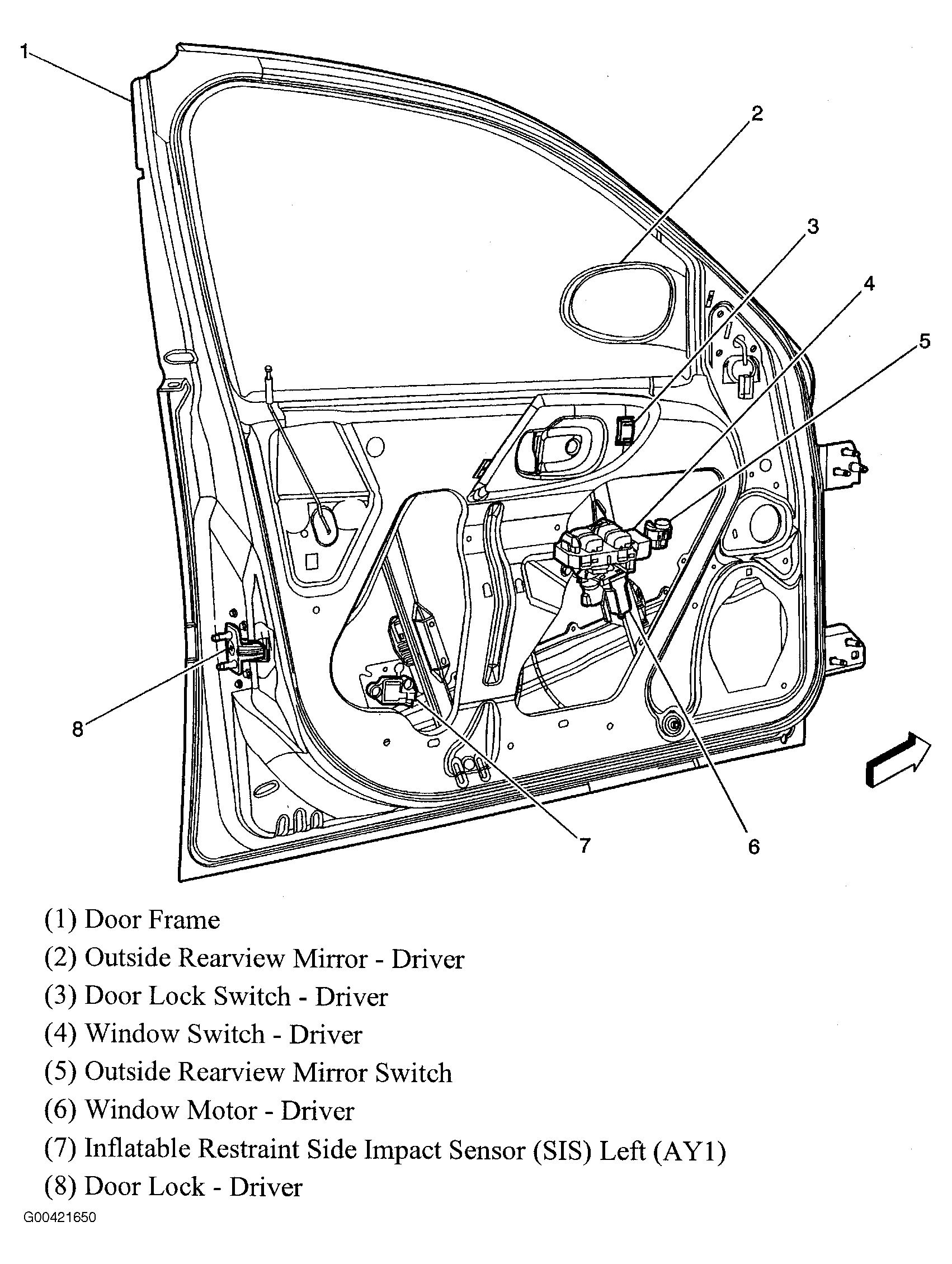

Fig 6: Driver Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

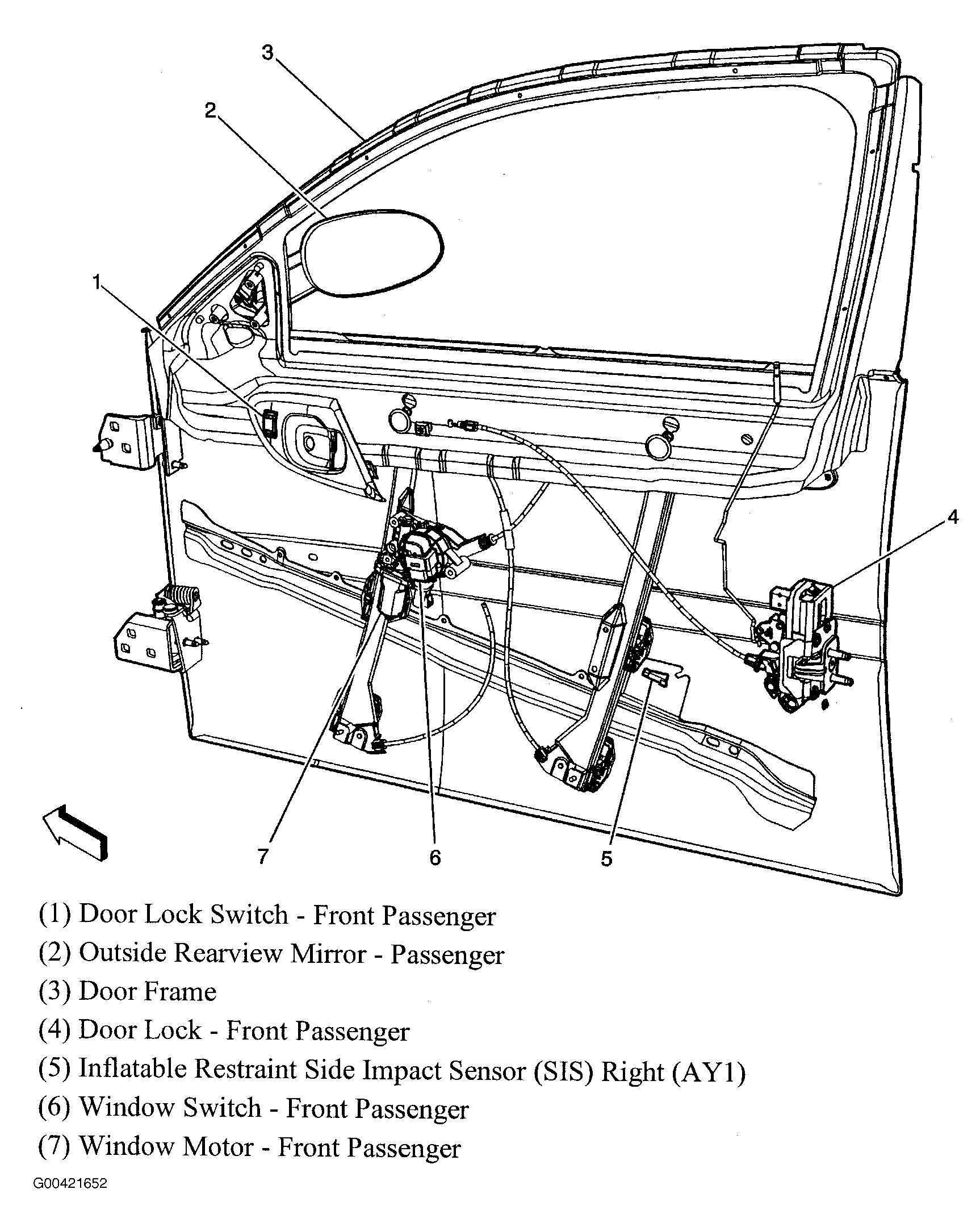

Fig 7: Front Passenger Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

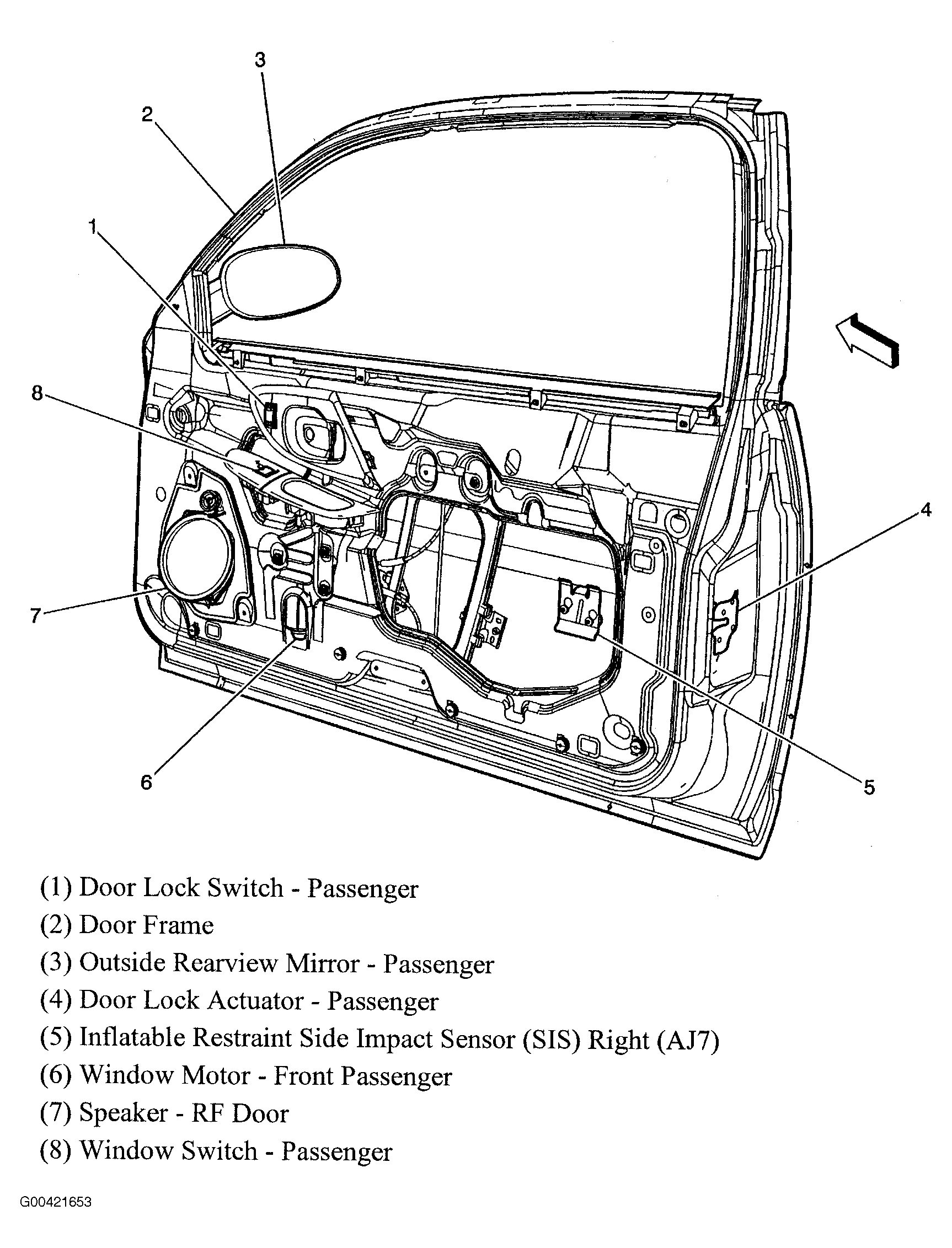

Fig 8: Right Front Door Components (Coupe)
Courtesy of GENERAL MOTORS CORP.

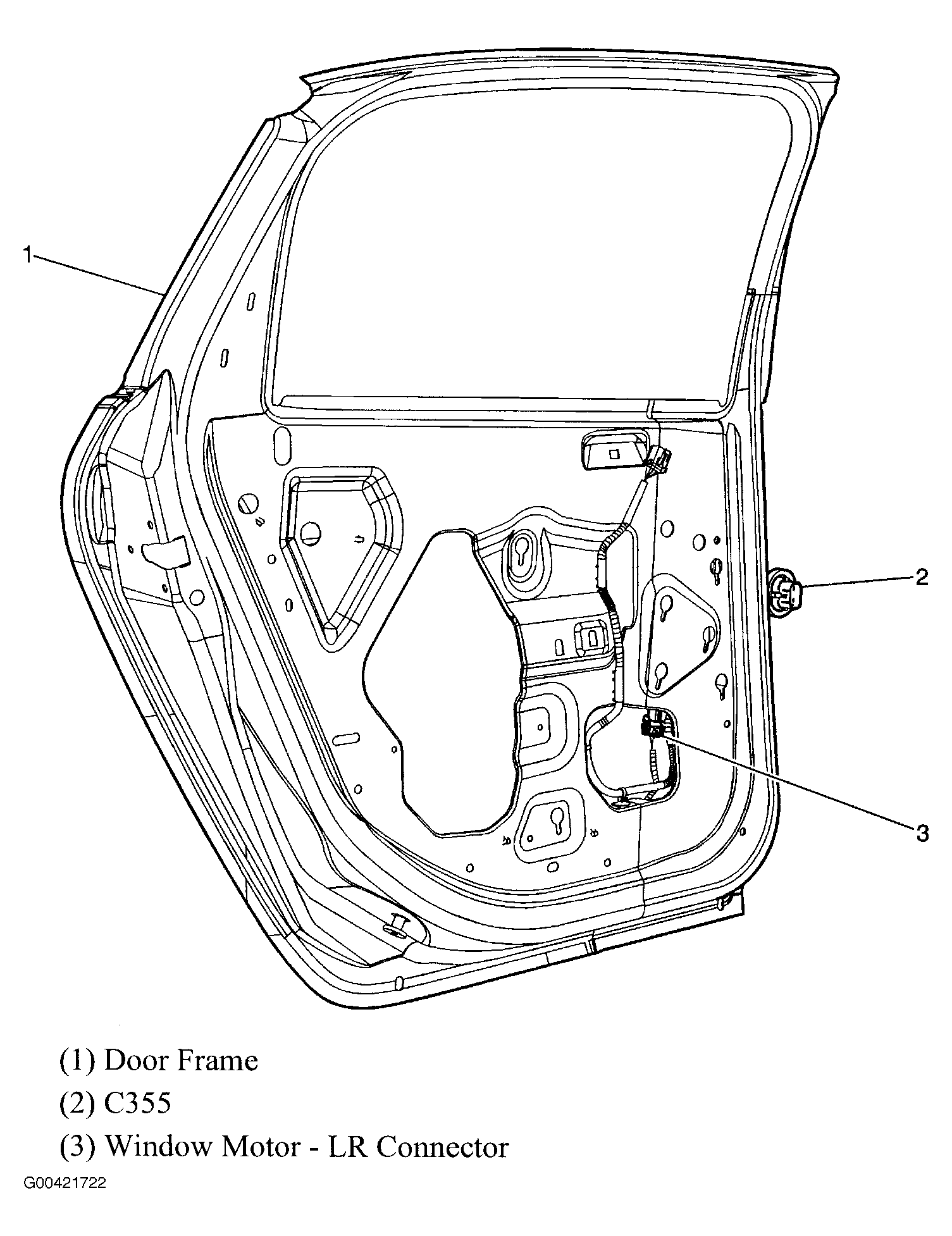

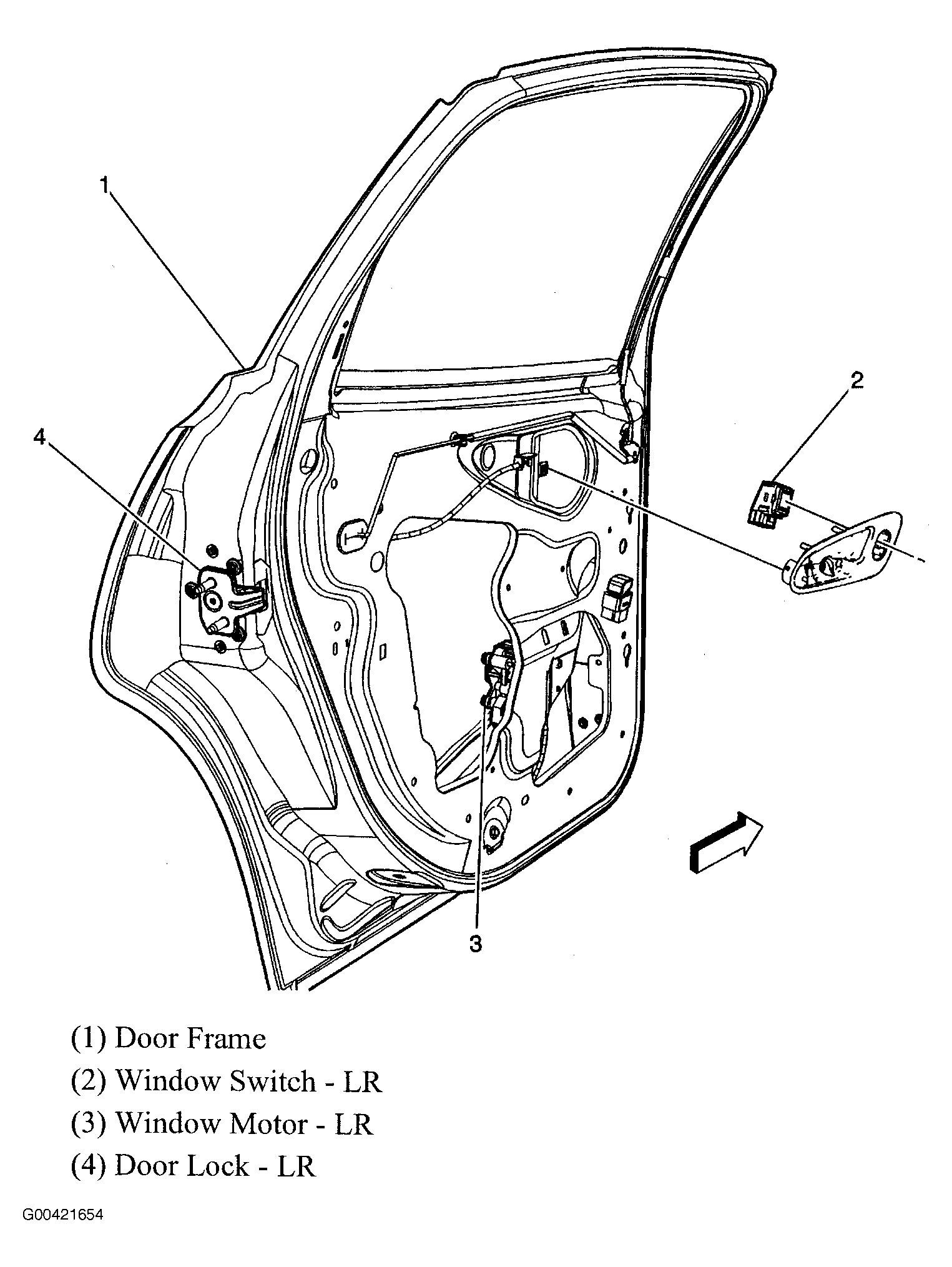

Fig 9: Left Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

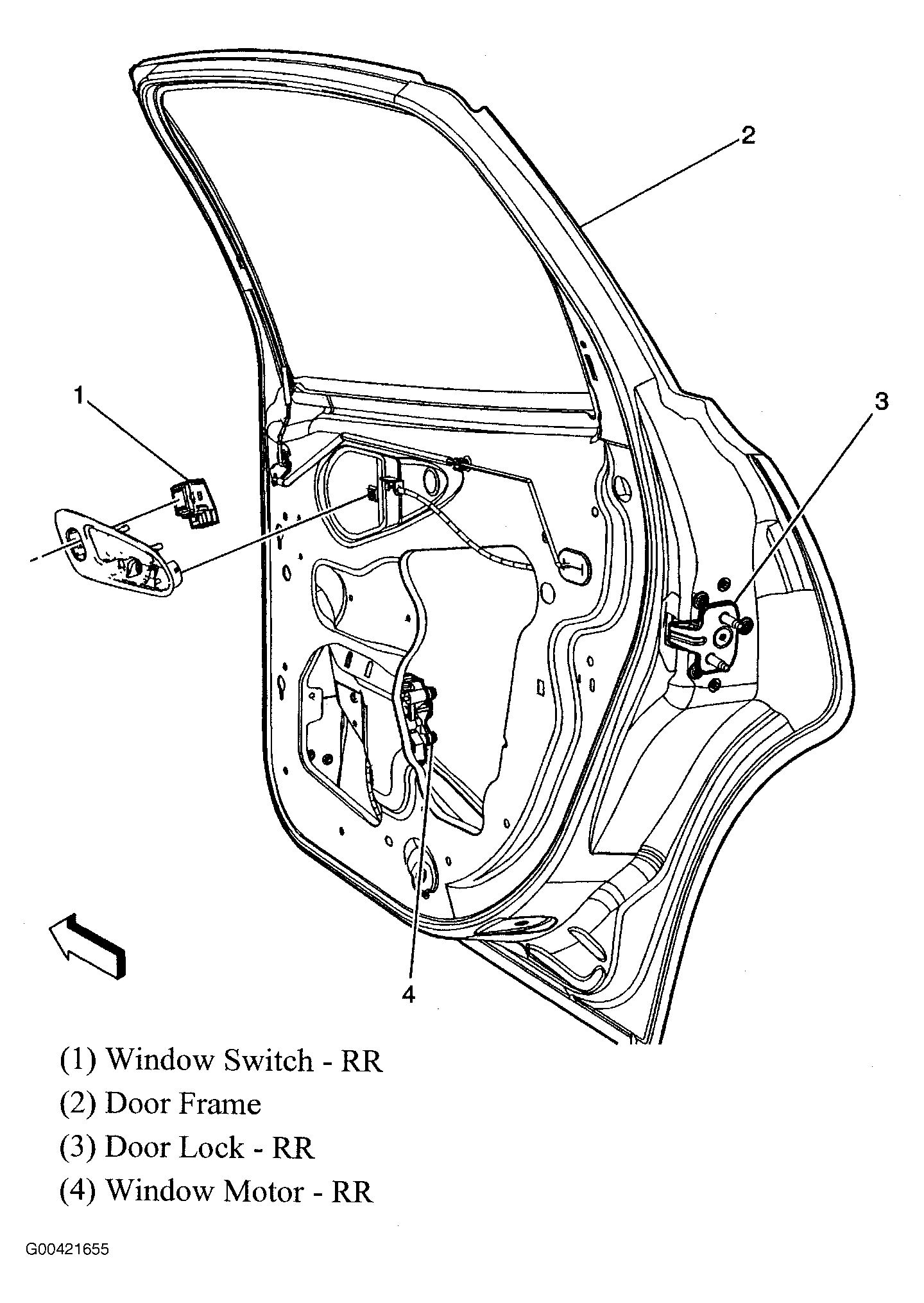

Fig 10: Right Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

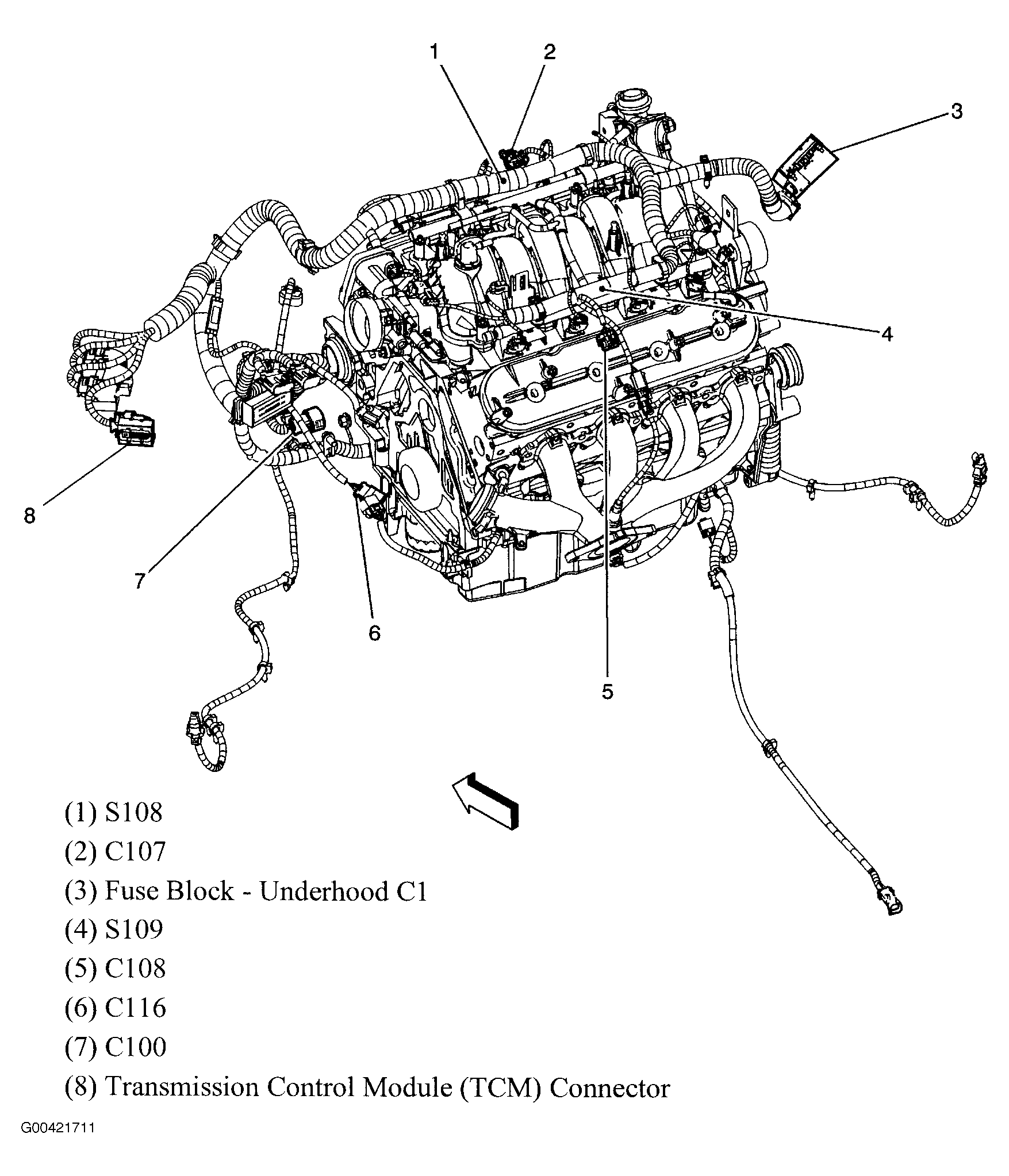

Fig 11: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

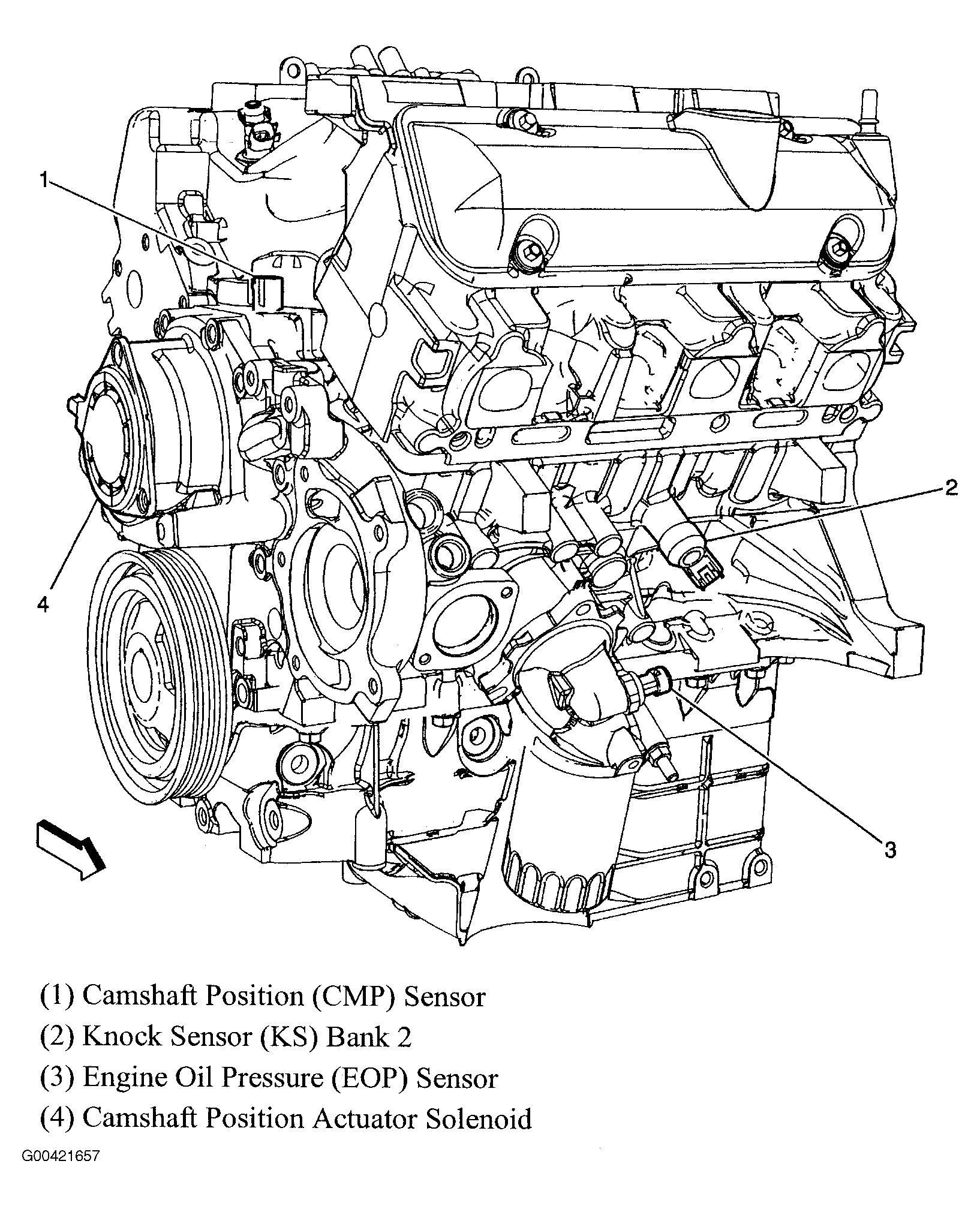

Fig 12: Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

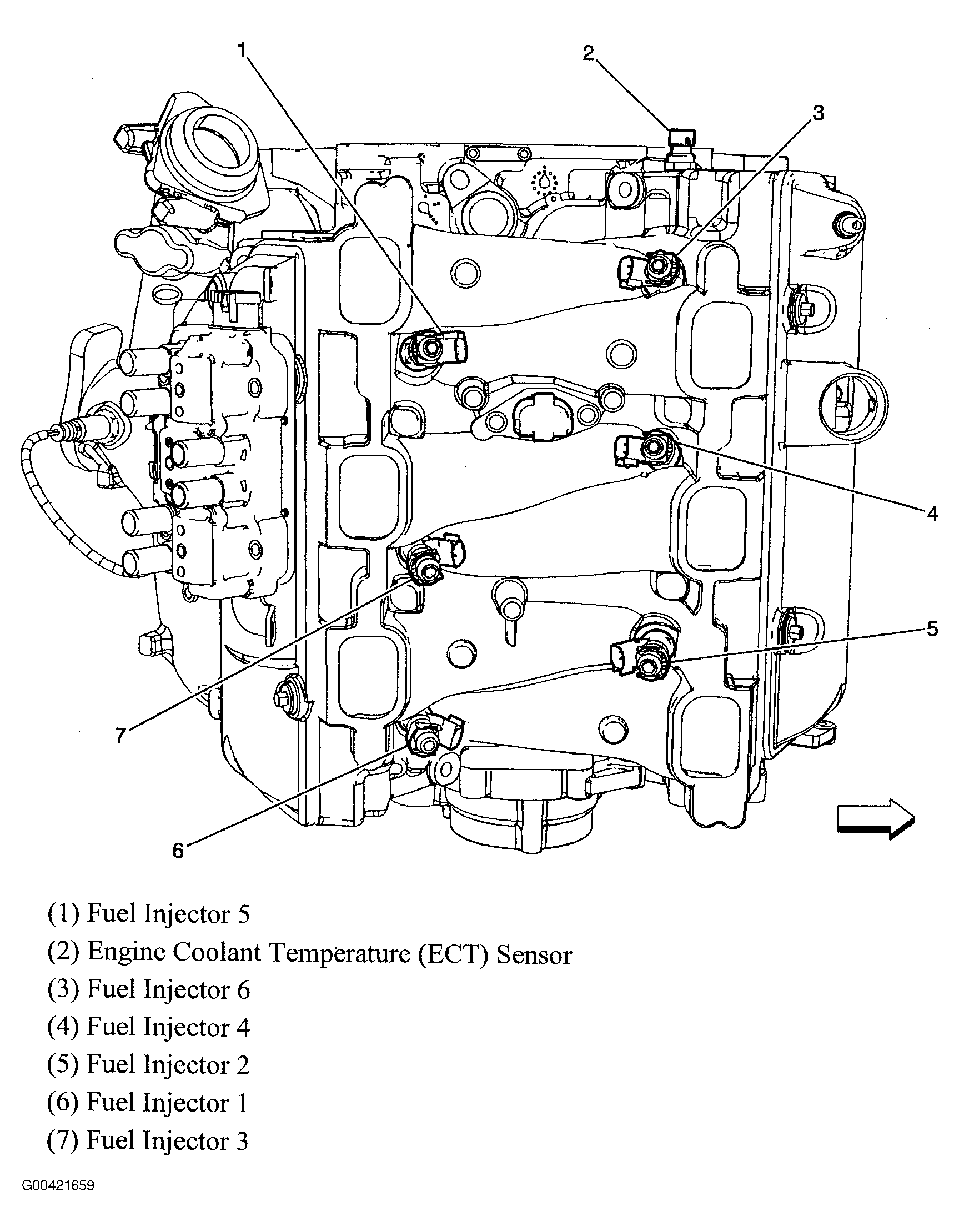

Fig 13: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

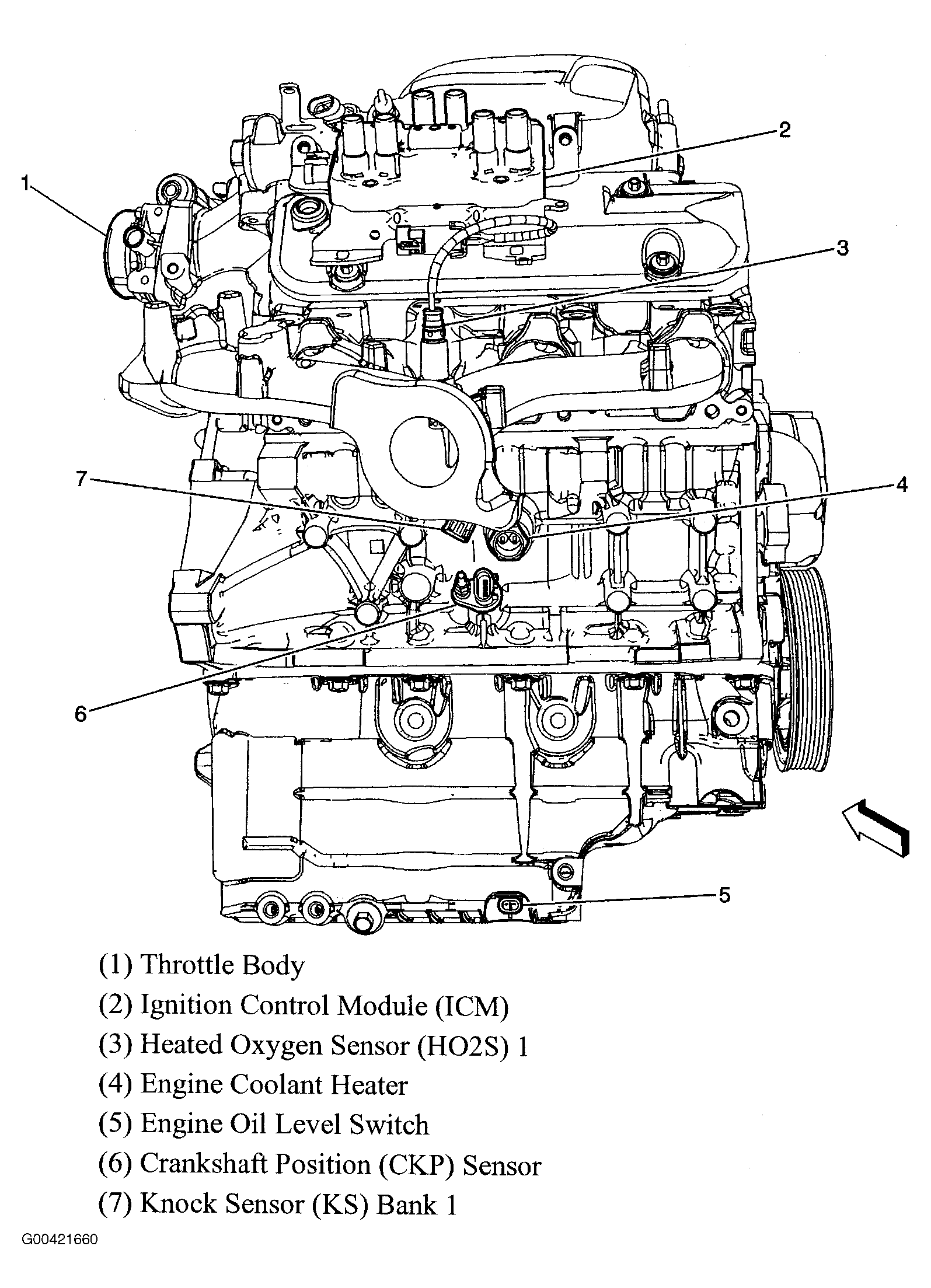

Fig 14: Right Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

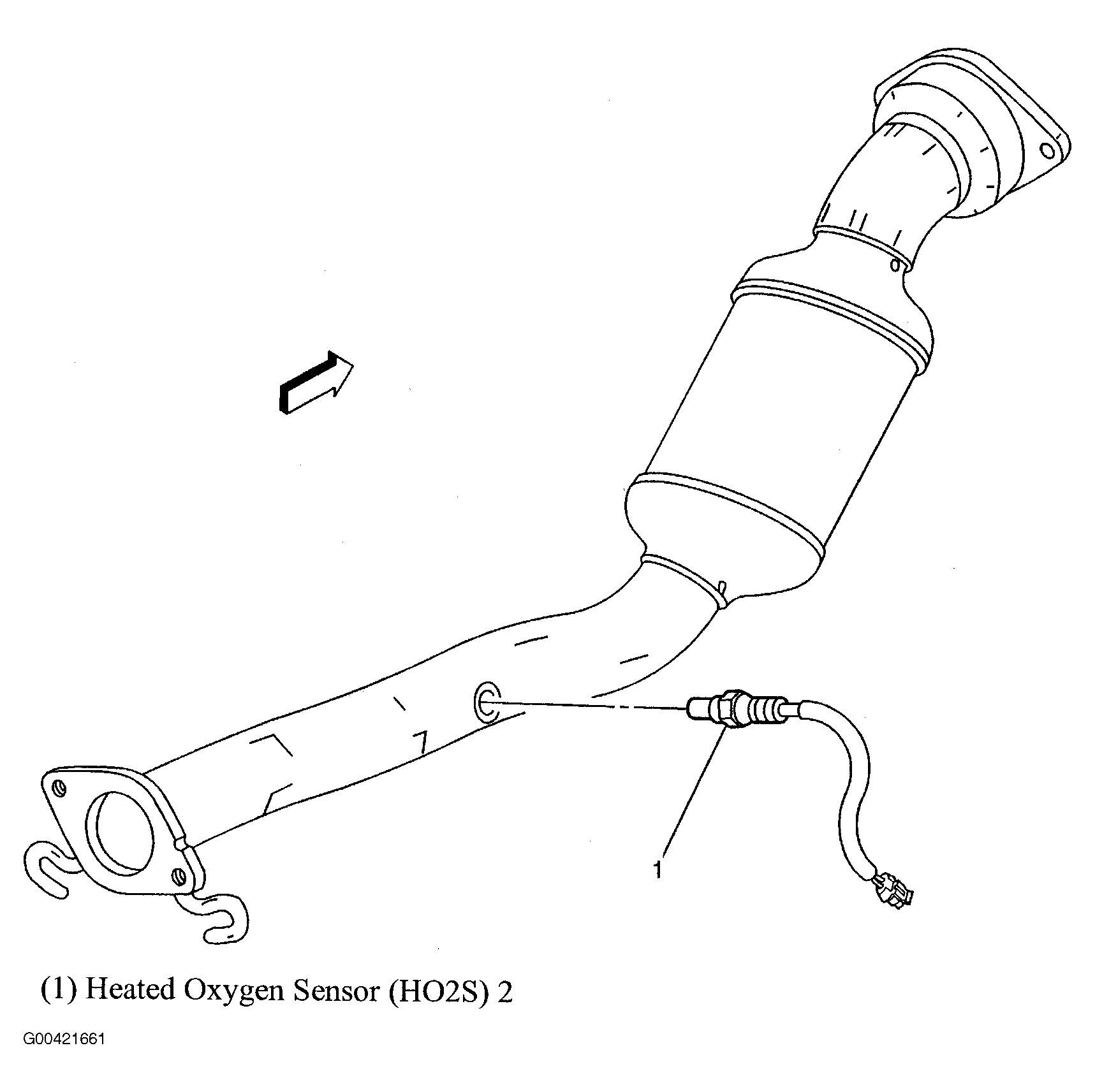

Fig 15: Exhaust
Courtesy of GENERAL MOTORS CORP.

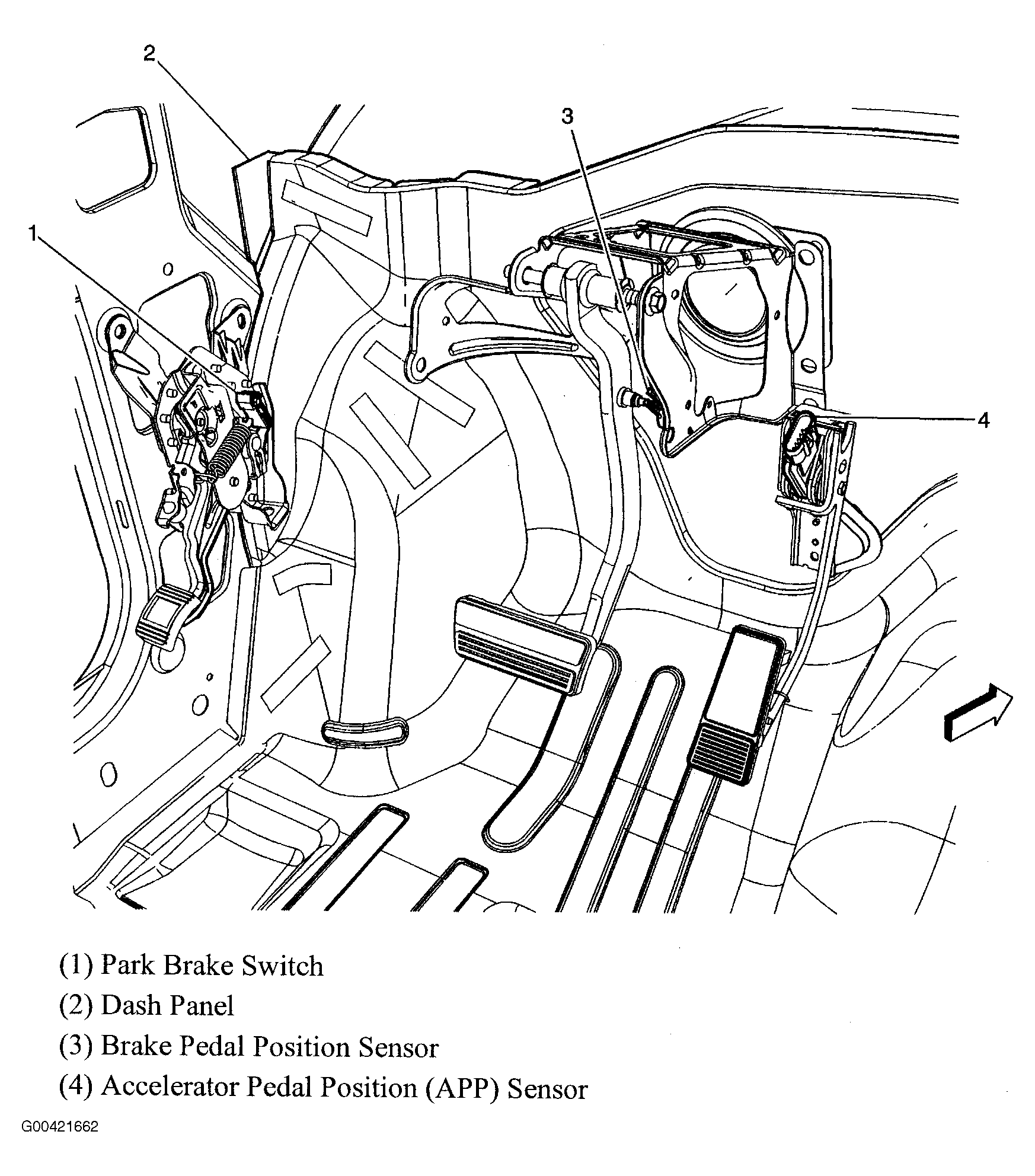

Fig 16: Pedal Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 17: Fuel Tank Assembly
Courtesy of GENERAL MOTORS CORP.

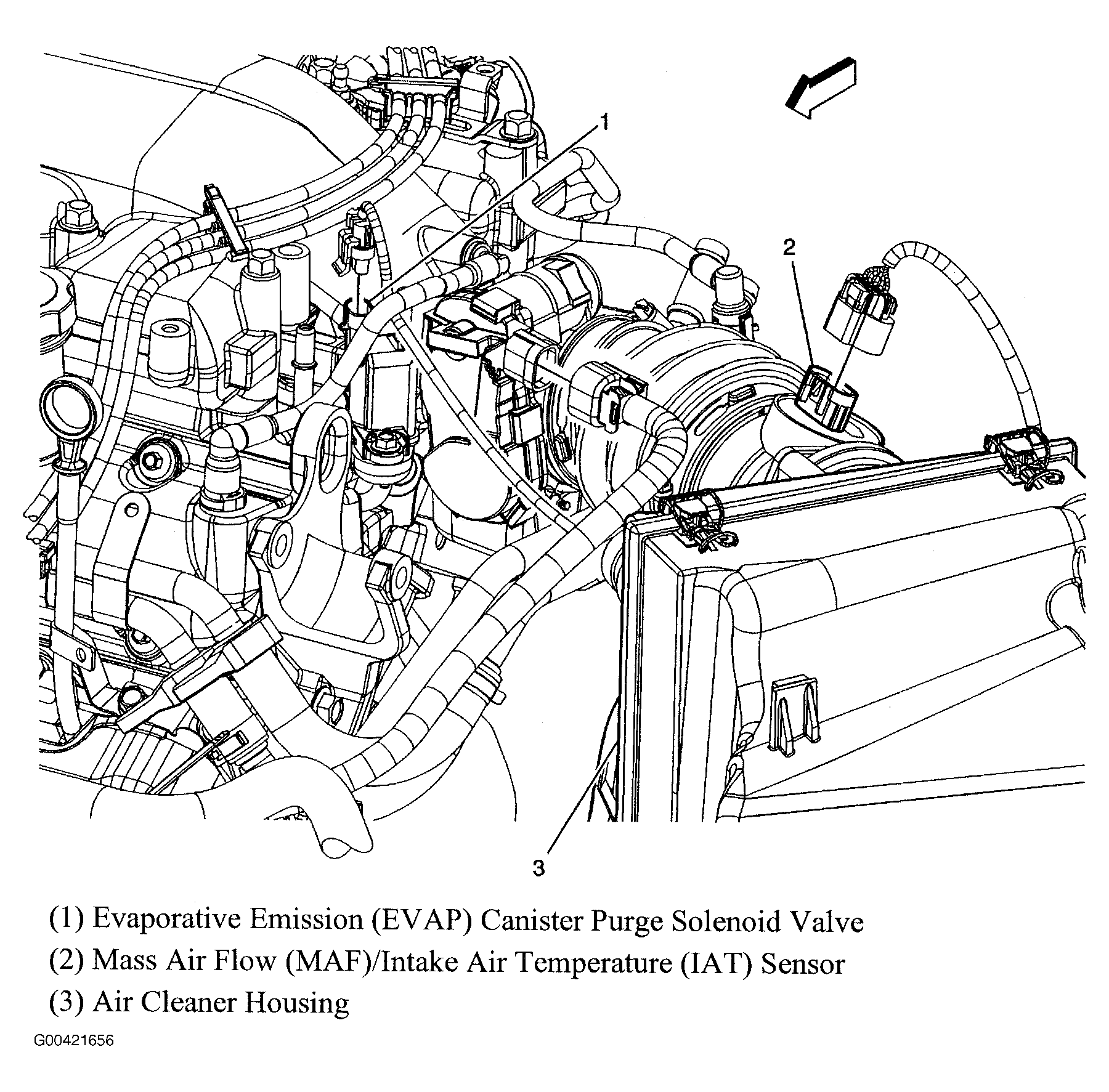

Fig 18: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

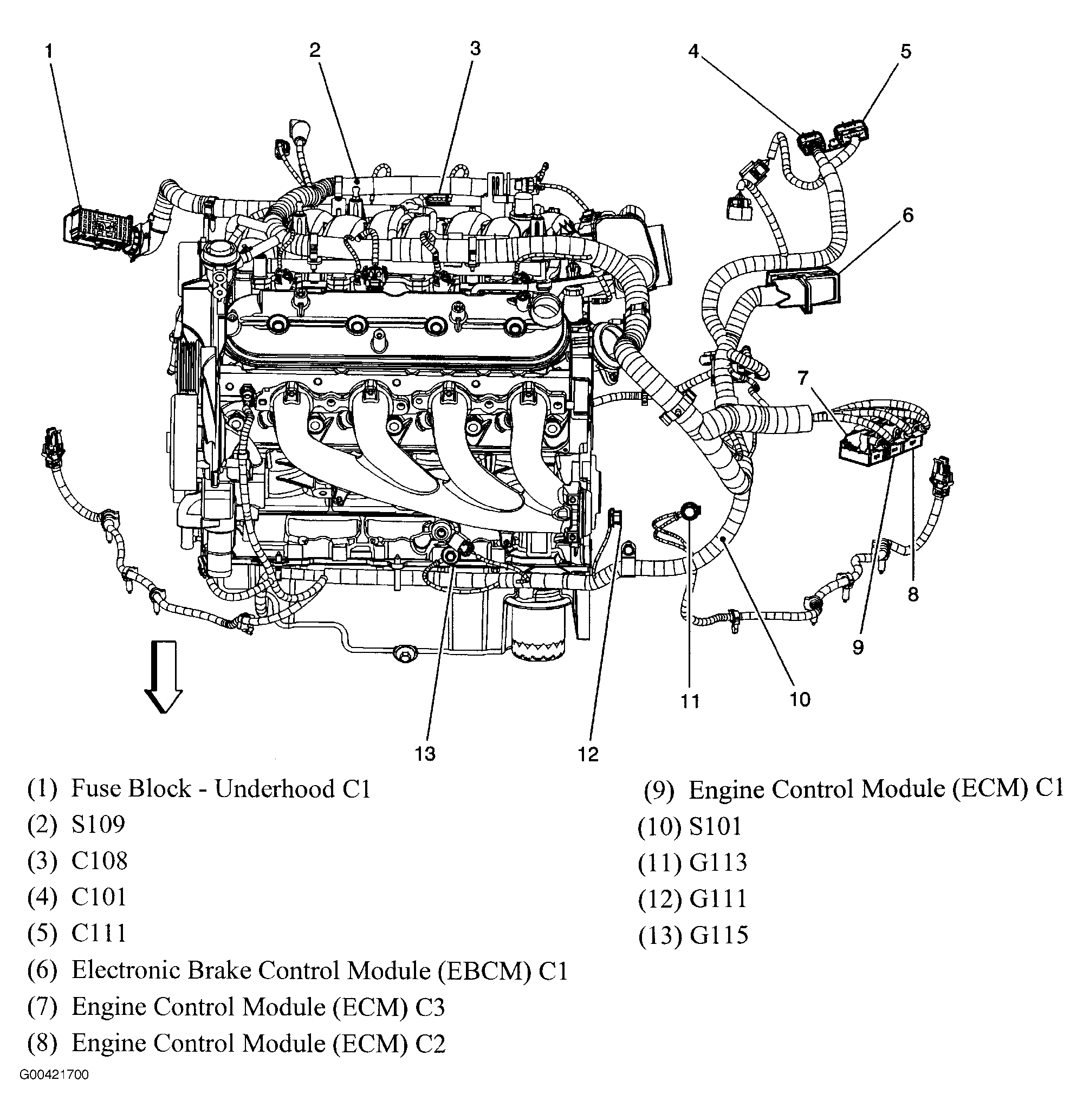

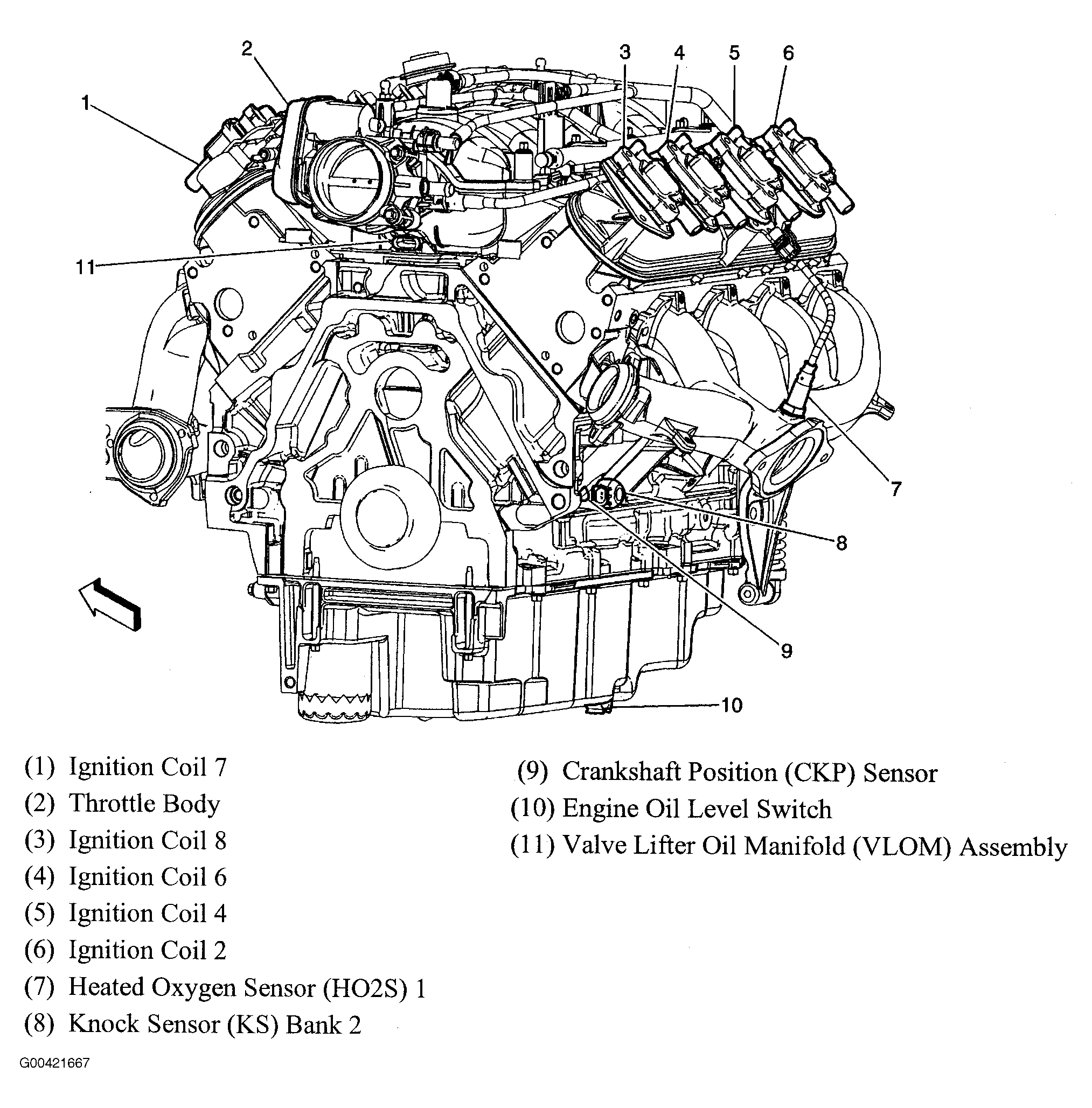

Fig 19: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

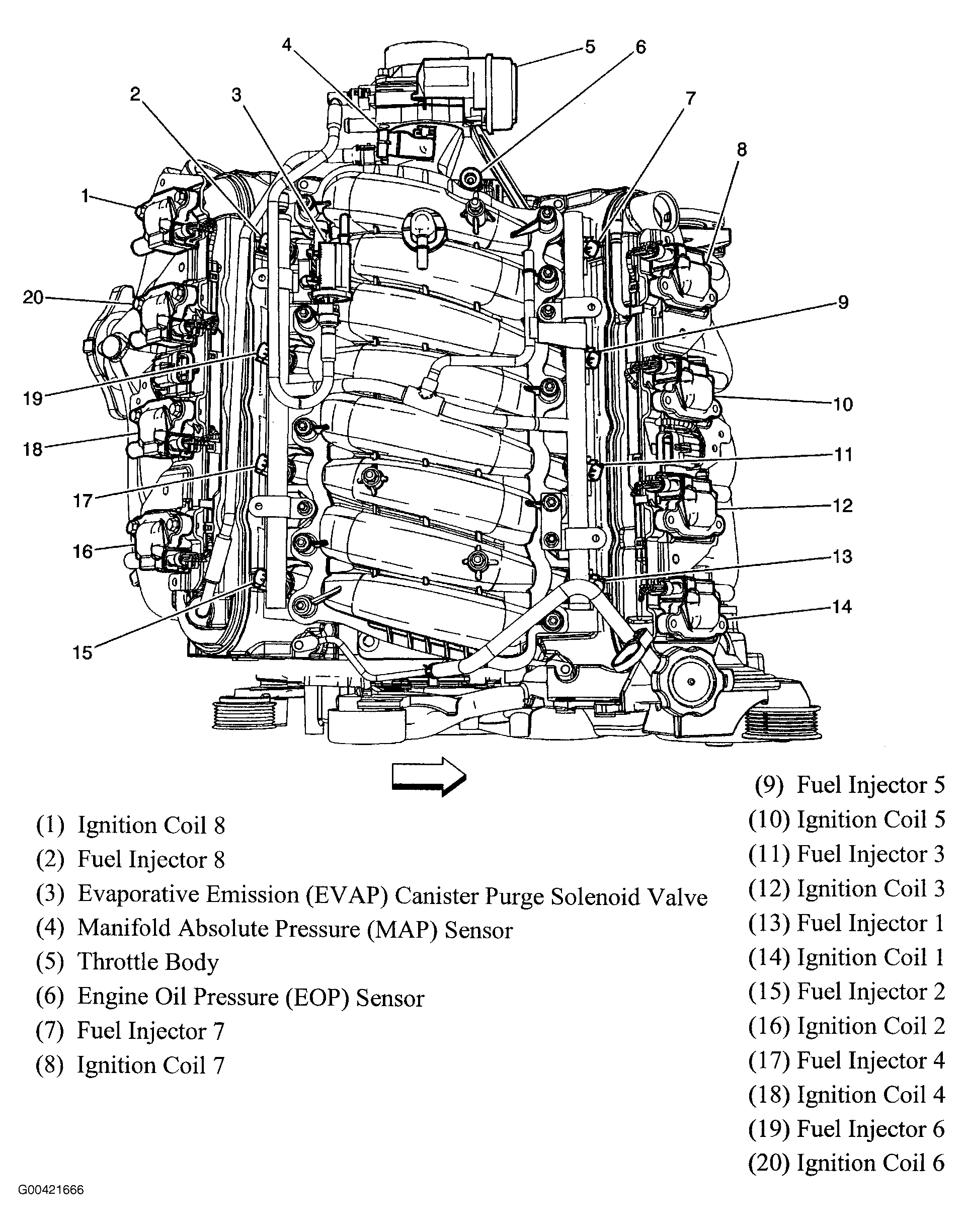

Fig 20: Top Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

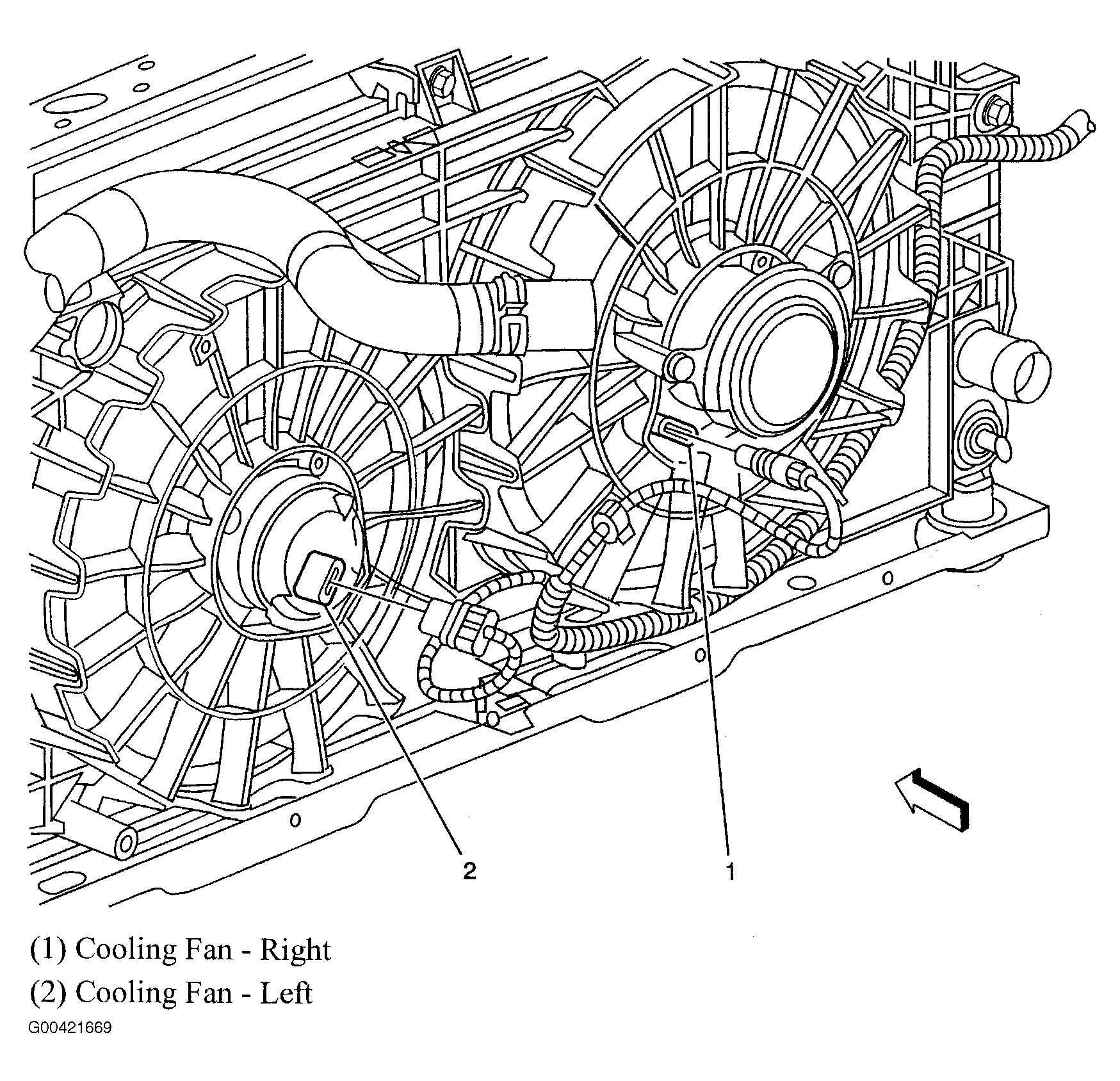

Fig 22: Cooling System Component Views
Courtesy of GENERAL MOTORS CORP.

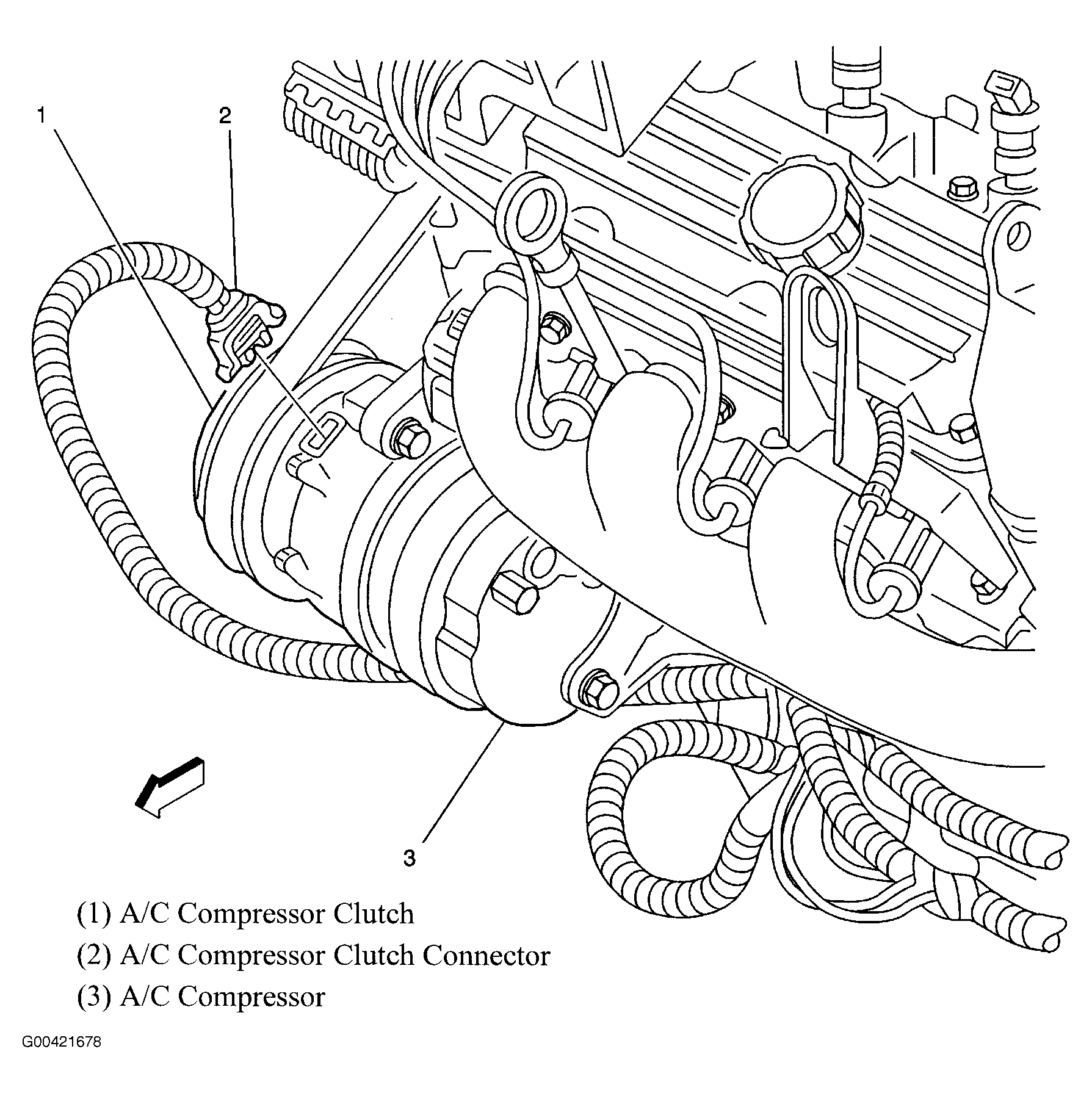

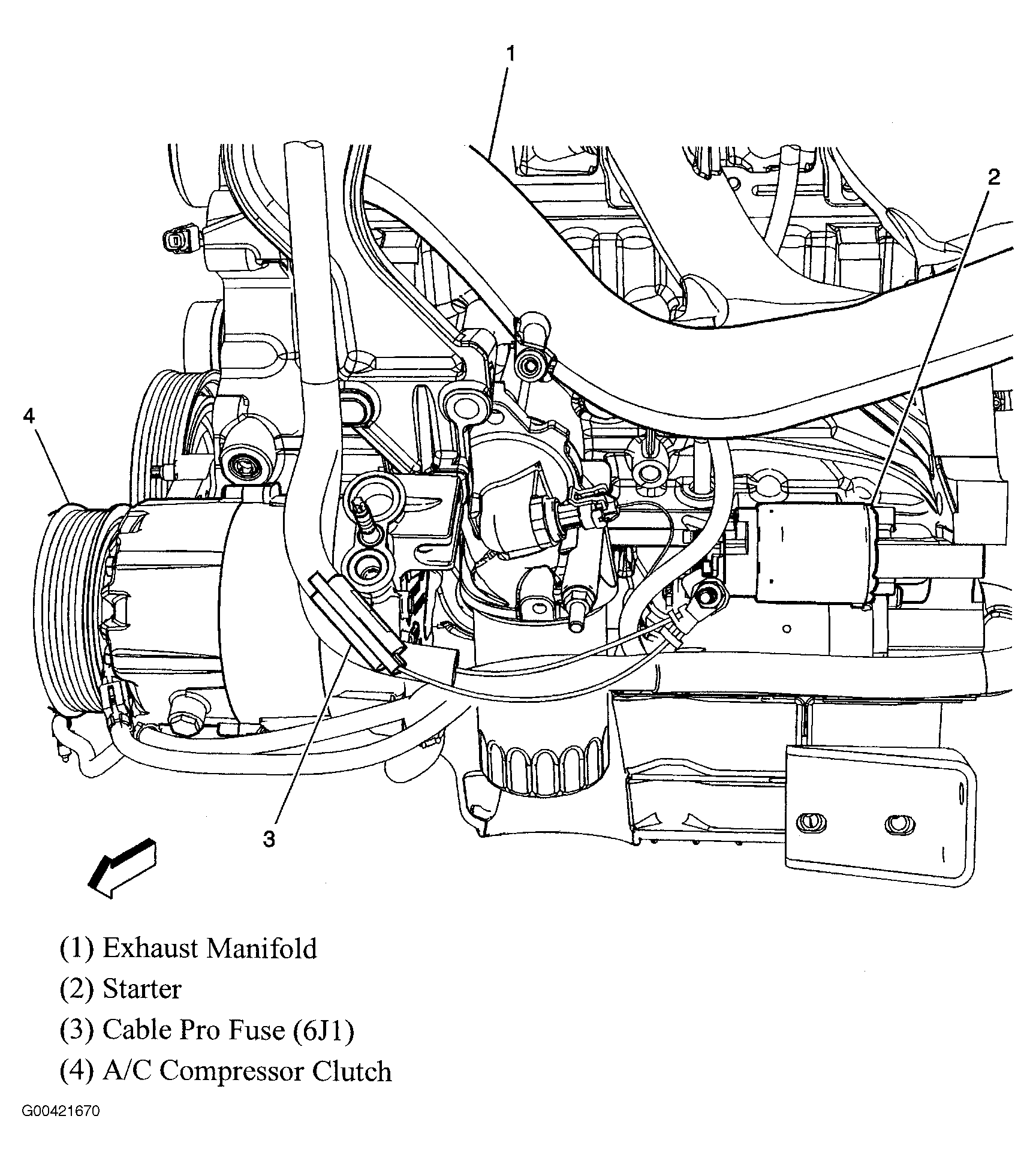

Fig 23: Lower Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

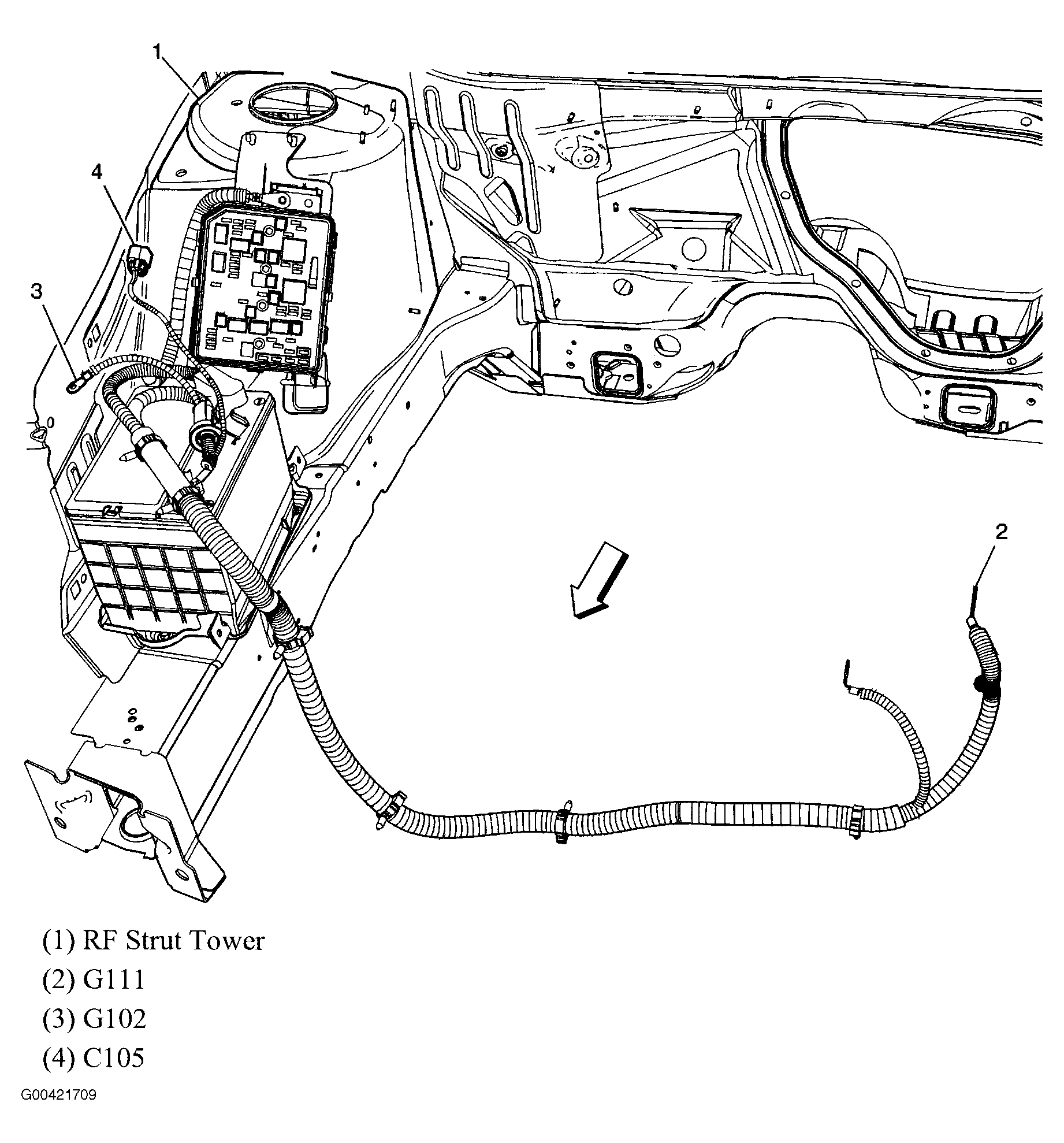

Fig 24: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Front Of Vehicle (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

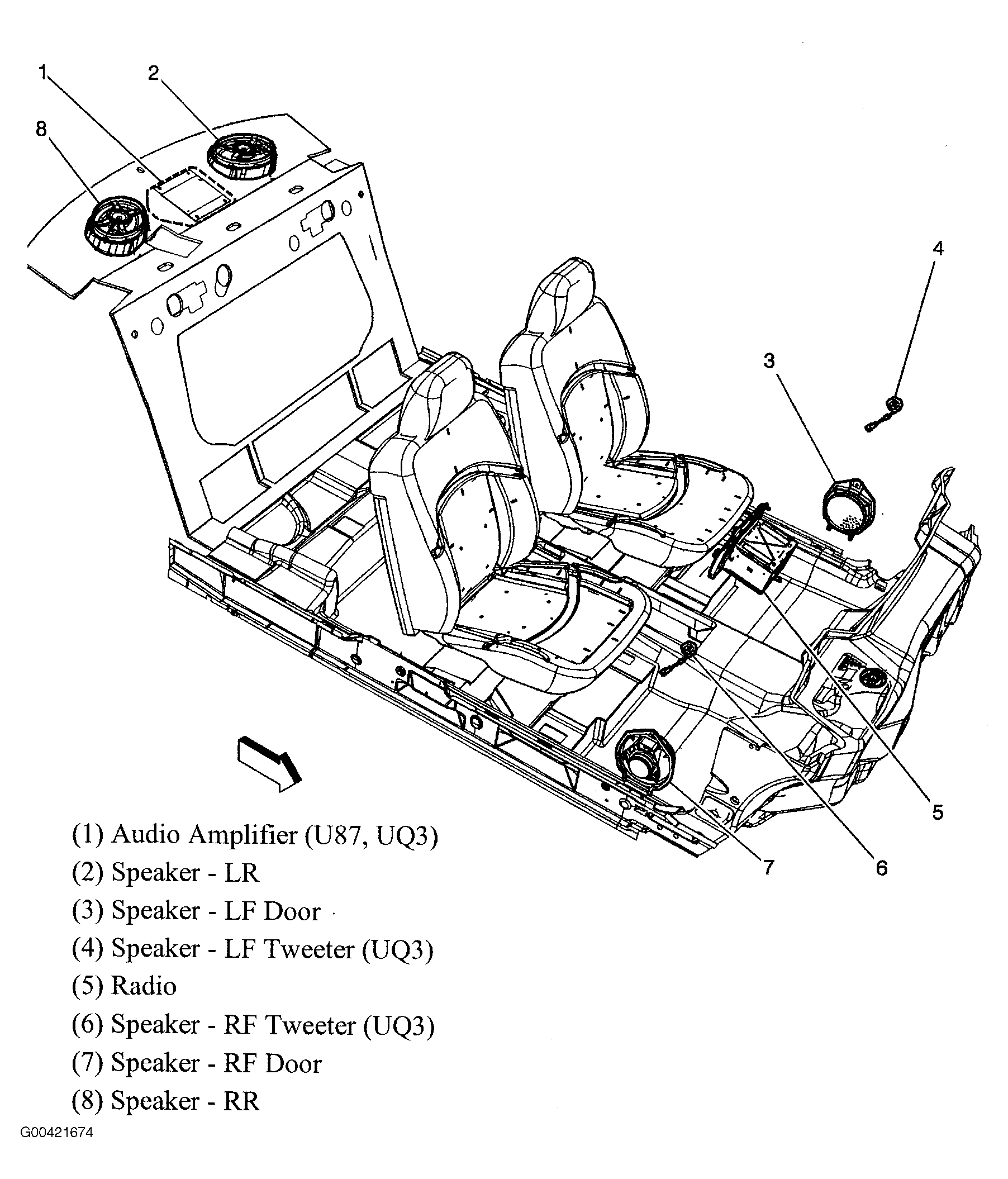

Fig 26: Interior Overview
Courtesy of GENERAL MOTORS CORP.
Fig 27: Dash Components
Courtesy of GENERAL MOTORS CORP.

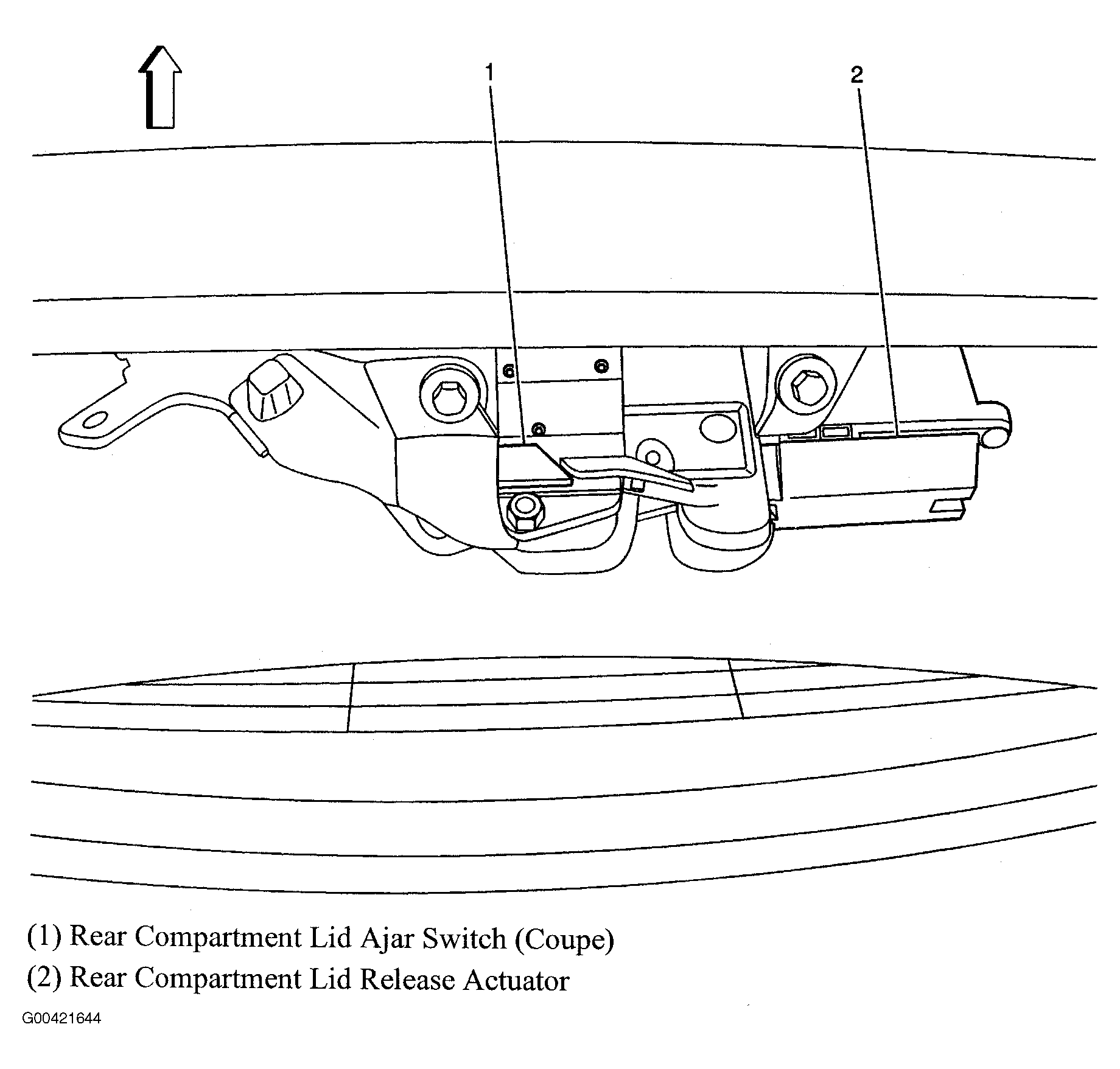

Fig 28: Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 30: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 31: HVAC Components
Courtesy of GENERAL MOTORS CORP.

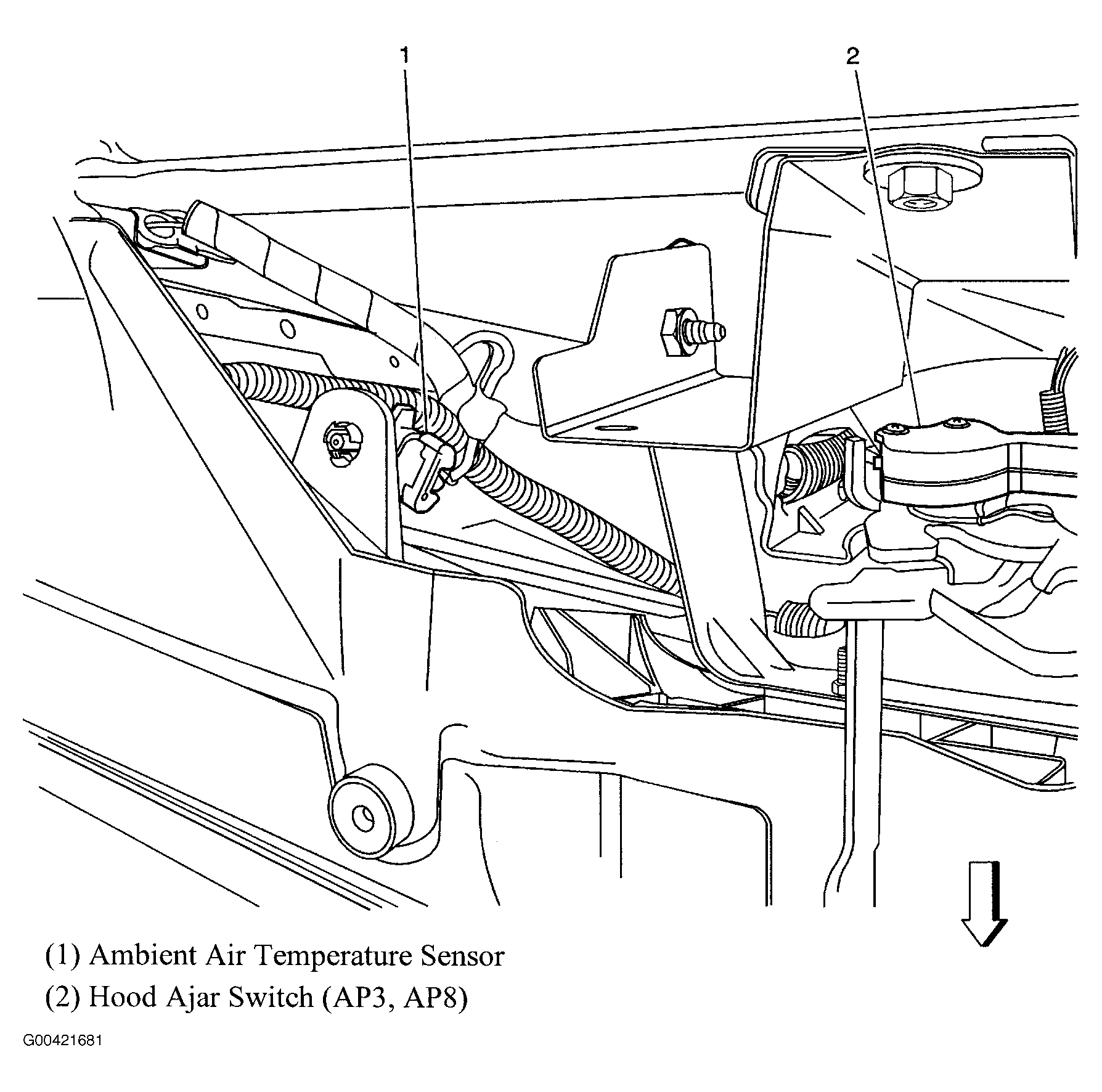

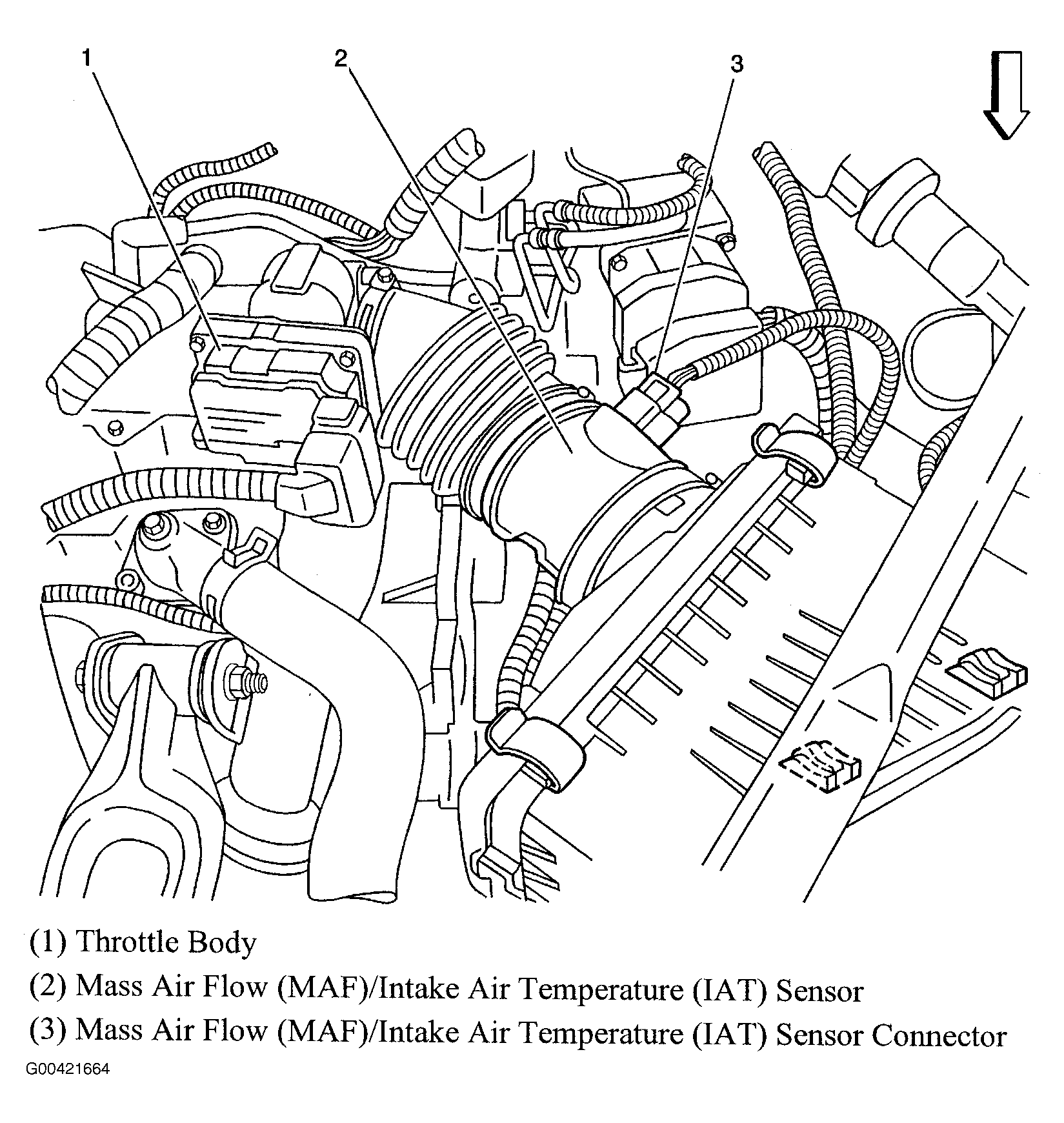

Fig 32: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

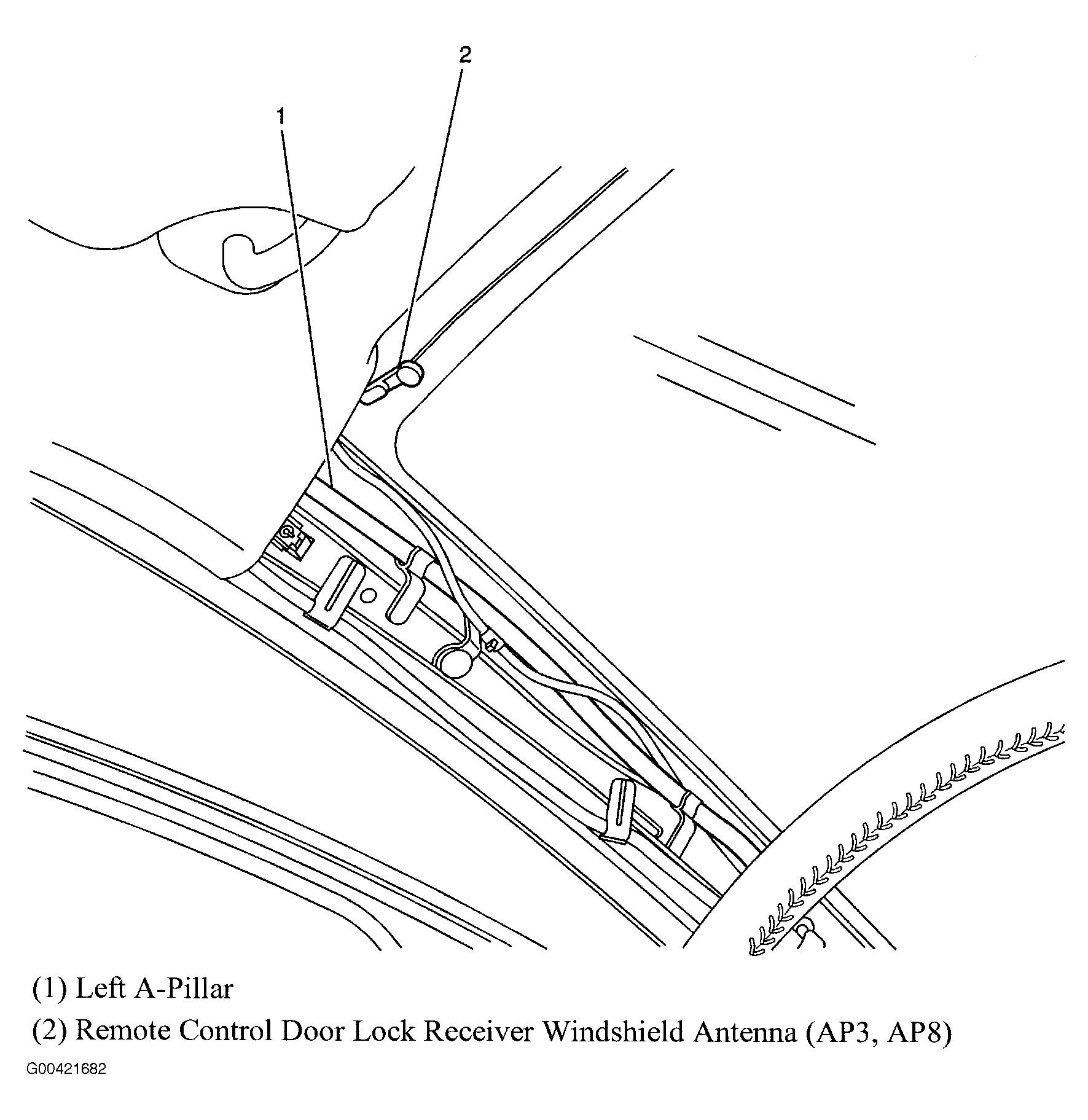

Fig 33: Left Side Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 34: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

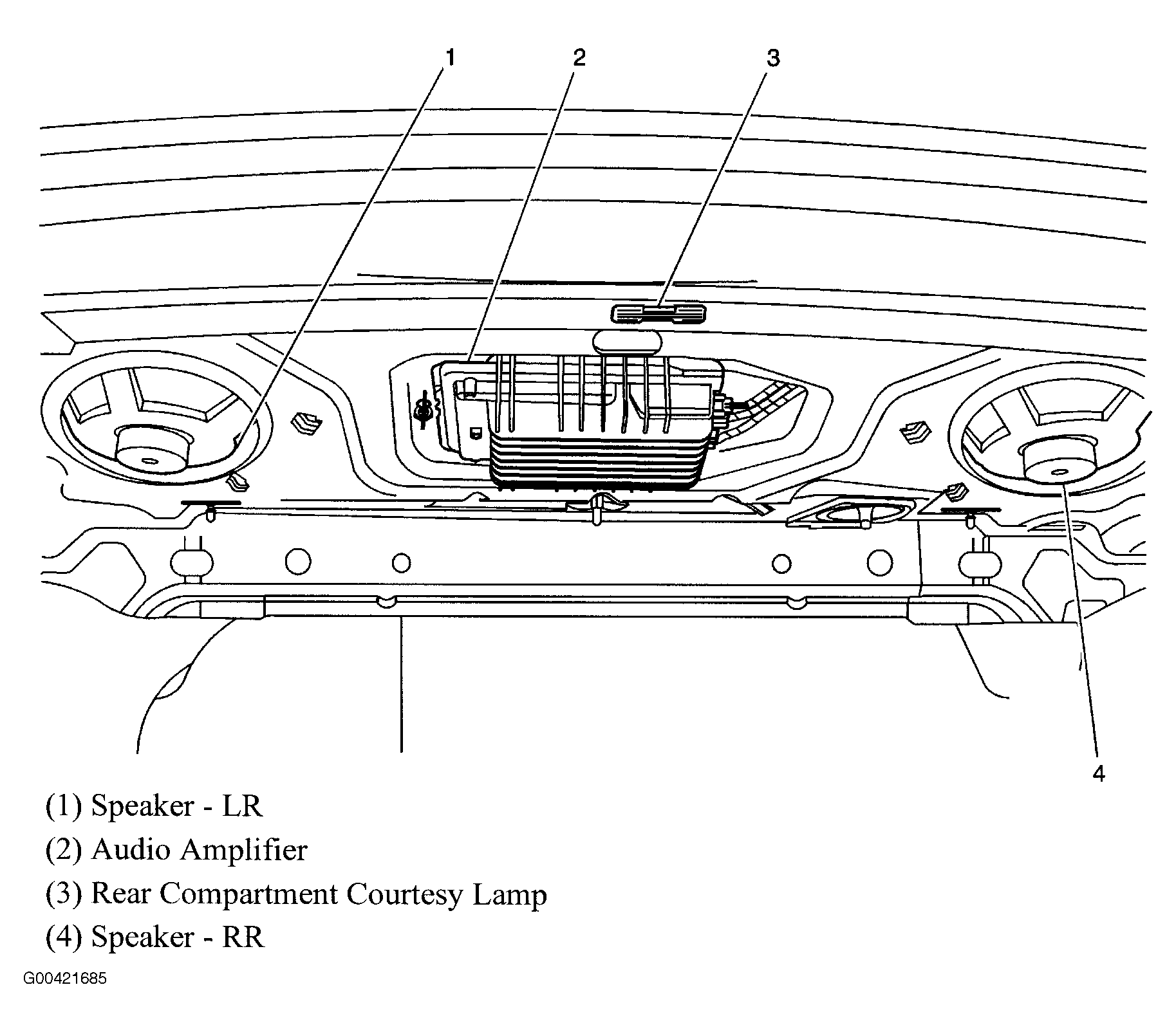

Fig 36: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Front Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 39: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

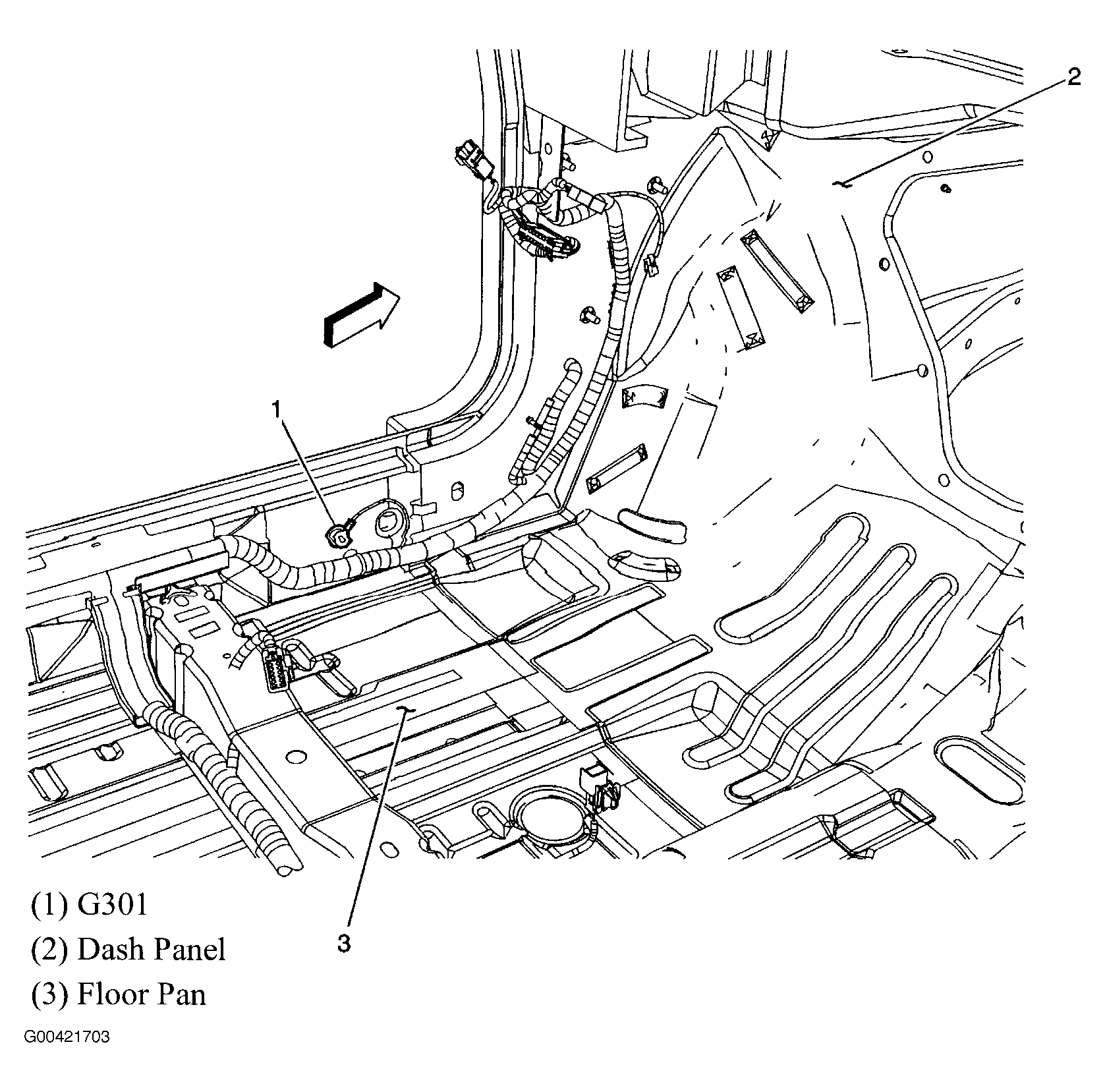

Fig 40: Passenger's Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 42: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 43: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

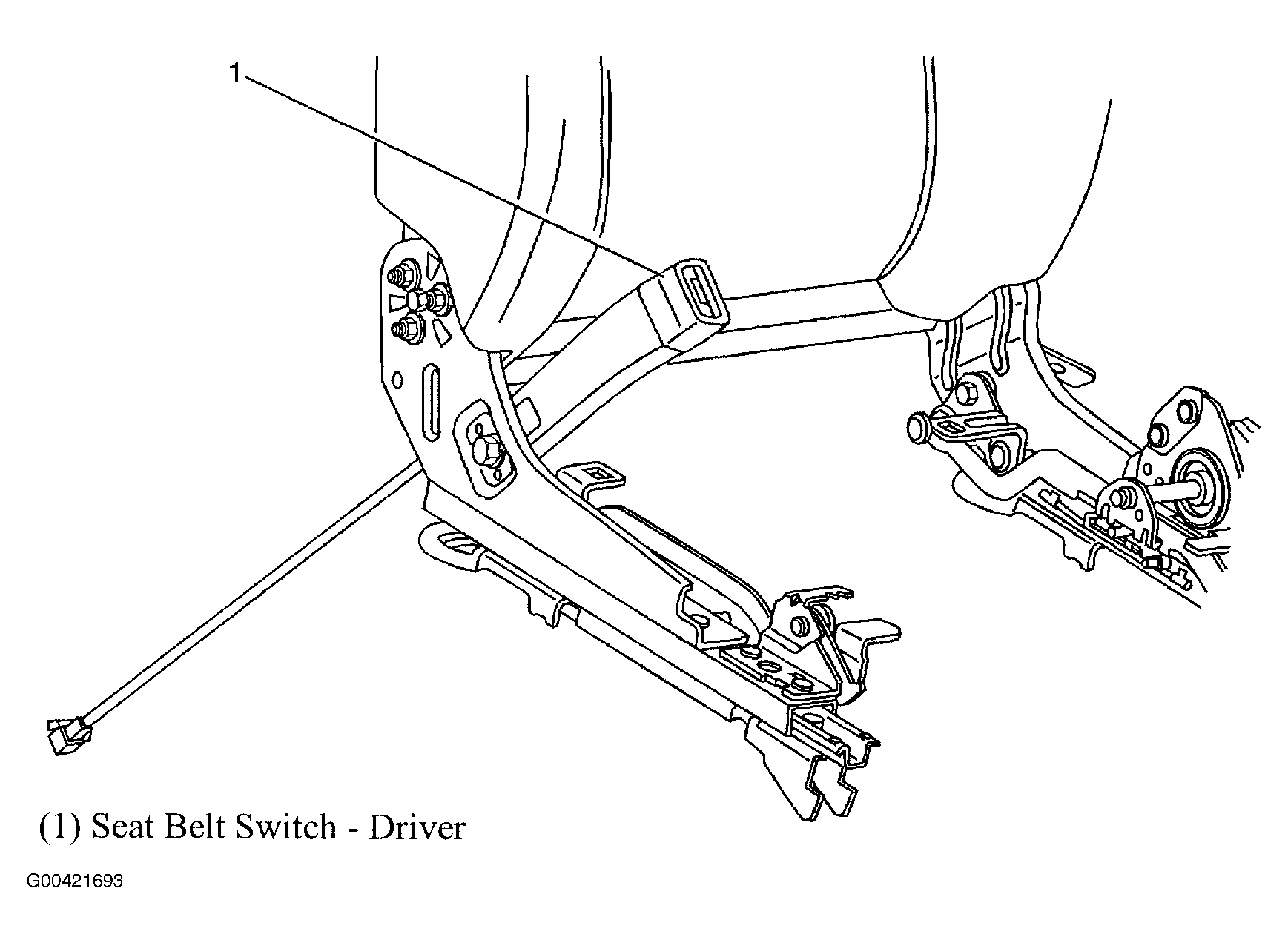

Fig 44: Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 45: Driver's Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 46: Steering Column Components
Courtesy of GENERAL MOTORS CORP.

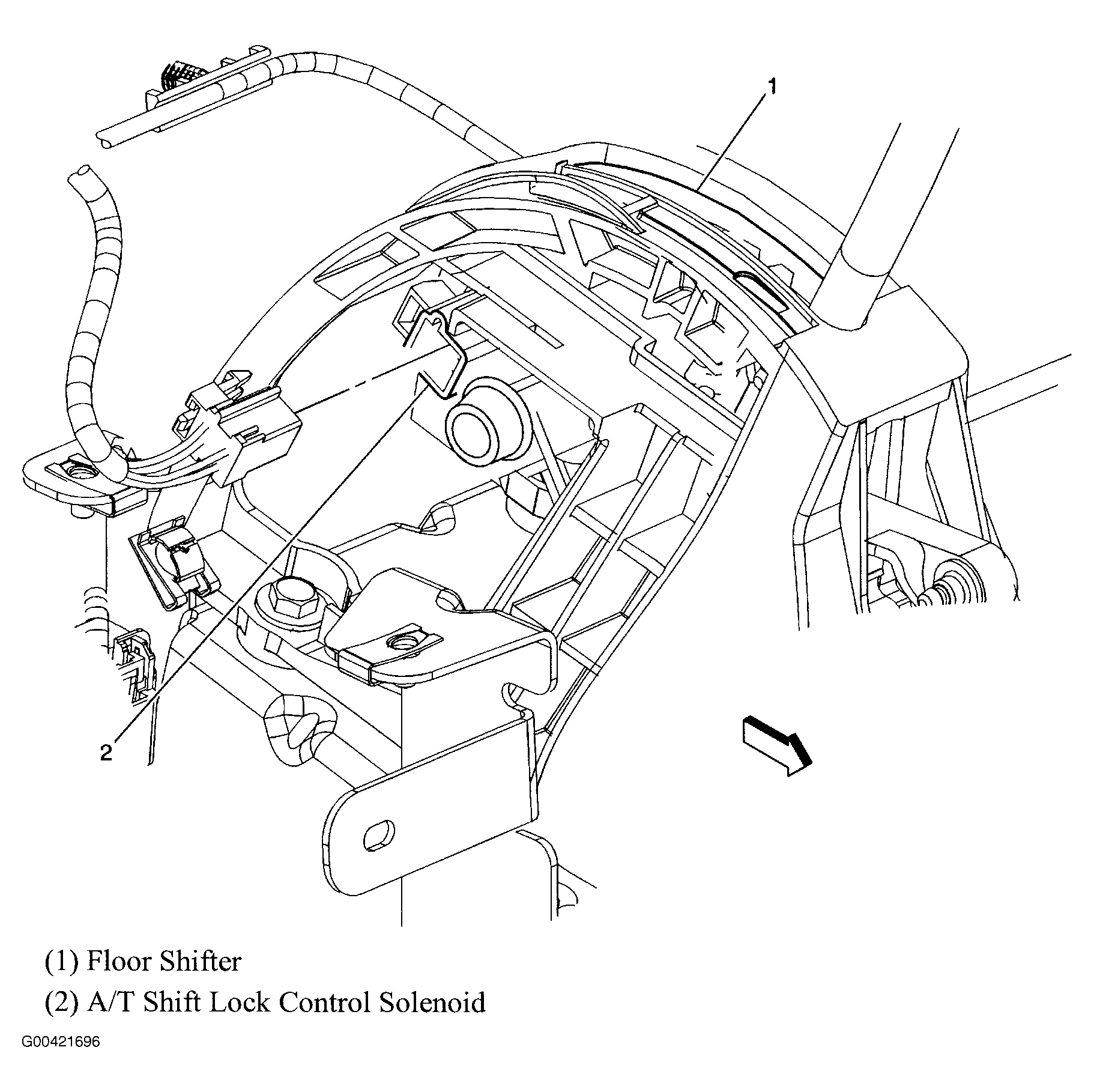

Fig 47: Center Console
Courtesy of GENERAL MOTORS CORP.

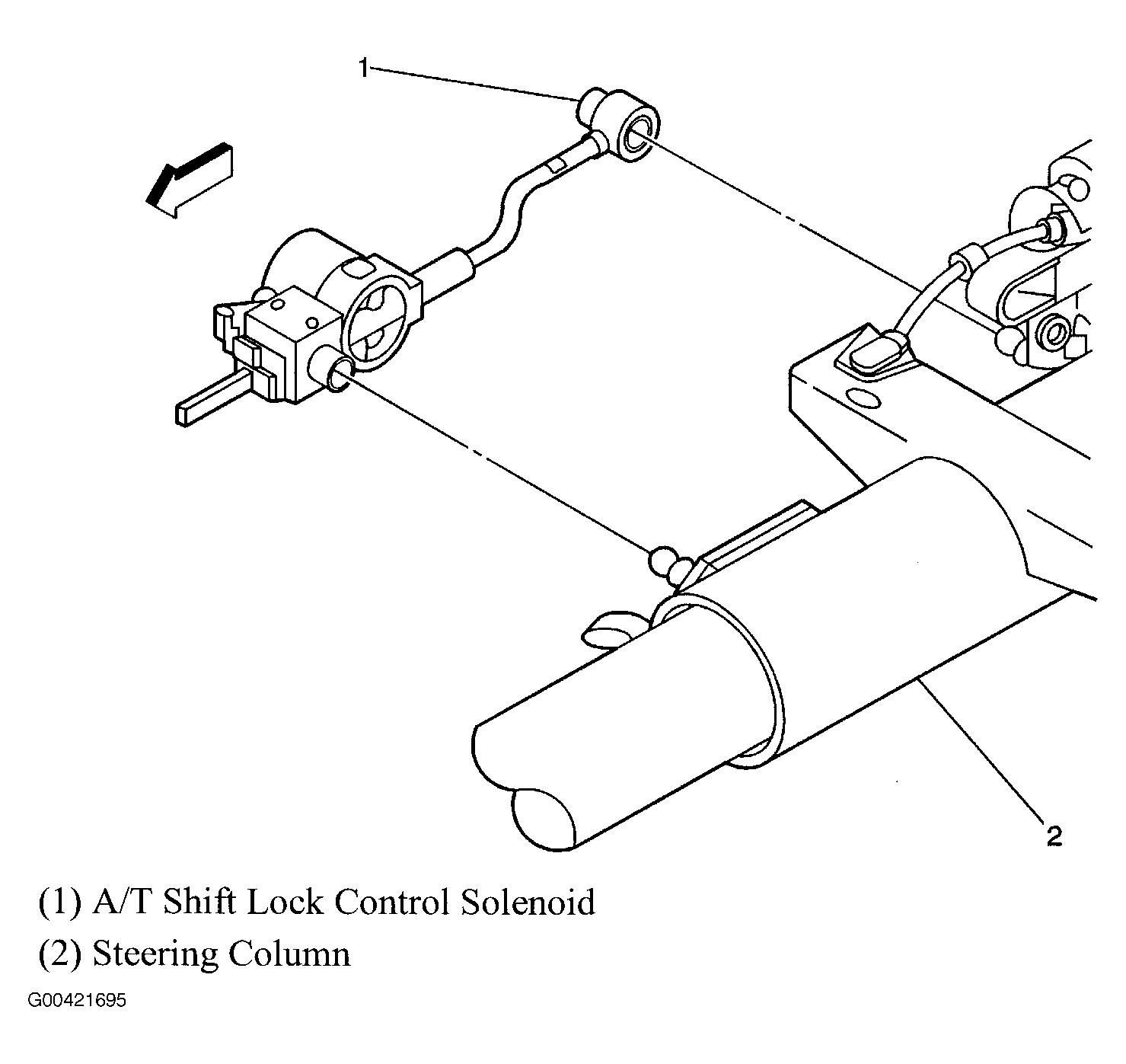

Fig 48: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 49: Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Side Of Transmission (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

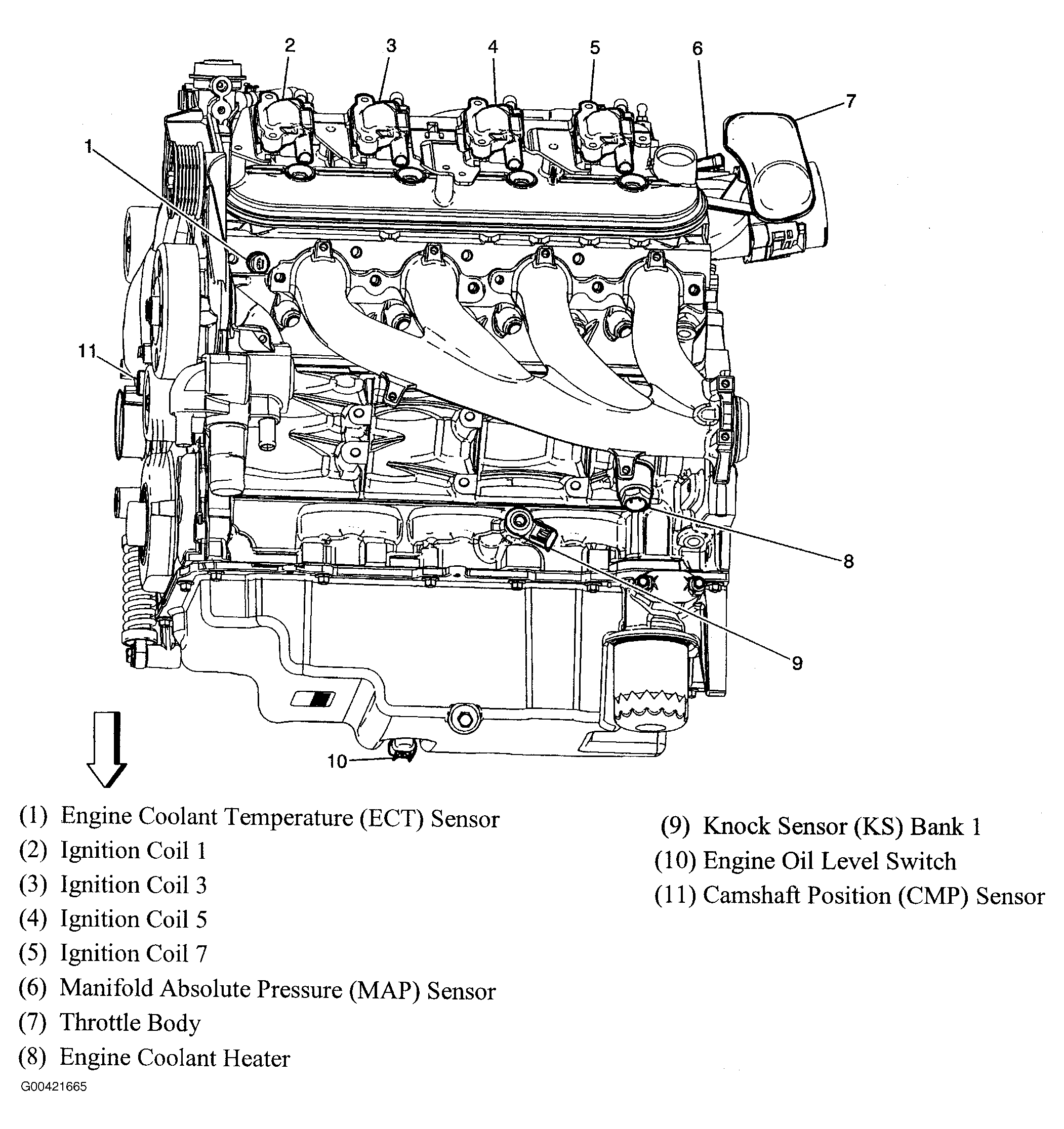

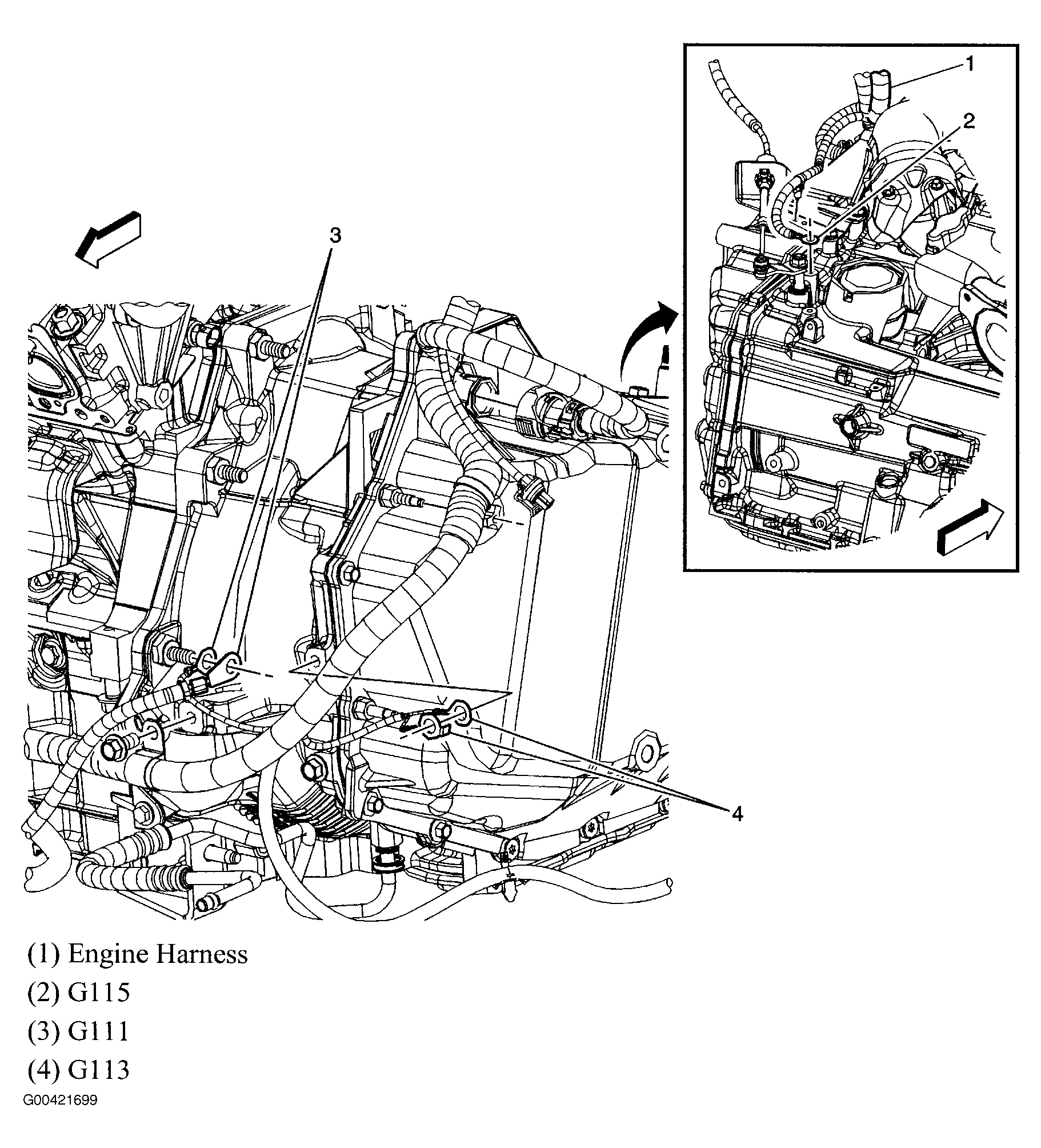

Fig 51: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

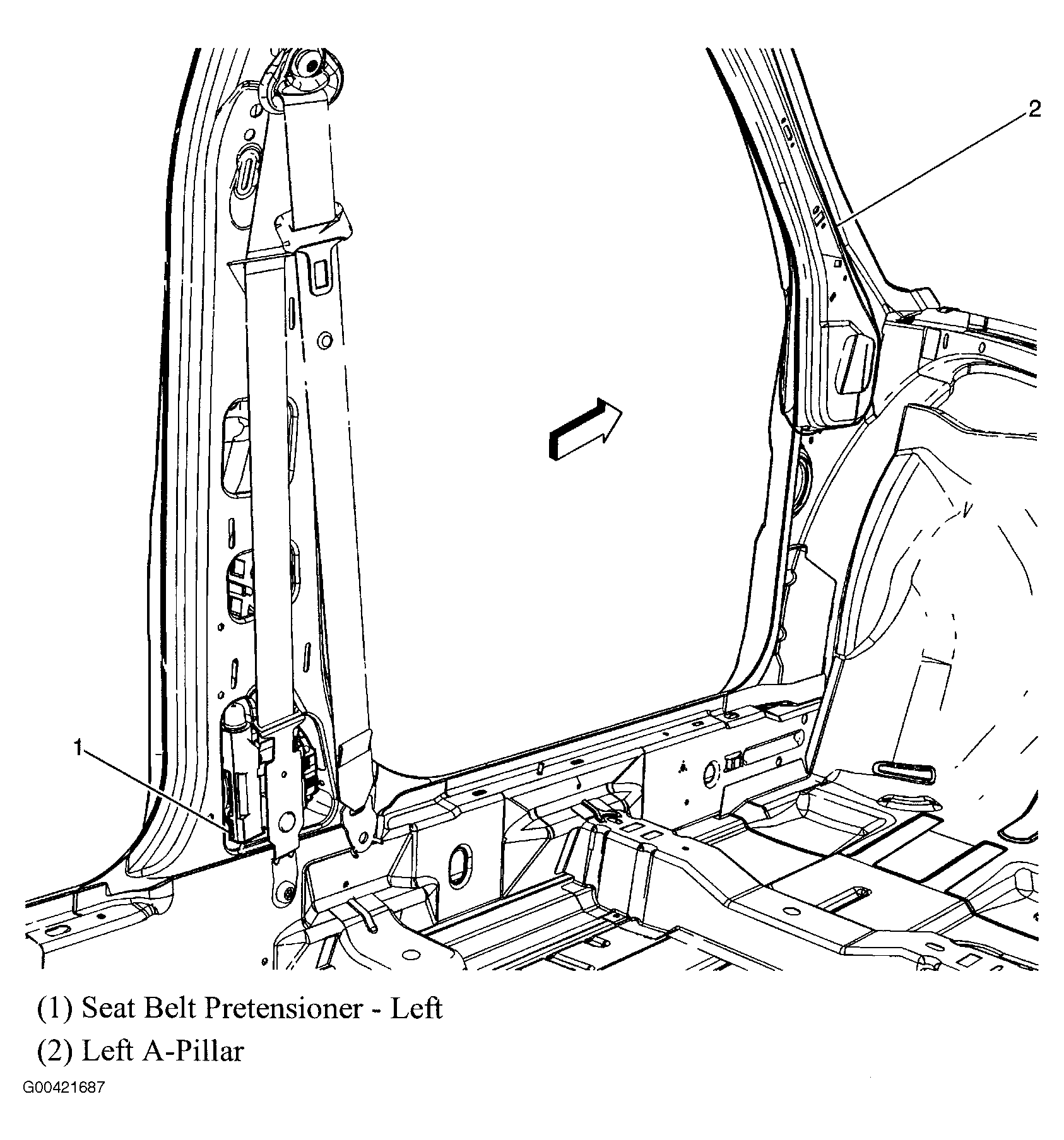

Fig 54: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

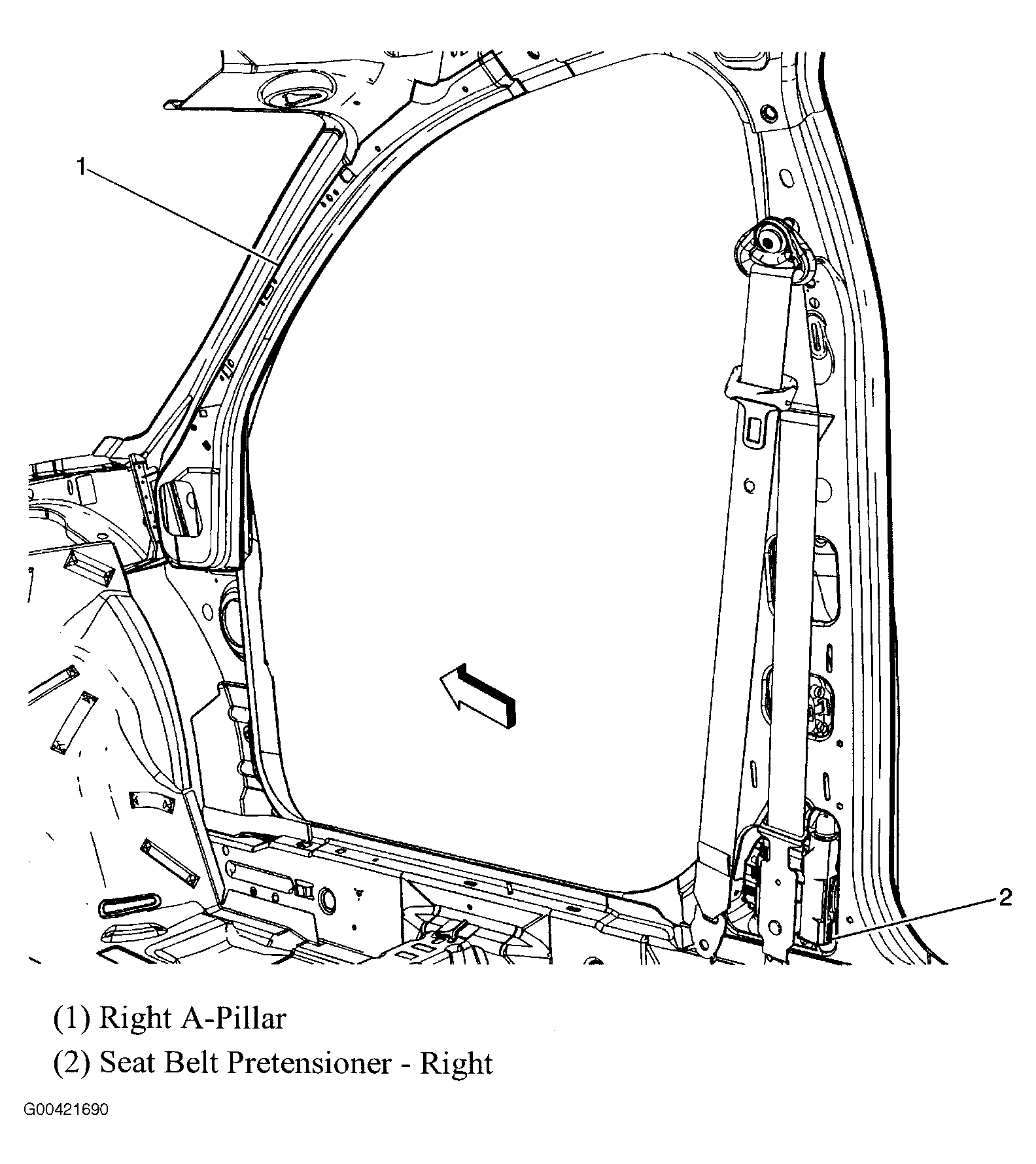

Fig 55: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 56: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

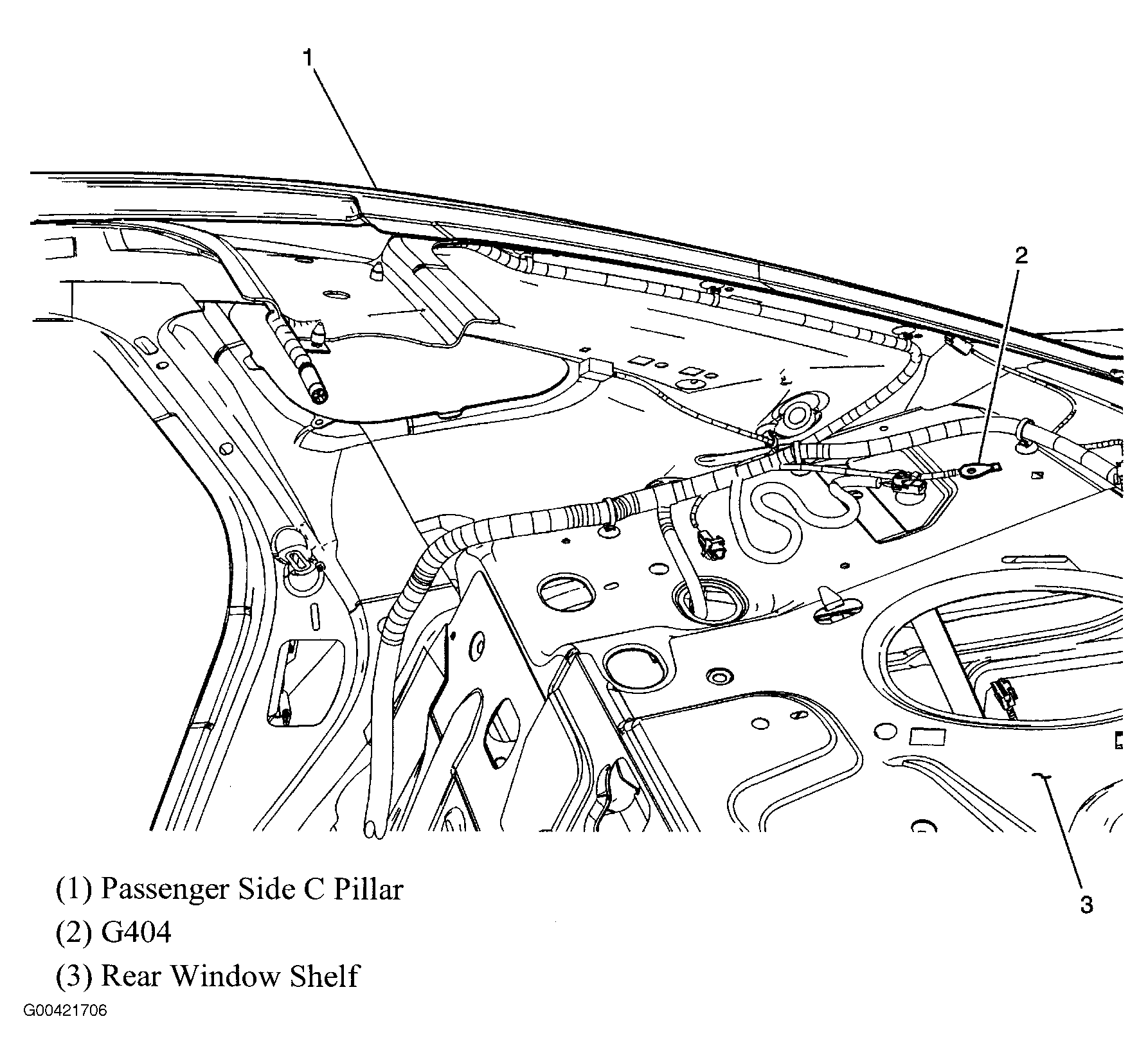

Fig 57: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

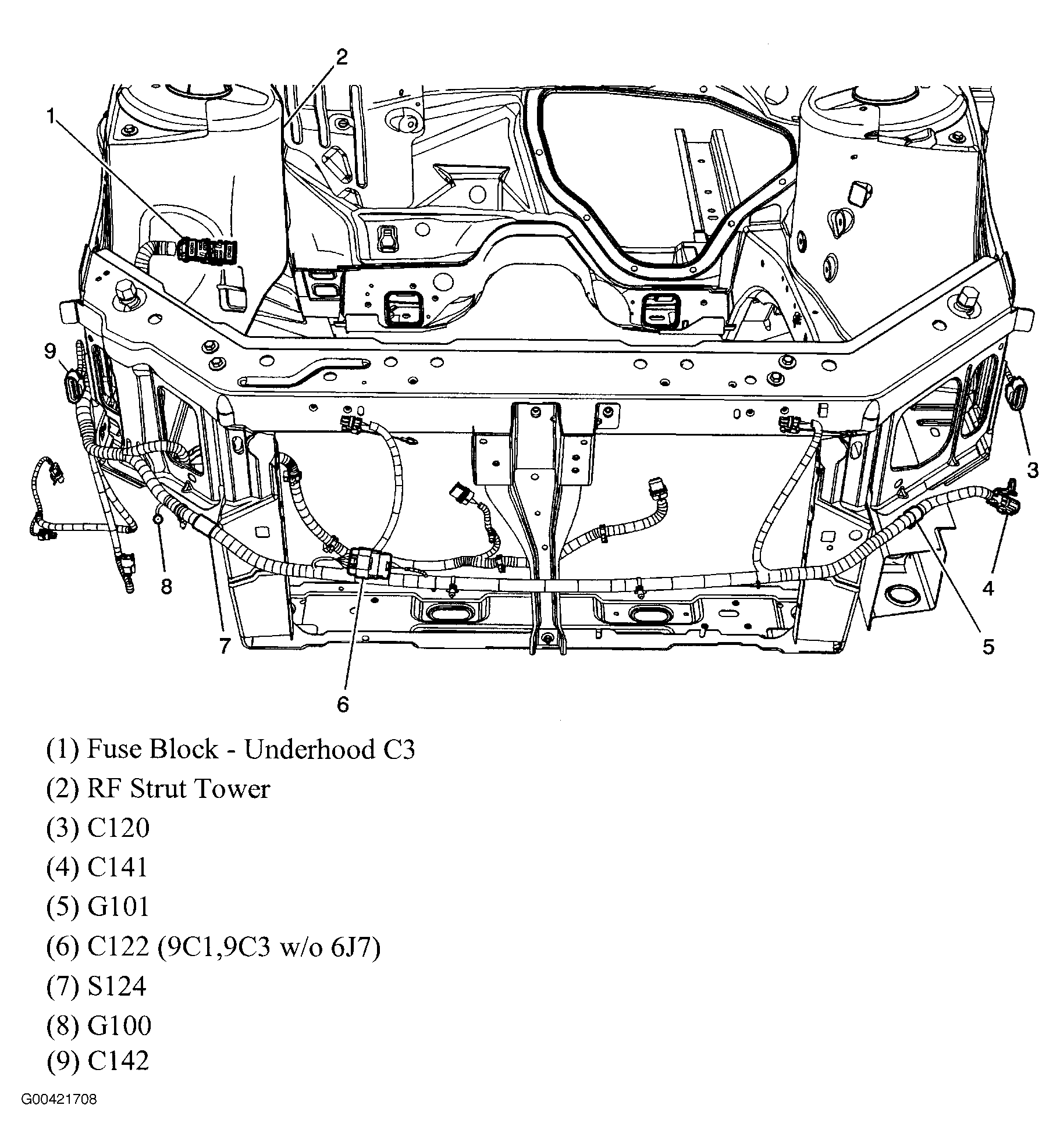

Fig 58: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 59: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

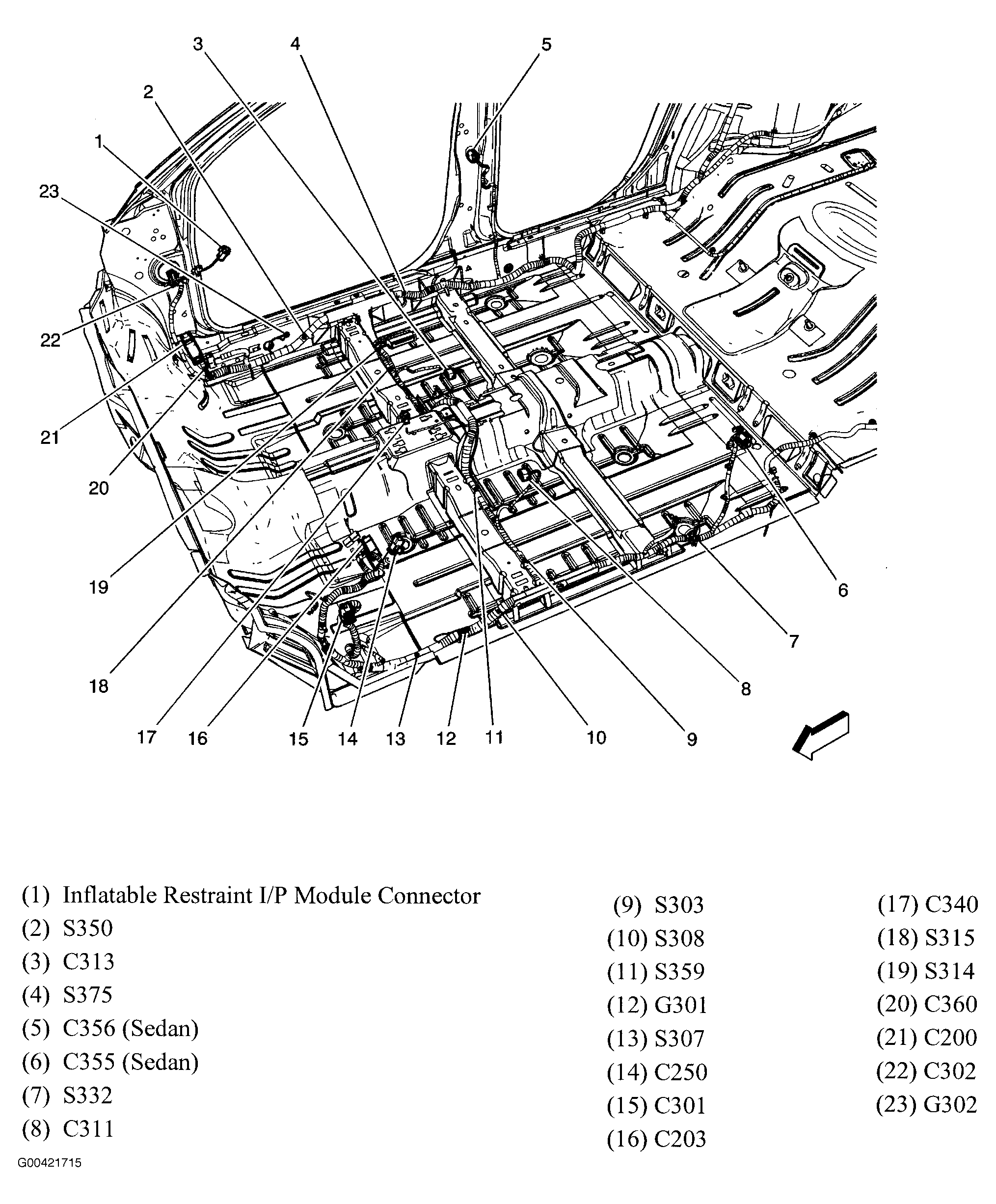

Fig 63: Floor Pan (Sedan)
Courtesy of GENERAL MOTORS CORP.

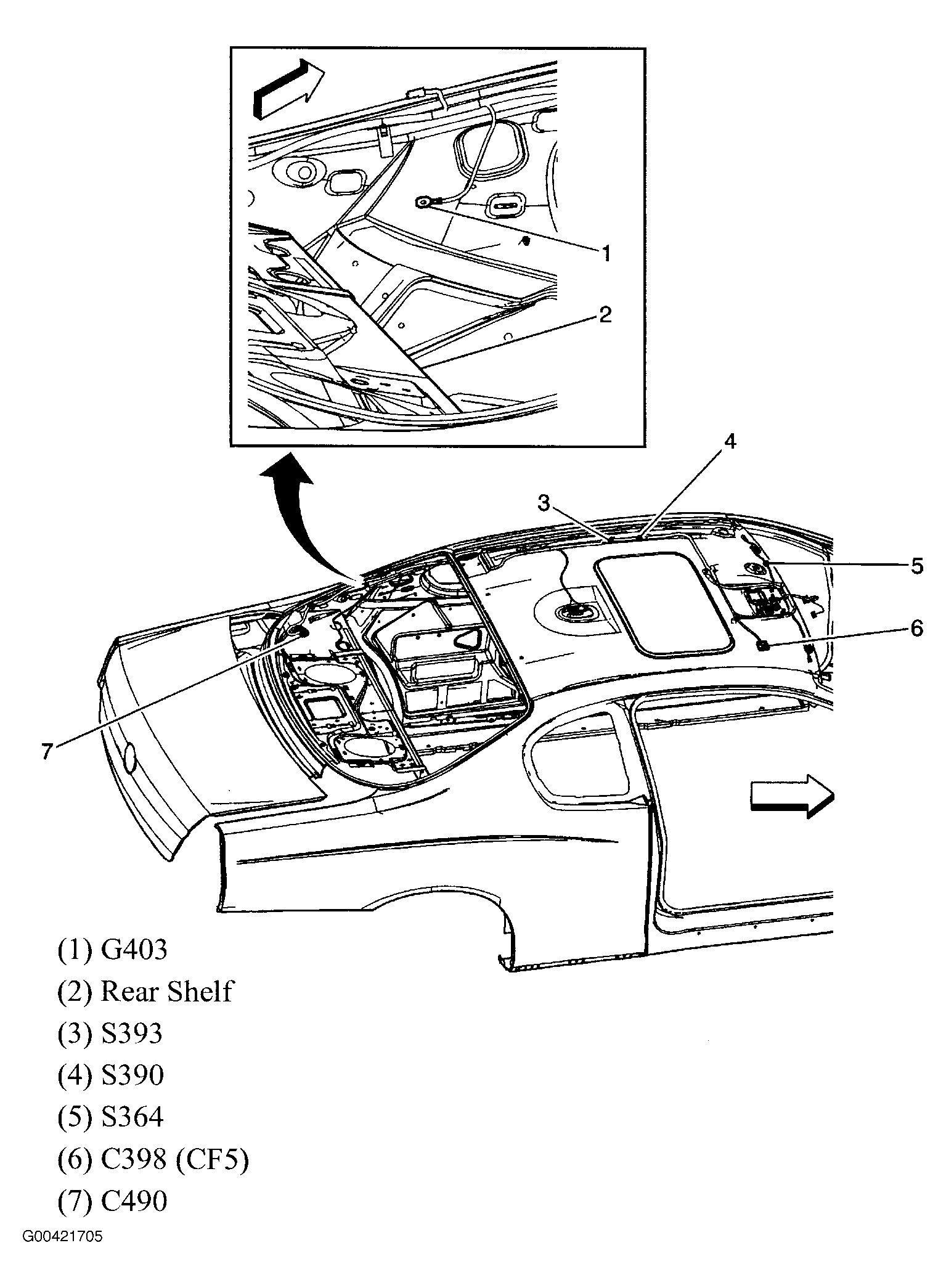

Fig 64: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

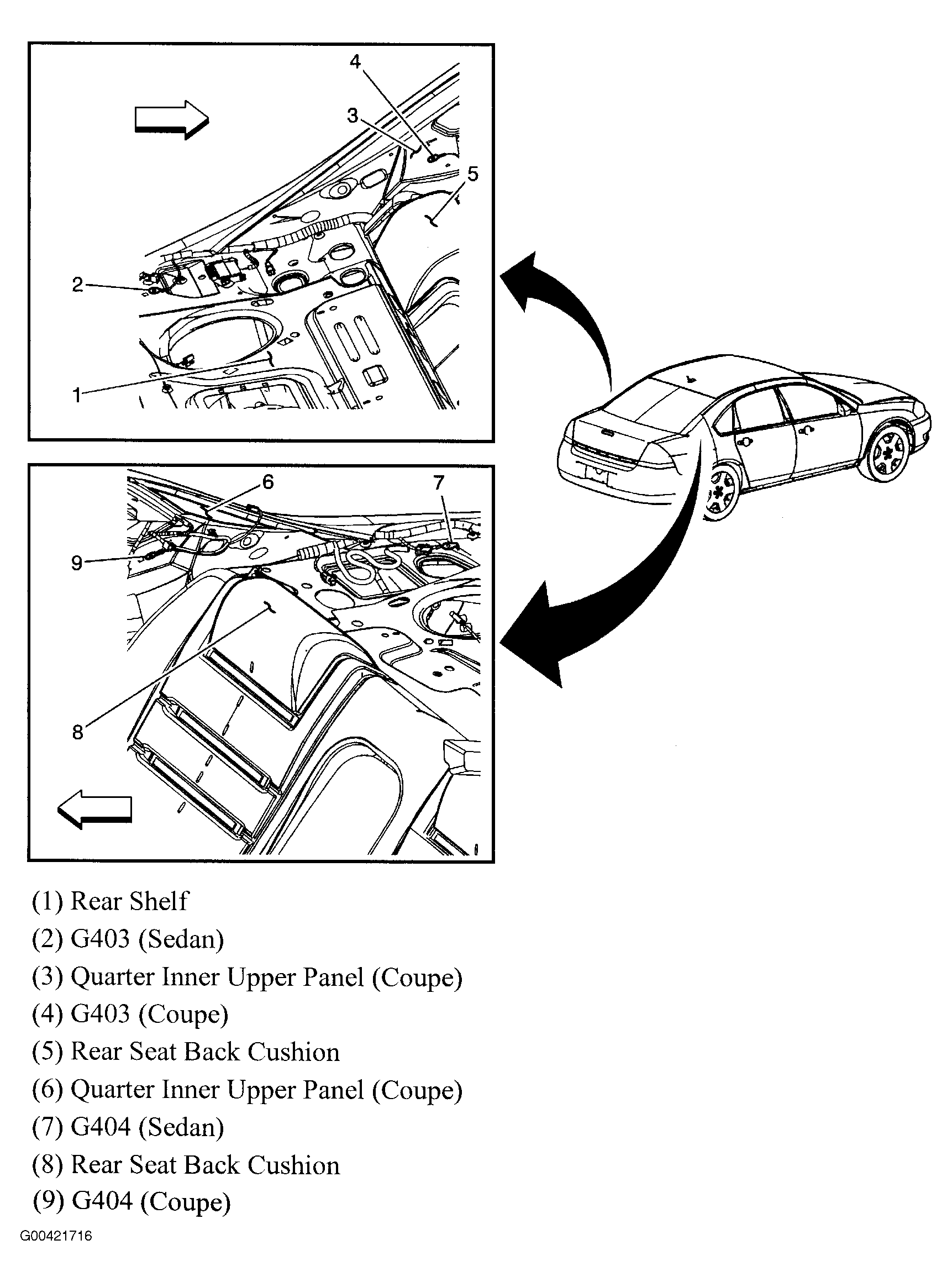

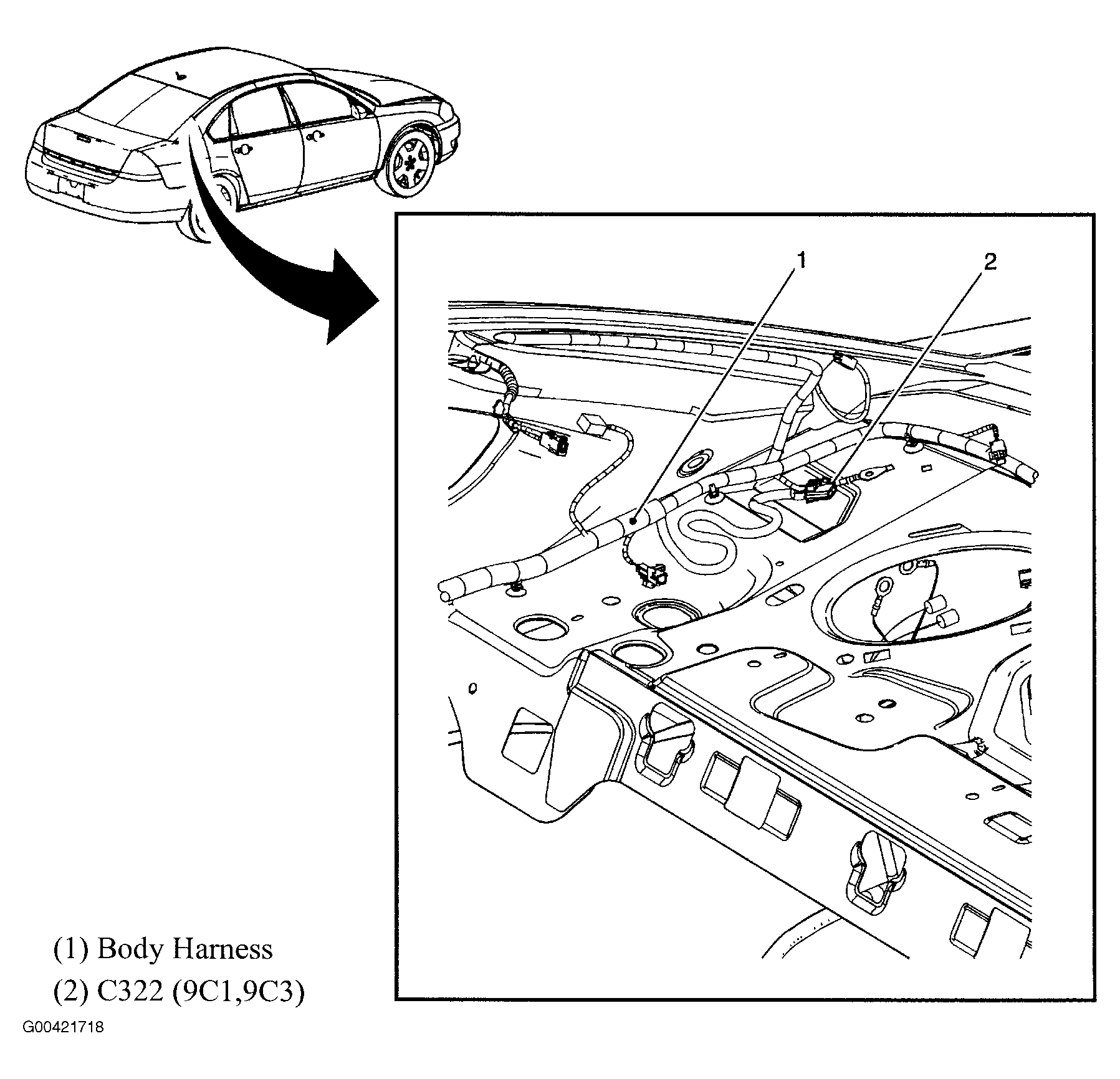

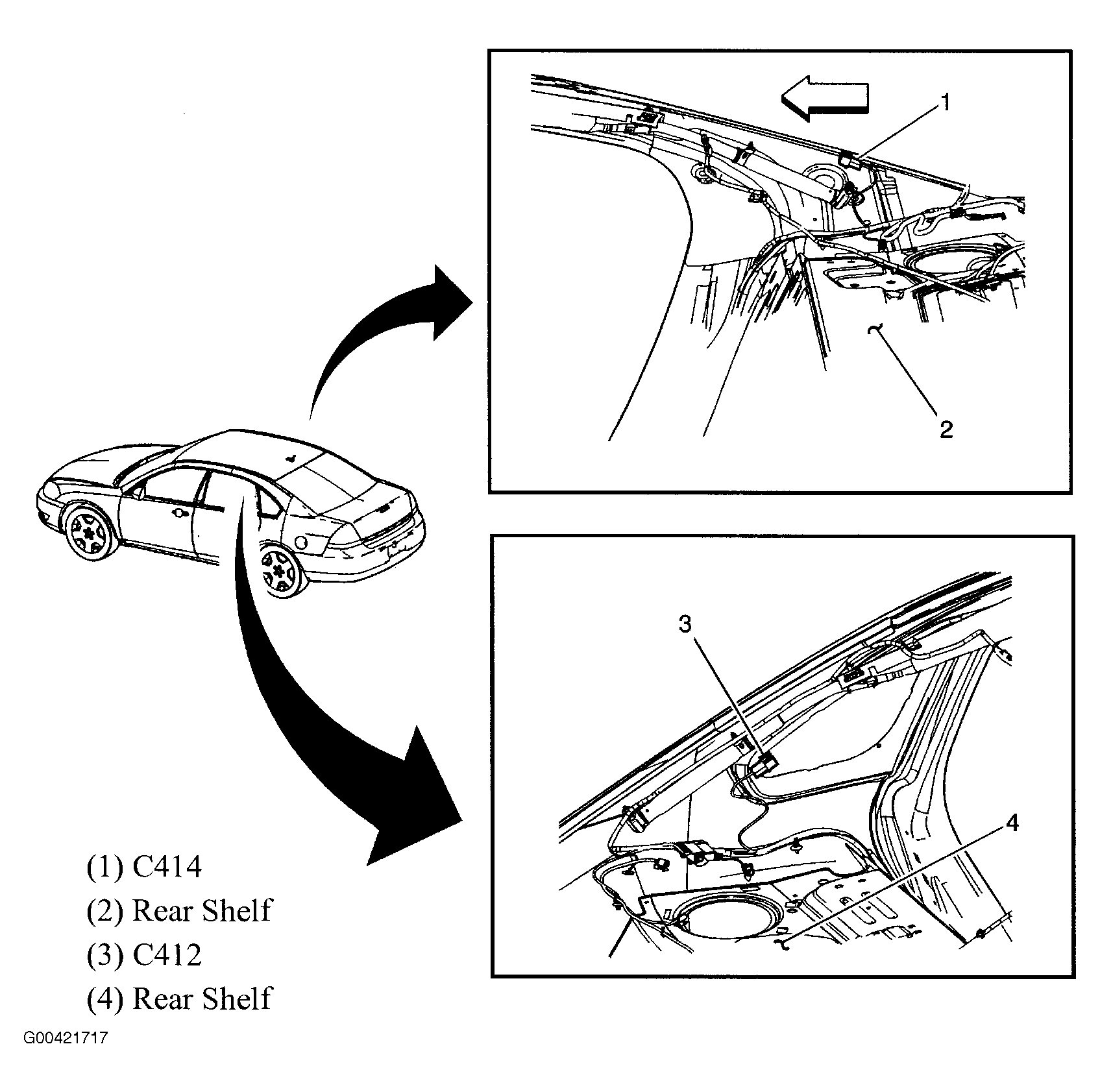

Fig 66: Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 67: Rear Body Harness
Courtesy of GENERAL MOTORS CORP.

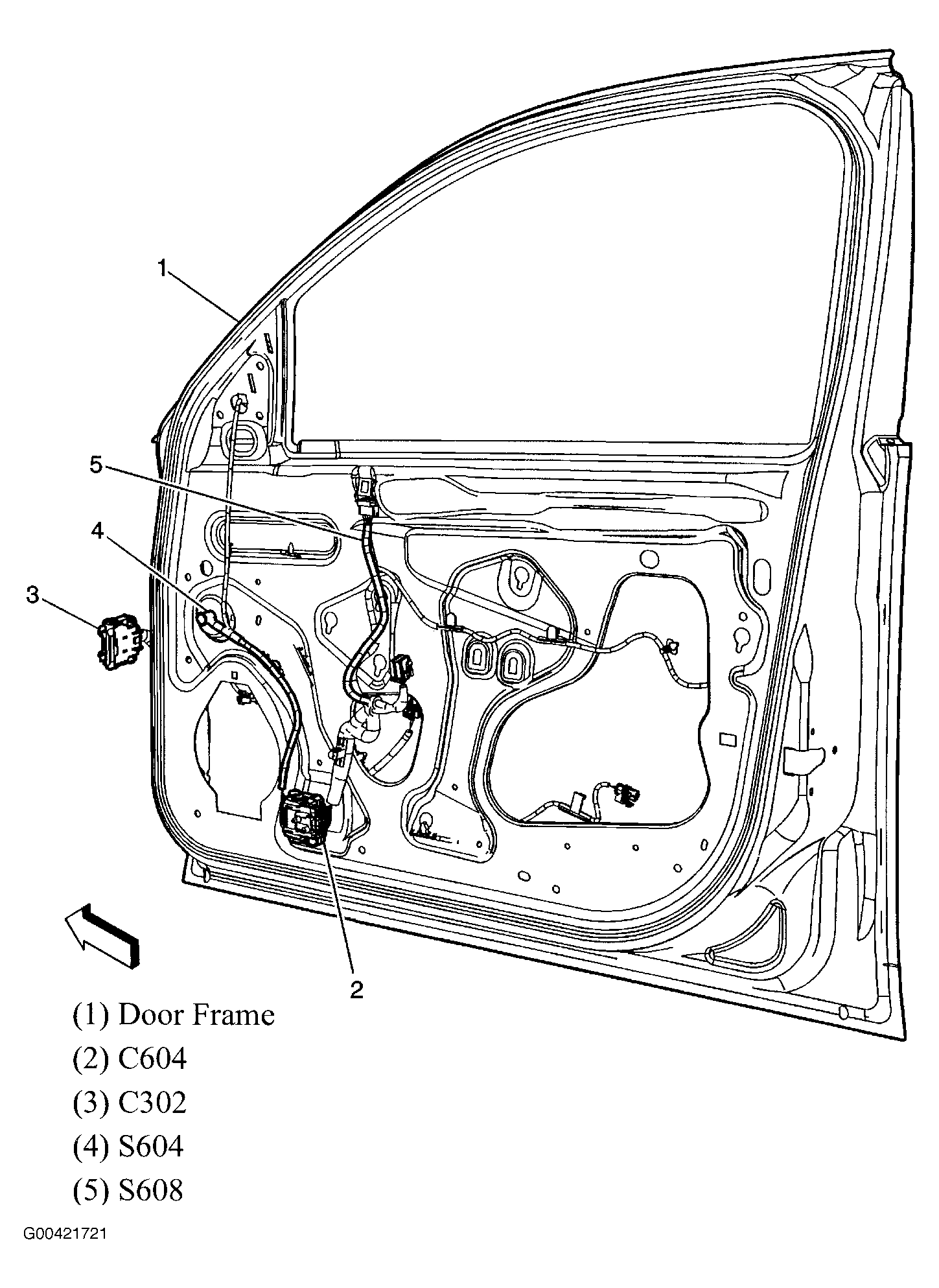

Fig 68: Driver's Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

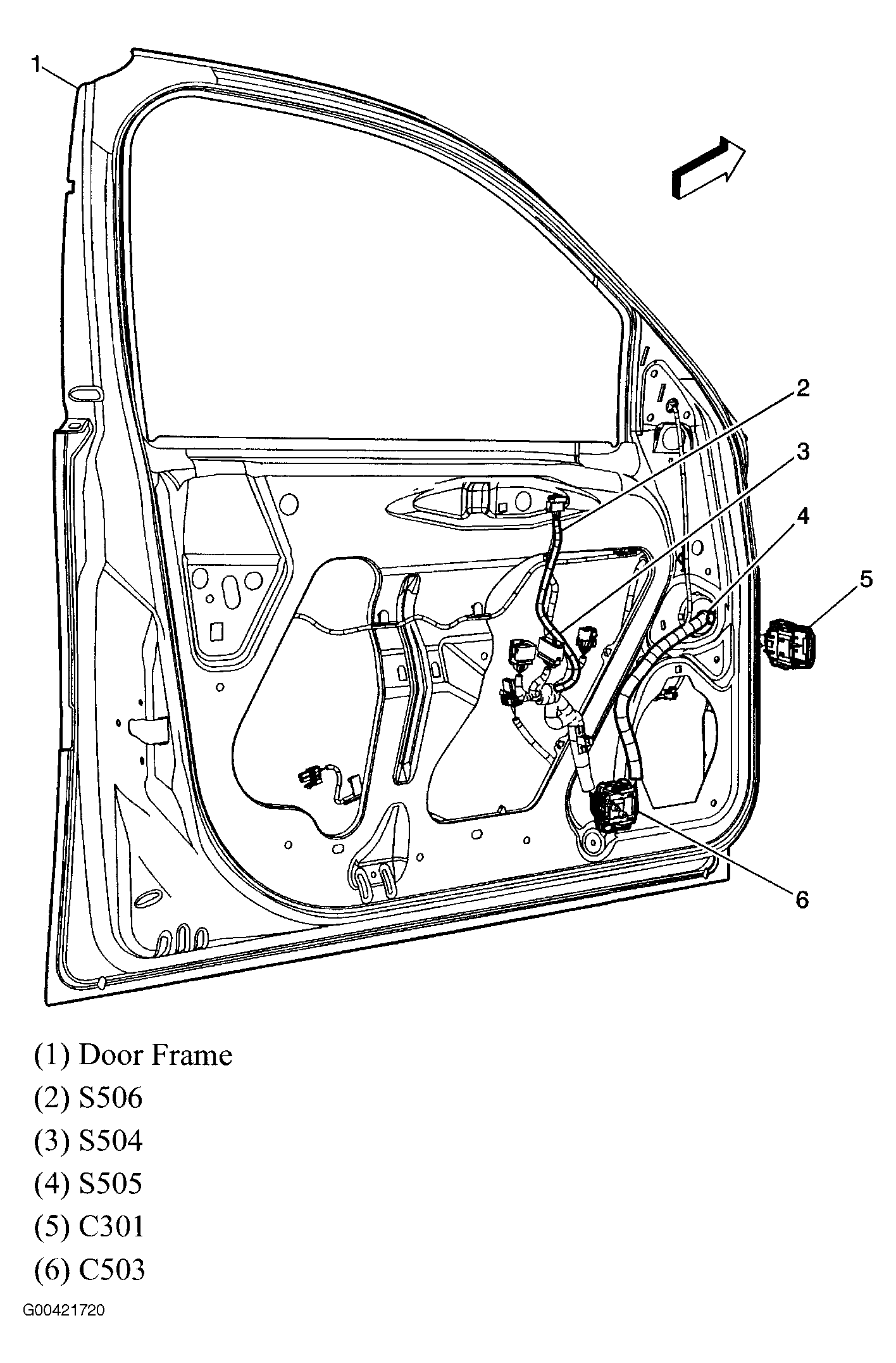

Fig 69: Front Passenger Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Rear Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.

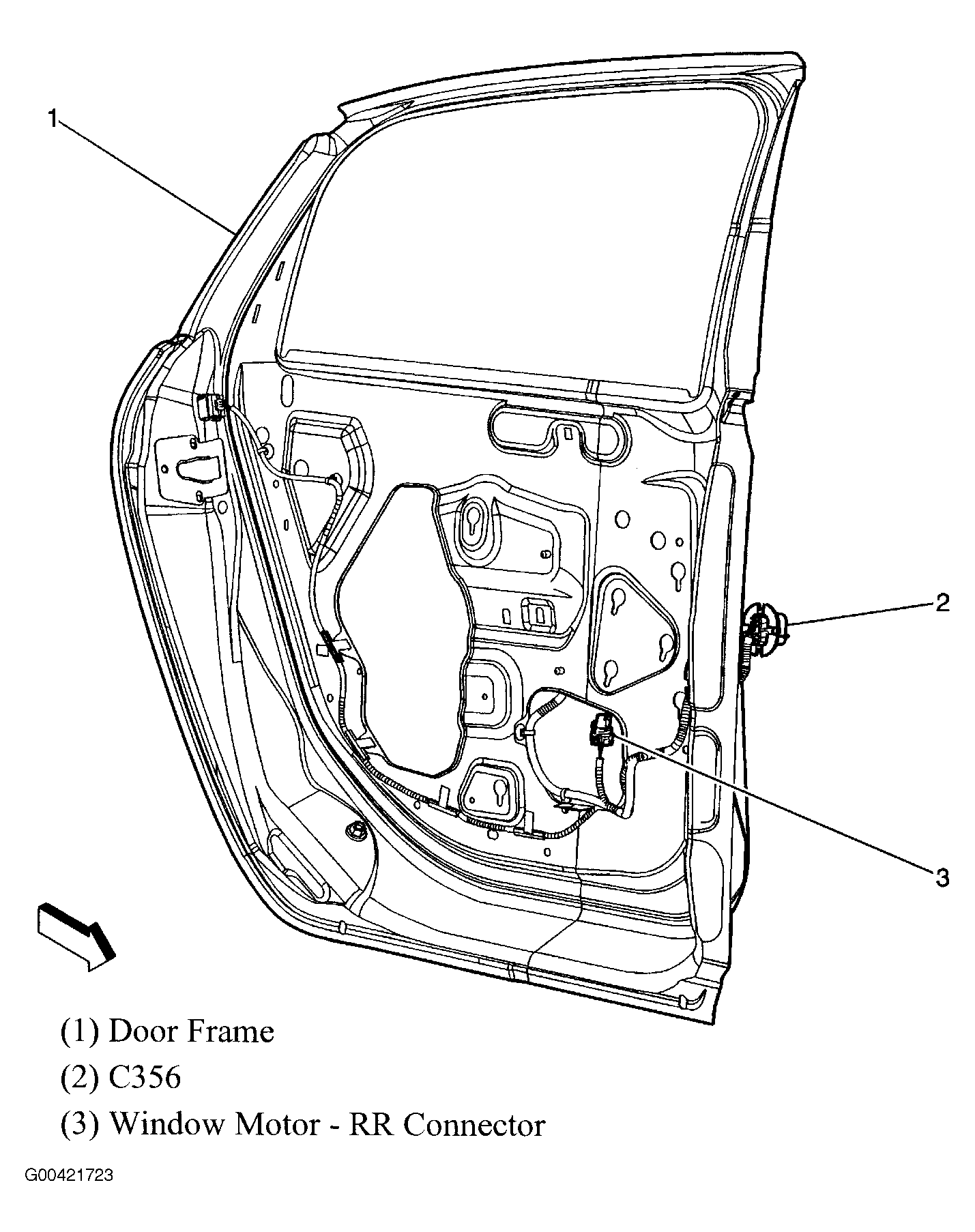

Fig 71: Right Rear Door Harness (Sedan)
Courtesy of GENERAL MOTORS CORP.

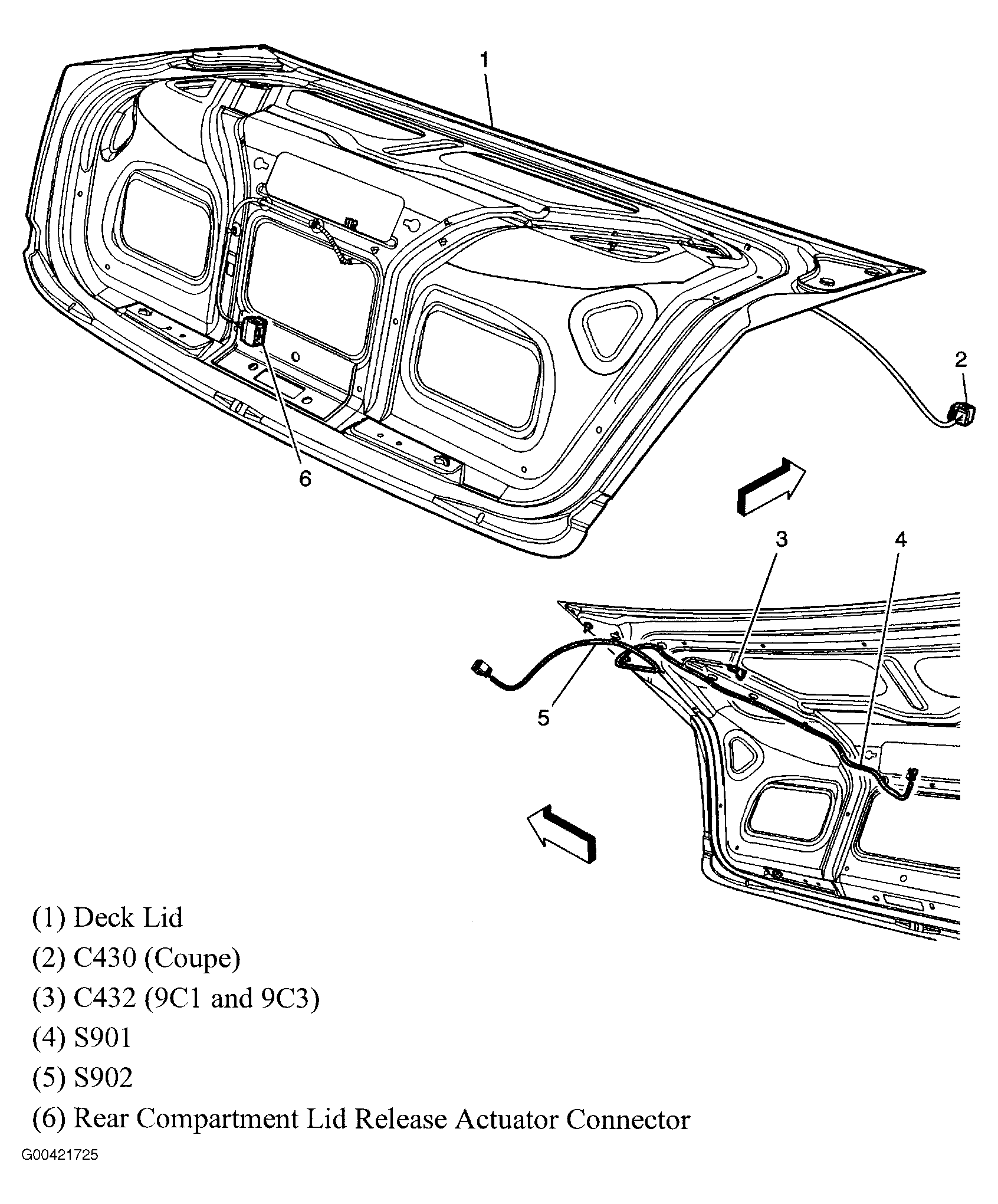

Fig 72: Deck Lid
Courtesy of GENERAL MOTORS CORP.

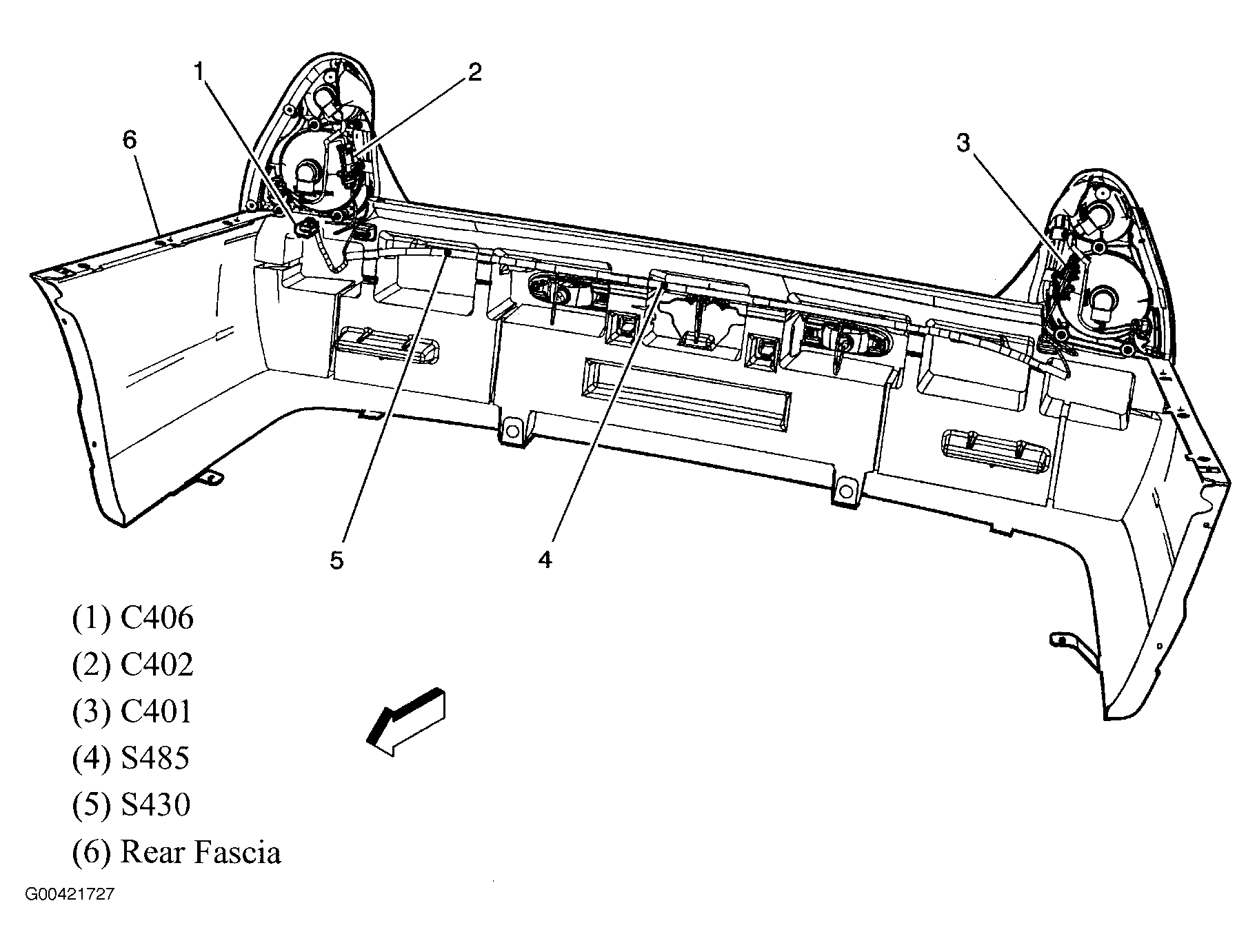

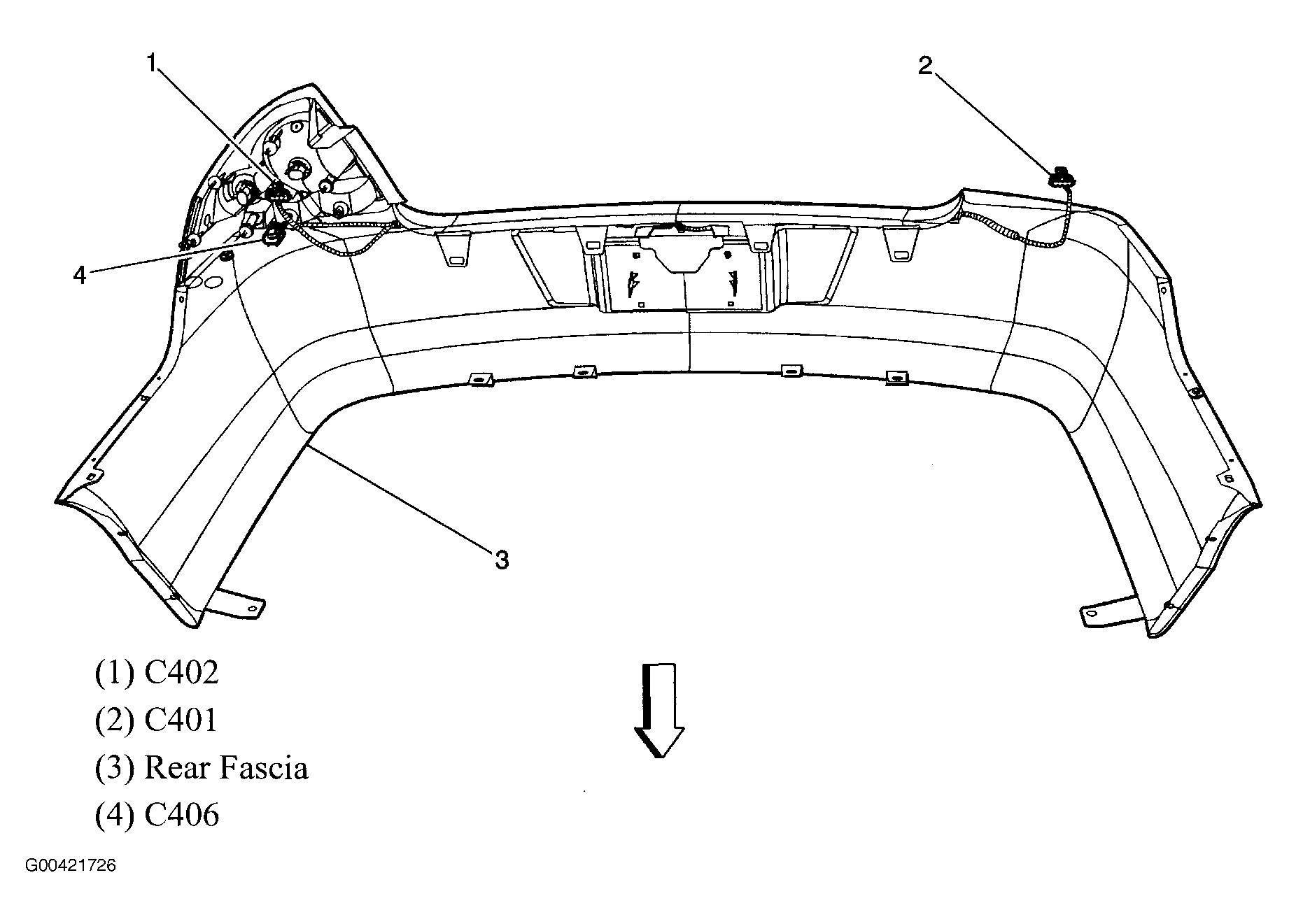

Fig 73: Rear Bumper (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Rear Bumper (Coupe)
Courtesy of GENERAL MOTORS CORP.

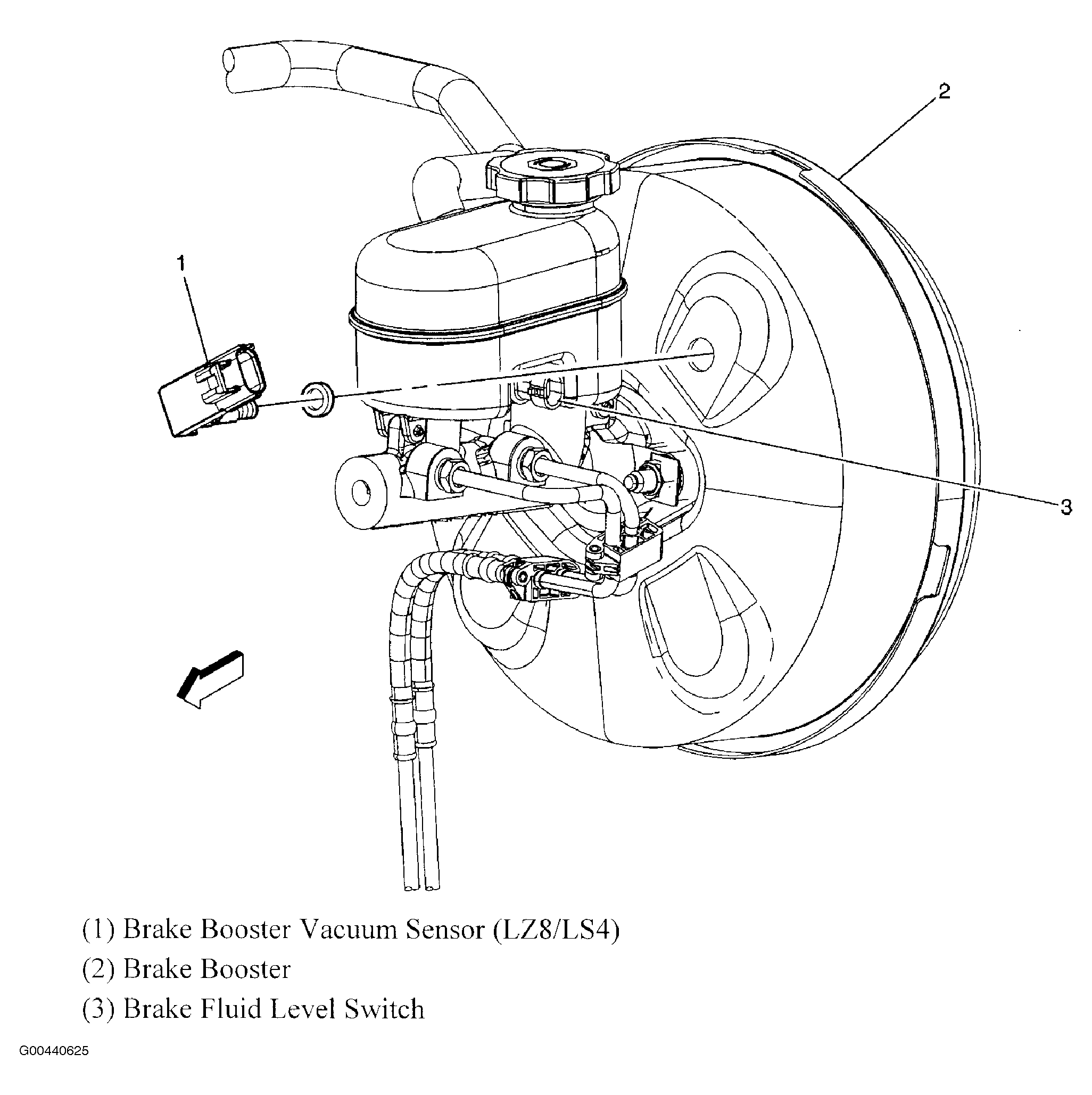

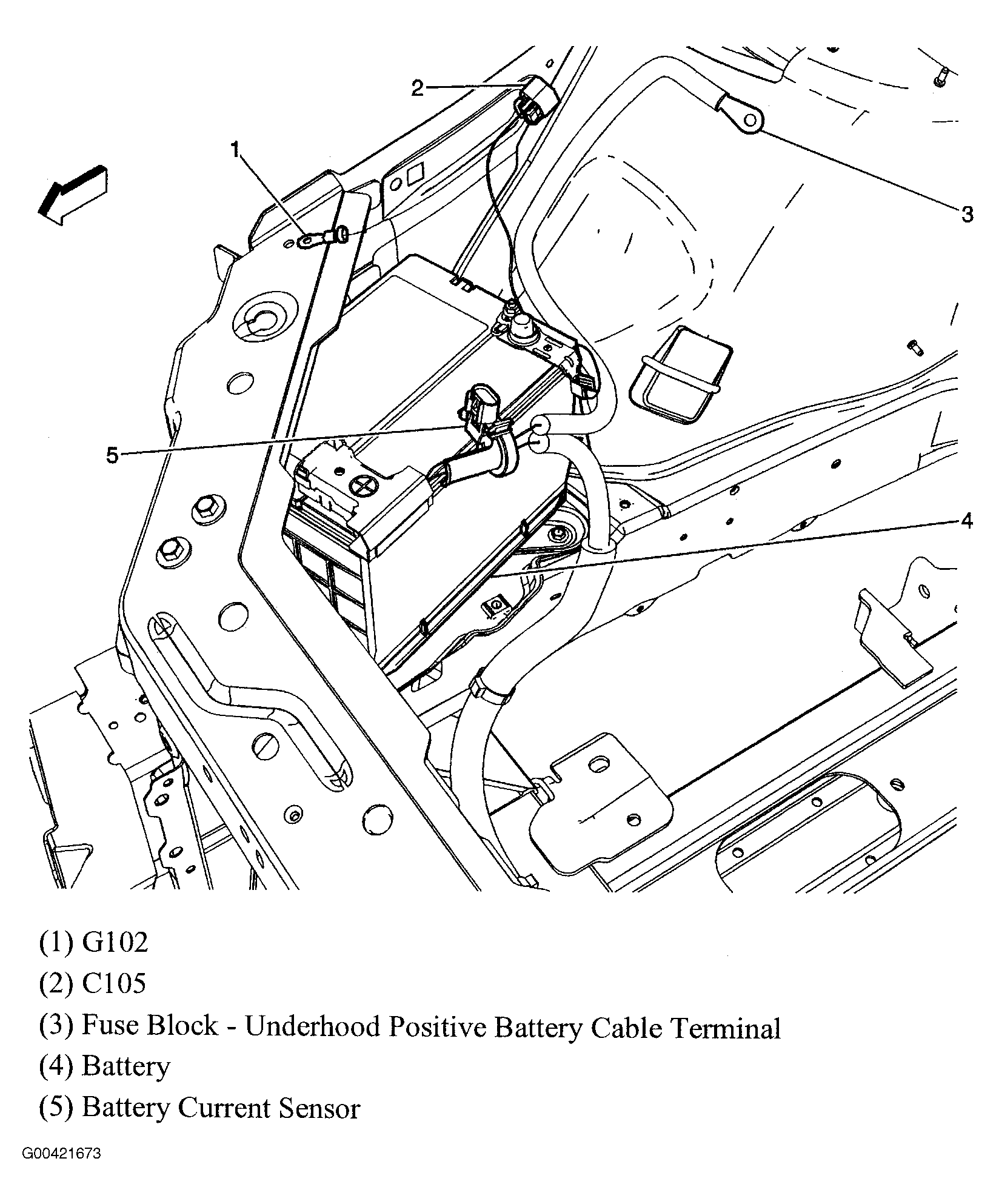

Fig 75: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 76: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

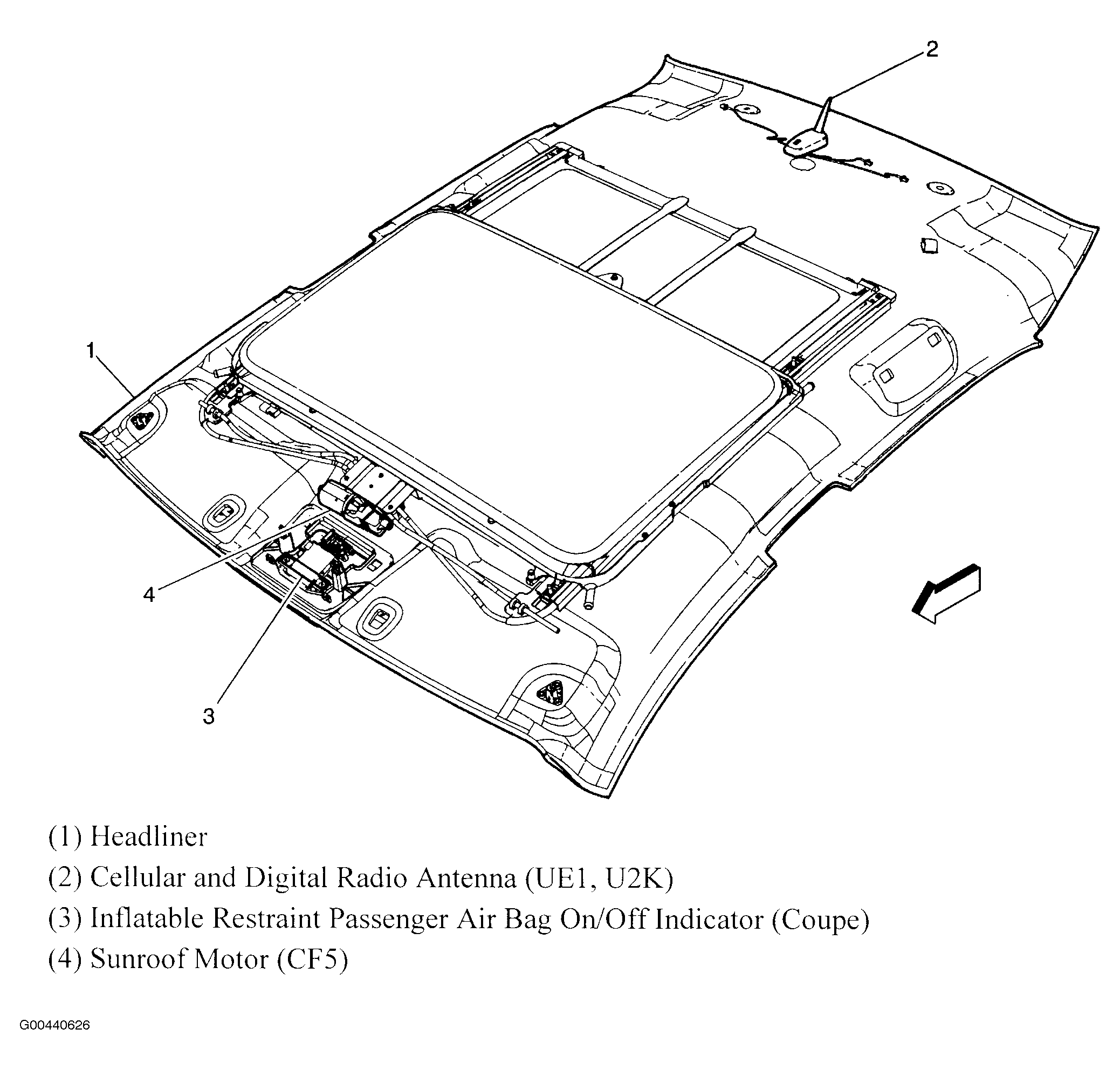

Fig 77: Top View Of Headliner Components
Courtesy of GENERAL MOTORS CORP.

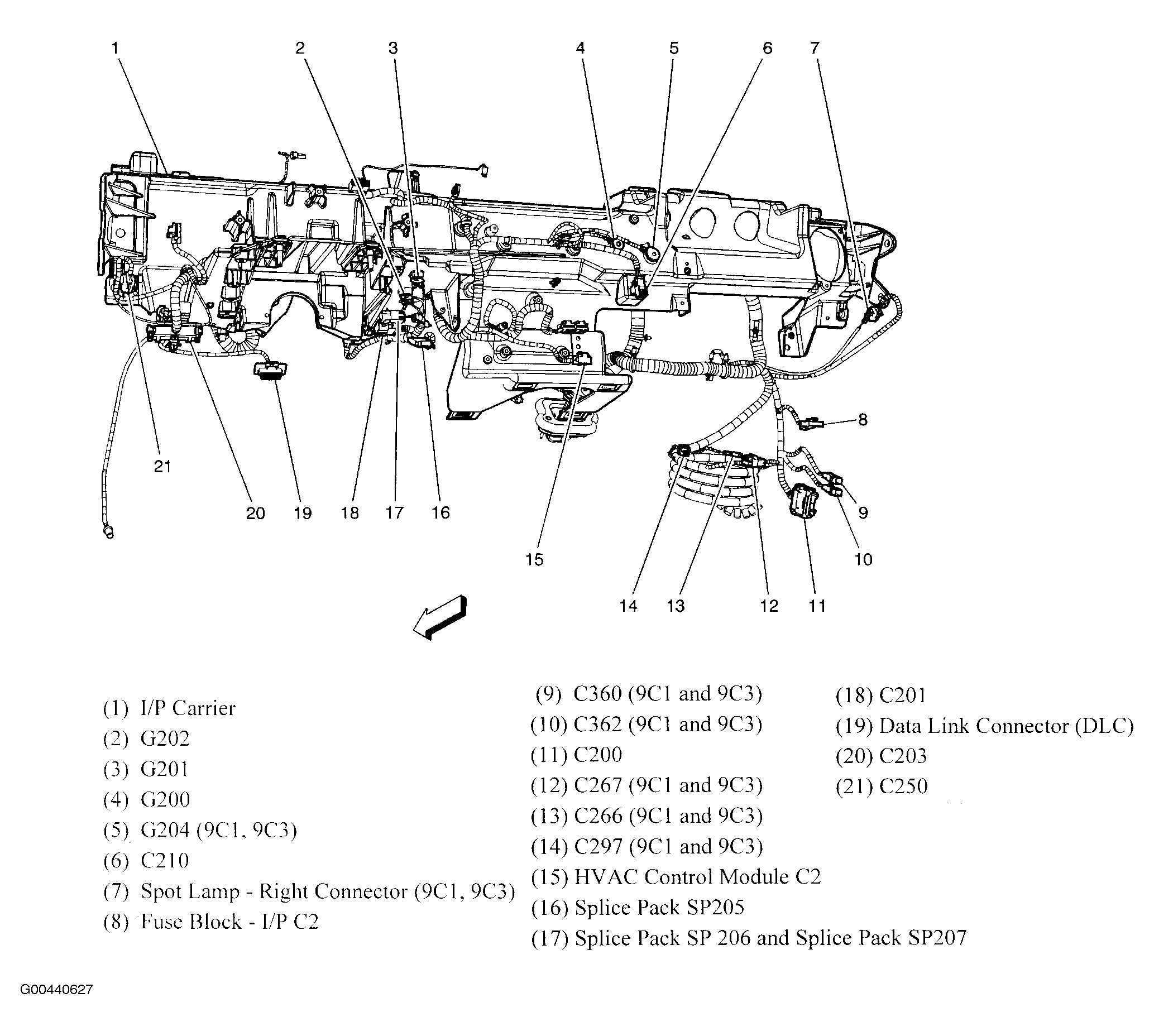

Fig 78: Front Of Dash Carrier
Courtesy of GENERAL MOTORS CORP.

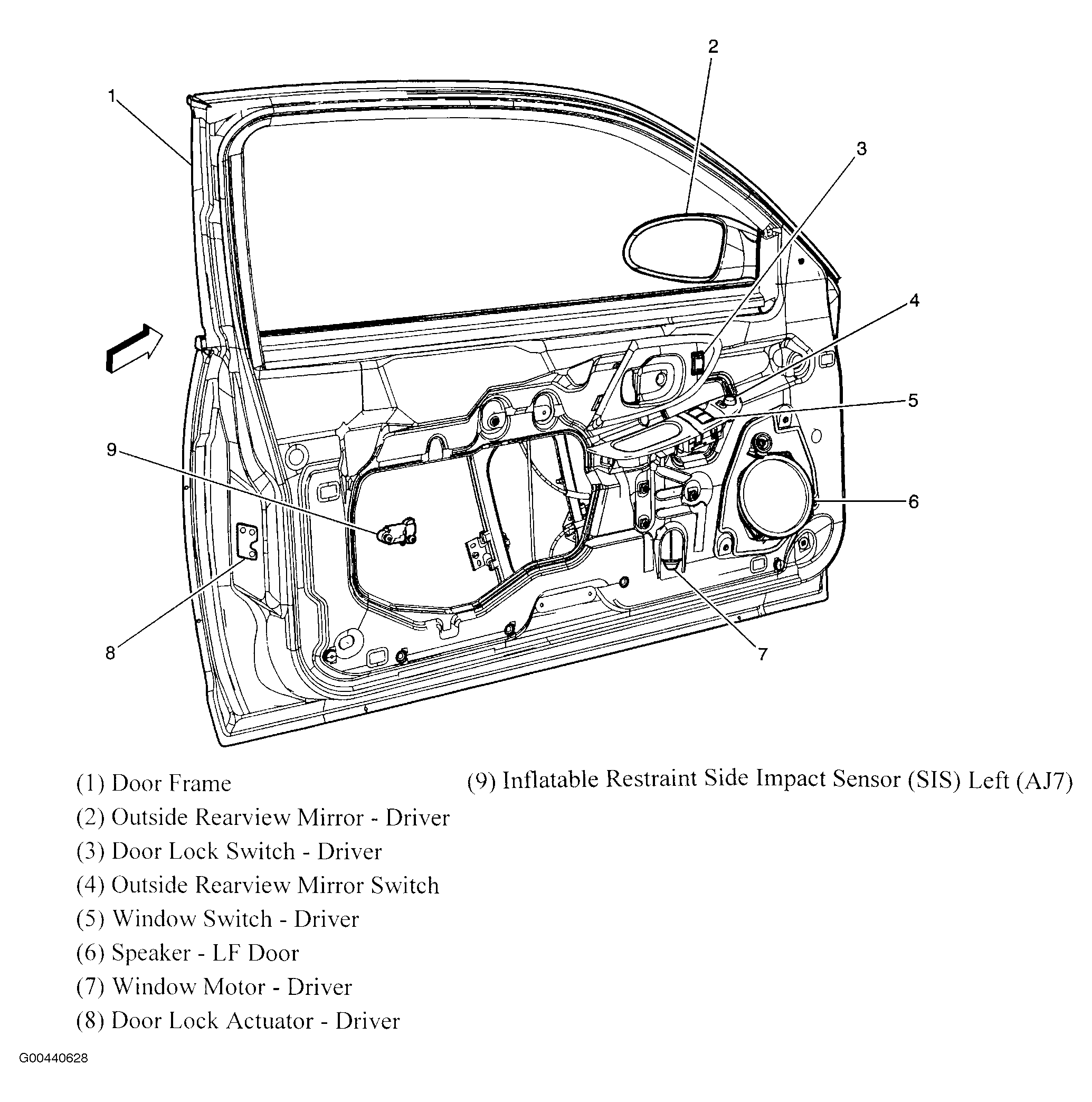

Fig 79: Left Front Door Components (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Top Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.

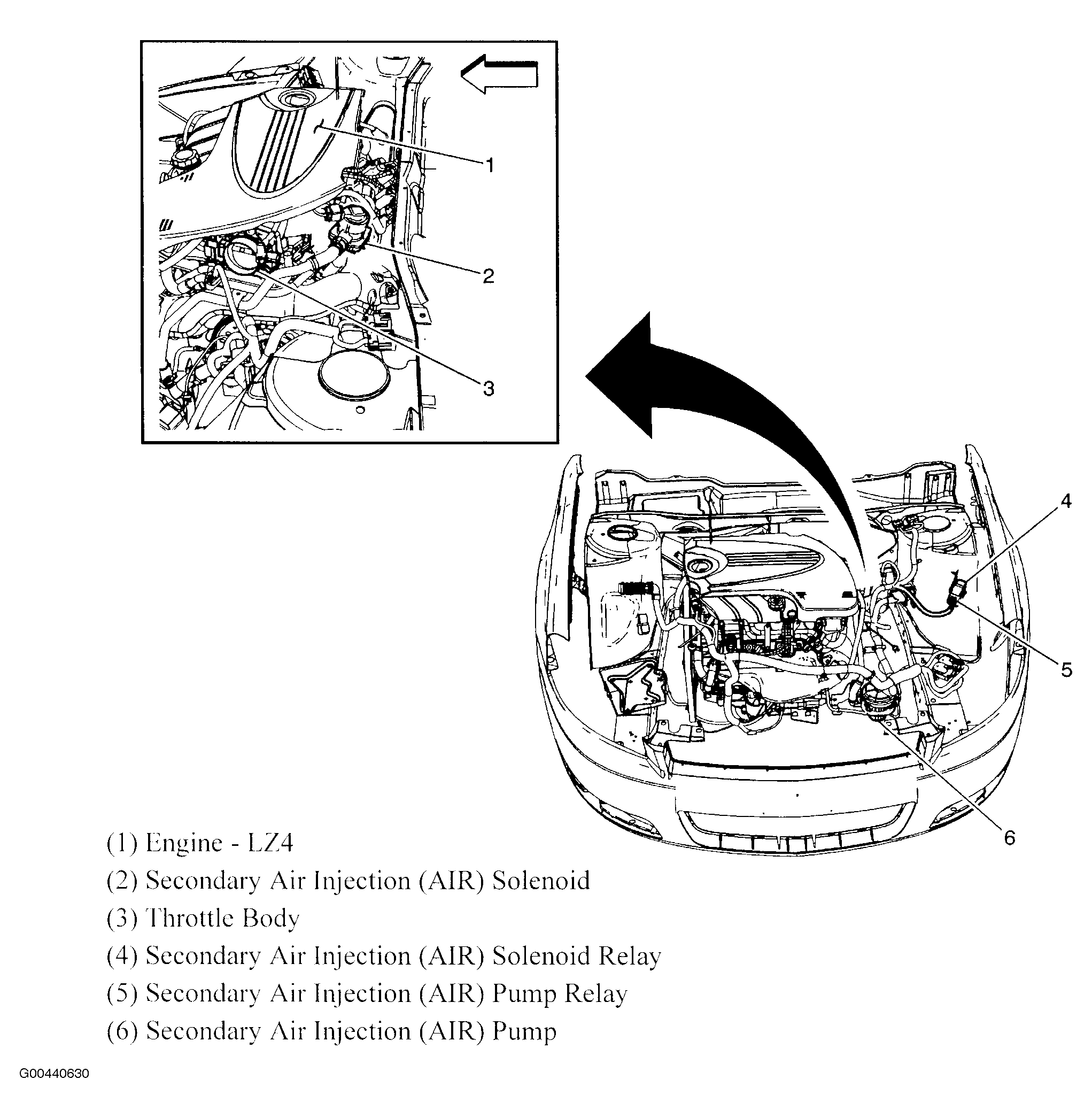

Fig 81: Secondary Air Injection (AIR) Components
Courtesy of GENERAL MOTORS CORP.

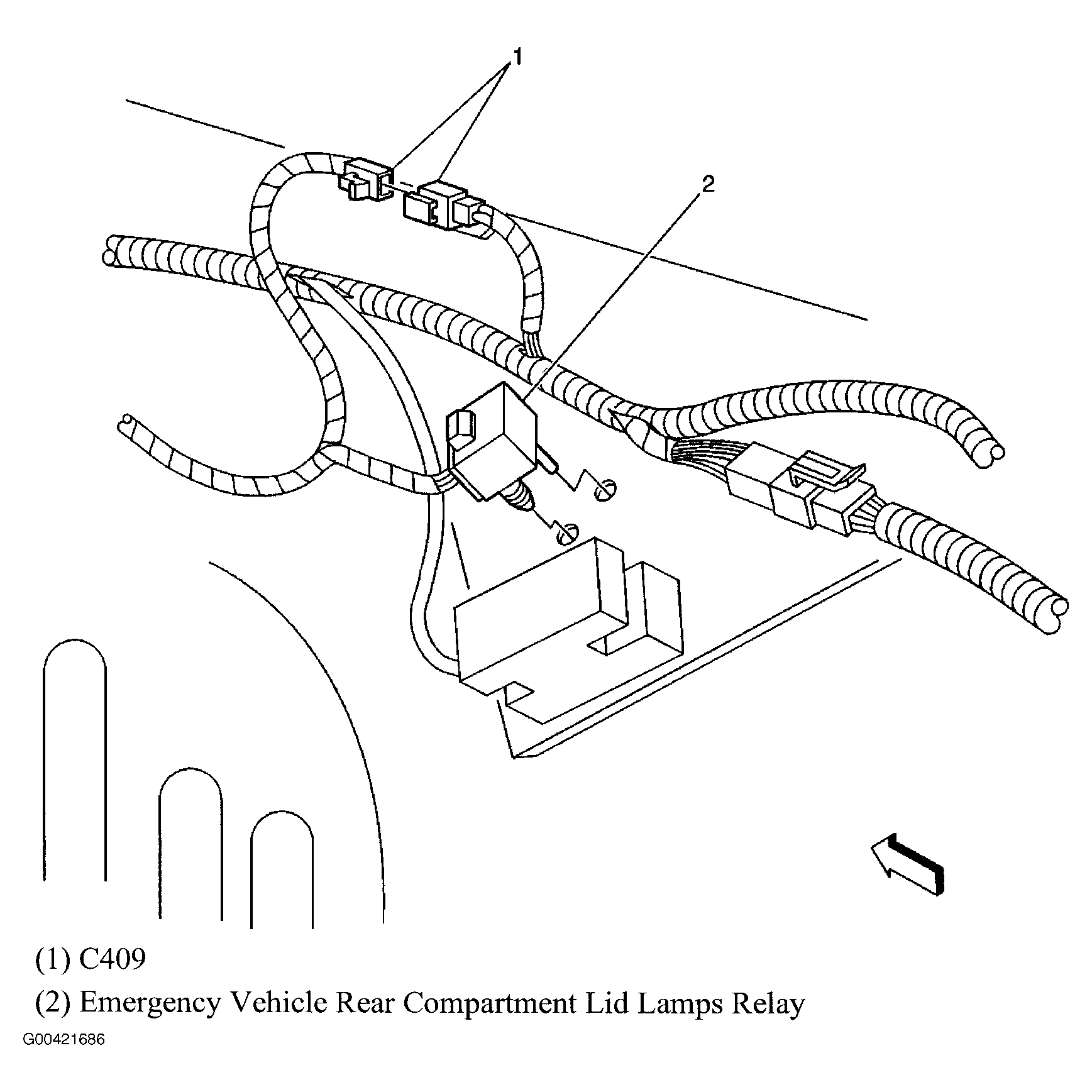

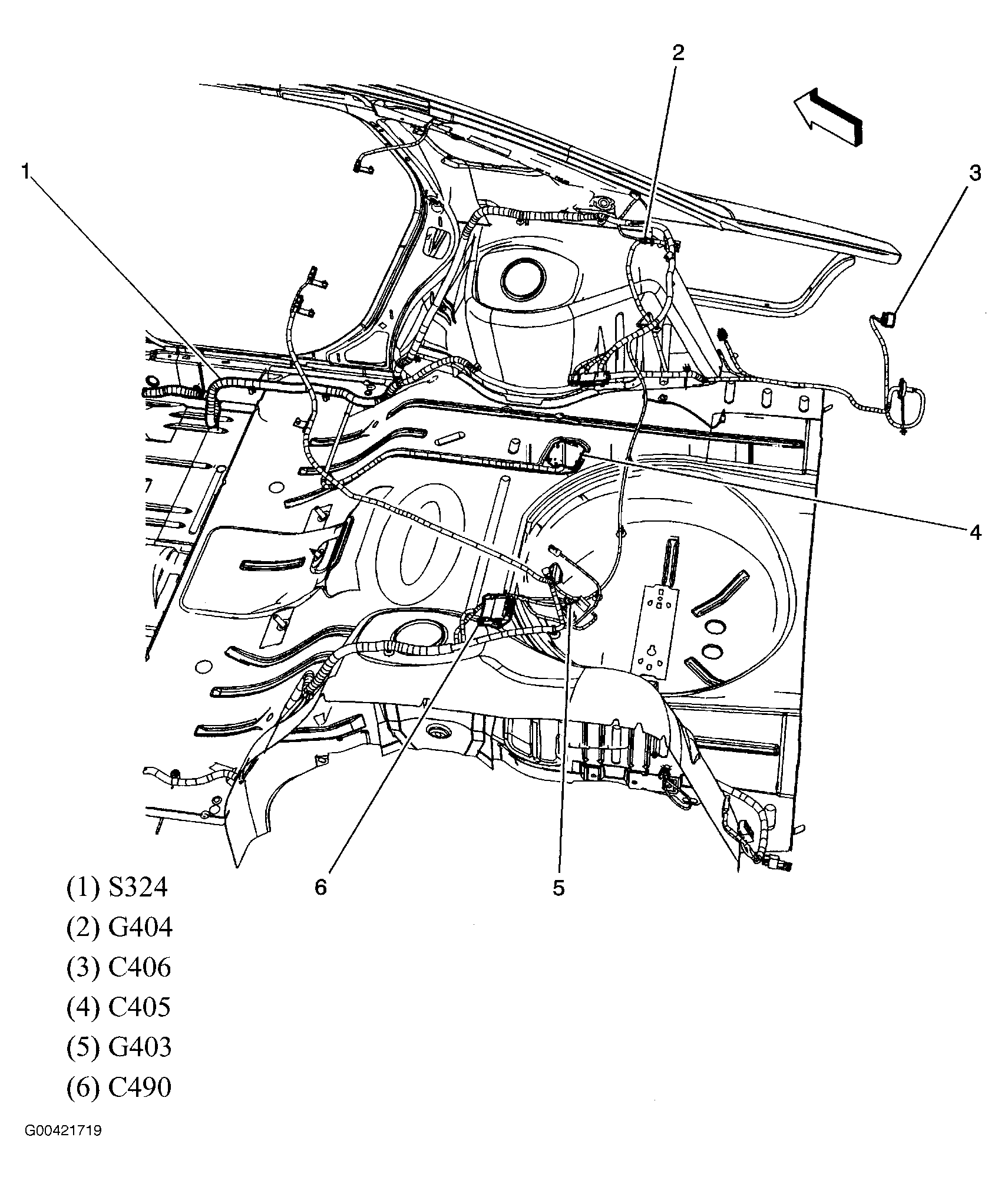

Fig 82: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

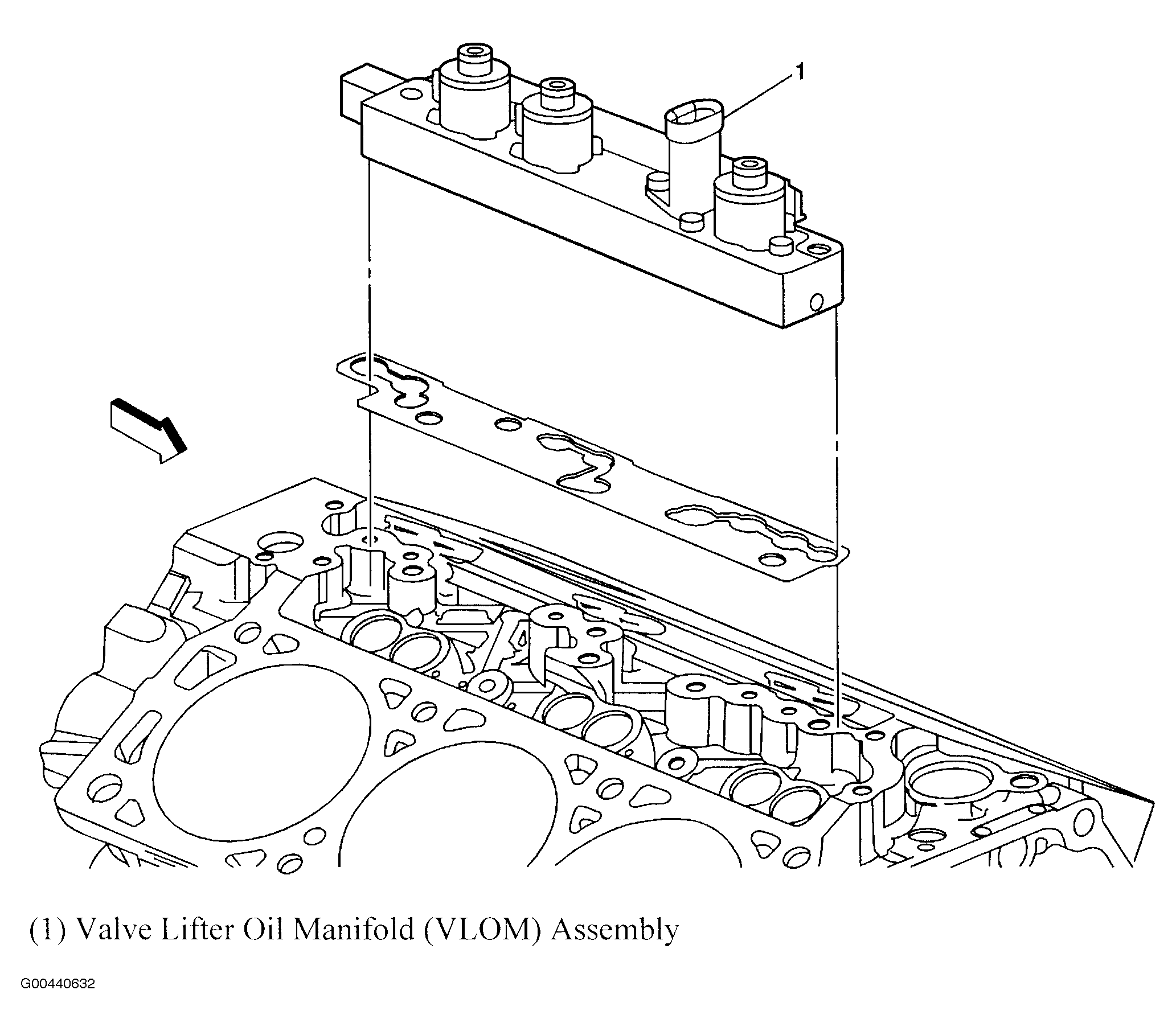

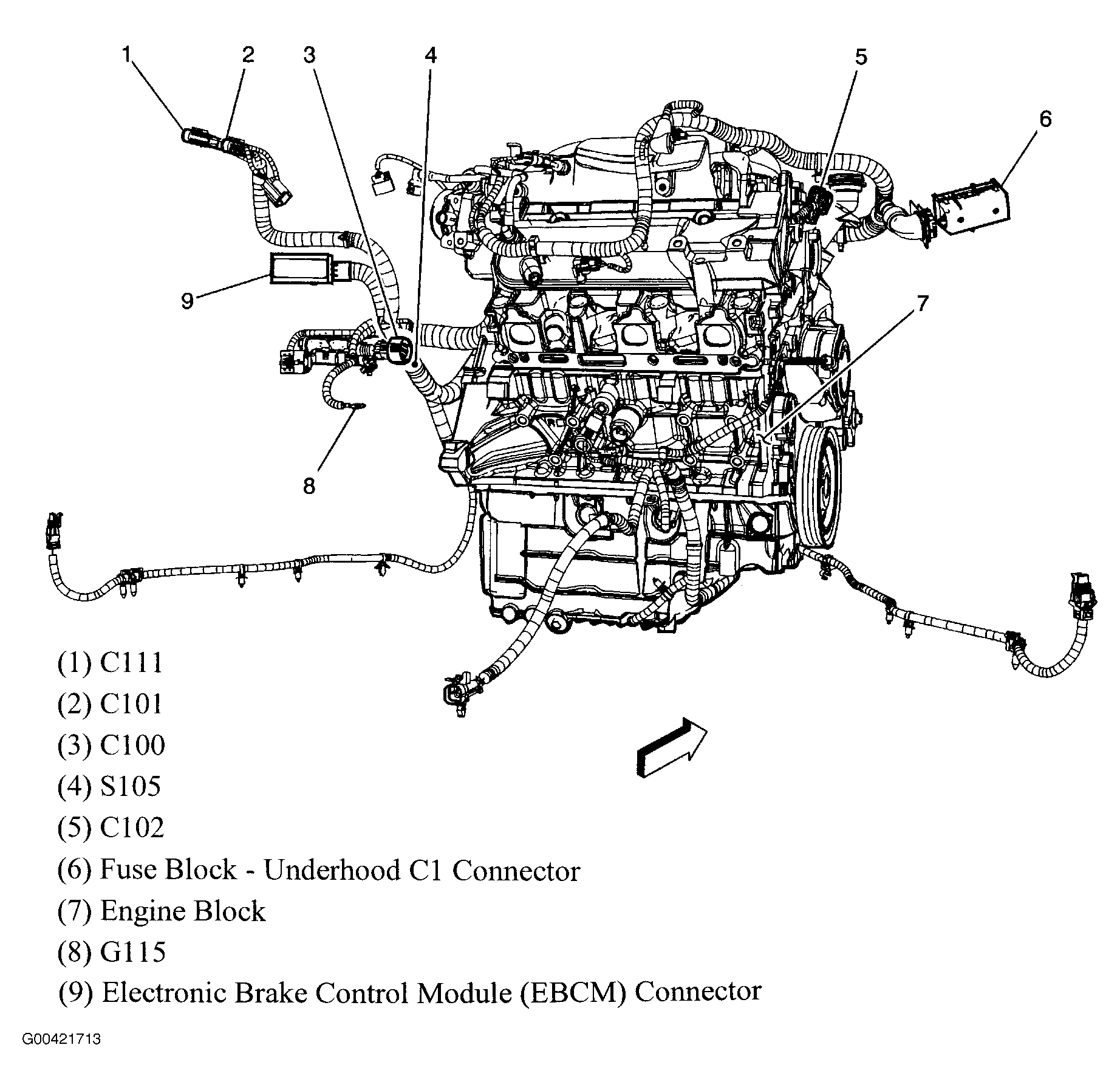

Fig 83: Top Of Engine Block
Courtesy of GENERAL MOTORS CORP.

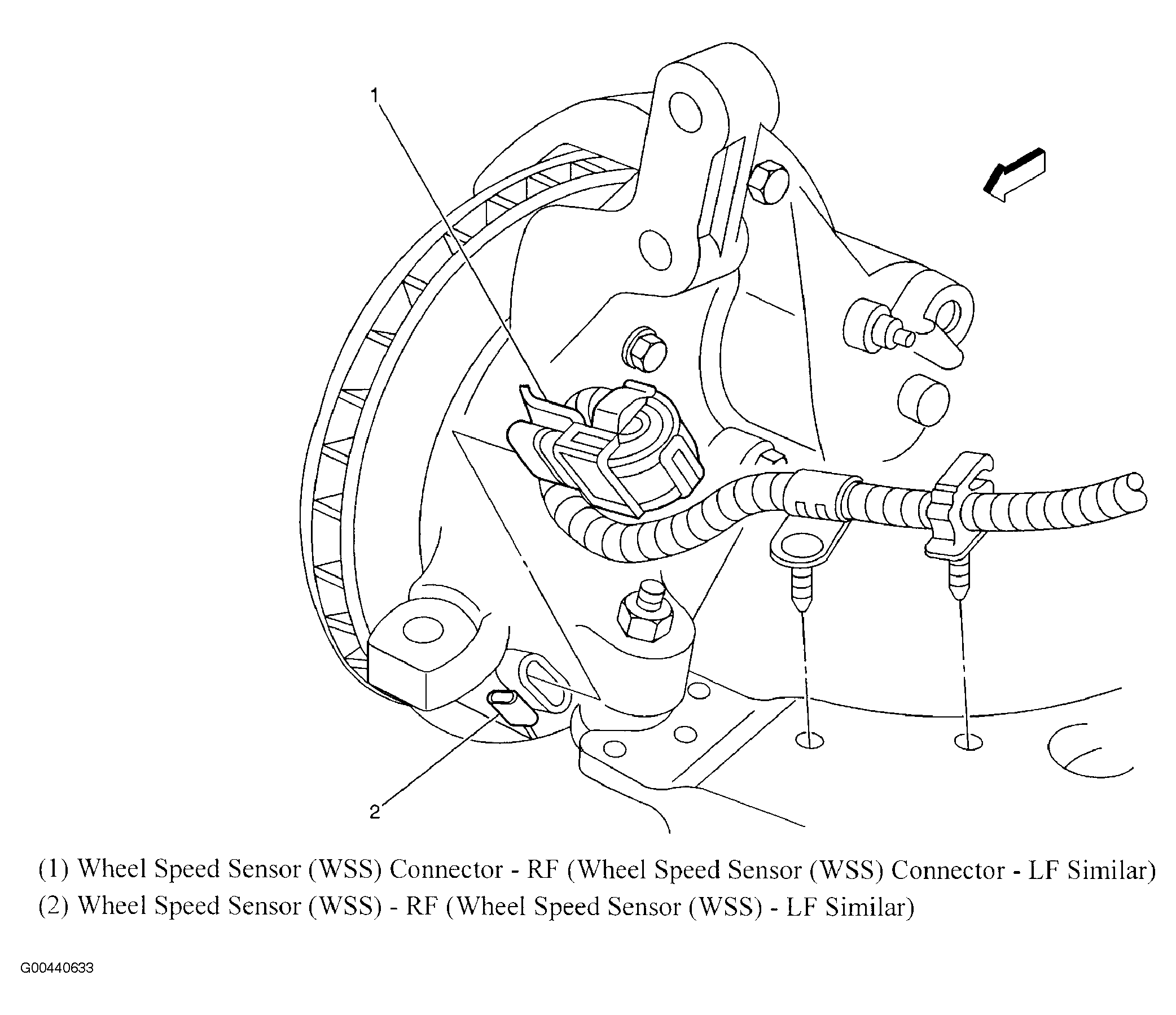

Fig 84: Right Front Wheel Speed Sensor (Left Front Similar)
Courtesy of GENERAL MOTORS CORP.

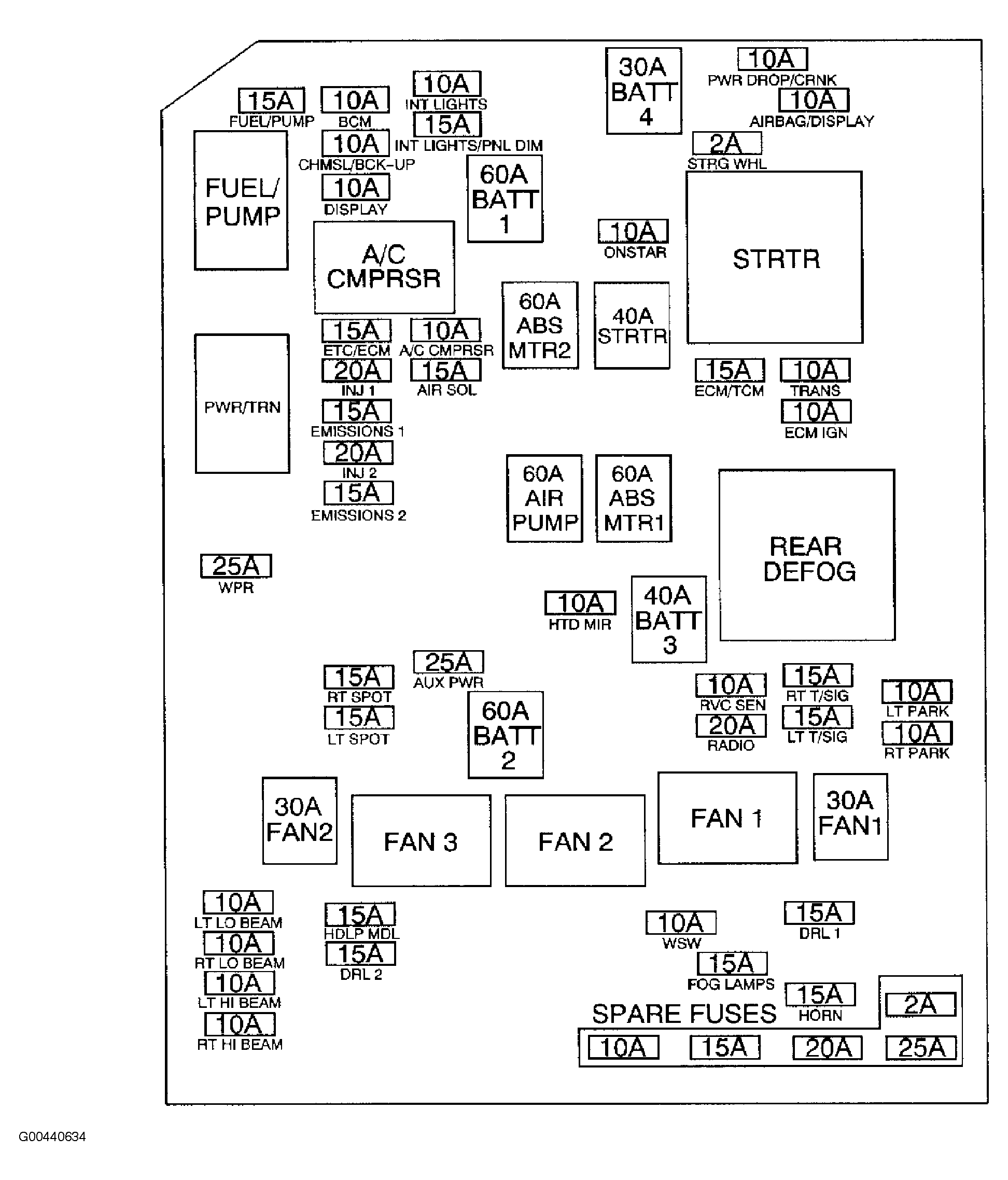

Fig 85: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

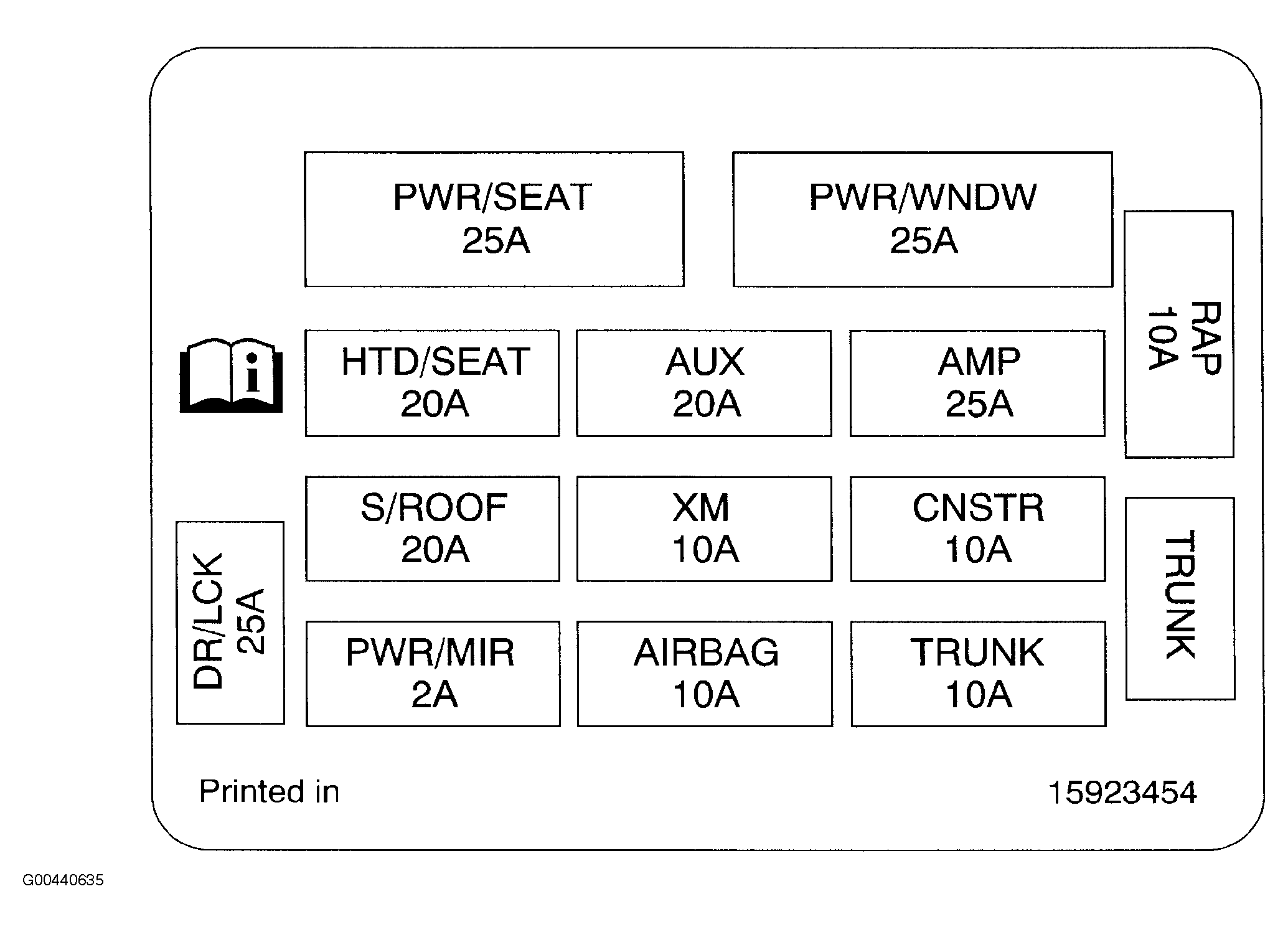

Fig 86: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
