Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Lower right side of HVAC assembly, near blower motor. See Figure. |

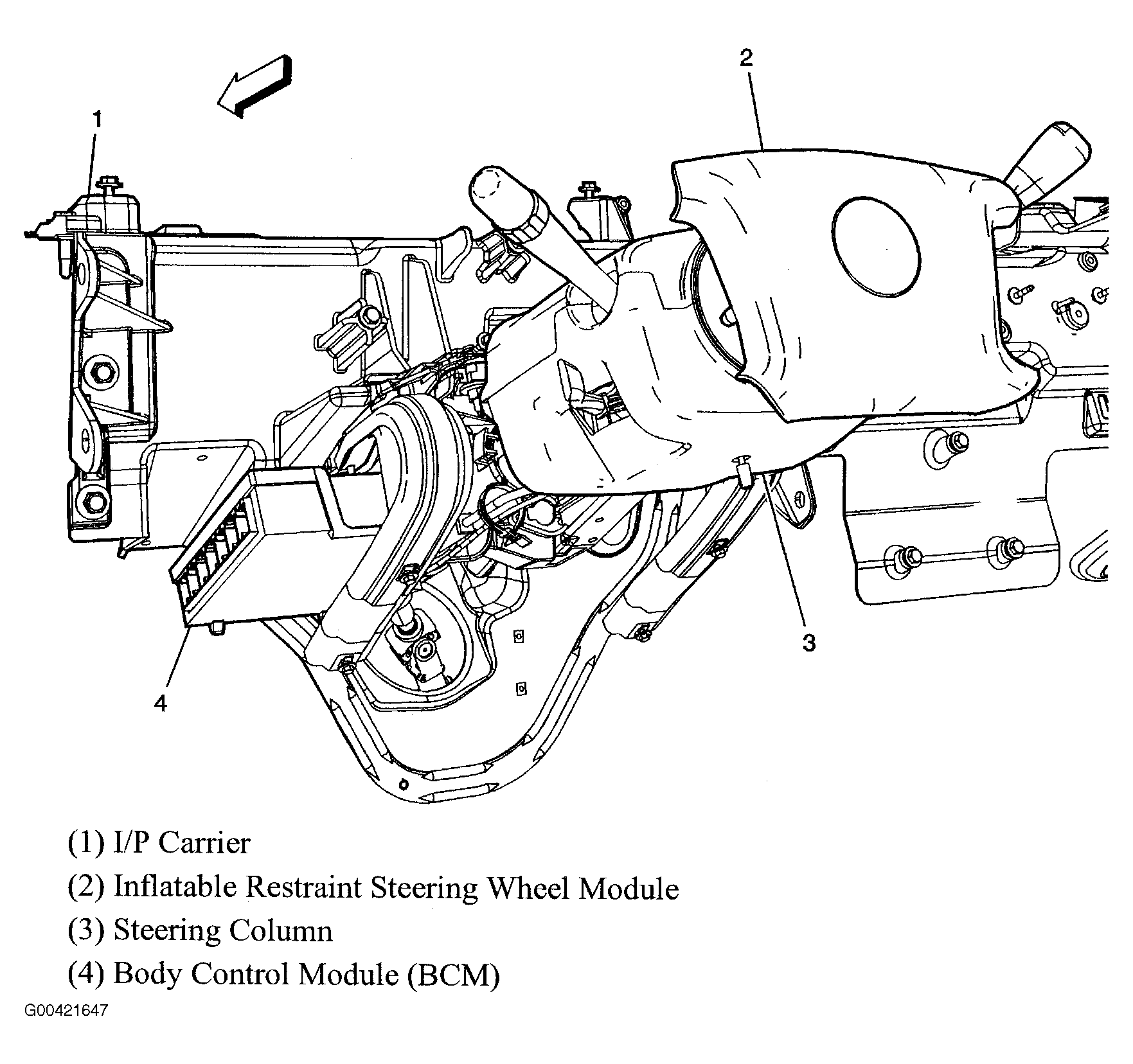

| Body Control Module (BCM) | Left of steering column. See Figure. |
| Electronic Brake Control Module (EBCM) | Part of brake pressure modulator valve. See Figure. |

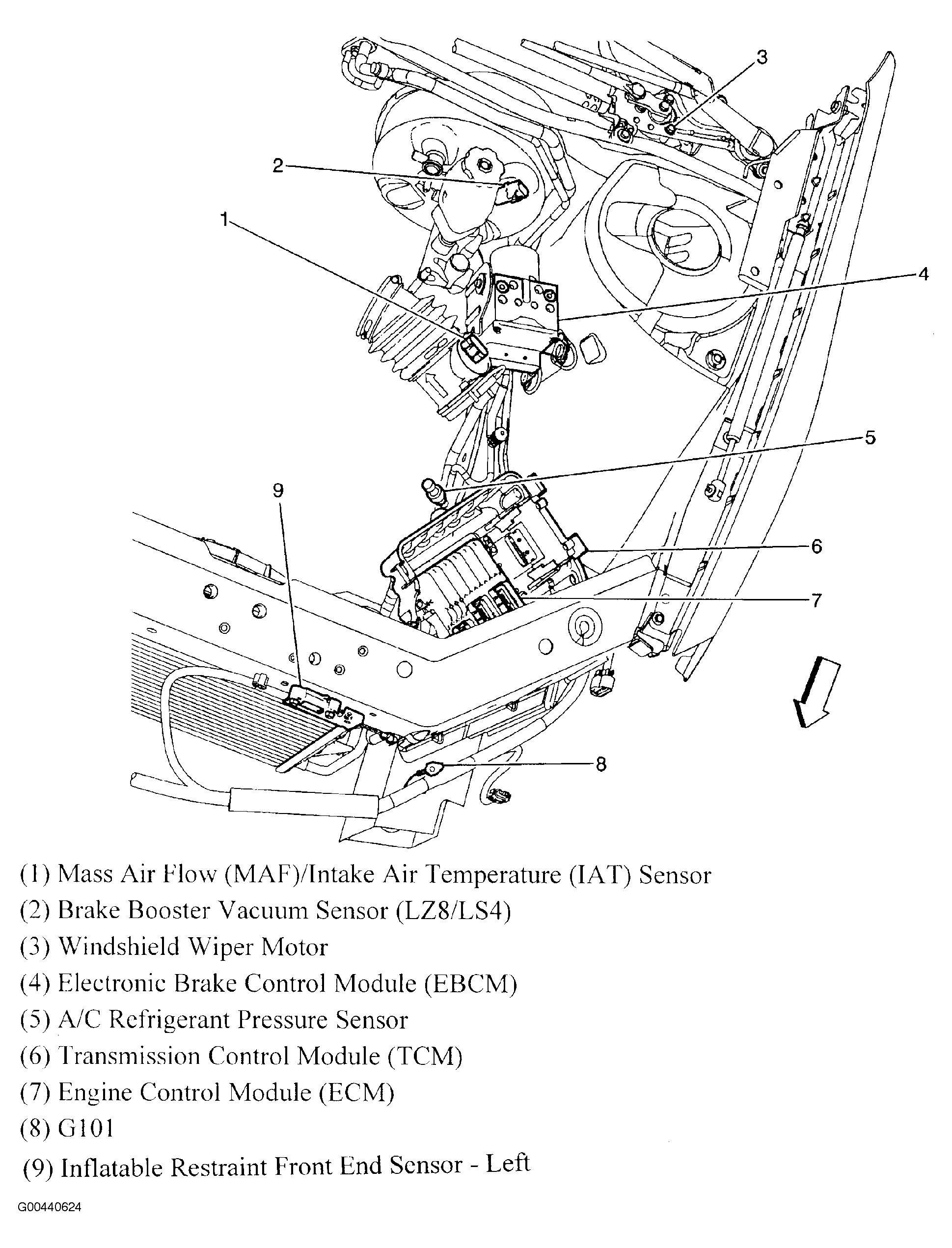

| Engine Control Module (ECM) | Inside air cleaner assembly. See Figure. |

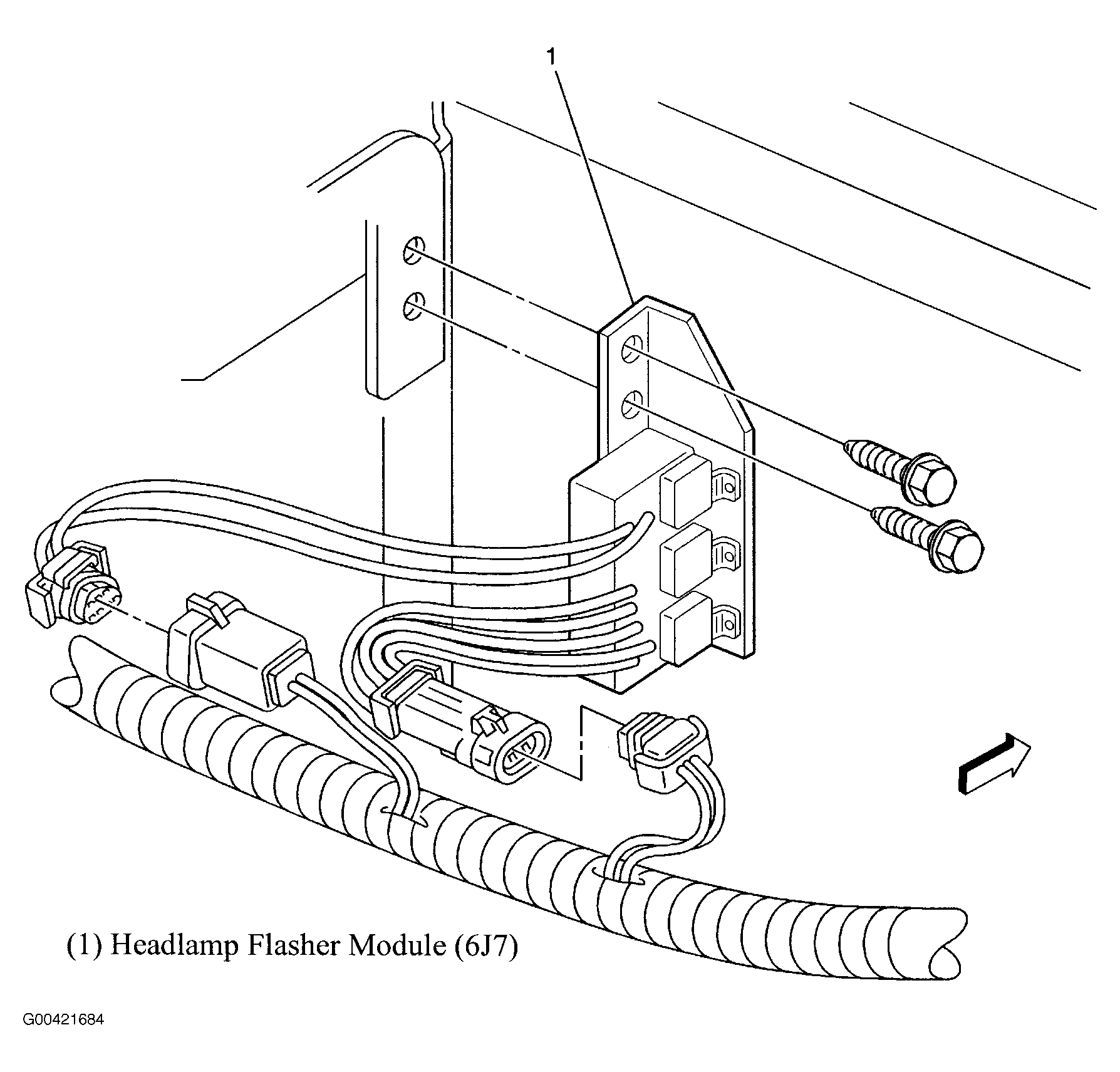

| Headlamp Flasher Module | At left side of right headlamp assembly. See Figure. |

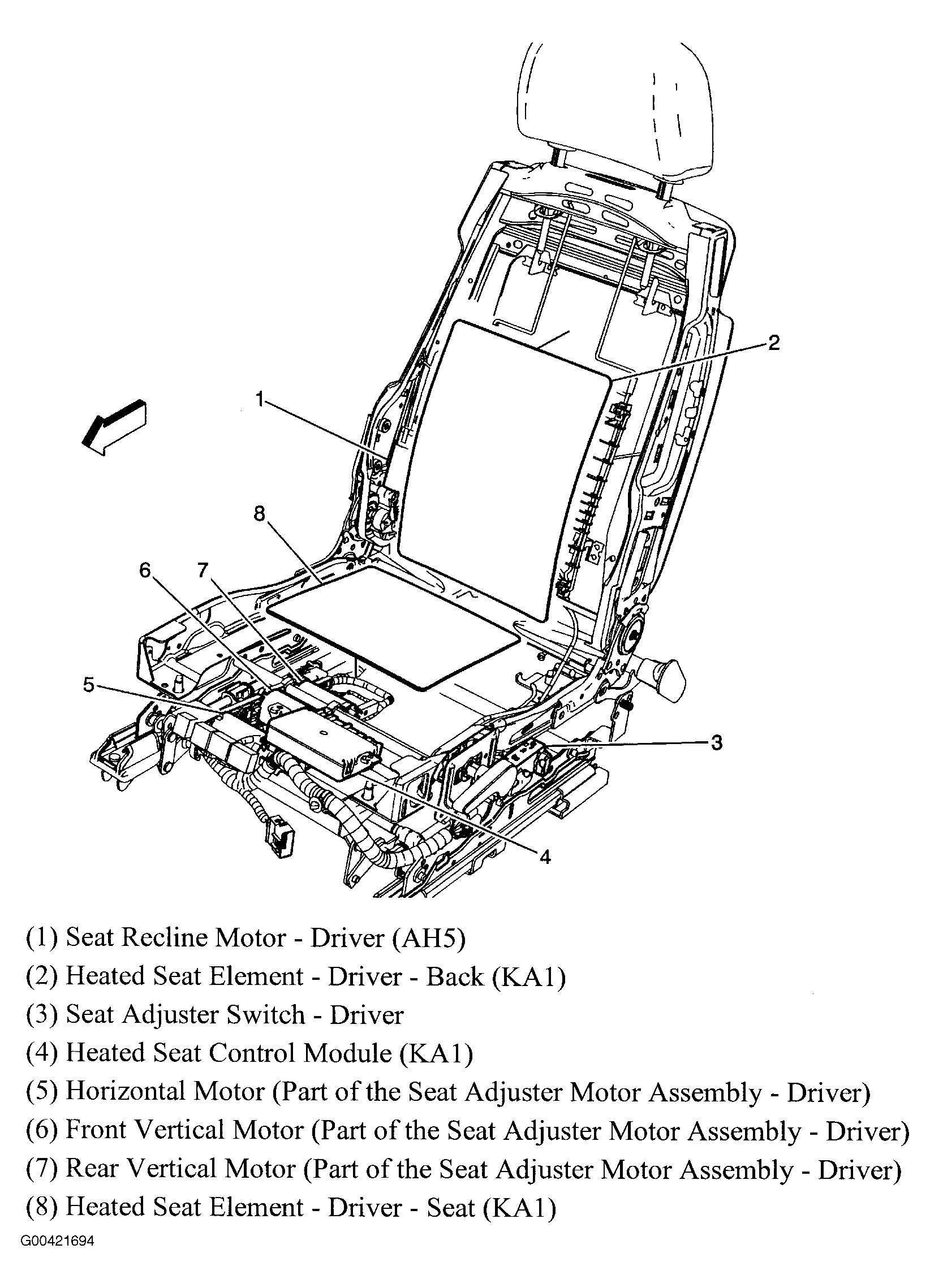

| Heated Seat Control Module | Under driver seat. See Figure. |

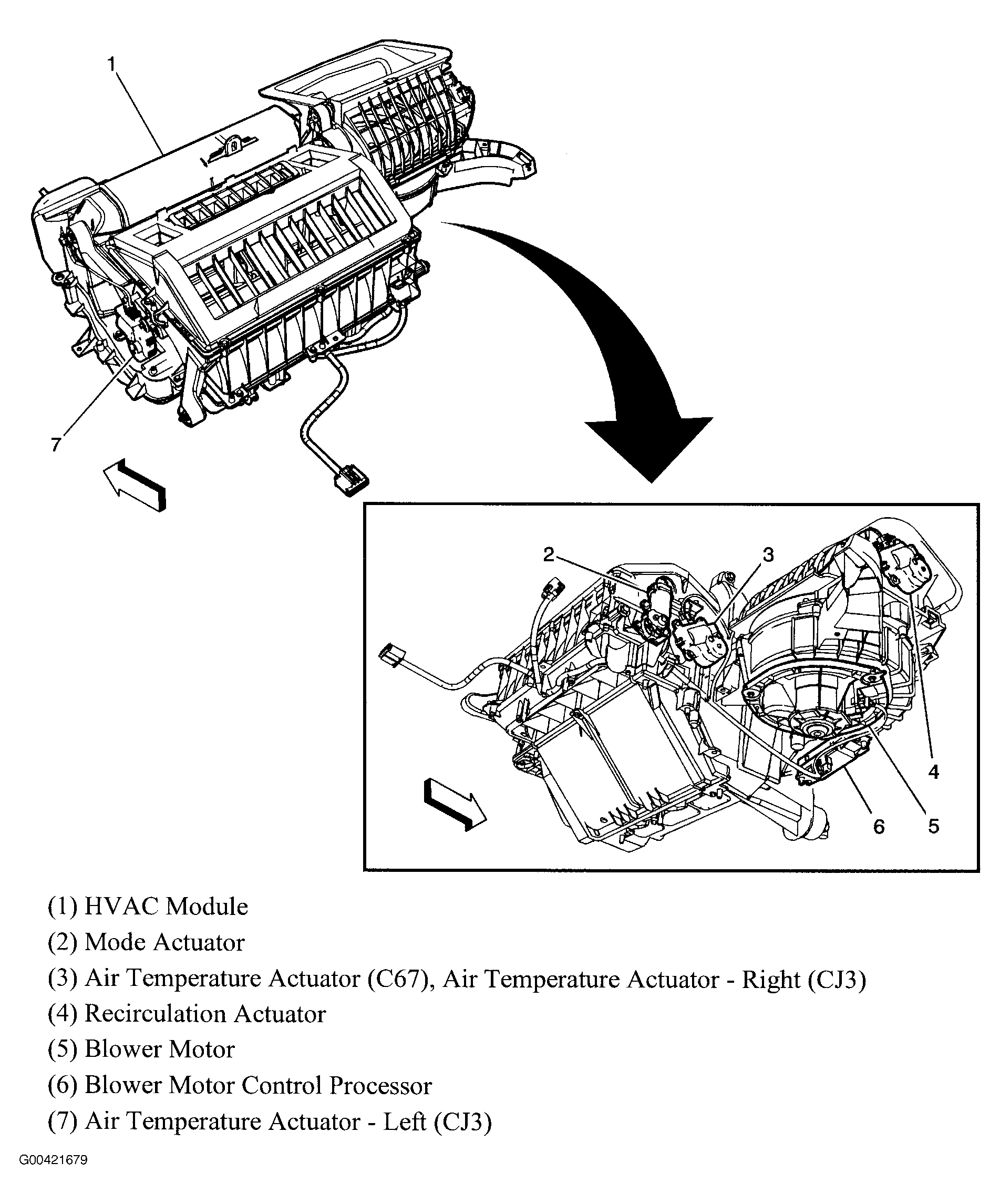

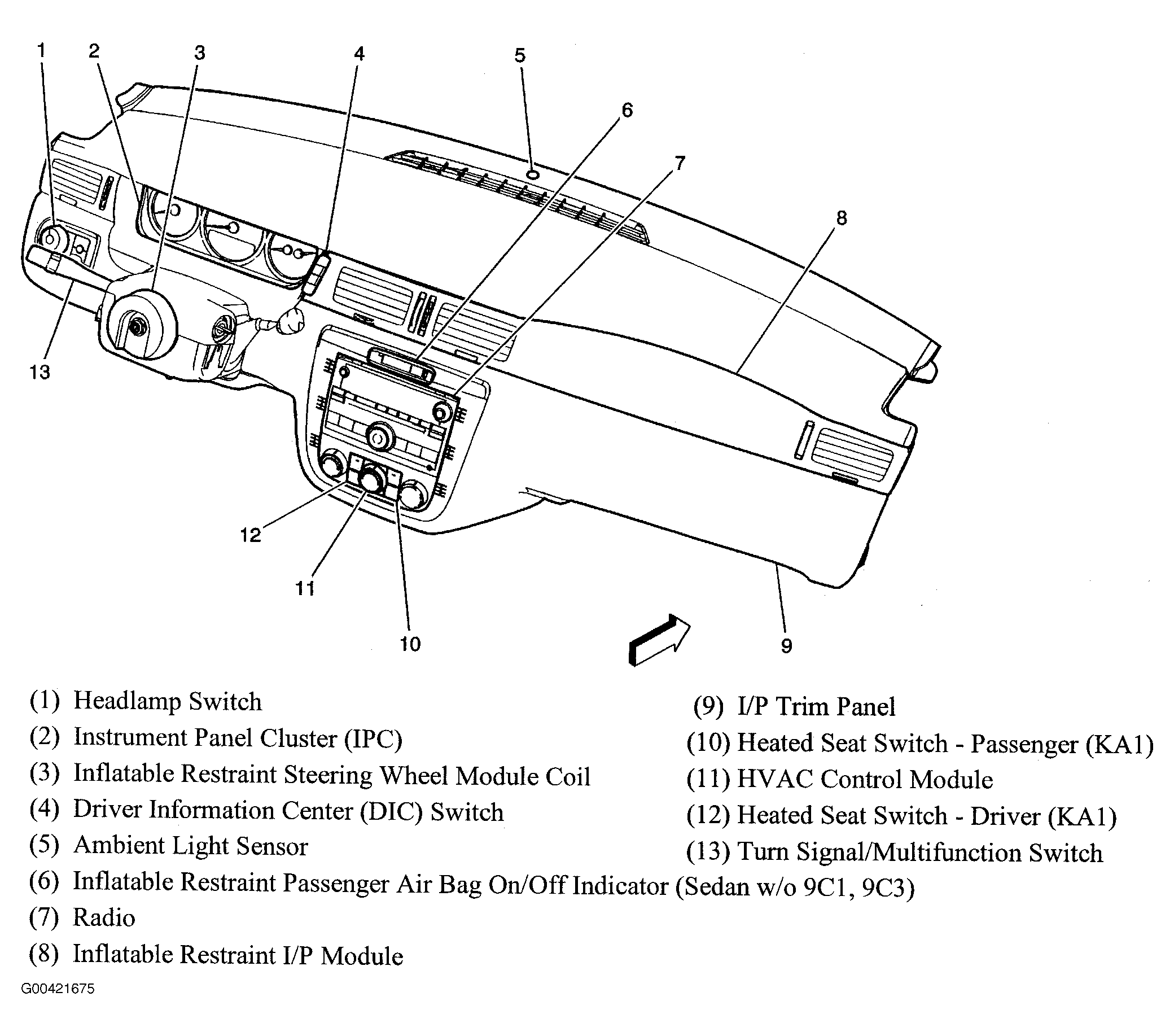

| HVAC Module | Center of dash. See Figure. |

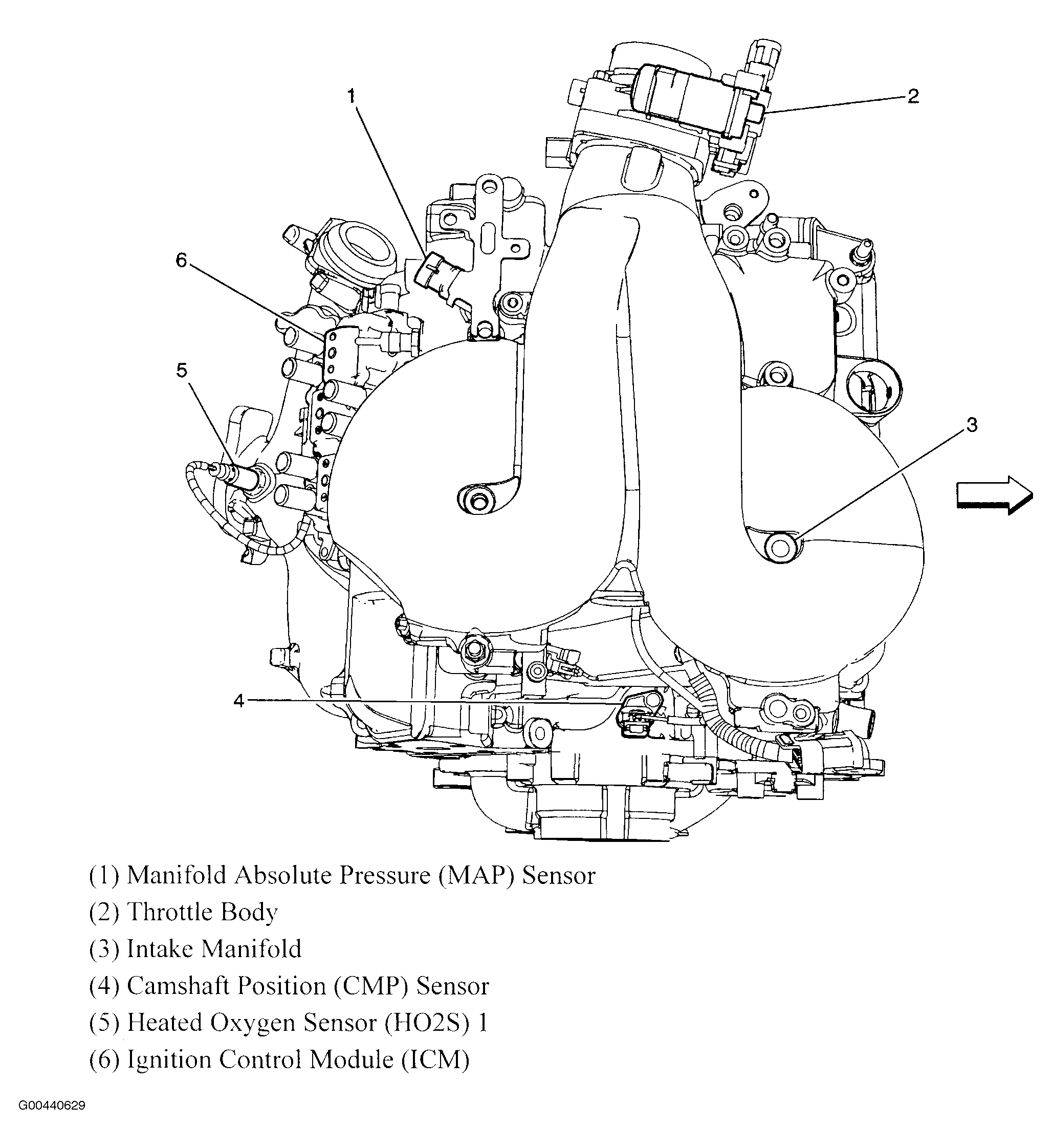

| Ignition Control Module (ICM) | Top rear center of engine. See Figure. |

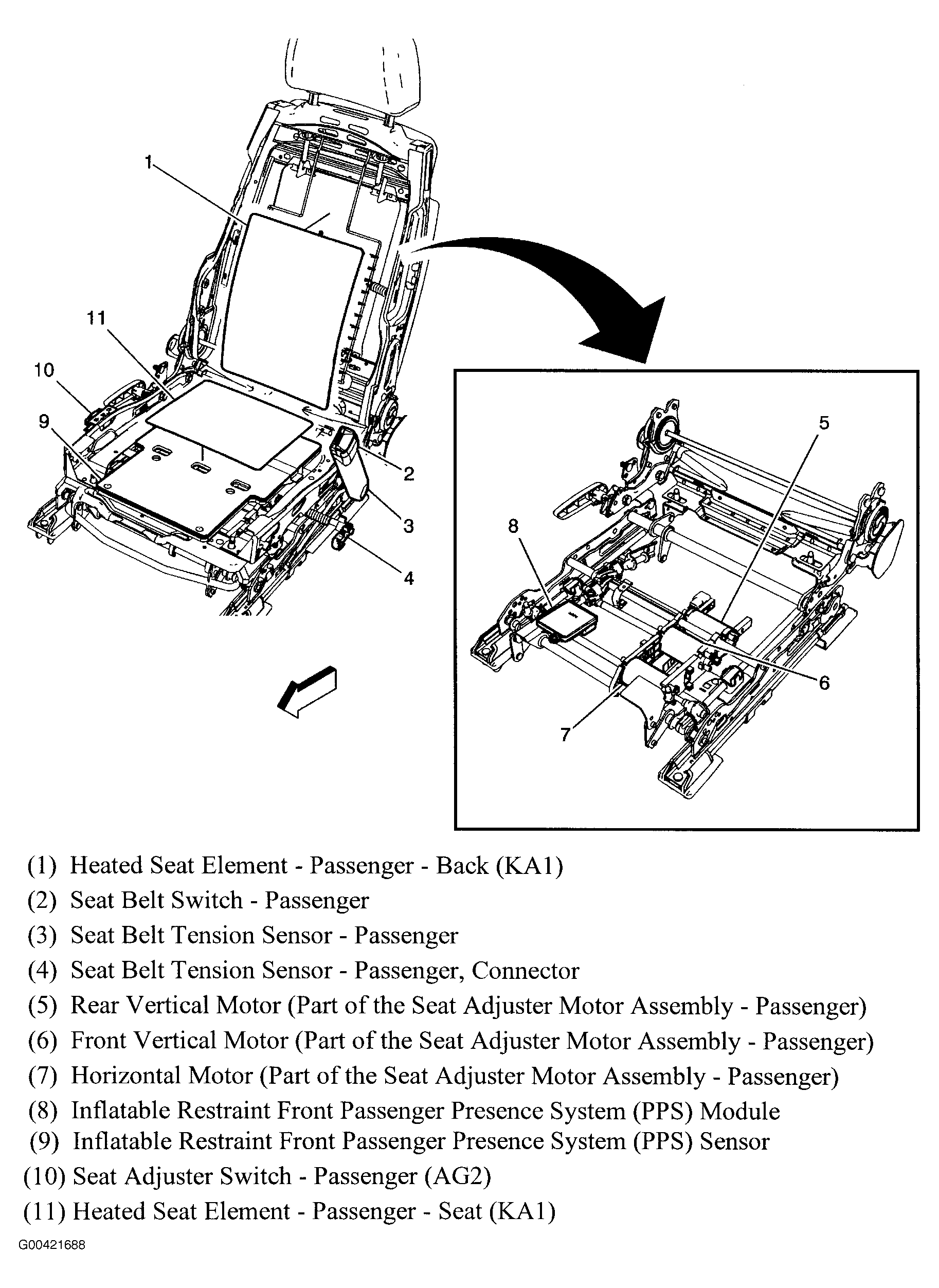

| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under front passenger seat. See Figure. |
| Inflatable Restraint I/P Module | Right side of instrument panel, above dash compartment. See Figure. |

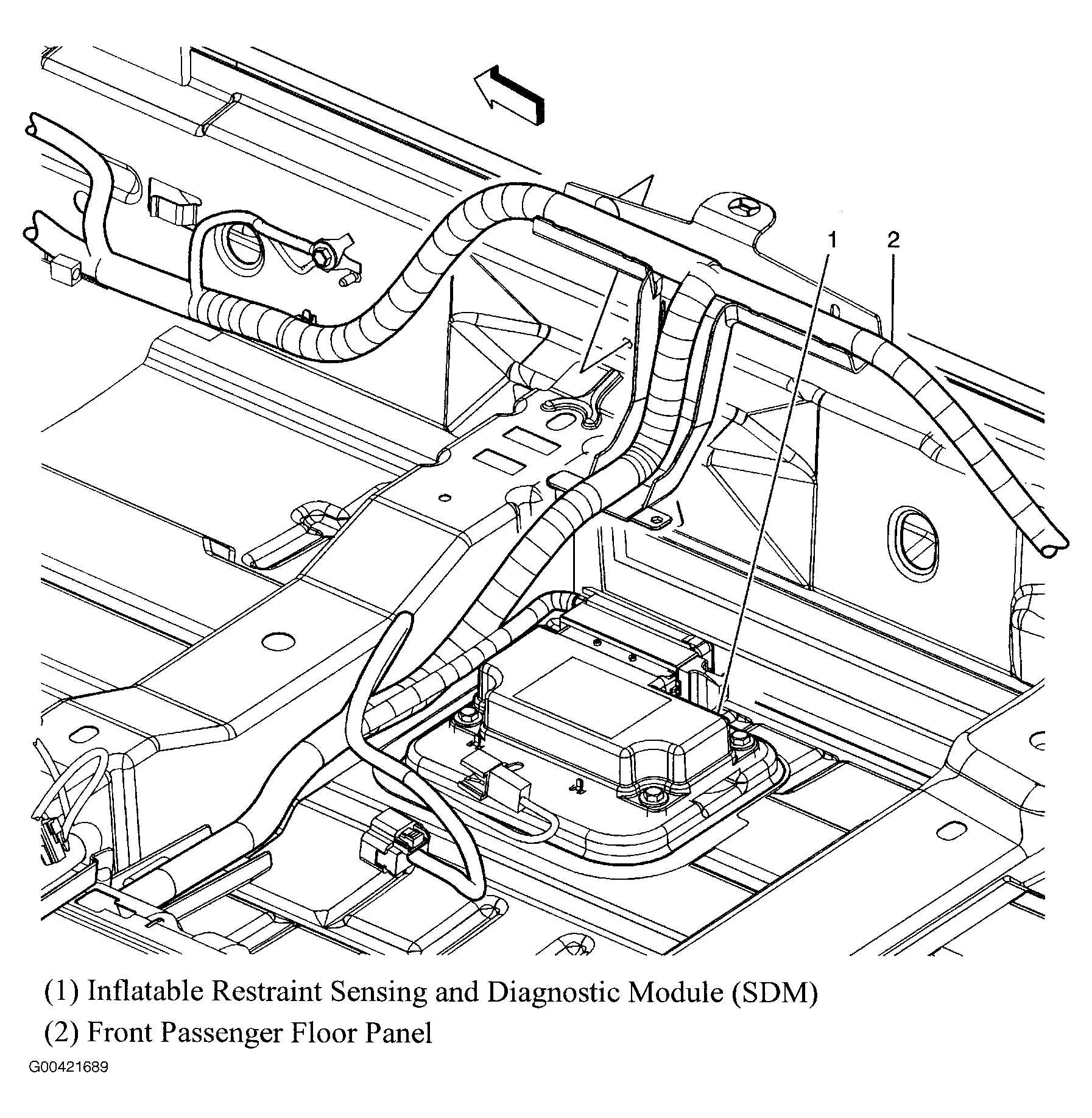

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under front passenger seat, under carpet. See Figure. |

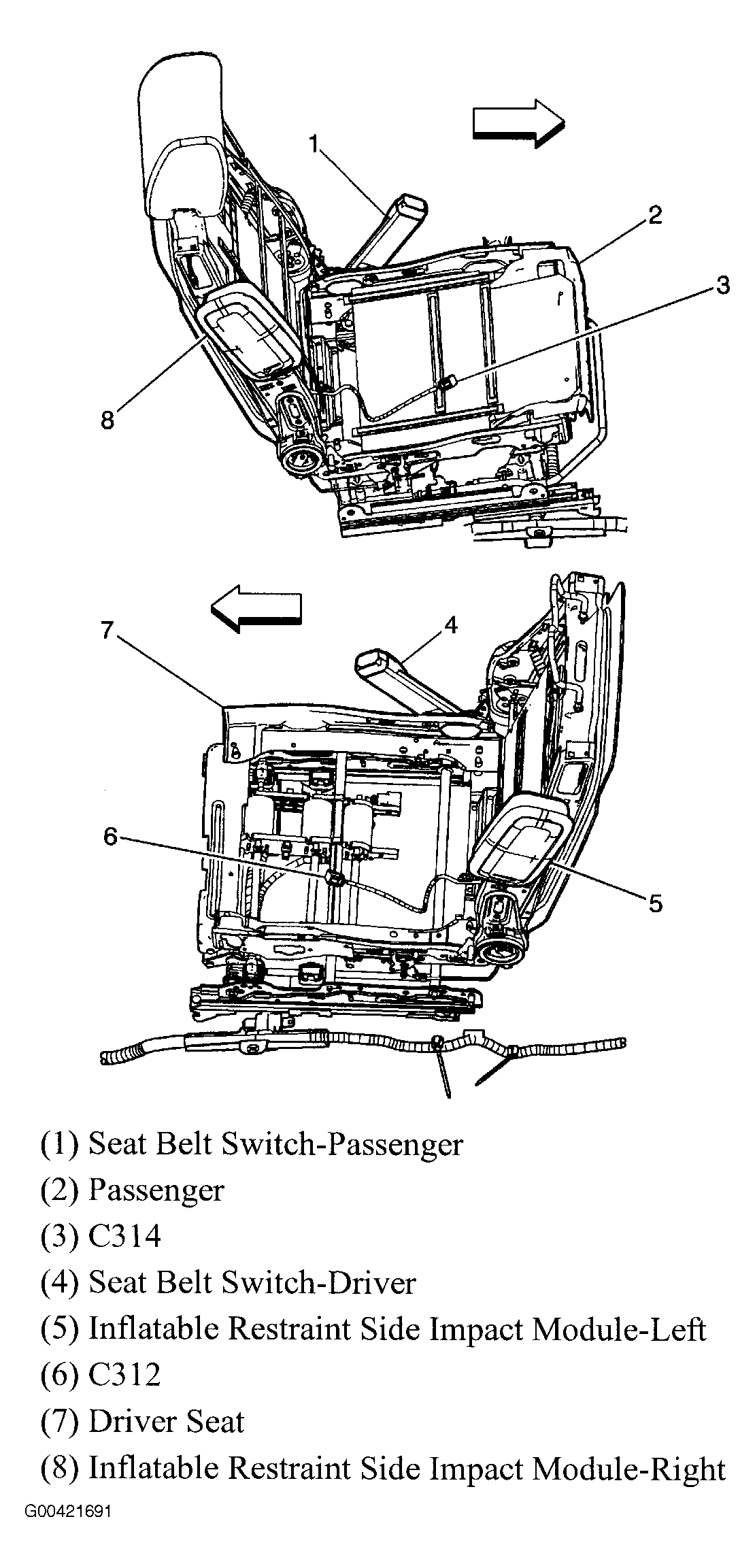

| Inflatable Restraint Side Impact Module - Left | On left side of driver seat back. See Figure. |
| Inflatable Restraint Side Impact Module - Right | On right side of front passenger seat back. See Figure. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. See Figure. |

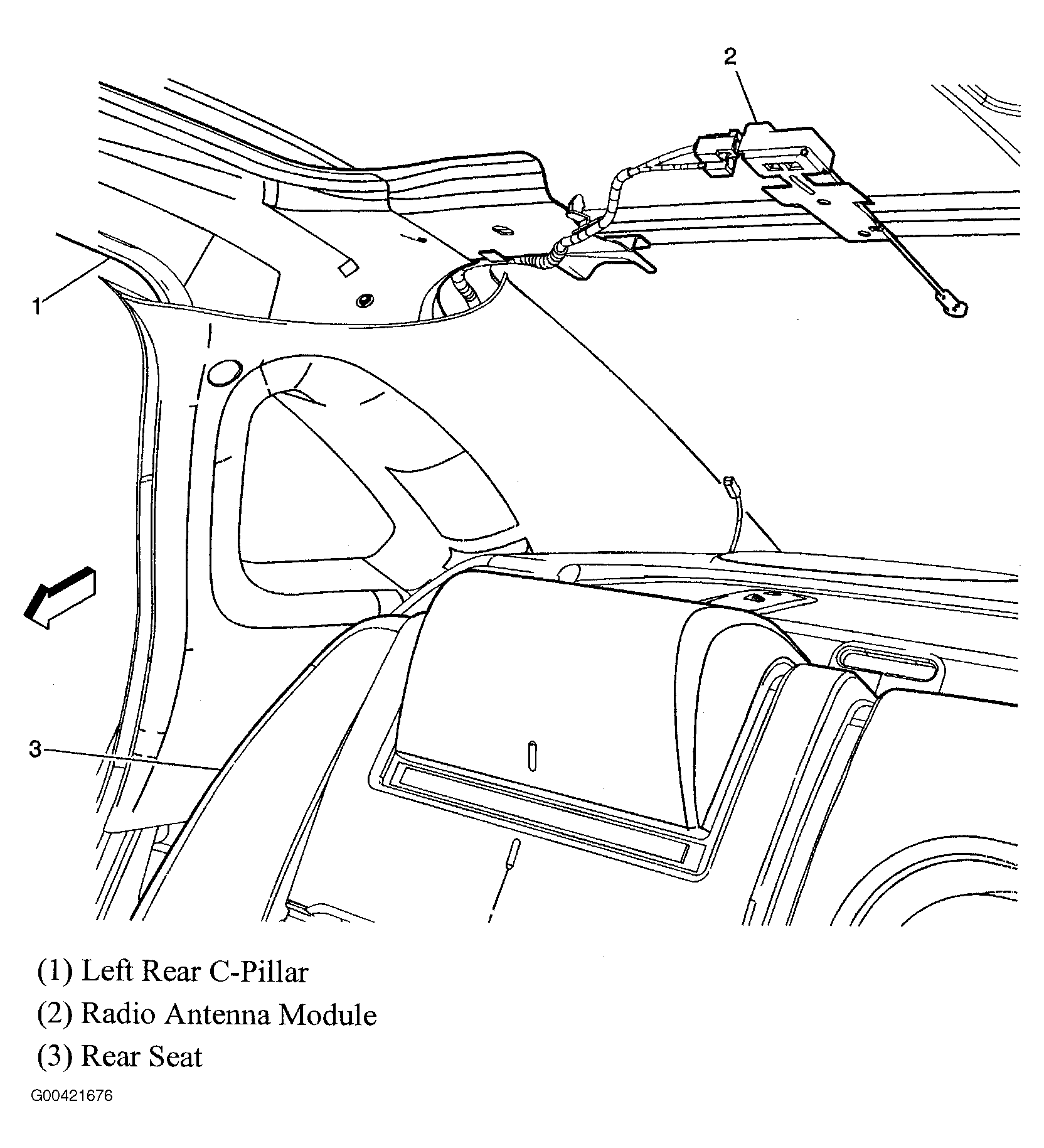

| Radio Antenna Module | Left of back window. See Figure. |

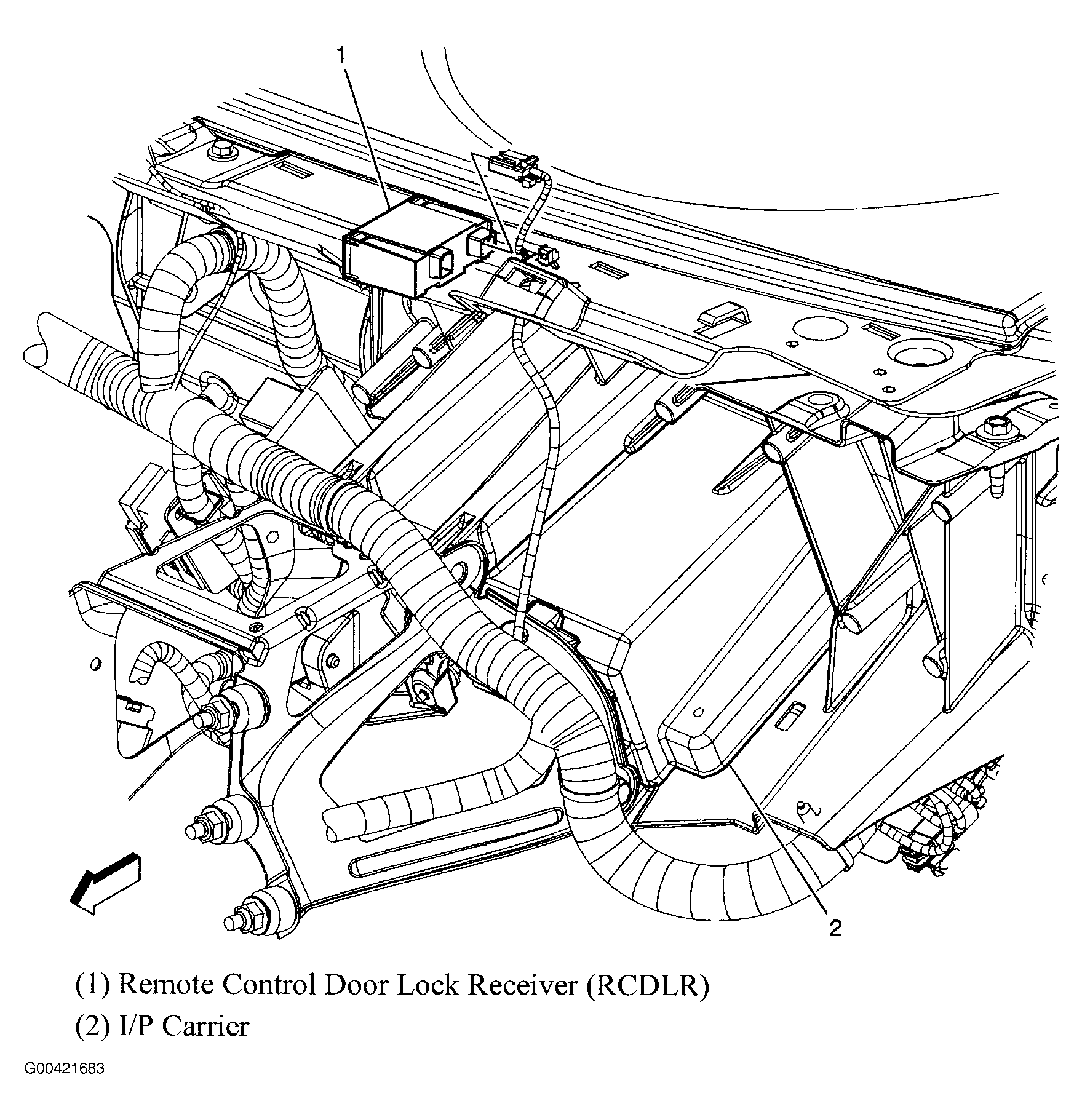

| Remote Control Door Lock Receiver (RCDLR) | Under defroster grill panel. See Figure. |

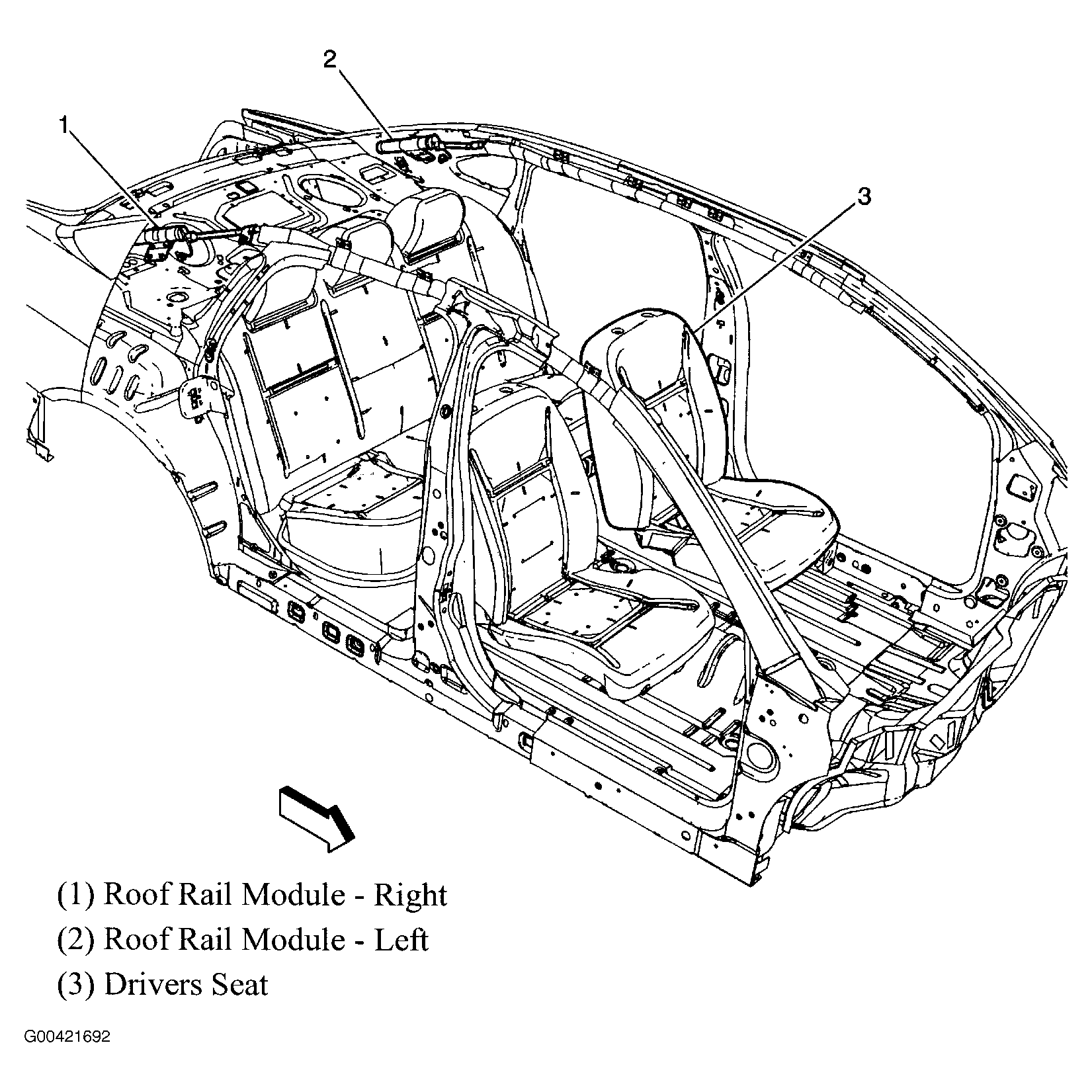

| Roof Rail Module - Left | Mounted on left "C" pillar. See Figure. |
| Roof Rail Module - Right | Mounted on right "C" pillar. See Figure. |

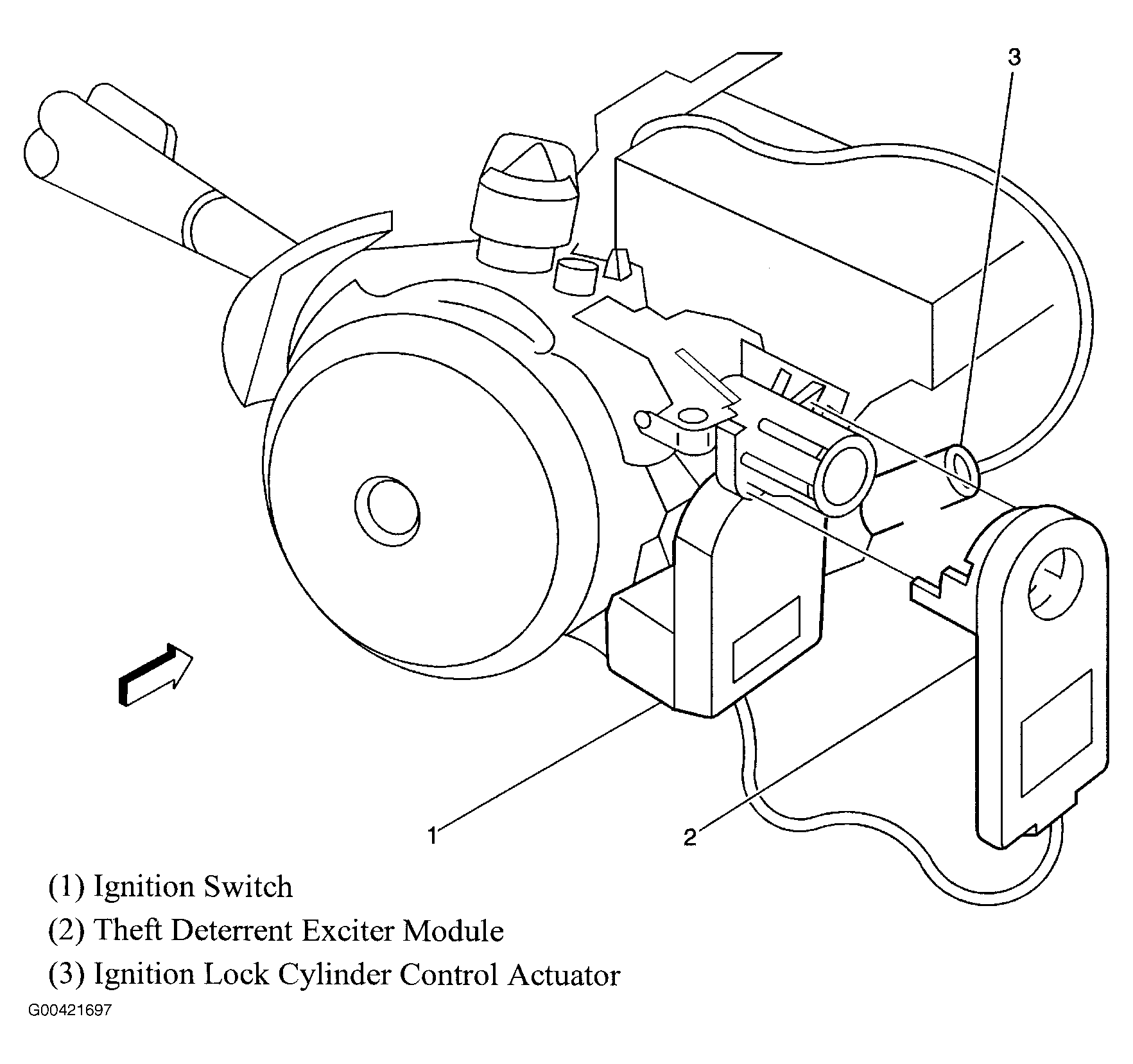

| Theft Deterrent Exciter Module | Around ignition key cylinder housing. See Figure. |
| Transmission Control Module (TCM) | Left side of engine compartment in with air cleaner. See Figure. |

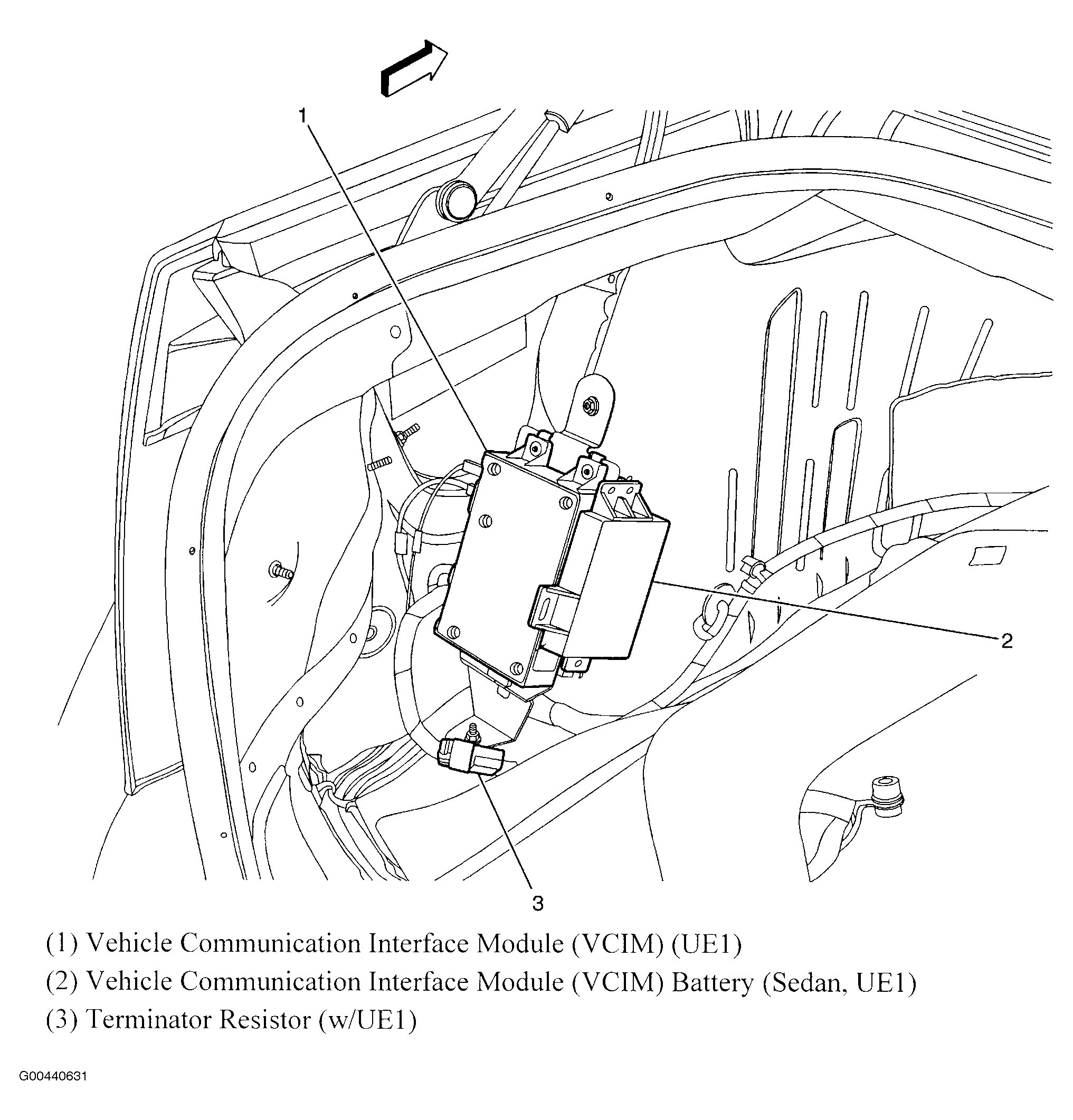

| Vehicle Communication Interface Module (VCIM) | Mounted to rear of left rear wheelhouse. See Figure. |
