Installation Procedure

  1. Install the NEW catalytic converter pipe hangers (1), if necessary.

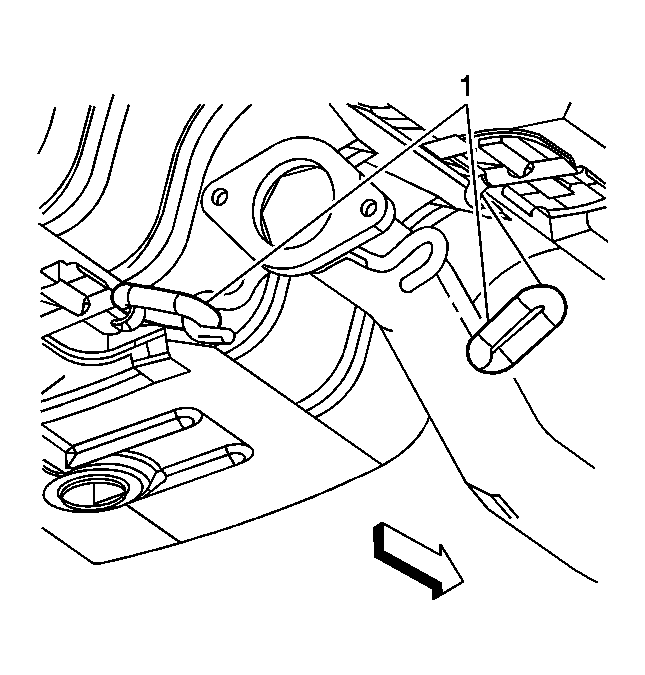

    Fig 1: View Of Catalytic Converter Hangers
    GM1553064Courtesy of GENERAL MOTORS CORP.
  2. Remove the support from the exhaust system, if necessary.
  3. Lower the vehicle.
