Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

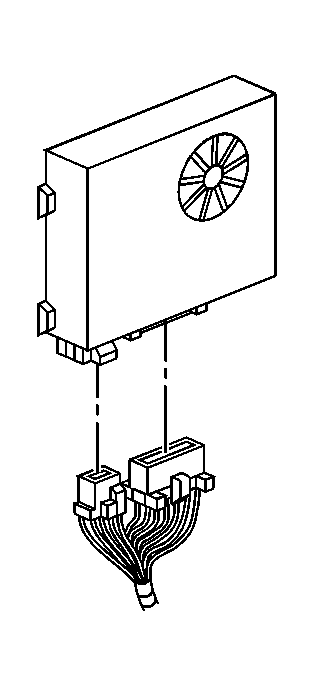

    Fig 1: View Of Electrical Connectors
    GM440108Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the BCM.

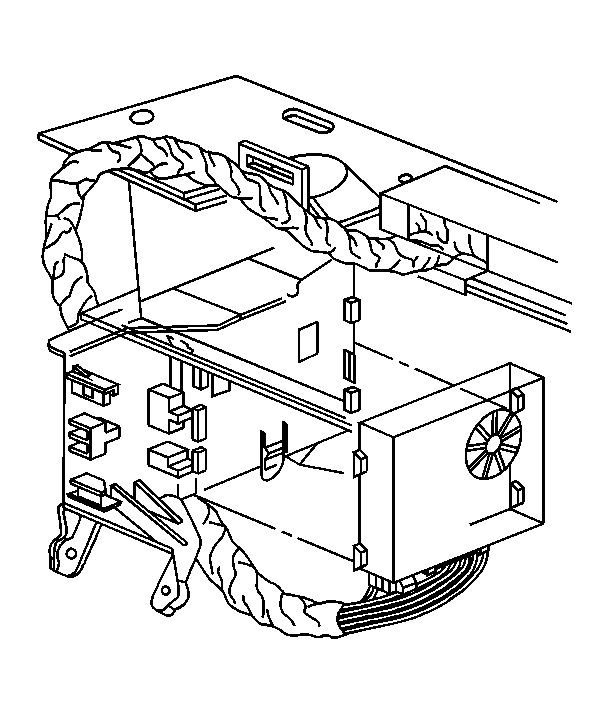

    2. Fig 2: View Of Body Control Module
    GM440103Courtesy of GENERAL MOTORS CORP.
  2. Align the tabs on the BCM with the slots in the mounting bracket. Push the BCM up until the module clicks into place.
  3. Install the right side I/P insulator.
  4. Connect the negative battery cable. Refer to ENGINE ELECTRICAL .
  5. Setup the BCM customized options.
