Lighting Systems Component Views

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

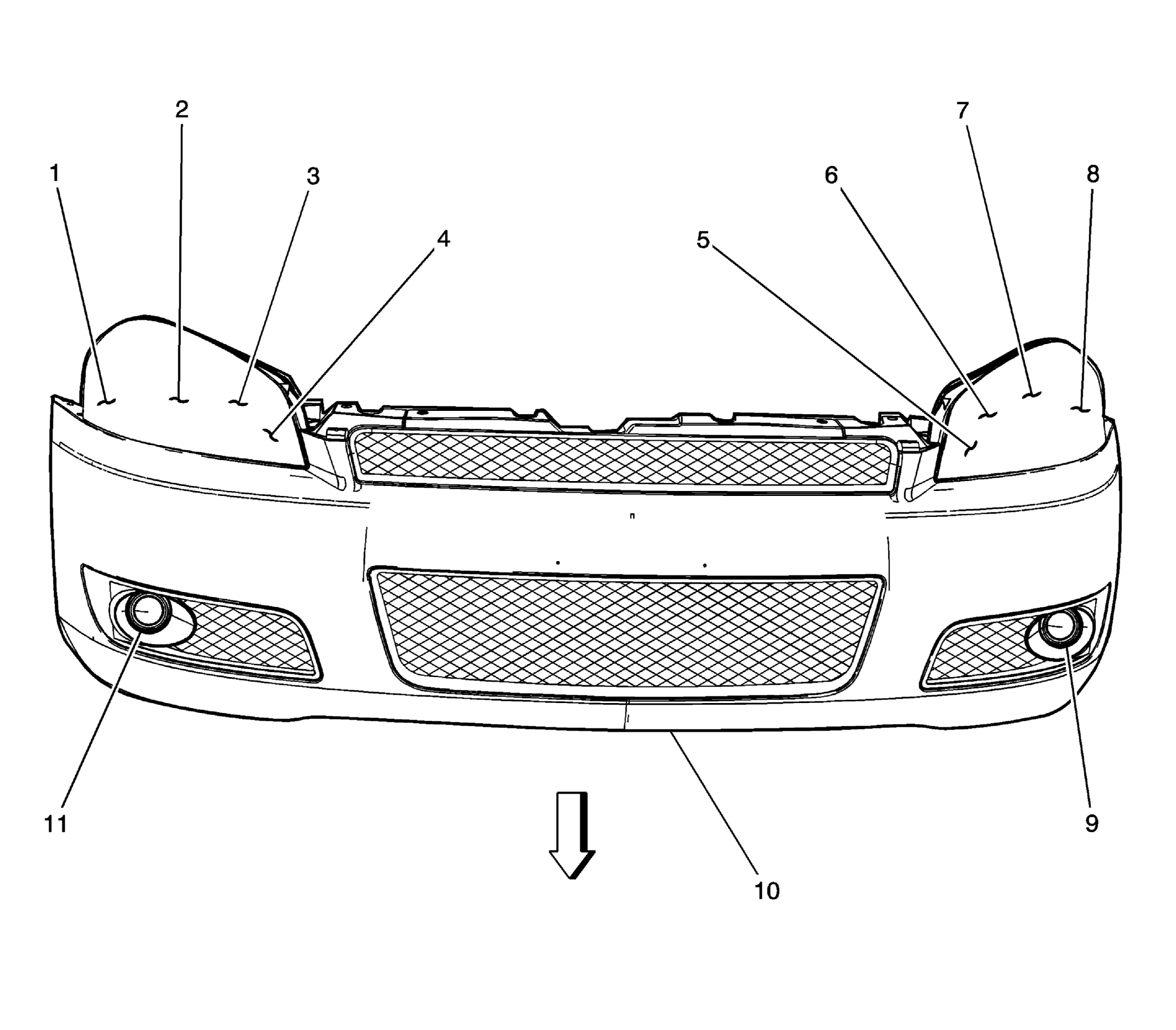

Fig 1: Front Of The Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - RF
2	Headlamp - Low Beam - Right
3	Headlamp - High Beam - Right
4	Park/Turn Signal Lamp - RF
5	Park/Turn Signal Lamp - LF
6	Headlamp - High Beam - Left
7	Headlamp - Low Beam - Left
8	Marker Lamp - LF
9	Fog Lamp - LF
10	Front Fascia
11	Fog Lamp - RF

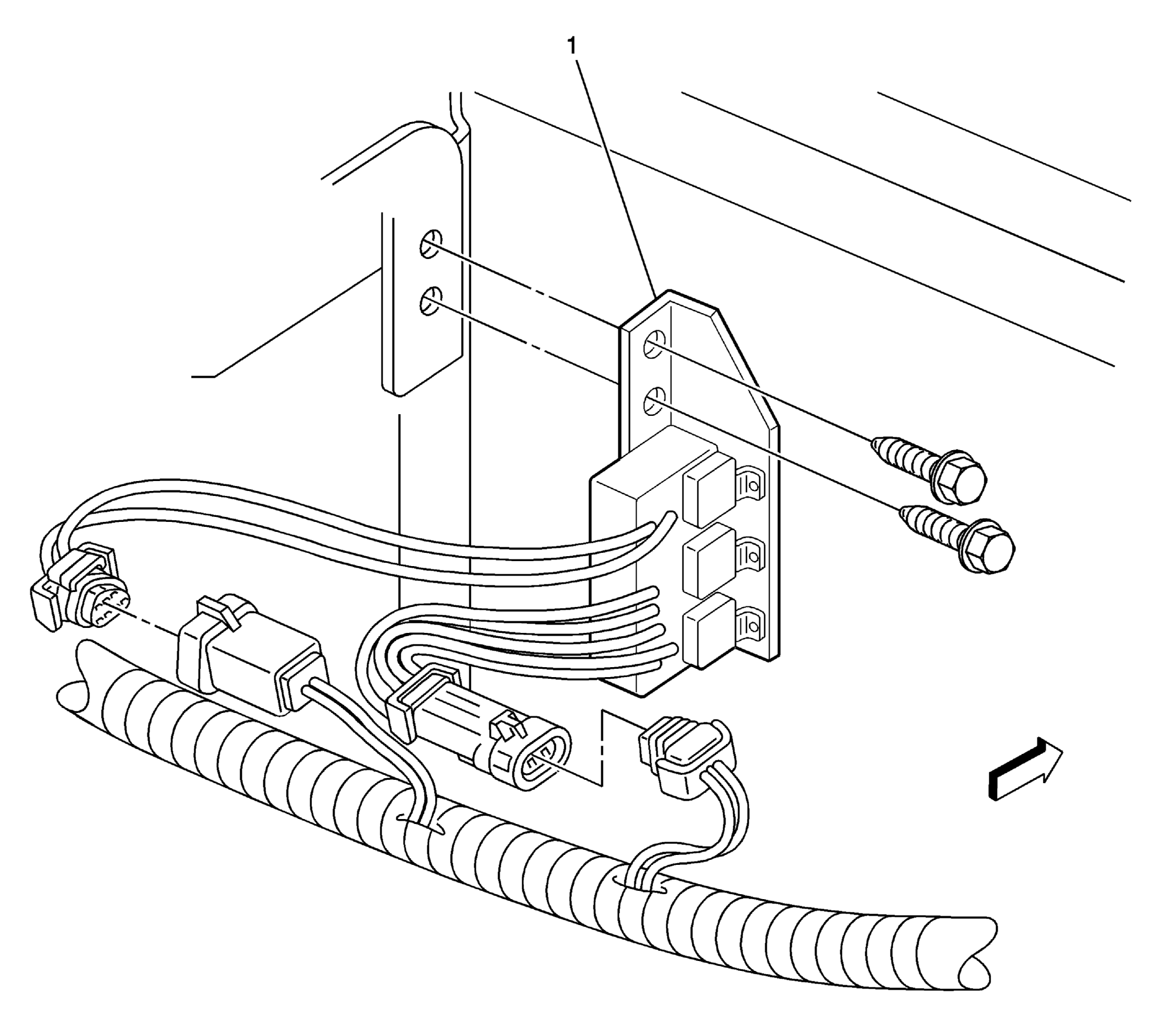

Fig 2: Left Side Of The Right Headlamp Assembly (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Flasher Module (6J7)

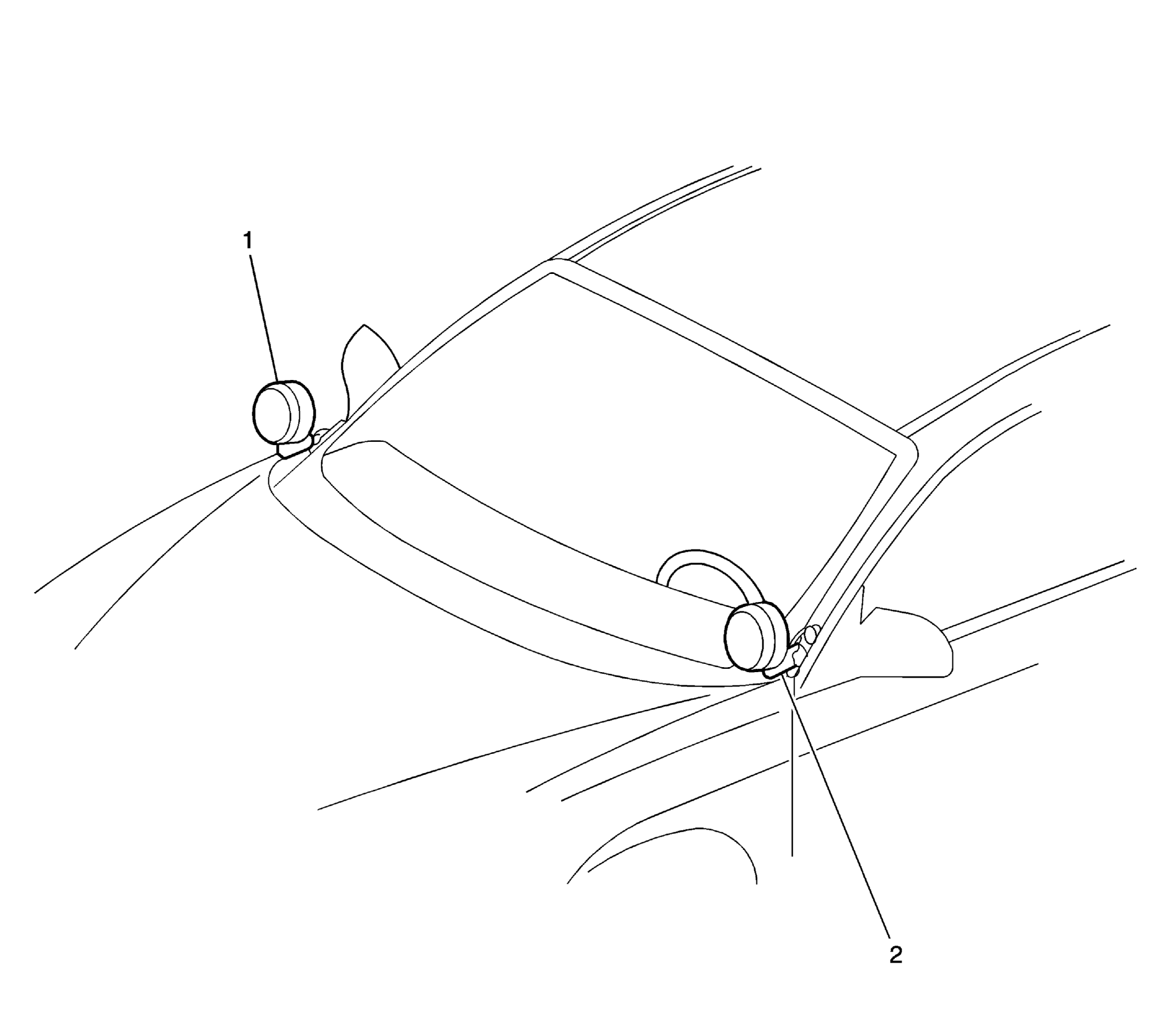

Fig 3: Base Of A-Pillars (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Spot Lamp - Left (7X6, 7X7)
2	Spot Lamp - Right (7X7)

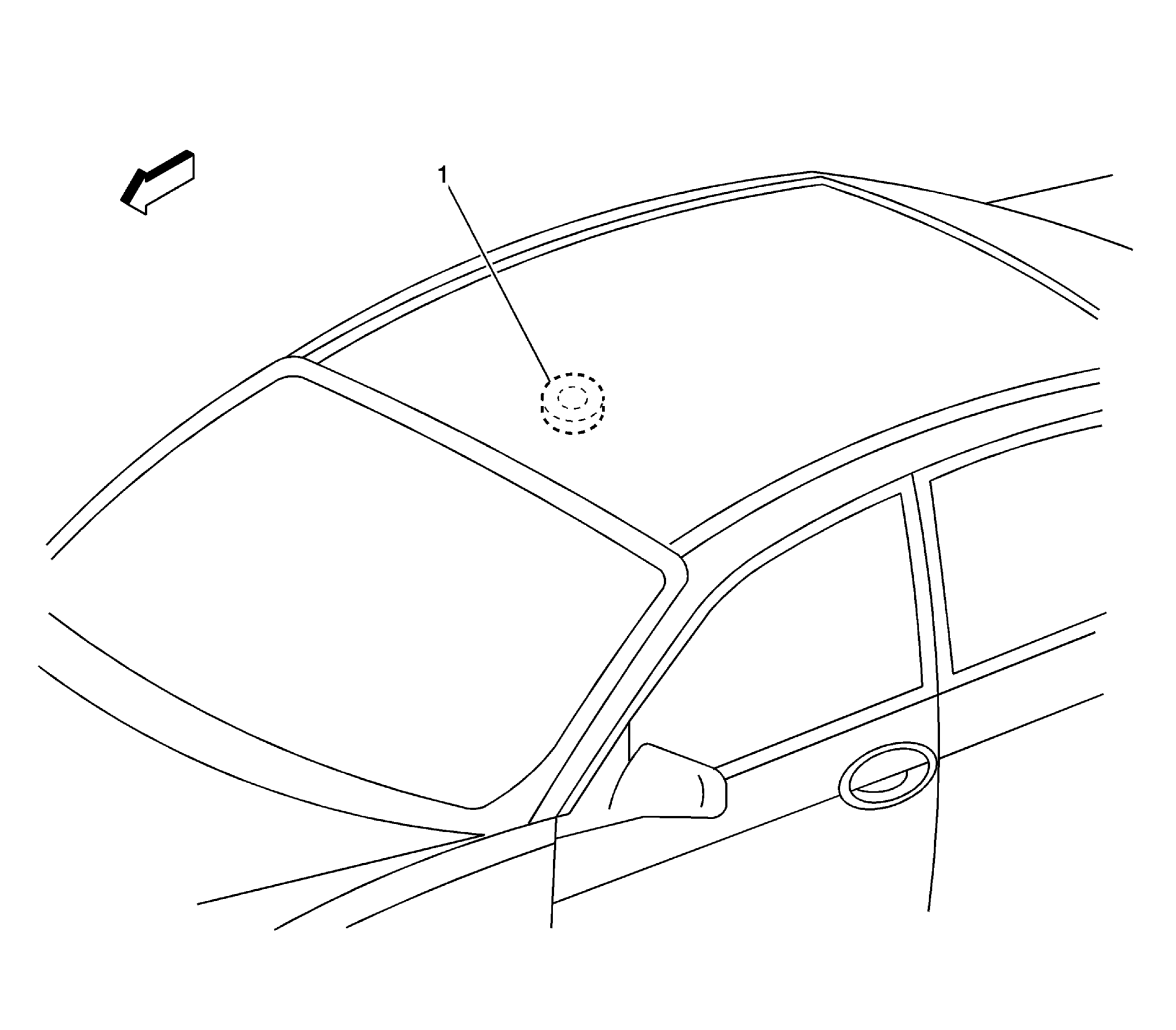

Fig 4: Forward Headliner (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Flasher Module (6J7)

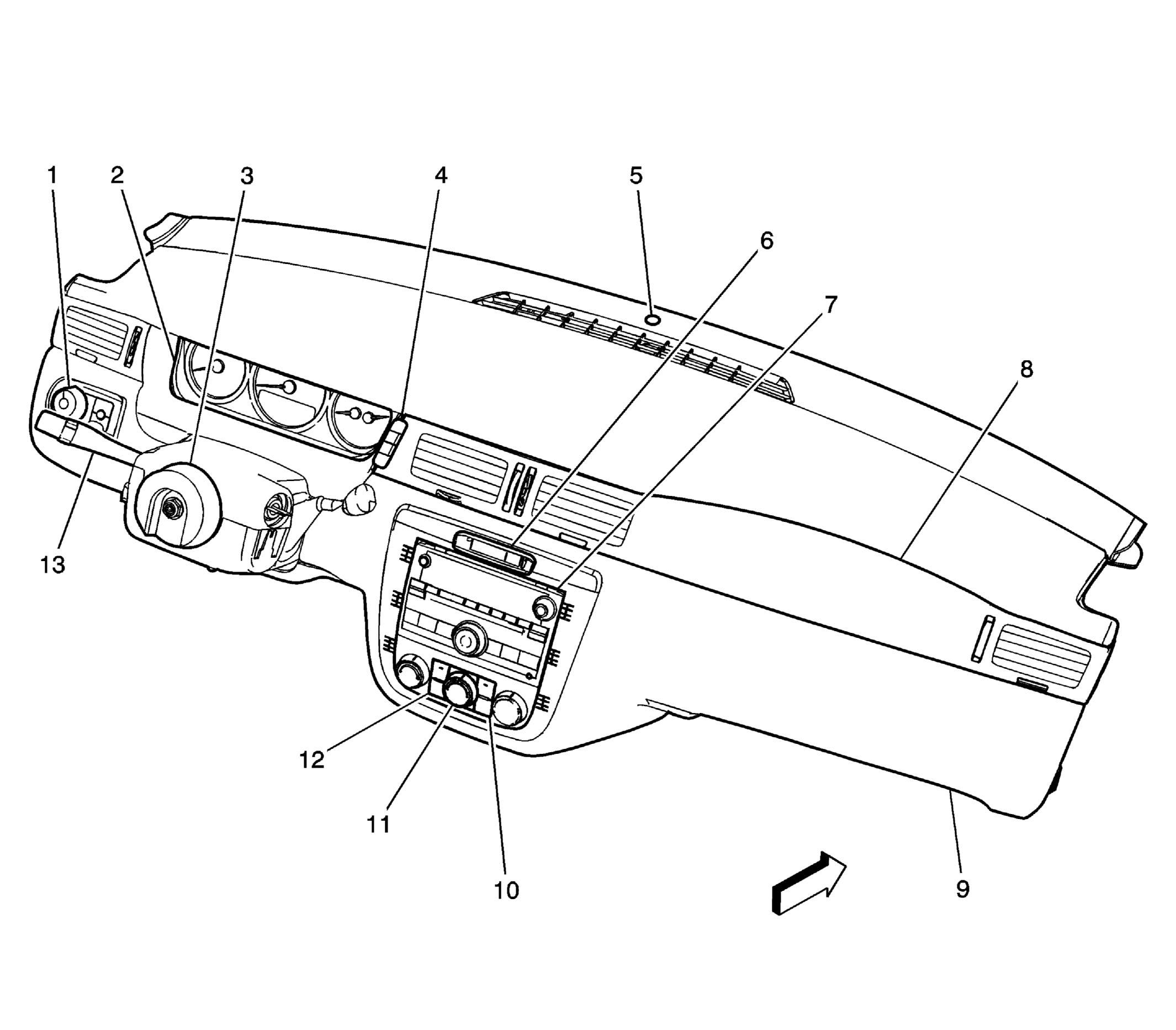

Fig 5: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Ambient Light Sensor
5	Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
6	Radio
7	I/P Trim Panel
8	Heated Seat Switch-Passenger (KA7)
9	HVAC Control Module
10	Heated Seat Switch-Driver (KA7)
11	Turn Signal / Multifunction Switch

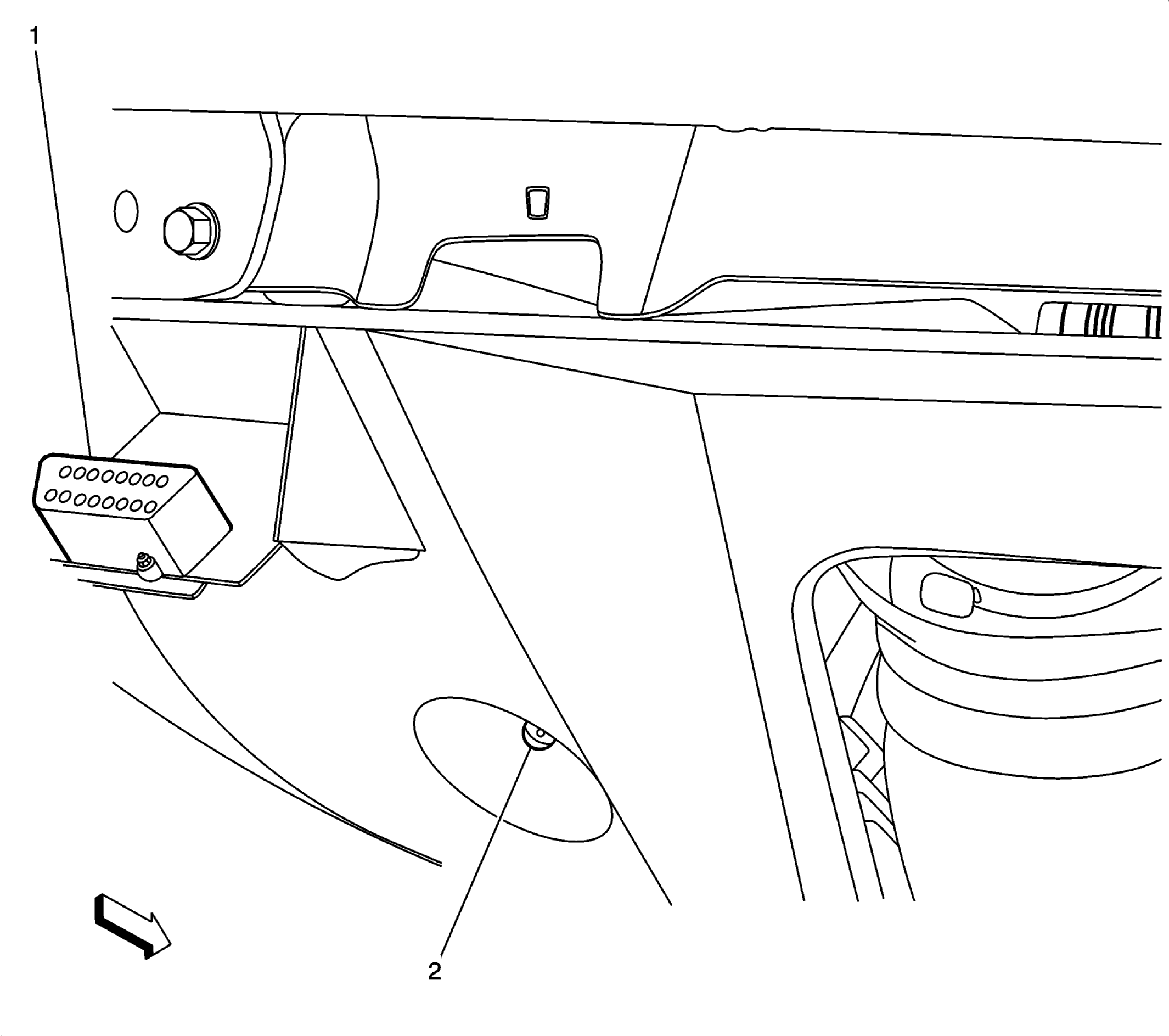

Fig 6: In Left Front Footwell

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Courtesy Lamp - Left

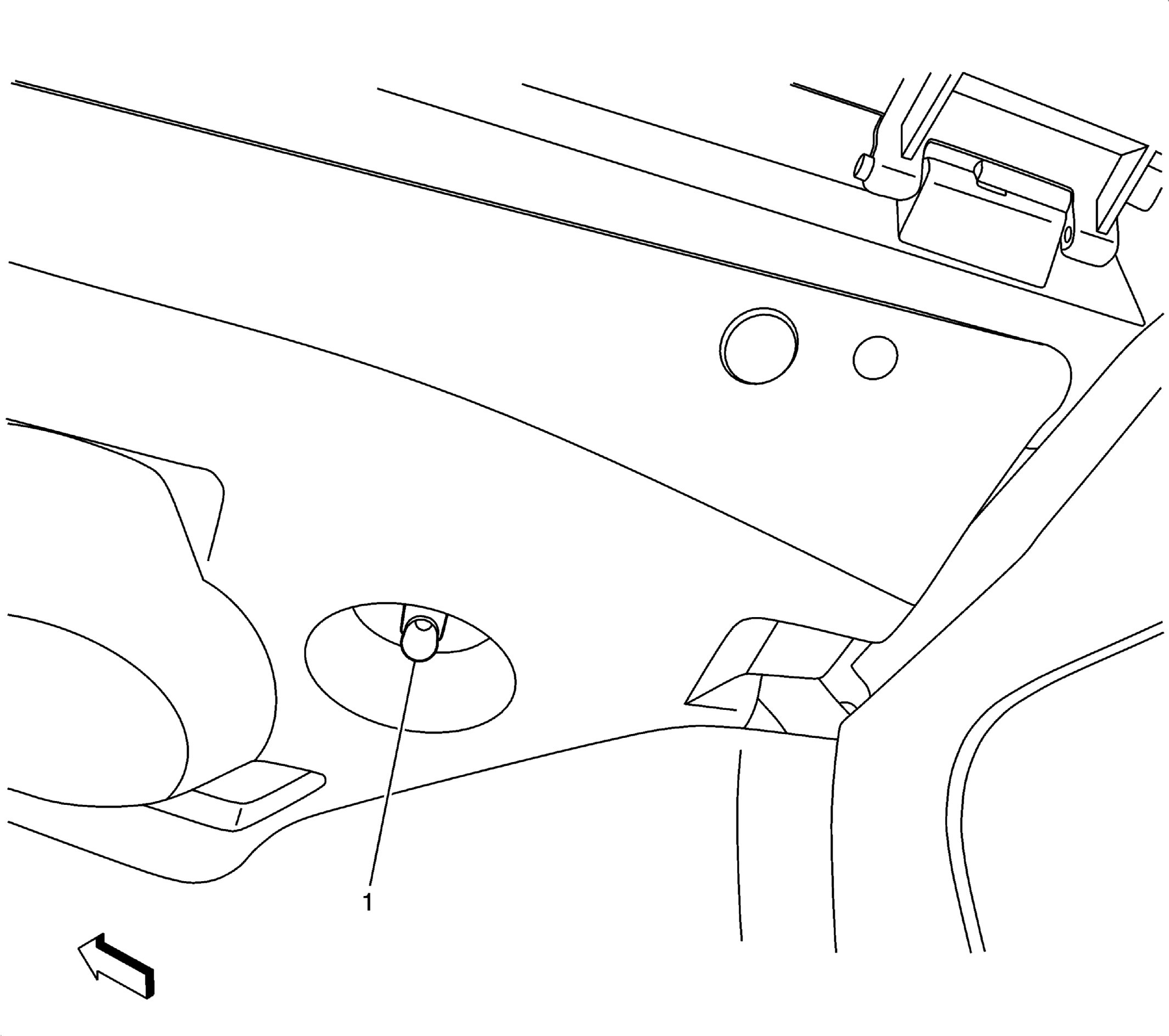

Fig 7: In Right Front Footwell

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Courtesy Lamp - Right

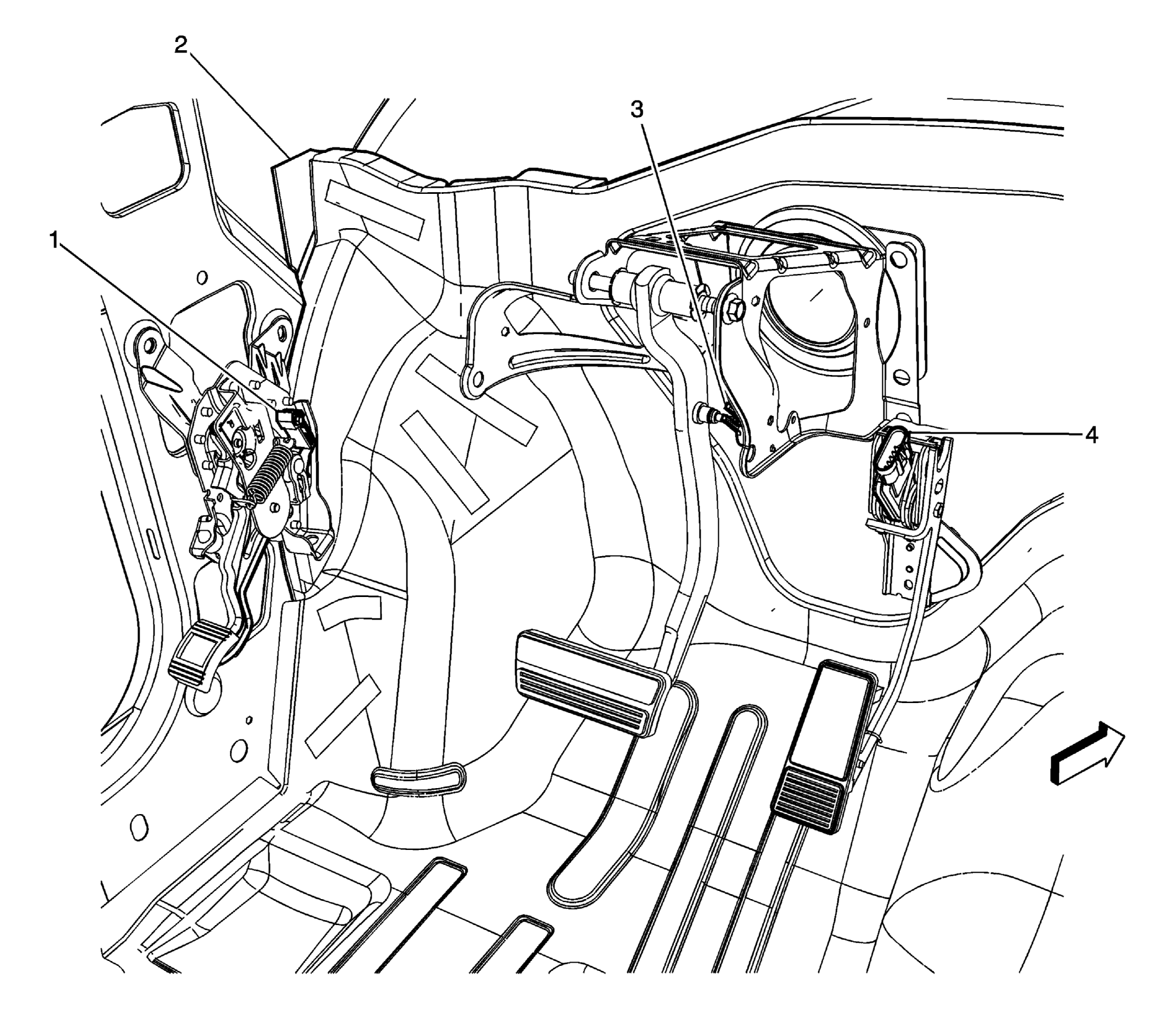

Fig 8: Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Dash Panel
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor

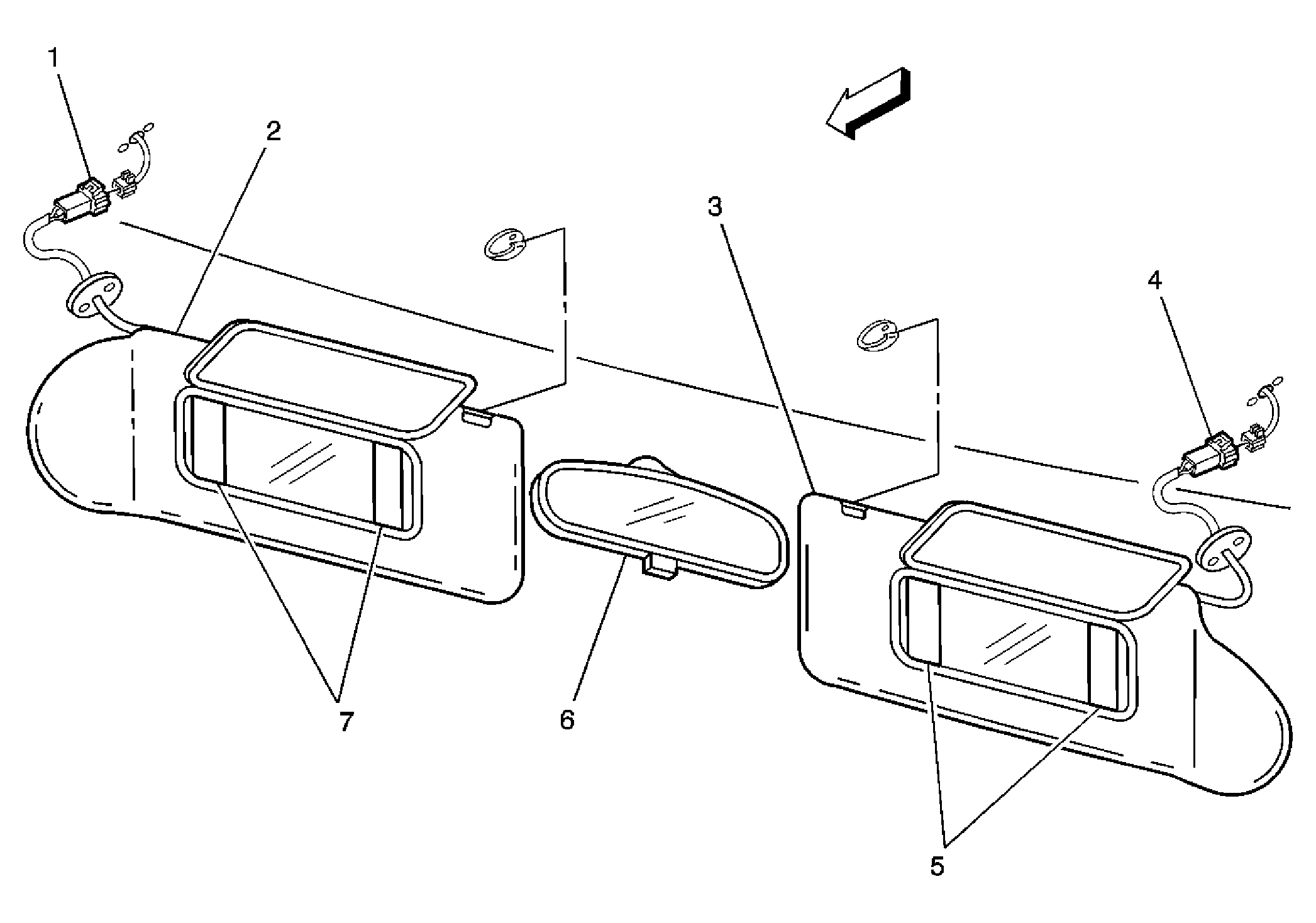

Fig 9: Above Front Windshield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector
2	Left Sunshade
3	Right Sunshade
4	Vanity Mirror Lamp - Right Connector
5	Vanity Mirror Lamp - Right
6	Inside Rearview Mirror
7	Vanity Mirror Lamp - Left

Fig 10: Headliner Components - Bottom View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Home Link Buttons
4	Sunroof Switch

Fig 11: Headliner Components (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Vanity Mirror Lamp - Right (DH6)
3	Garage Door Opener (UG1)
4	Sunroof Switch (CF5)
5	Inflatable Restraint Passenger Air Bag On/Off Indicator
6	Vanity Mirror Lamp - Left (DH6)

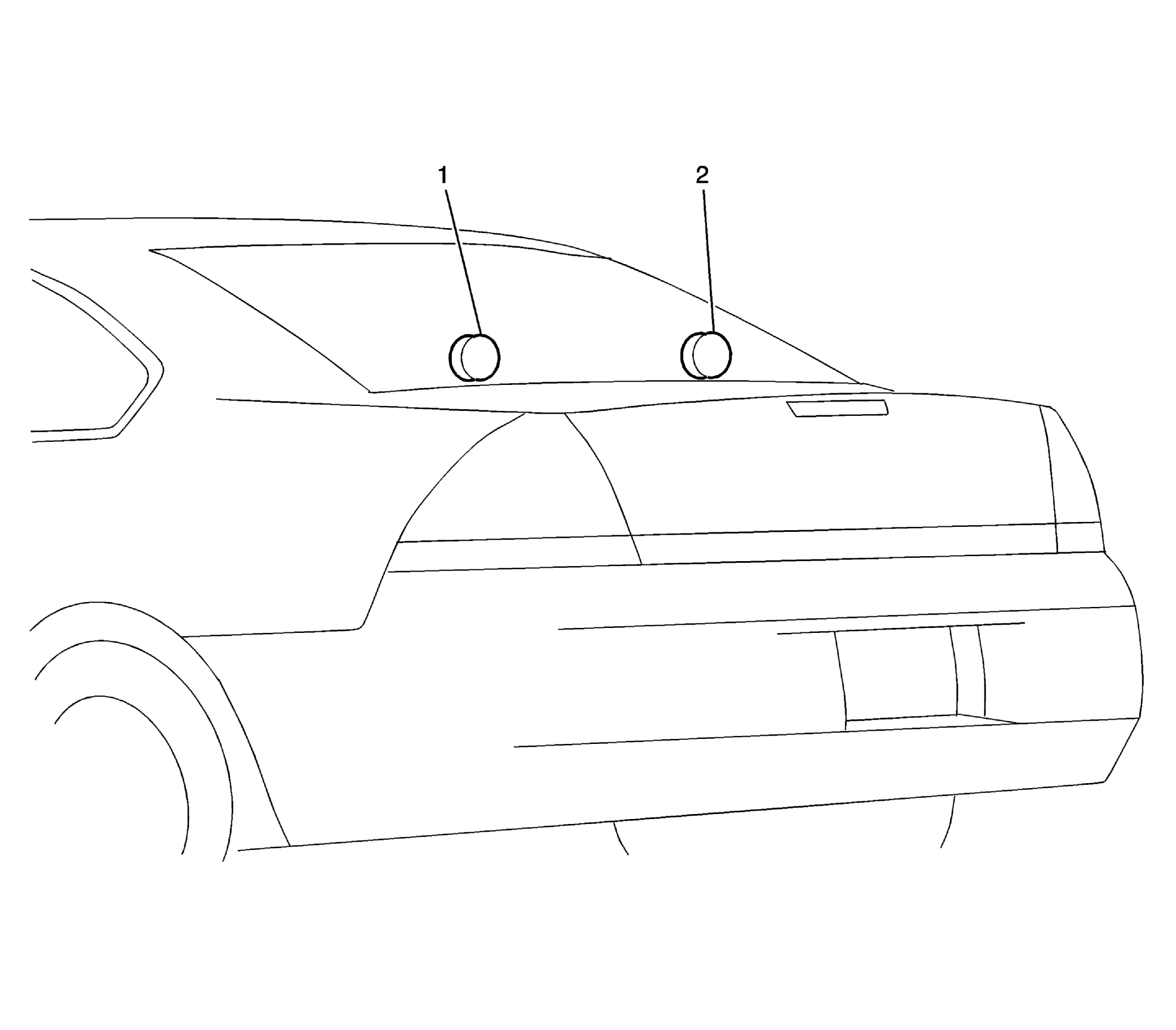

Fig 12: On Package Shelf (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Emergency Vehicle Rear Window Panel Lamp - Left (9C1, 9C3)
2	Emergency Vehicle Rear Window Panel Lamp - Right (9C1, 9C3)

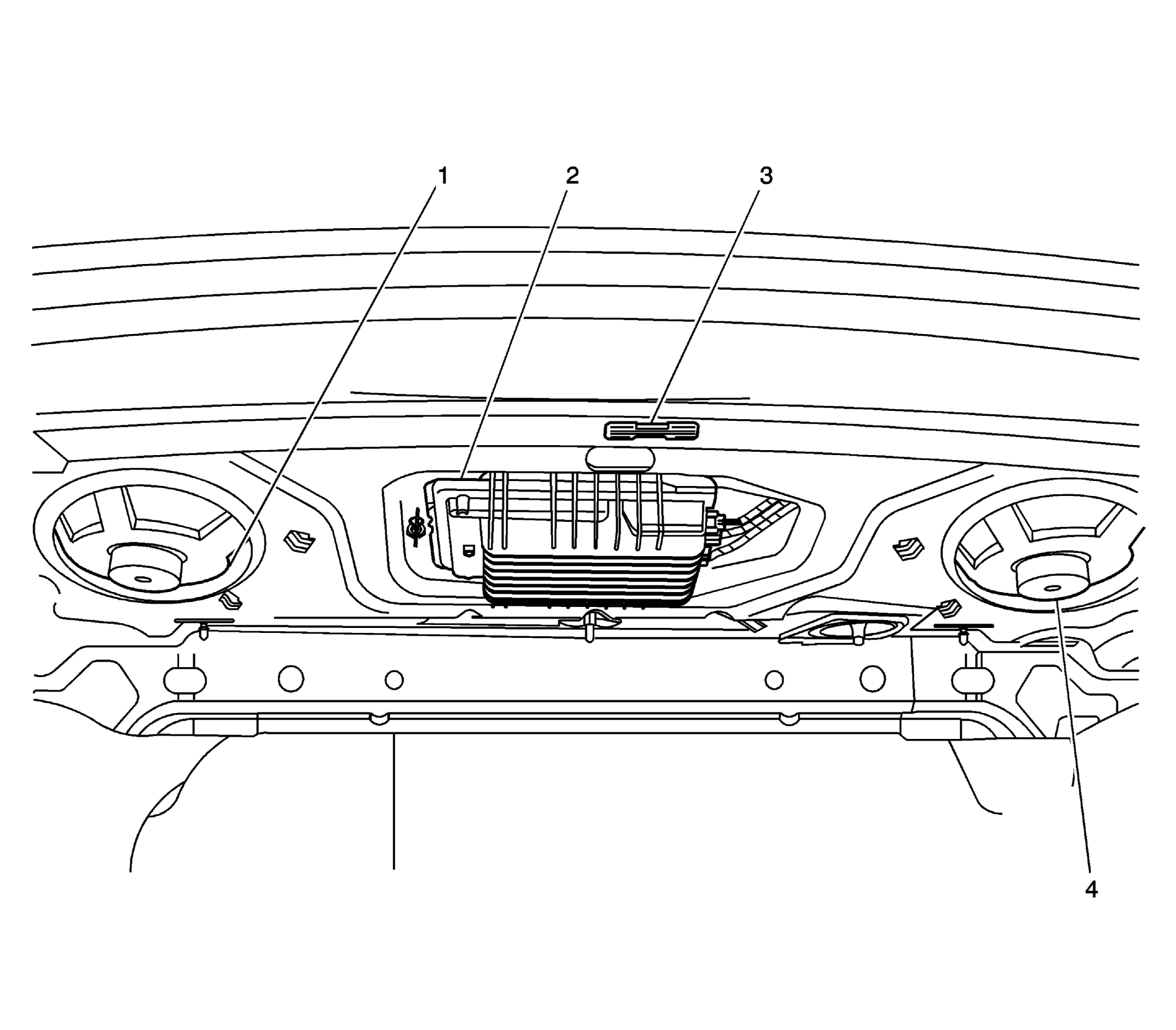

Fig 13: Under Rear Package Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR
2	Audio Amplifier
3	Rear Compartment Courtesy Lamp
4	Speaker - RR

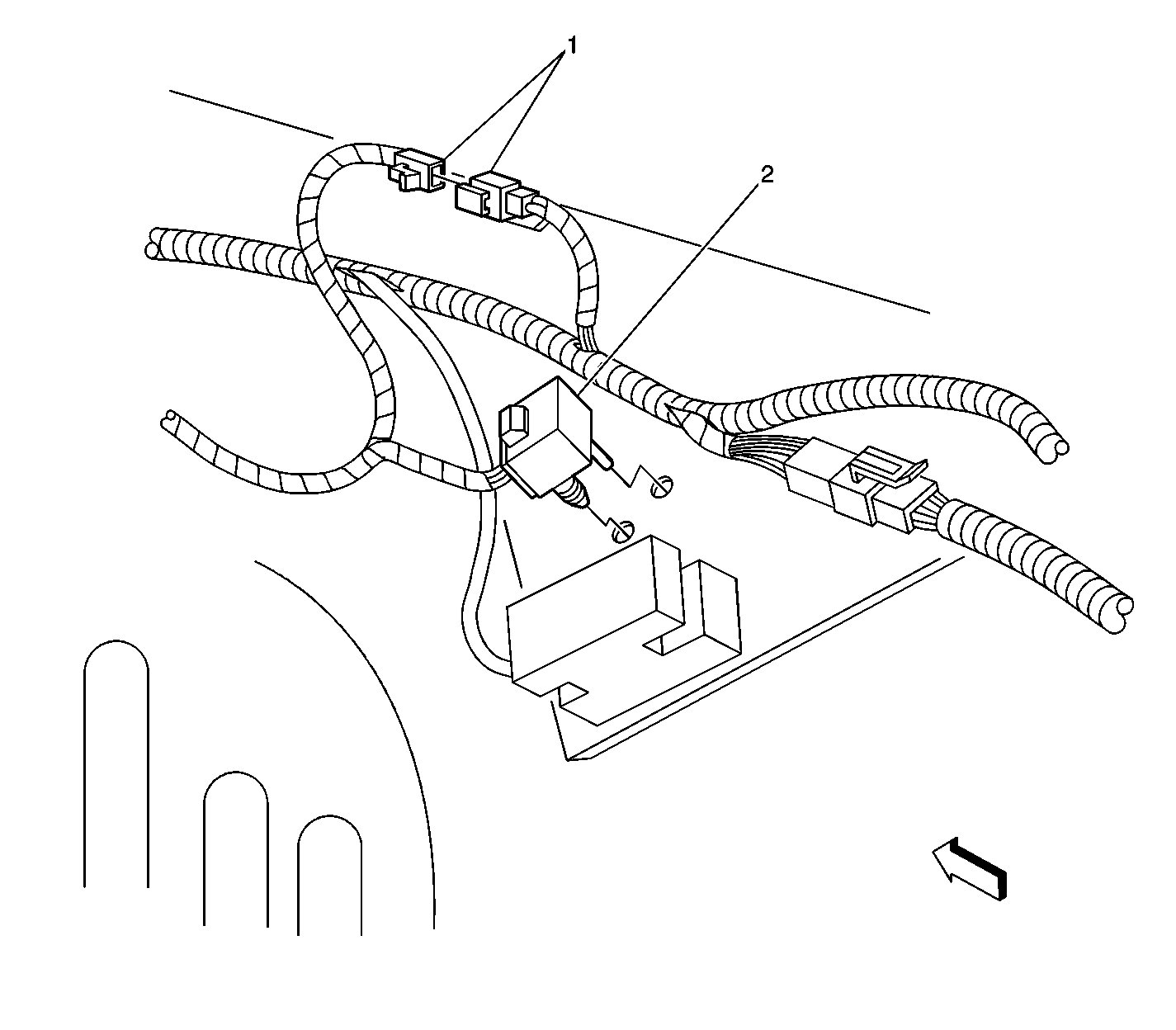

Fig 14: Right Front Of Rear Compartment Component View (w/ T53)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C409
2	Emergency Vehicle Rear Compartment Lid Lamps Relay

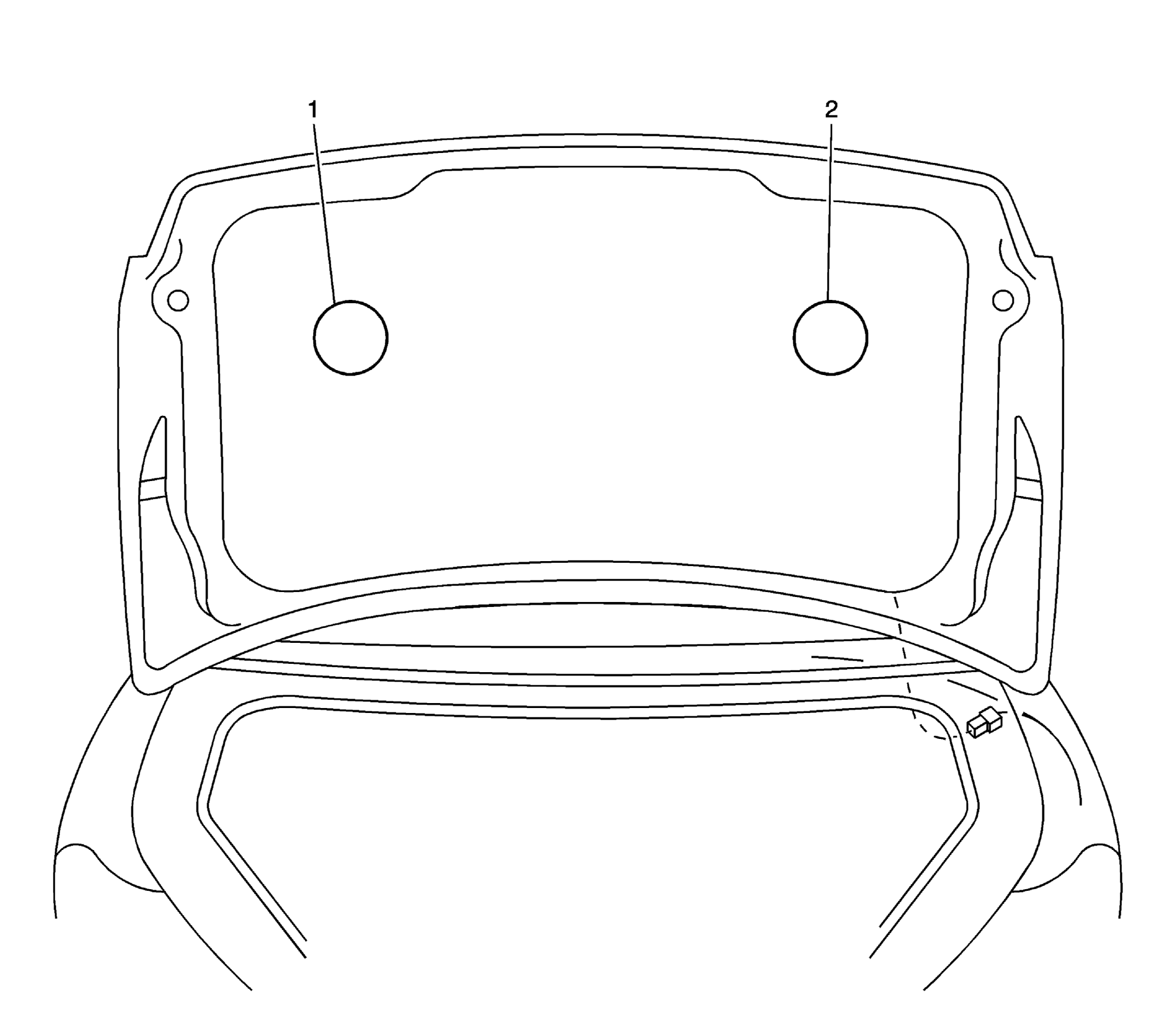

Fig 15: Rear Compartment Lid (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Emergency Vehicle Rear Compartment Lid Lamp - Left (T53)
2	Emergency Vehicle Rear Compartment Lid Lamp - Right (T53)

Fig 16: Rear Of The Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Cellular and Navigation Antenna
3	Stop Lamp - Right
4	Tail/Stop and Turn Signal - Right
5	Backup Lamp - Right
6	License Lamp
7	Center High Mounted Stop Lamp (CHMSL)
8	Backup Lamp - Left
9	Tail/Stop and Turn Signal - Left
10	Stop Lamp - Left

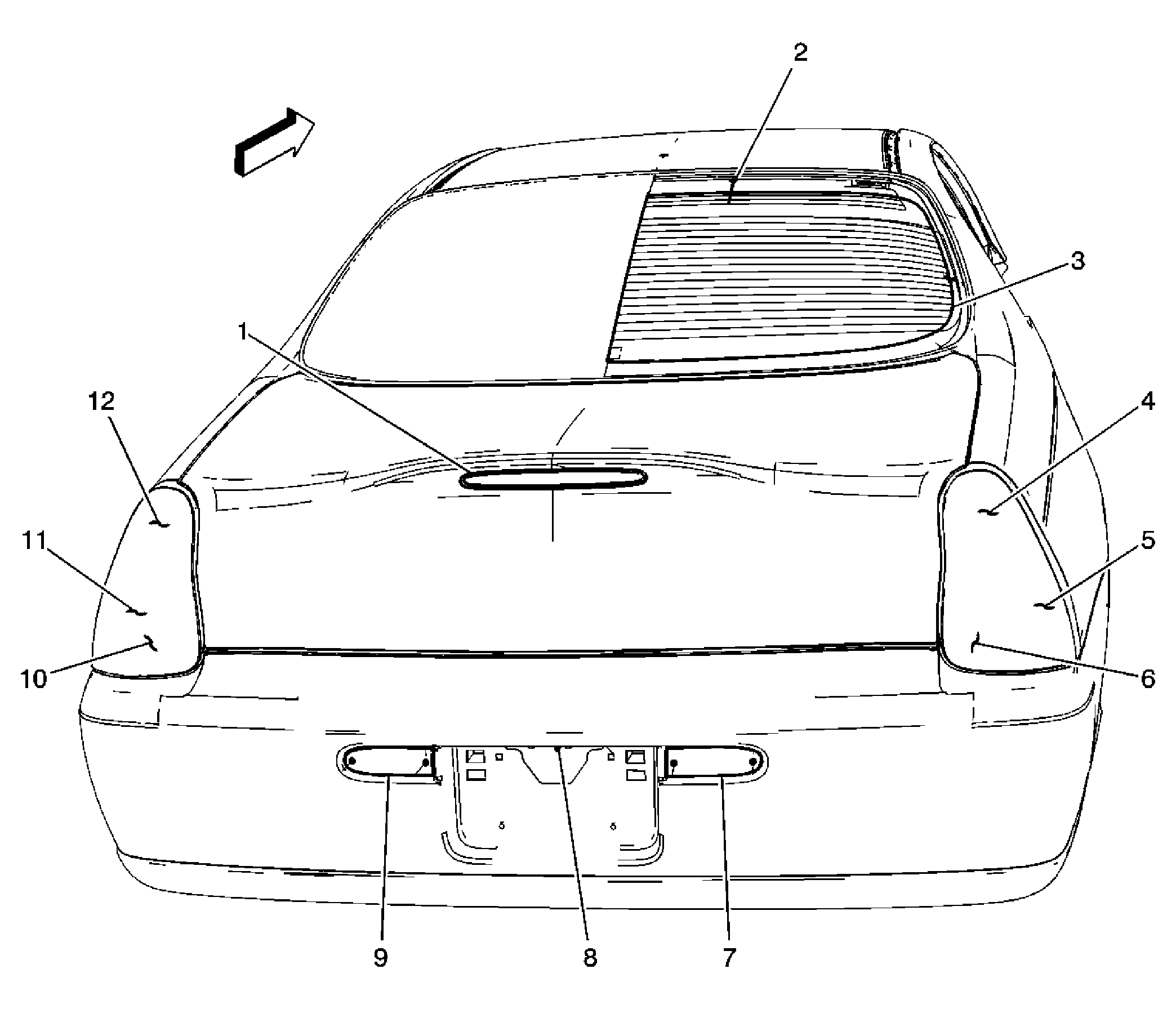

Fig 17: Rear Of The Vehicle (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Radio Rear Window Antenna
3	Rear Window Defogger Grid
4	Tail Lamp - Right
5	Marker Lamp - RR
6	Tail/Stop and Turn Signal Lamp - Left
7	Backup Lamp - Right
8	License Lamp
9	Backup Lamp - Left
10	Tail/Stop and Turn Signal Lamp - Right
11	Marker Lamp - LR
12	Tail Lamp - Left
