Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Bulb Replacement

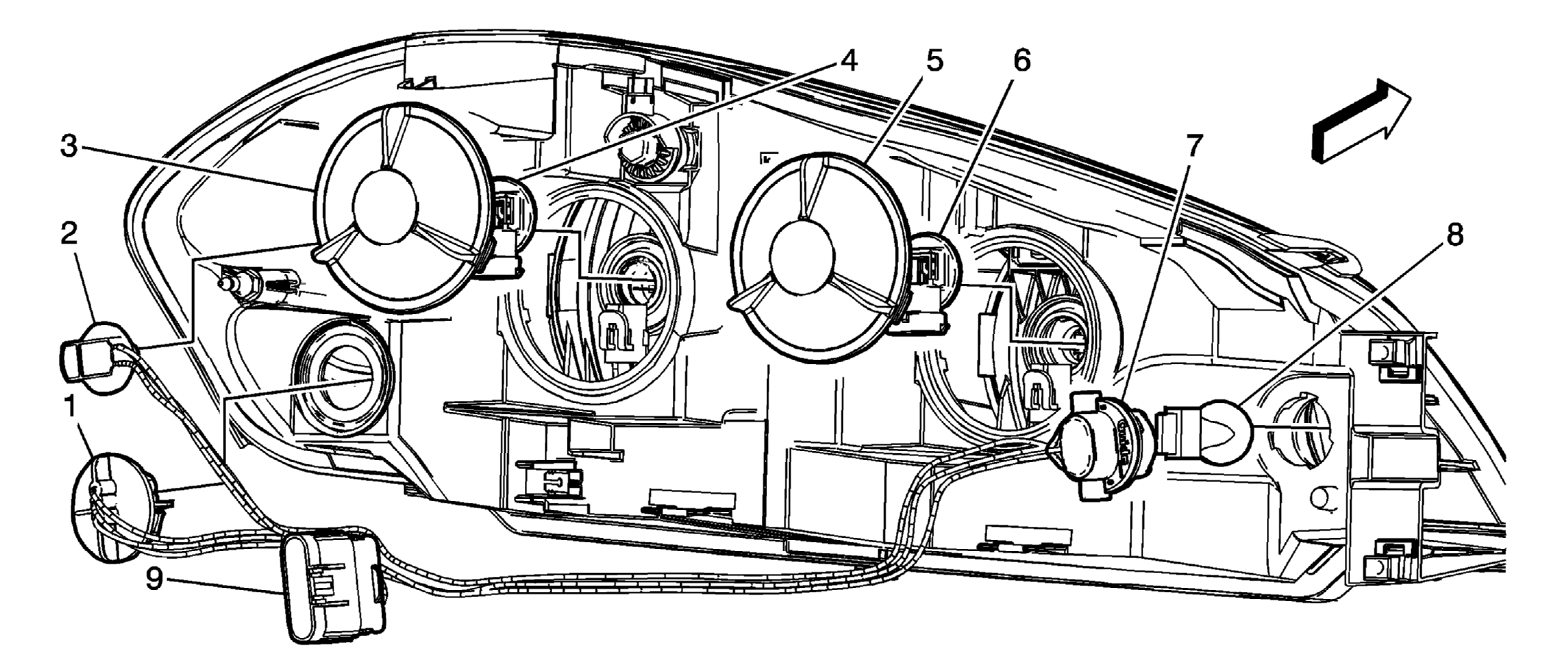

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedures
|
|
| 1 | Lamp Assembly, Daytime Running and Front Park and Turn Signal
CAUTION:
Refer to Halogen Bulb Caution
.
|
| 2 | Lamp Assembly, Park Tip: Pull outward on the housing in order to access the electrical connector. |
| 3 | Cover, Headlamp Bulb Accessory Tip: Turn the cover counterclockwise in order to remove. |
| 4 | Bulb, Headlamp (LO Beam)
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Disconnect the electrical connector from the headlamp bulb socket and turn bulb socket a quarter turn counterclockwise in order to remove. |
| 5 | Cover, Headlamp Bulb Accessory Tip: Turn the cover counterclockwise in order to remove. |
| 6 | Bulb, Headlamp (HI Beam)
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Disconnect the electrical connector from the headlamp bulb socket and turn bulb socket a quarter turn counterclockwise in order to remove. |
| 7 | Socket, Front Park and Turn Signal Tip: Turn lamp socket counterclockwise in order to remove from the headlamp assembly. |
| 8 | Bulb, Front Park and Turn Signal Tip: Pull the park and turn signal lamp bulb straight from the bulb socket. |
| 9 | Connector, Forward Lamp Harness |
