Headlamp Replacement (Impala)
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Replacement (Impala)

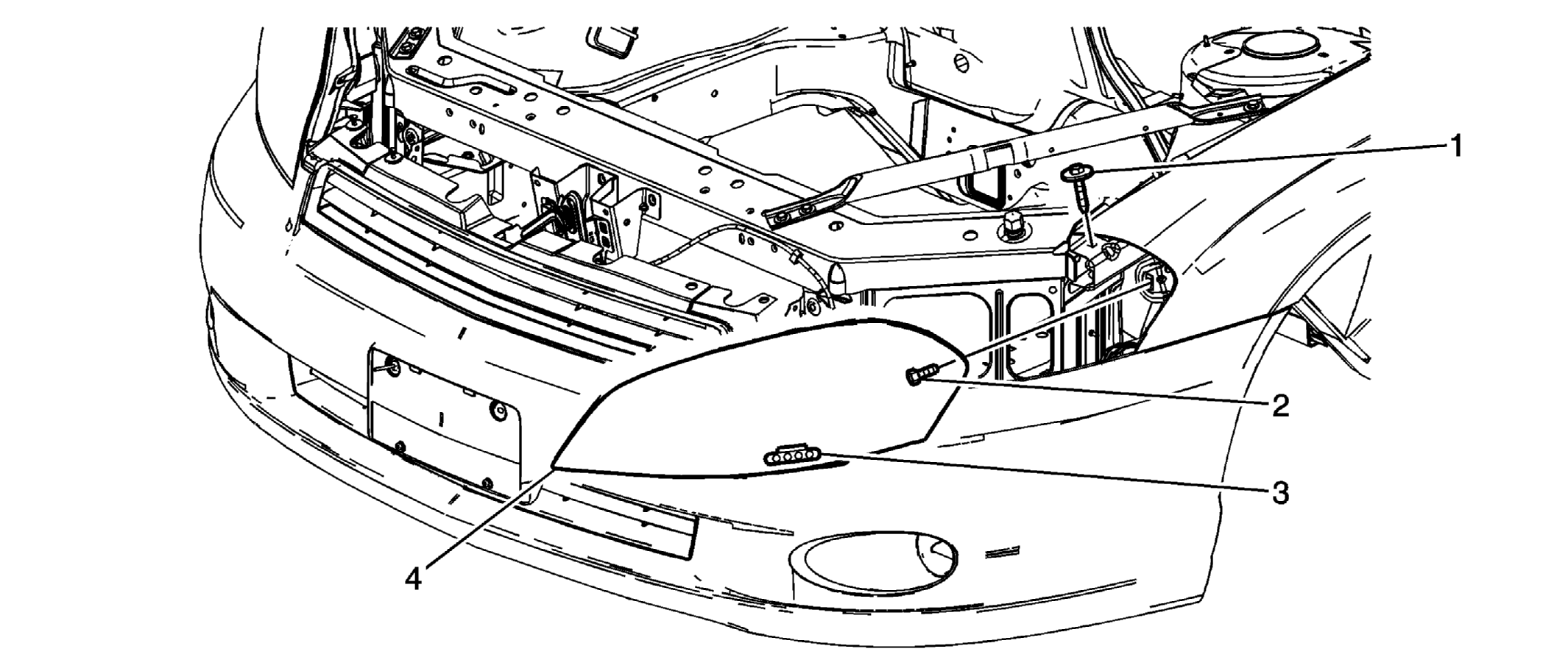

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Open the hood. |
|
| 1 | Bolt, Headlamp Assembly Tighten: 6 N.m (53 lb in) |
| 2 | Pin, Headlamp Lock Tip: Pull headlamp from the outboard edge in order to release the lock pin from the fender flange retainer. |
| 3 | Connector, Forward Lamp Harness Tip: Disconnect the electrical connector before removing the headlamp from the vehicle. |
| 4 | Assembly, Headlamp
CAUTION:
Refer to Halogen Bulb Caution
.
|
