Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

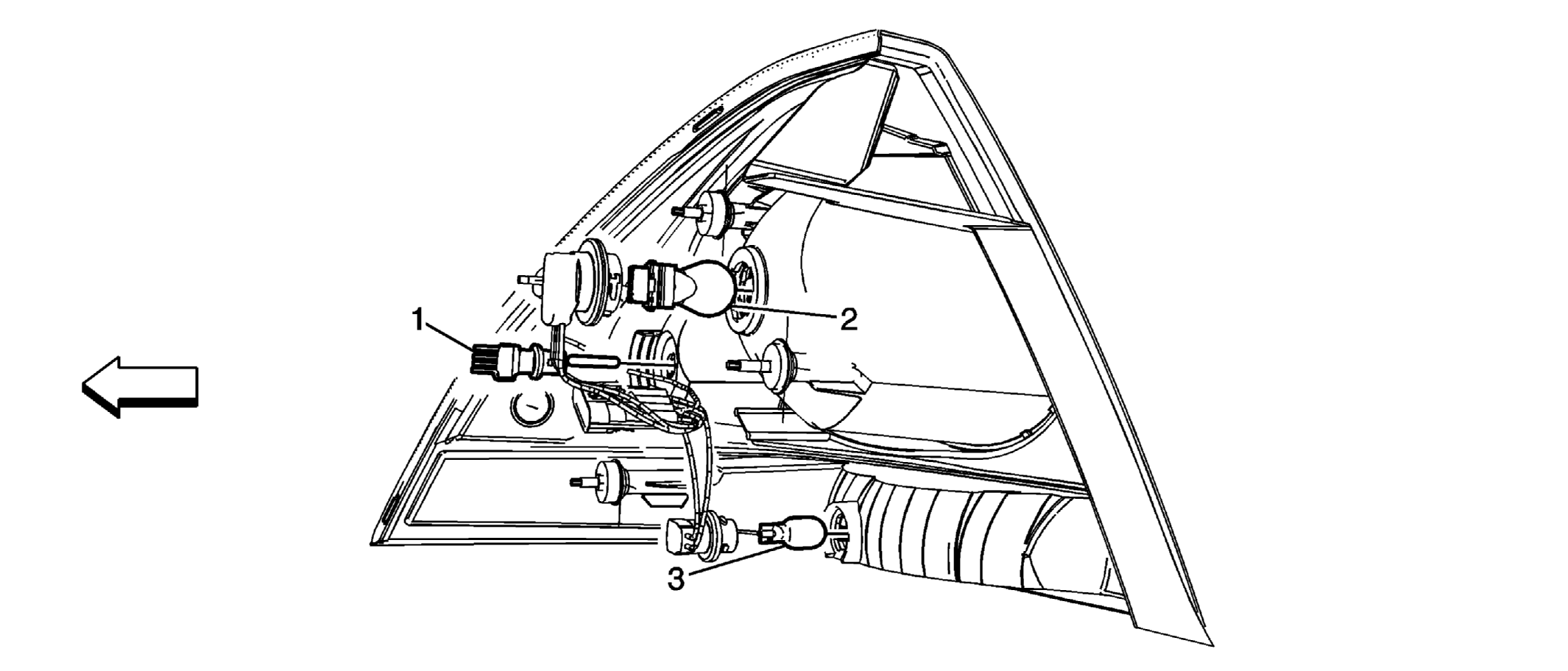

Fig 1: Replacing Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement (Monte Carlo) or Tail Lamp Replacement (Impala) .
1	Bulb, Rear Park Lamp Tip: Turn the lamp socket counterclockwise in order to remove.
2	Bulb, Park and Turn Signal Assembly Tip: Pull the bulb straight out of the lamp socket.
3	Bulb, Rear Back Up Assembly CAUTION: Refer to Halogen Bulb Caution . Tip: Remove the bulb from the lamp socket by pulling the bulb straight outward from the socket.
