Front Seat Belt Buckle Replacement

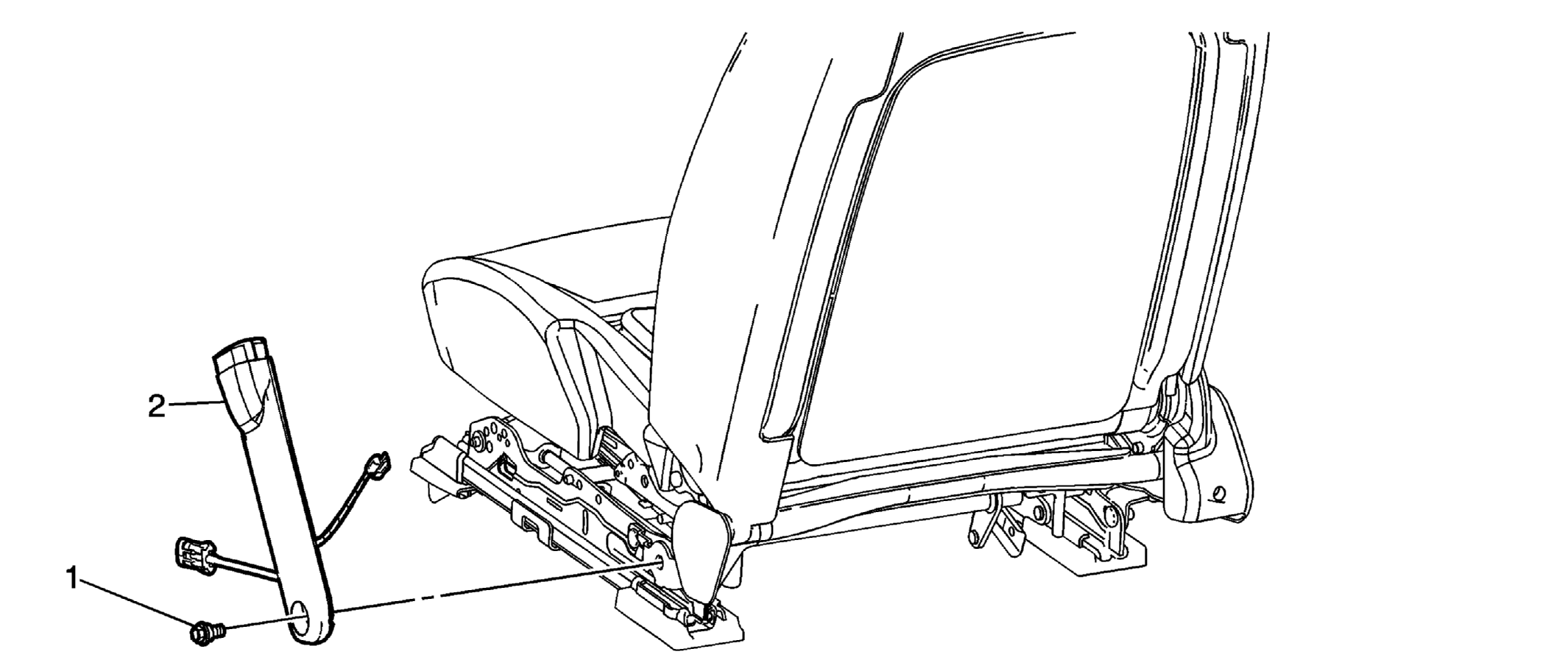

Fig 1: Identifying Front Seat Belt Buckle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket (Impala) or Front Seat Replacement - Bucket (Monte Carlo) .
1	Bolt, Seat Belt Buckle Tip: Disconnect the electrical connector. Tighten: 42 N.m (31 lb ft)
2	Belt, Seat Buckle Assembly
