Remote Function Component Views

Remote Function Component Views

Under the Hood Latch Trim Panel




1 - Ambient Air Temperature Sensor
2 - Hood Ajar Switch (AP3, AP8)

Left Side of Windshield




1 - Left A-Pillar
2 - Remote Control Door Lock Receiver Windshield Antenna (AP3, AP8)

Upper Center of the I/P




1 - Remote Control Door Lock Receiver (RCDLR)
2 - I/P Carrier

Headliner Components (Sedan)




1 - Headliner
2 - Dome/Reading Lamp
3 - Garage Door Opener (UG1)
4 - Sunroof Switch (CF5)

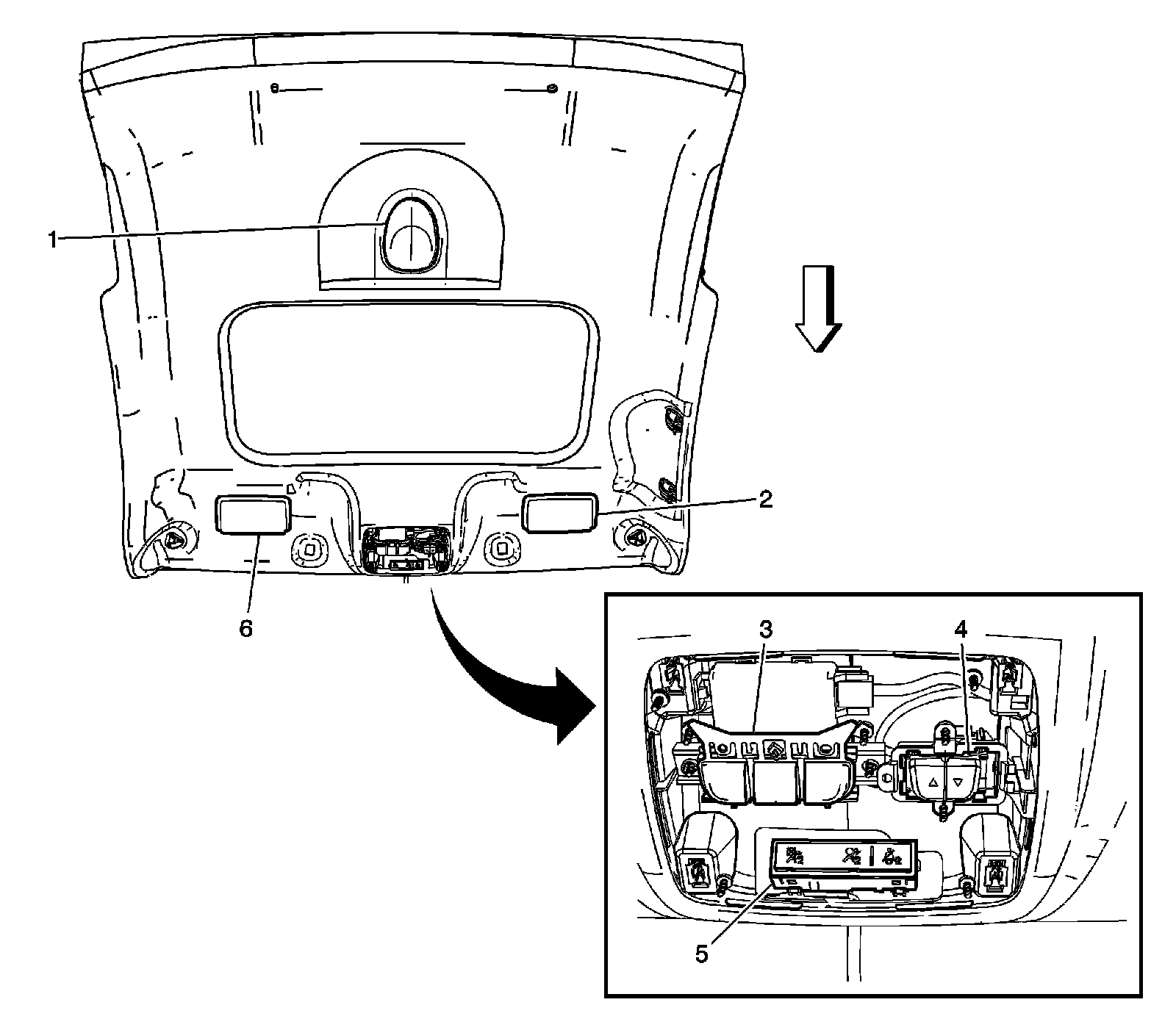

Headliner Components (Coupe)




1 - Dome Lamp
2 - Vanity Mirror Lamp - Right (DH6)
3 - Garage Door Opener (UG1)
4 - Sunroof Switch (CF5)
5 - Inflatable Restraint Passenger Air Bag On/Off Indicator
6 - Vanity Mirror Lamp - Left (DH6)
