Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

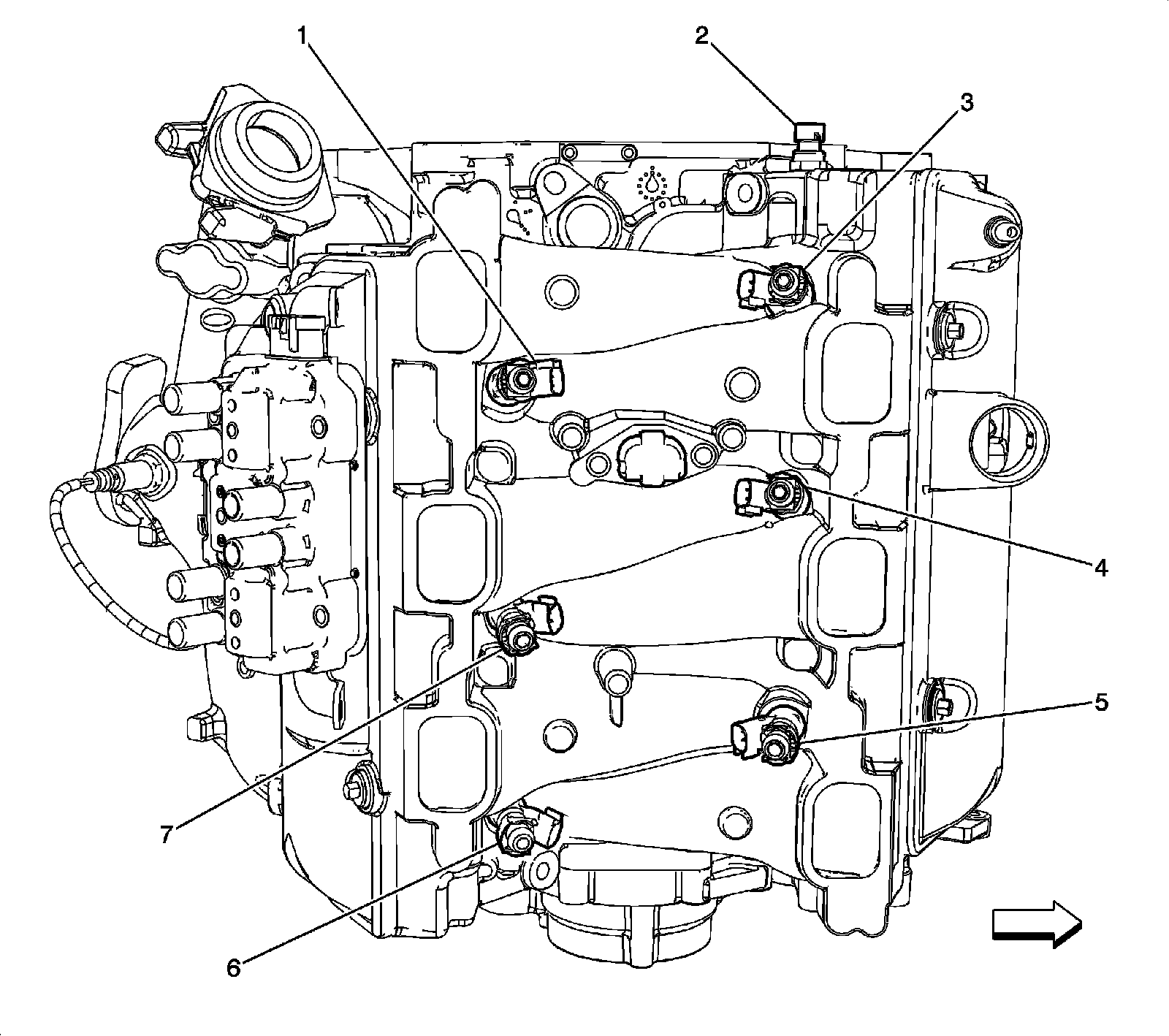

Beneath the Upper Intake (LZE, LZ4, LZ9)




1 - Fuel Injector 5
2 - Engine Coolant Temperature (ECT) Sensor
3 - Fuel Injector 6
4 - Fuel Injector 4
5 - Fuel Injector 2
6 - Fuel Injector 1
7 - Fuel Injector 3
