Variable Induction Control Solenoid

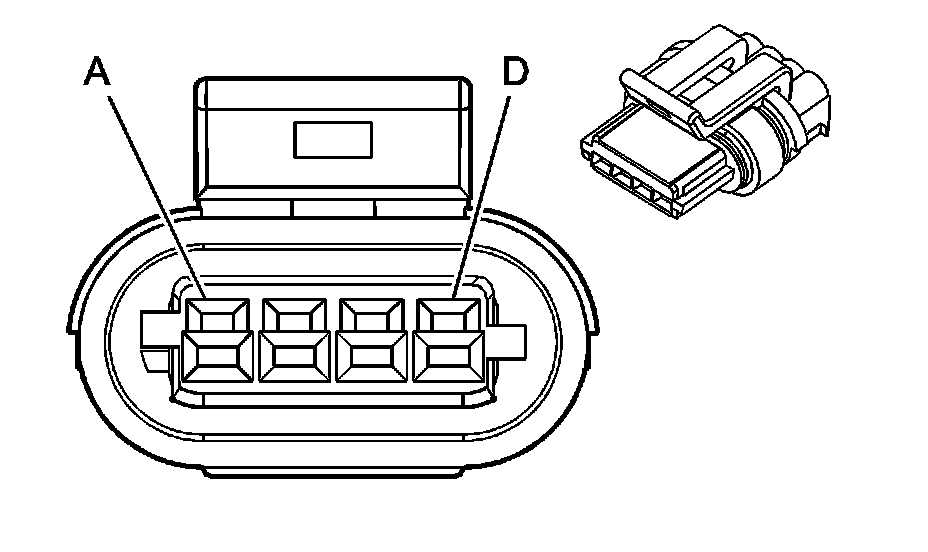

Engine Controls Connector End Views

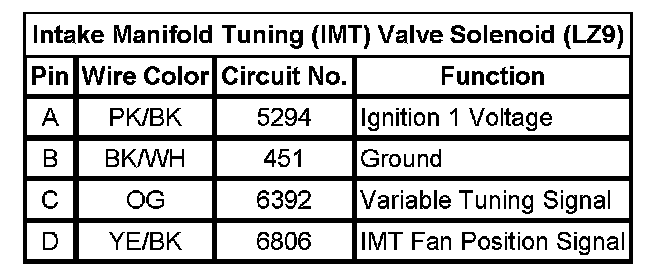

Intake Manifold Tuning (IMT) Valve Solenoid (LZ9)
Engine Controls Connector End Views

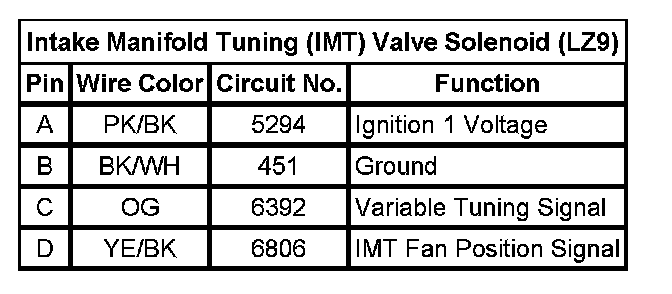

Intake Manifold Tuning (IMT) Valve Solenoid (LZ9)
Engine Controls Connector End Views
Intake Manifold Tuning (IMT) Valve Solenoid (LZ9)
Engine Controls Connector End Views
Intake Manifold Tuning (IMT) Valve Solenoid (LZ9)
