Air Flow Meter/Sensor: Locations

Engine Controls Component Views

LF of the Engine Compartment

LF of the Engine Compartment:

1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Brake Booster Vacuum Sensor (LS4)
3 - Windshield Wiper Motor
4 - Electronic Brake Control Module (EBCM)
5 - A/C Refrigerant Pressure Sensor
6 - Transmission Control Module (TCM)
7 - Control Module (ECM)
8 - G101
9 - Inflatable Restraint Front End Sensor - Left

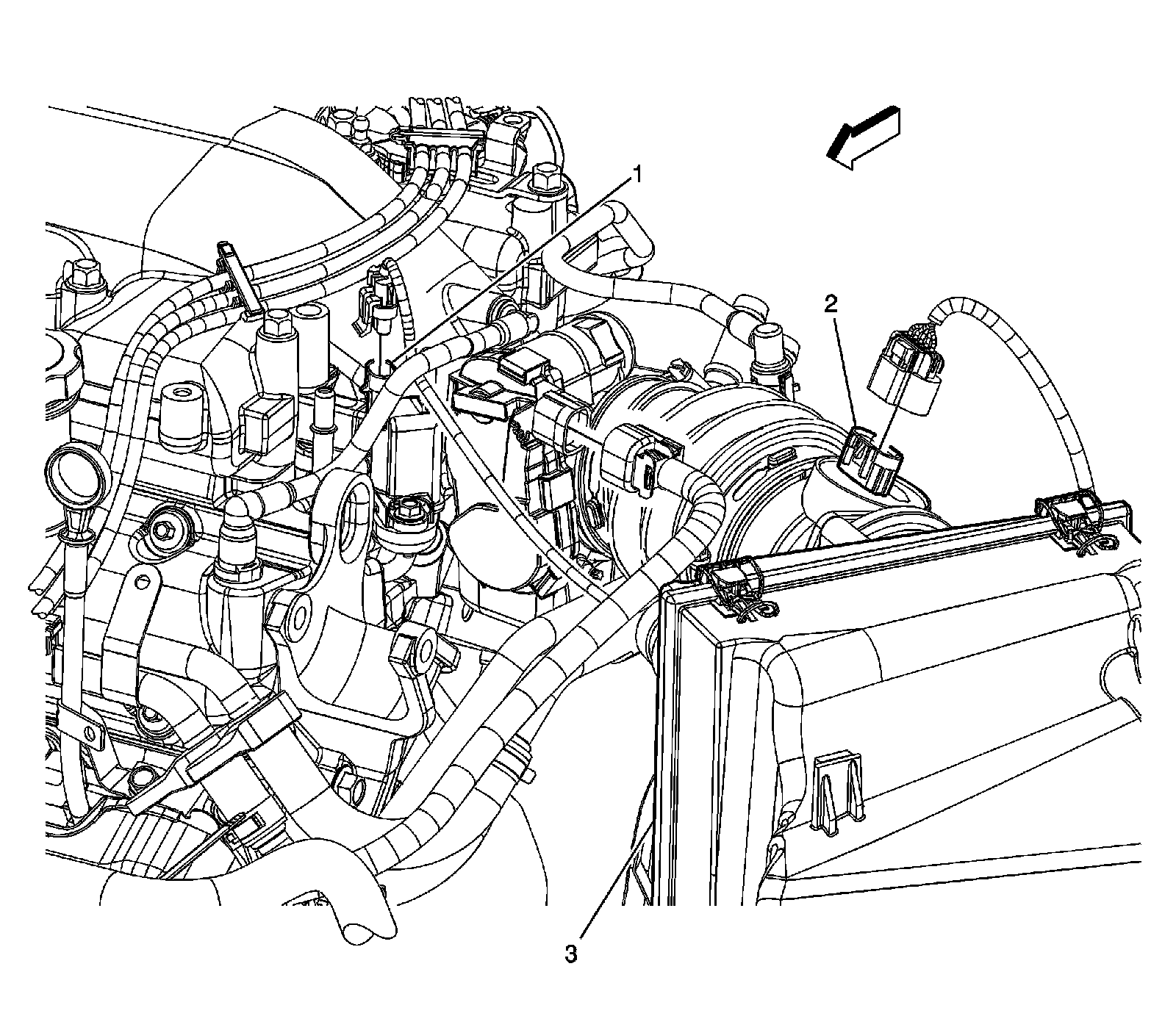

Near the Air Cleaner Duct (LZE, LZ4, LZ9)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3 - Air Cleaner Housing
