Barometric Pressure Sensor: Service and Repair

Barometric Pressure Sensor Replacement

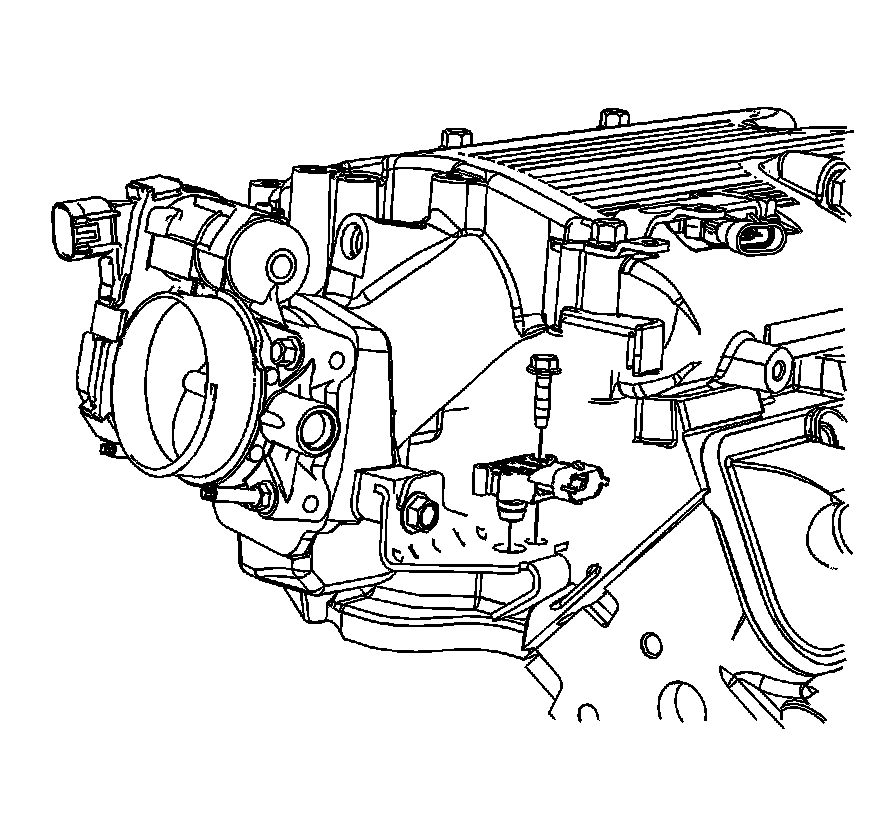

Removal Procedure




1. Remove the intake manifold cover.
2. Disconnect the engine wiring harness electrical connector from the barometric (BARO) pressure sensor.
3. Remove the BARO sensor bolt.
4. Remove the BARO sensor.

Installation Procedure




1. Lubricate the BARO sensor O-ring seal with clean engine oil.
2. Install the BARO sensor to the bracket.

Notice: Refer to Fastener Notice.

3. Install the BARO sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).

4. Connect the engine wiring harness electrical connector to the BARO sensor.
5. Install the intake manifold cover.
